K90TLGYRPQ Banner Signal Beacons
Part#:K90TLGYRPQ
Manufacturer:Banner
Alt. Part#:92834
Product Lifecycle:Active
Get a quick Quote!
K90T Series EZ-LIGHT; 3-Color Indicator; Voltage: 12-30 V dc; Environmental Rating: IP67; Input: PNP; Colors: Green Yellow Red; 5-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K90TLGYRPQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight217.72416 g
- Country Of OriginMX
- Color Option 1 Green
- Color 3 - Wavelength/Color Temp/Coordinates 625 nm
- Feature: Hazardous Area No
- Number of Colors / Segments 3
- Color Option 3 Red
- Physical Dimensions (LxWxH or DxH mm) 90.0 x 87.0
- Feature: Audible No
- Primary Housing Material Polycarbonate
- Lumens Color 2 35.0
- Max Input Response Time (ms) 150
- Modbus RTU No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Supply Voltage 12-30 V dc
- Feature: Chemical Resistant No
- Power Source DC
- Animation Option 1 Solid On
- Wire Selectable Function Multi-Function
- Primary Window Material Polycarbonate Diffused
- Housing Style Base Mount - Dome Window
- Connection Integral QD
- Lumens Color 3 65.0
- NEMA Type and UL Type Rating NEMA 4X, 13
- Wireless No
- Power DC
- Product Size (mm) 90
- Color Option 2 Yellow
- Input Type PNP
- Multi-Color Device Single Color On - Alternating
- Indication Yes
- Quick Disconnect Type M12 (Euro)
- Max Current Color (mA) 475
- Min Op. Temperature (°C) -40
- Color Technology Standard LED
- Cable Length (m) 0.15
- Color 2 - Wavelength/Color Temp/Coordinates 590 nm
- Environmental Rating IP67
- IO Link No
- Mounting Thread M30 x 1.5
- Lumens Color 1 150
- Number of Input Pins/Conductors 5
- Max Op. Temperature (°C) 50
- Pro-Editor Compatible (Discrete) No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
K90TLGYRPQ Description

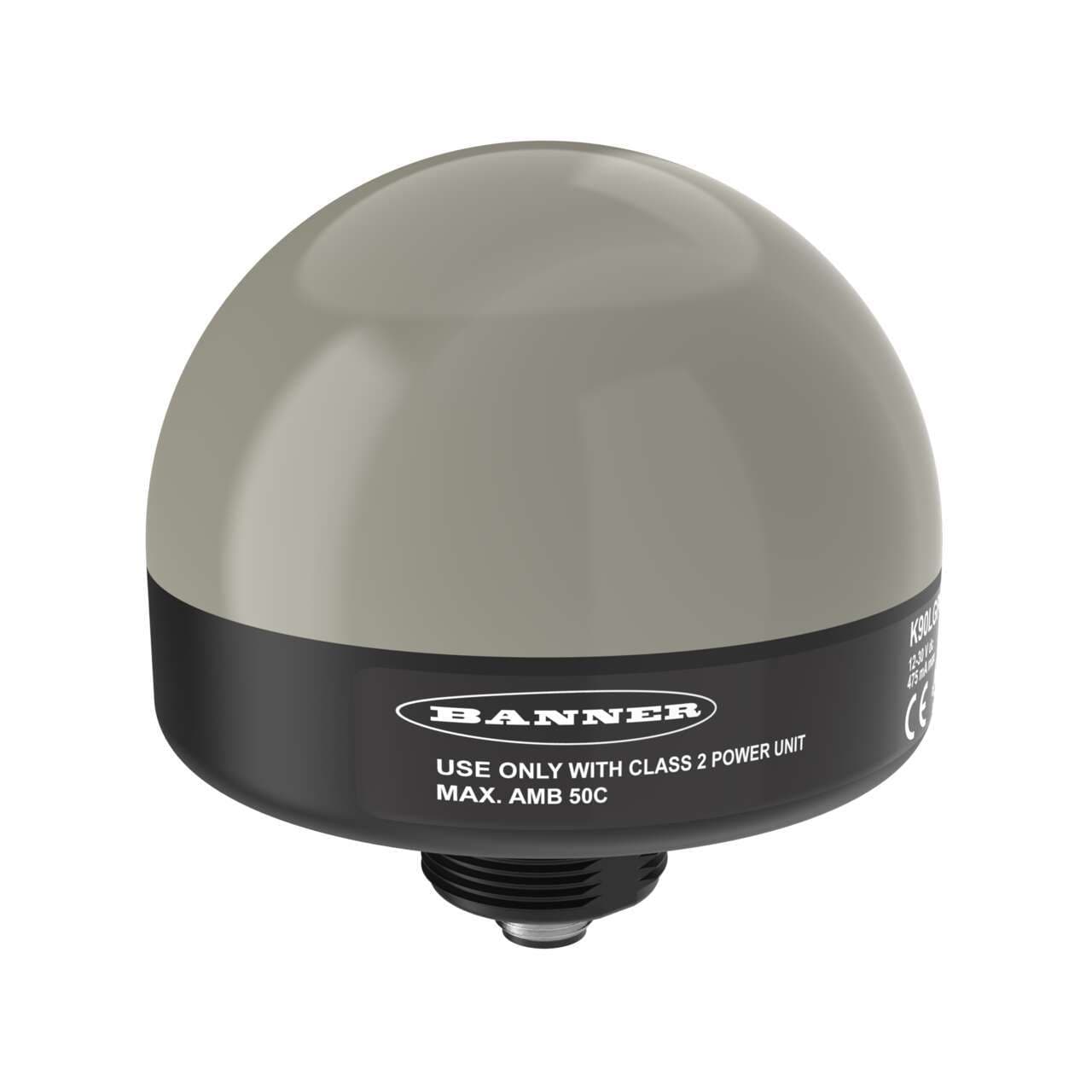

Banner Engineering K90TLGYRPQ is a pilot light from the EZ-LIGHT series designed to serve as an LED pilot light indicator. This part features a 2-color G/Y (green/yellow) color pattern LED illumination that alternates between colors when multiple inputs are active. It has a black housing with a dome-shaped window made from diffused polycarbonate (PC) and a base also constructed from polycarbonate (PC). The K90TLGYRPQ is pre-equipped with a 5-pin M12 Euro-style QD connector for connectivity. It operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. The mounting options include surface, base, or pole flush with a 30mm hole and an M30 thread, accommodating a 90mm / 3-1/2" dome diameter. This part is designed to operate within an ambient air temperature range of -40°C to +50°C and offers a degree of protection rated at IP67, NEMA 4X, and NEMA 13. It has a current consumption of 475mA and includes 2 x digital inputs (12-30Vdc; PNP) for color control.
