K90PLRGB7QP Banner Signal Beacons
Part#:K90PLRGB7QP
Manufacturer:Banner
Alt. Part#:810862
Product Lifecycle:Active
Get a quick Quote!
K90 Pro Series: 7-color RGB Indicator; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67; Input: Bimodal; Colors: Multicolor; 150 mm (6 in) 5-pin M12 PVC Pigtail QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K90PLRGB7QP Banner price in the box on the right side or send a quick quote.
Product Details
- Weight217.72416 g
- Country Of OriginMX
- Power DC
- Lumens Color 1 39.2
- Lumens Color 3 14.0
- Lumens Color 7 93.0
- NEMA Type and UL Type Rating NEMA and UL 4X, 13
- Feature: Hazardous Area No
- Mounting Thread M30 x 1.5
- Quick Disconnect Type M12 (Euro)
- Color Option 4 Yellow
- Color Option 6 Magenta
- Max Input Response Time (ms) 250
- Wireless No
- Product Size (mm) 50
- Color 1 - Wavelength/Color Temp/Coordinates 625 nm
- Color Option 3 Blue
- Max Current Color (mA) 415
- Environmental Rating IP67
- Indication Yes
- Connection Pigtail QD
- Lumens Color 4 98.7
- Input Type Bimodal (PNP/NPN)
- Feature: Audible No
- Pro-Editor Compatible (Discrete) Yes
- Color Technology RGB Configurable
- Color Input Control Multiple (One or more wires/color, enables more colors than input wires)
- Color 4 - Wavelength/Color Temp/Coordinates 0.477, 0.466
- Color Option 7 Cyan
- Number of Colors / Segments 7
- Color Option 1 Red
- Color Option 5 White
- Number of Input Pins/Conductors 5
- Primary Window Material Polycarbonate Diffused
- Housing Style Base Mount - Dome Window
- Lumens Color 2 81.2
- Lumens Color 5 107.9
- Wire Selectable Function Multi-Function
- Power Source DC
- Color Option 2 Green
- Color 3 - Wavelength/Color Temp/Coordinates 470 nm
- Color 7 - Wavelength/Color Temp/Coordinates 0.164, 0.343
- Supply Voltage 10-30 V dc
- Storage Temp (°C) -40 to 70
- Primary Housing Material Polycarbonate
- Color 2 - Wavelength/Color Temp/Coordinates 530 nm
- Color 5 - Wavelength/Color Temp/Coordinates 5950K
- Color 6 - Wavelength/Color Temp/Coordinates 0.404, 0.186
- Lumens Color 6 49.9
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Multi-Color Device Single Color On
- Min Op. Temperature (°C) -40
- IO Link No
- Modbus RTU No
- Primary Housing Color Black
- USB No
- Feature: Quick Disconnect Yes
- Physical Dimensions (LxWxH or DxH mm) 90.0 x 87.0
- Max Op. Temperature (°C) 50
- Feature: Chemical Resistant No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
K90PLRGB7QP Description

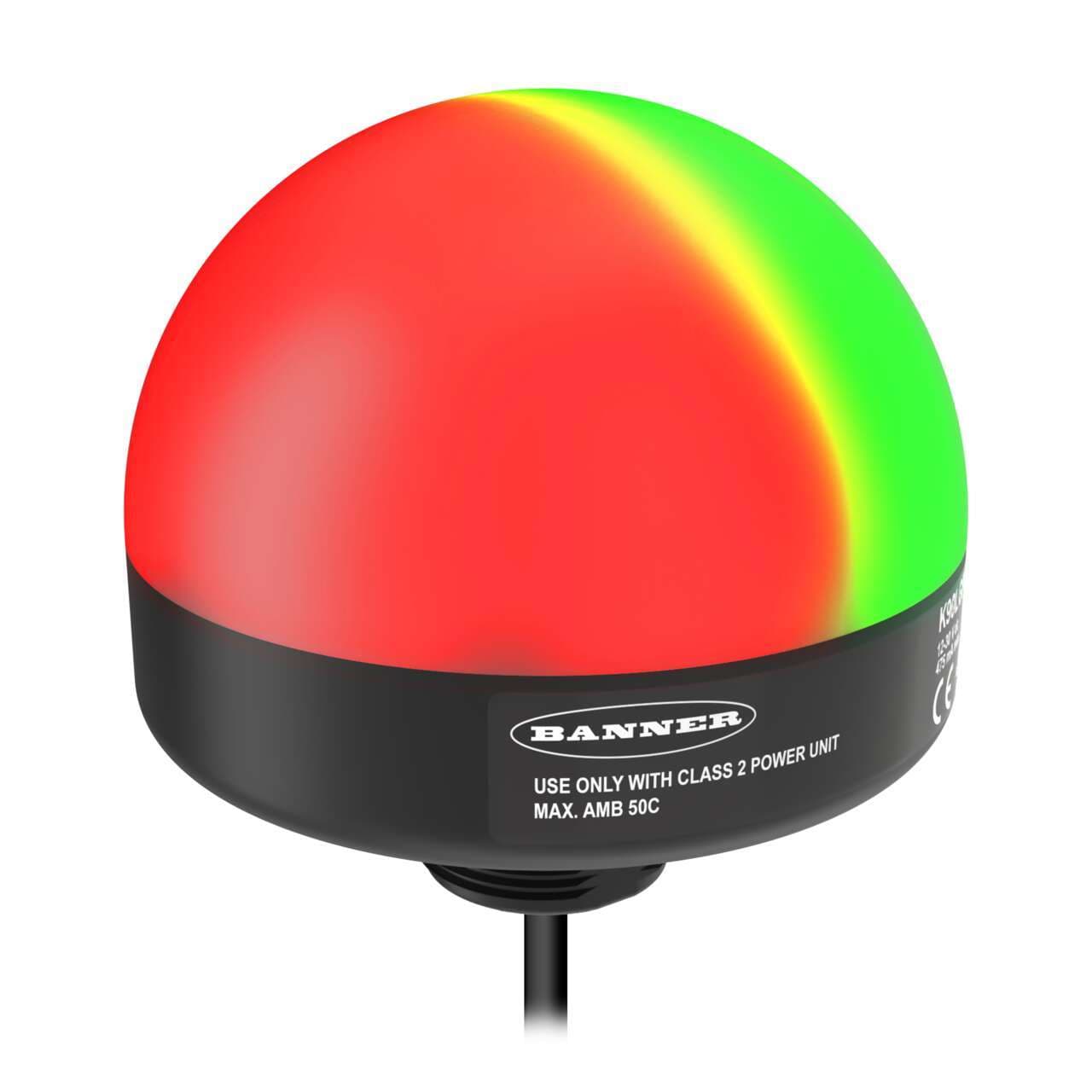

Banner Engineering K90PLRGB7QP is a programmable LED pilot light indicator featuring flashing input control and 7-color RGB multicolor LED illumination. It comes in a black housing with a dome window shape. The materials used include a polycarbonate (PC) diffused window and a polycarbonate (PC) base. This part is pre-equipped with a 5-pin M12 Euro-style QD connector for connectivity. It operates on a supply voltage range of 10Vdc-30Vdc (12Vdc-24Vdc nom.) and can be mounted via surface, base, or pole flush in a 30mm hole with an M30 thread. The dome diameter measures 90mm / 3-1/2". It is designed to operate in ambient air temperatures ranging from -40°C to +50°C. The K90PLRGB7QP offers a degree of protection rated at IP67, NEMA 4X, NEMA 13, UL type 4X, and UL type 13. It has a current consumption of 415mA and includes 3 x digital inputs (10-30Vdc; NPN/PNP) for color control and 1 x digital input (10-30Vdc; NPN/PNP) for flash control.
Related documents K90PLRGB7QP Specs
