K90PLRGB7 Banner Signal Beacons
Part#:K90PLRGB7
Manufacturer:Banner
Alt. Part#:810860
Product Lifecycle:Active
Get a quick Quote!
K90 Pro Series: 7-color RGB Indicator; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67; Input: Bimodal; Colors: Multicolor; 2 m (6.5 ft) Integral Cable
About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K90PLRGB7 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight340.194 g
- Country Of OriginMX
- Power Source DC
- Lumens Color 1 39.2
- Color Option 4 Yellow
- Color Option 7 Cyan
- Max Input Response Time (ms) 250
- Power DC
- Lumens Color 2 81.2
- Lumens Color 5 107.9
- Number of Input Pins/Conductors 5
- Storage Temp (°C) -40 to 70
- Modbus RTU No
- Cable Length (m) 2
- Product Size (mm) 50
- Connection Cable
- Color Option 5 White
- Max Current Color (mA) 415
- Primary Housing Material Polycarbonate
- Color Option 1 Red
- Color 2 - Wavelength/Color Temp/Coordinates 530 nm
- Color 6 - Wavelength/Color Temp/Coordinates 0.404, 0.186
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Wireless No
- Color Input Control Multiple (One or more wires/color, enables more colors than input wires)
- Color Option 2 Green
- Color 4 - Wavelength/Color Temp/Coordinates 0.477, 0.466
- Lumens Color 7 93.0
- Housing Style Base Mount - Dome Window
- Color 1 - Wavelength/Color Temp/Coordinates 625 nm
- Color Option 3 Blue
- Lumens Color 6 49.9
- Mounting Thread M30 x 1.5
- Lumens Color 3 14.0
- Color Option 6 Magenta
- Input Type Bimodal (PNP/NPN)
- Feature: Hazardous Area No
- Number of Colors / Segments 7
- Quick Disconnect Type No QD
- Lumens Color 4 98.7
- Color 7 - Wavelength/Color Temp/Coordinates 0.164, 0.343
- Indication Yes
- Color Technology RGB Configurable
- Color 5 - Wavelength/Color Temp/Coordinates 5950K
- Color 3 - Wavelength/Color Temp/Coordinates 470 nm
- Wire Selectable Function Multi-Function
- Multi-Color Device Single Color On
- Primary Window Material Polycarbonate Diffused
- Max Op. Temperature (°C) 50
- Feature: Audible No
- NEMA Type and UL Type Rating NEMA and UL 4X, 13
- Primary Housing Color Black
- Physical Dimensions (LxWxH or DxH mm) 90.0 x 87.0
- Min Op. Temperature (°C) -40
- IO Link No
- Environmental Rating IP67
- USB No
- Feature: Quick Disconnect No
- Pro-Editor Compatible (Discrete) Yes
- Supply Voltage 10-30 V dc
- Feature: Chemical Resistant No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
K90PLRGB7 Description

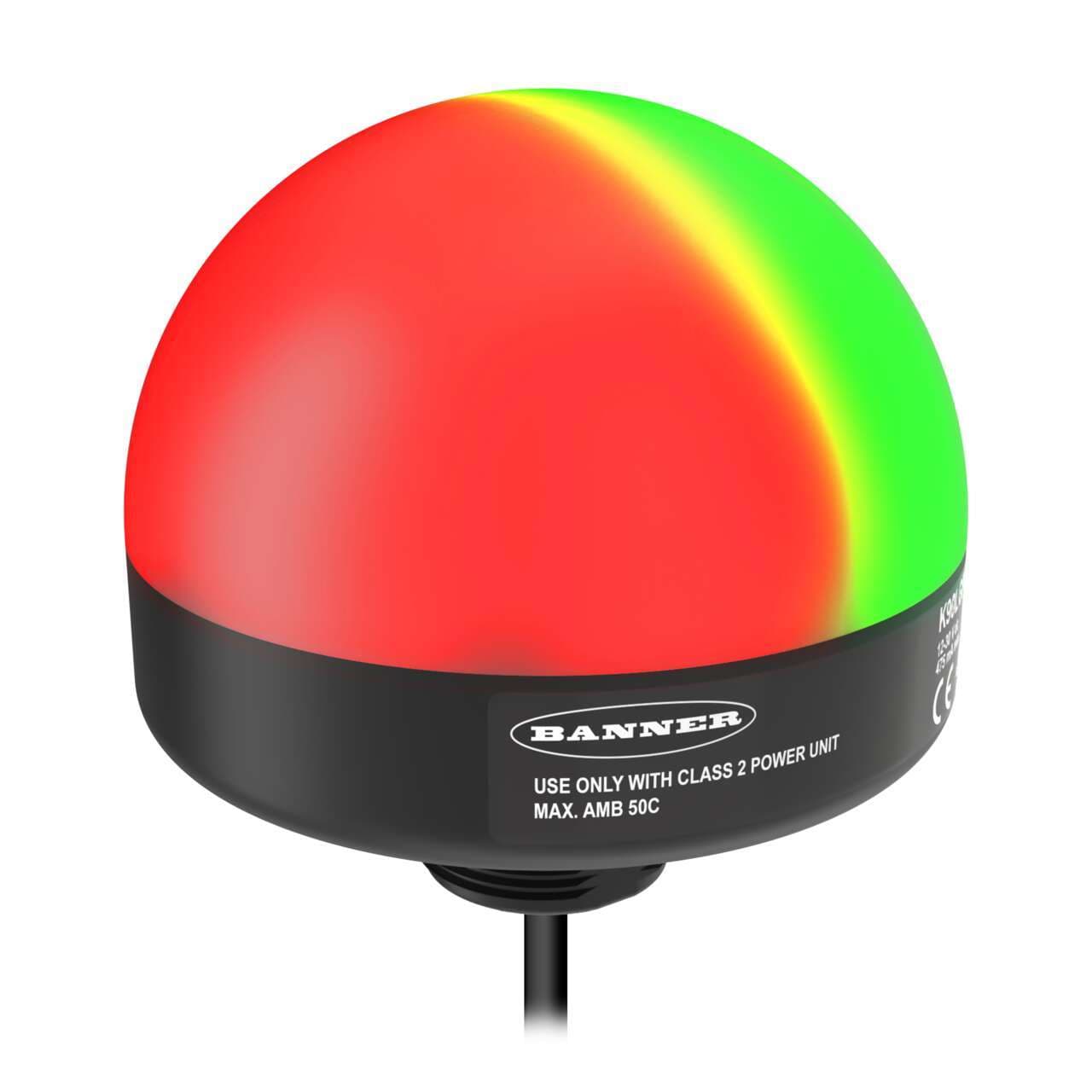

Banner Engineering K90PLRGB7 is a programmable LED pilot light indicator featuring IO-Link compatibility and 14-color multicolor LED illumination. It comes in a black housing with a dome-shaped window made from polycarbonate (PC) for both the diffused window and the base. This part is pre-wired with a 6" / 15cm pigtail that terminates with a 4-pin M12 Euro-style QD connector. It operates on a supply voltage of 18Vdc-30Vdc (24Vdc nom.) and can be mounted on a surface, base, or pole flush with a 30mm hole and M30 thread. The dome has a diameter of 90mm / 3-1/2". It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and offers a degree of protection rated at IP67, NEMA 4X, NEMA 13, UL type 4X, and UL type 13. The current consumption of this part is 240mA.
Related documents K90PLRGB7 Specs
