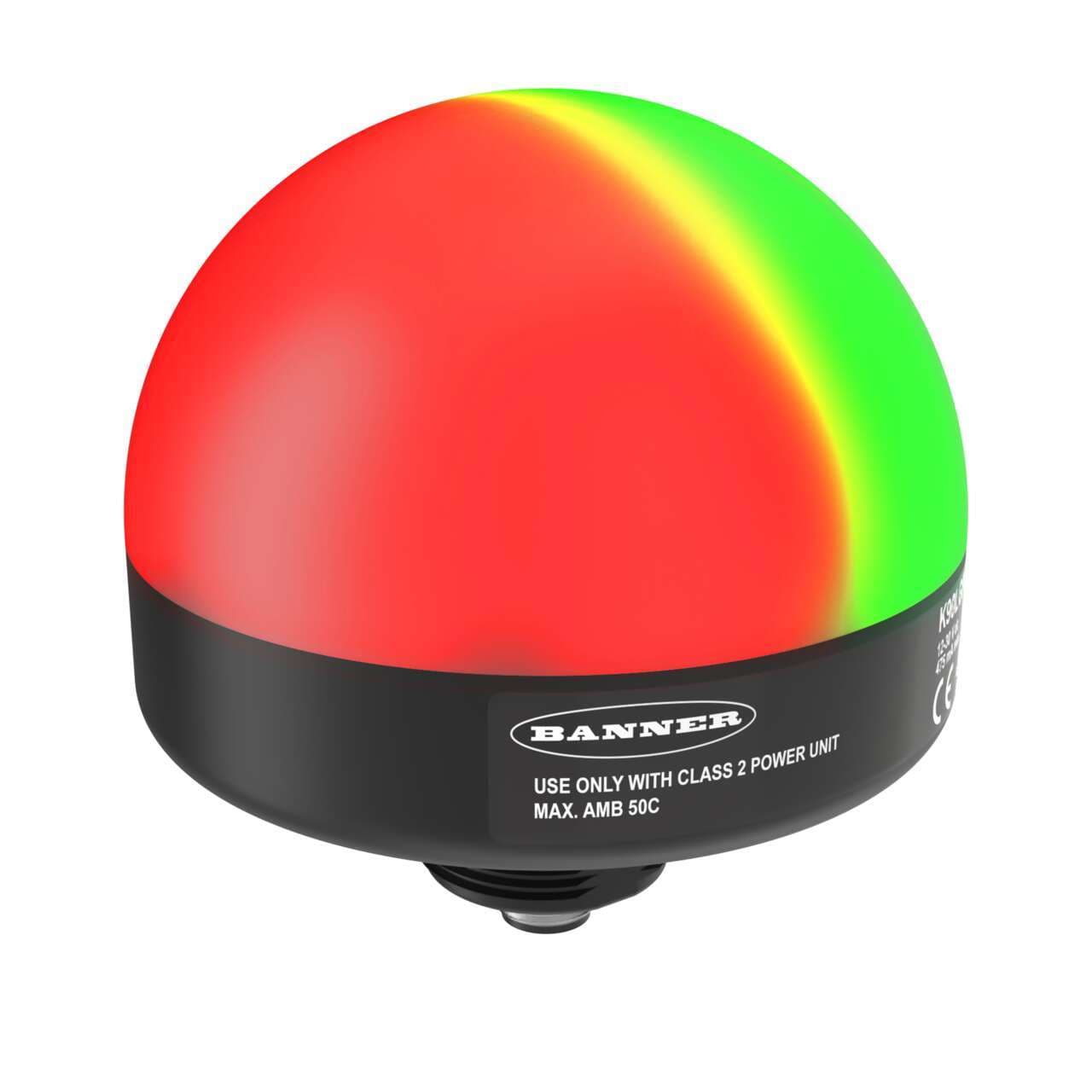

K90PLKQ Banner Signal Beacons
Part#:K90PLKQ
Manufacturer:Banner
Alt. Part#:810933
Product Lifecycle:Active
Get a quick Quote!
K90 Pro with IO-Link Series: 7-color RGB Indicator; Voltage: 18-30 V dc; Housing: Polycarbonate; IP67; Input: Bimodal; Colors: Multicolor; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K90PLKQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight217.72416 g
- Country Of OriginMX
- Color Technology RGB IO-Link
- Power DC
- Max Input Response Time (ms) 30
- Wireless No
- Number of Colors / Segments Programmable
- Supply Voltage 18-30 V dc
- Primary Housing Color Black
- USB No
- Power Source DC
- Connection Integral QD
- NEMA Type and UL Type Rating NEMA and UL 4X, 13
- Modbus RTU No
- Input Type Communication Protocol
- Feature: Hazardous Area No
- Dimming Option Programmable
- Housing Style Base Mount - Dome Window
- Min Op. Temperature (°C) -40
- Multi-Color Device Simultaneous Colors On
- Primary Housing Material Polycarbonate
- Number of Input Pins/Conductors 4
- Storage Temp (°C) -40 to 70
- Pro-Editor Compatible (Discrete) No
- Color Input Control Communication Protocol
- Quick Disconnect Type M12 (Euro)
- Max Op. Temperature (°C) 50
- Feature: Audible No
- Color Option 1 RGB
- Product Size (mm) 50
- Physical Dimensions (LxWxH or DxH mm) 90.0 x 87.0
- Primary Window Material Polycarbonate Diffused
- Mounting Thread M30 x 1.5
- Max Current Color (mA) 240
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- IO Link Yes
- Indication Yes
- Animation Option 1 IO-Link Controlled
- Environmental Rating IP67
- Feature: Chemical Resistant No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
K90PLKQ Description
Banner Engineering K90PLKQ is a pilot light from the EZ-LIGHT series designed to serve as an LED pilot light indicator. It features a 1-color yellow LED illumination housed in a black casing. The design includes a dome-shaped window made from diffused polycarbonate (PC) and a base also constructed from polycarbonate (PC), ensuring durability and visibility. This part is pre-wired with a 6-inch (15cm) pigtail that terminates with a 5-pin M12 Euro-style quick disconnect (QD) connector, facilitating easy and secure connections. It operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc, and can be mounted on a surface, base, or pole flush using a 30mm hole with an M30 thread. The dome has a diameter of 90mm (approximately 3-1/2 inches). Designed to withstand ambient air temperatures ranging from -40°C to +50°C, it is rated with a degree of protection of IP67, NEMA 4X, and NEMA 13, making it suitable for challenging environments. The current consumption is 475mA, and it includes 1 x digital input (12-30Vdc; PNP) for color control.
Related documents K90PLKQ Specs
