K90PLKQP Banner Signal Beacons
Part#:K90PLKQP
Manufacturer:Banner
Alt. Part#:810934
Product Lifecycle:Active
Get a quick Quote!
K90 Pro with IO-Link Series: 7-color RGB Indicator; Voltage: 18-30 V dc; Housing: Polycarbonate; IP67; Input: Bimodal; Colors: Multicolor; 150 mm (6 in) 4-pin M12 PVC Pigtail QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K90PLKQP Banner price in the box on the right side or send a quick quote.
Product Details
- Weight217.72416 g
- Country Of OriginMX
- Housing Style Base Mount - Dome Window
- Physical Dimensions (LxWxH or DxH mm) 90.0 x 87.0
- Feature: Audible No
- Indication Yes
- Quick Disconnect Type M12 (Euro)
- Min Op. Temperature (°C) -40
- Pro-Editor Compatible (Discrete) No
- Mounting Thread M30 x 1.5
- Input Type Communication Protocol
- Connection Pigtail QD
- Multi-Color Device Simultaneous Colors On
- Product Size (mm) 50
- Dimming Option Programmable
- Storage Temp (°C) -40 to 70
- Modbus RTU No
- Max Input Response Time (ms) 30
- Primary Housing Color Black
- Primary Housing Material Polycarbonate
- Color Option 1 RGB
- Environmental Rating IP67
- Feature: Chemical Resistant No
- Power DC
- Color Technology RGB IO-Link
- NEMA Type and UL Type Rating NEMA and UL 4X, 13
- Feature: Hazardous Area No
- USB No
- IO Link Yes
- Color Input Control Communication Protocol
- Number of Input Pins/Conductors 4
- Number of Colors / Segments Programmable
- Max Current Color (mA) 240
- Max Op. Temperature (°C) 50
- Wireless No
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Power Source DC
- Supply Voltage 18-30 V dc
- Feature: Quick Disconnect Yes
- Animation Option 1 IO-Link Controlled
- Primary Window Material Polycarbonate Diffused
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
K90PLKQP Description

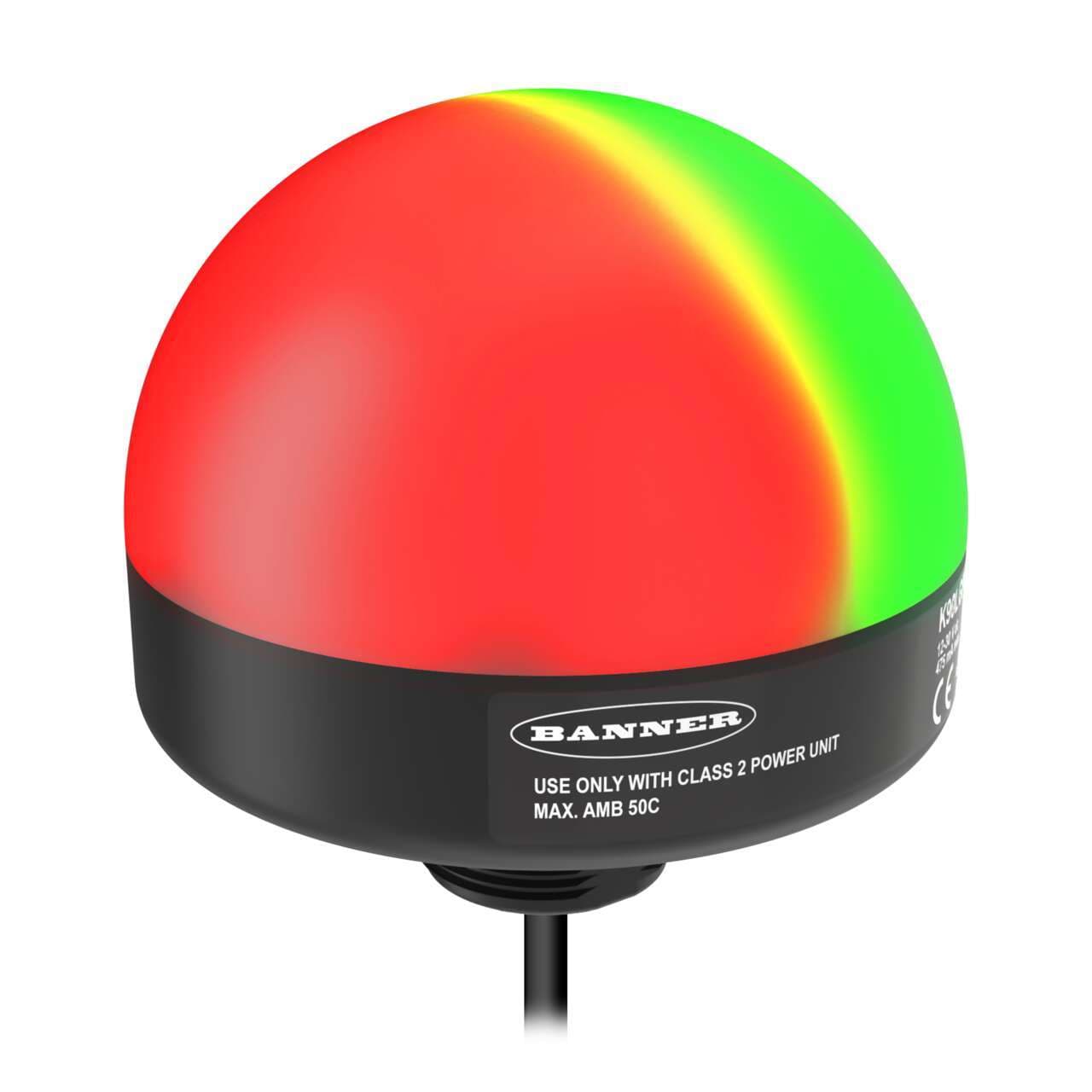

Banner Engineering K90PLKQP is a programmable LED pilot light indicator designed for versatility and ease of use in various applications. It features IO-Link compatibility and offers 14-color multicolor LED illumination within a black housing. The dome window and base are constructed from polycarbonate (PC), ensuring durability. This part is pre-equipped with a 4-pin M12 Euro-style quick disconnect (QD) connector for straightforward installation. It operates on a supply voltage range of 18Vdc to 30Vdc, with 24Vdc as the nominal voltage. The K90PLKQP can be mounted on a surface, base, or pole, fitting a 30mm hole with an M30 thread. The dome has a diameter of 90mm (approximately 3-1/2 inches). It is designed to operate in ambient air temperatures ranging from -40°C to +50°C. This part boasts a high degree of protection with ratings of IP67, NEMA 4X, NEMA 13, UL type 4X, and UL type 13, ensuring its suitability for challenging environments. The current consumption is rated at 240mA.
Related documents K90PLKQP Specs
