K90PLRGB7Q Banner Signal Beacons
Part#:K90PLRGB7Q
Manufacturer:Banner
Alt. Part#:810861
Product Lifecycle:Active
Get a quick Quote!
K90 Pro Series: 7-color RGB Indicator; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67; Input: Bimodal; Colors: Multicolor; 5-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K90PLRGB7Q Banner price in the box on the right side or send a quick quote.
Product Details
- Weight217.72416 g
- Country Of OriginMX
- Mounting Thread M30 x 1.5
- Indication Yes
- Color 2 - Wavelength/Color Temp/Coordinates 530 nm
- Lumens Color 3 14.0
- Lumens Color 2 81.2
- Lumens Color 5 107.9
- Color Input Control Multiple (One or more wires/color, enables more colors than input wires)
- Lumens Color 1 39.2
- Quick Disconnect Type M12 (Euro)
- Number of Colors / Segments 7
- Color Option 2 Green
- Color 5 - Wavelength/Color Temp/Coordinates 5950K
- Power DC
- Color Technology RGB Configurable
- Color Option 4 Yellow
- Lumens Color 7 93.0
- Housing Style Base Mount - Dome Window
- Color Option 1 Red
- Lumens Color 4 98.7
- USB No
- Color 4 - Wavelength/Color Temp/Coordinates 0.477, 0.466
- Max Current Color (mA) 415
- Environmental Rating IP67
- Feature: Audible No
- Pro-Editor Compatible (Discrete) Yes
- Color 6 - Wavelength/Color Temp/Coordinates 0.404, 0.186
- NEMA Type and UL Type Rating NEMA and UL 4X, 13
- Feature: Chemical Resistant No
- Color 3 - Wavelength/Color Temp/Coordinates 470 nm
- Input Type Bimodal (PNP/NPN)
- Max Op. Temperature (°C) 50
- Color 1 - Wavelength/Color Temp/Coordinates 625 nm
- Max Input Response Time (ms) 250
- Primary Window Material Polycarbonate Diffused
- Feature: Quick Disconnect Yes
- Lumens Color 6 49.9
- Supply Voltage 10-30 V dc
- Storage Temp (°C) -40 to 70
- Modbus RTU No
- Product Size (mm) 50
- Color Option 5 White
- Color Option 7 Cyan
- Physical Dimensions (LxWxH or DxH mm) 90.0 x 87.0
- Feature: Hazardous Area No
- Primary Housing Material Polycarbonate
- Color 7 - Wavelength/Color Temp/Coordinates 0.164, 0.343
- Primary Housing Color Black
- Wireless No
- Power Source DC
- Color Option 6 Magenta
- Number of Input Pins/Conductors 5
- Min Op. Temperature (°C) -40
- Multi-Color Device Single Color On
- Connection Integral QD
- Color Option 3 Blue
- Wire Selectable Function Multi-Function
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- IO Link No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
K90PLRGB7Q Description

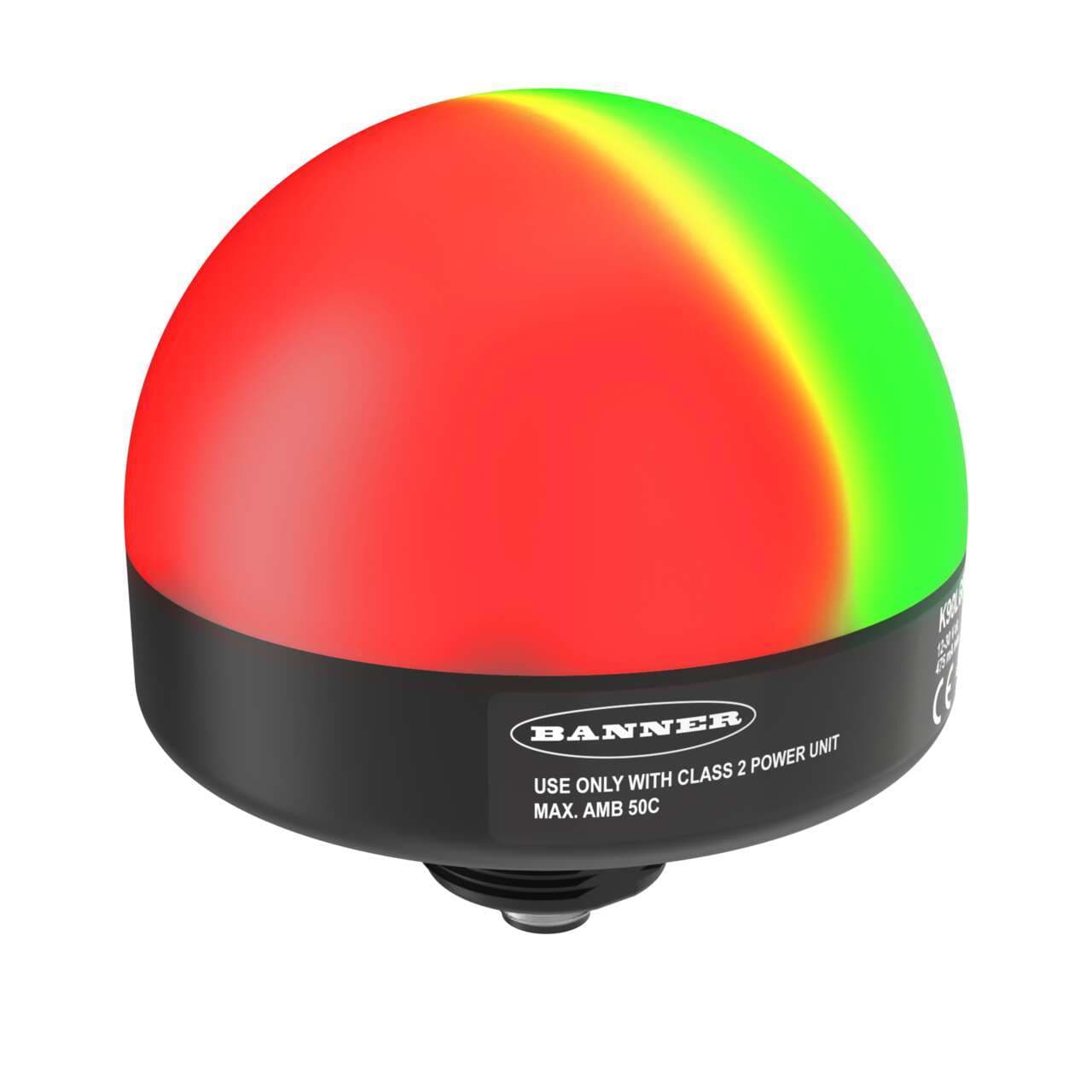

Banner Engineering K90PLRGB7Q is a programmable LED pilot light indicator featuring flashing input control. It is designed with 7-color RGB multicolor LED illumination within a black housing. The shape of the light is a dome window, constructed from polycarbonate (PC) for both the diffused window and the base. This part is pre-wired with a 2m / 6.5ft 5-wire cable terminated with bare end flying leads for connectivity. It operates on a supply voltage range of 10Vdc-30Vdc, with a nominal range of 12Vdc-24Vdc. The K90PLRGB7Q can be mounted via surface, base, or pole flush methods into a 30mm hole with an M30 thread. The dome diameter measures 90mm / 3-1/2". It is designed to operate within an ambient air temperature range of -40°C to +50°C. This part offers a degree of protection rated at IP67, NEMA 4X, NEMA 13, UL type 4X, and UL type 13. It has a current consumption of 415mA and includes 3 x digital inputs (10-30Vdc; NPN/PNP) for color control and 1 x digital input (10-30Vdc; NPN/PNP) for flash control.
Related documents K90PLRGB7Q Specs
