K50RPTGRYF2Q Banner Electronic Components
Part#:K50RPTGRYF2Q
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

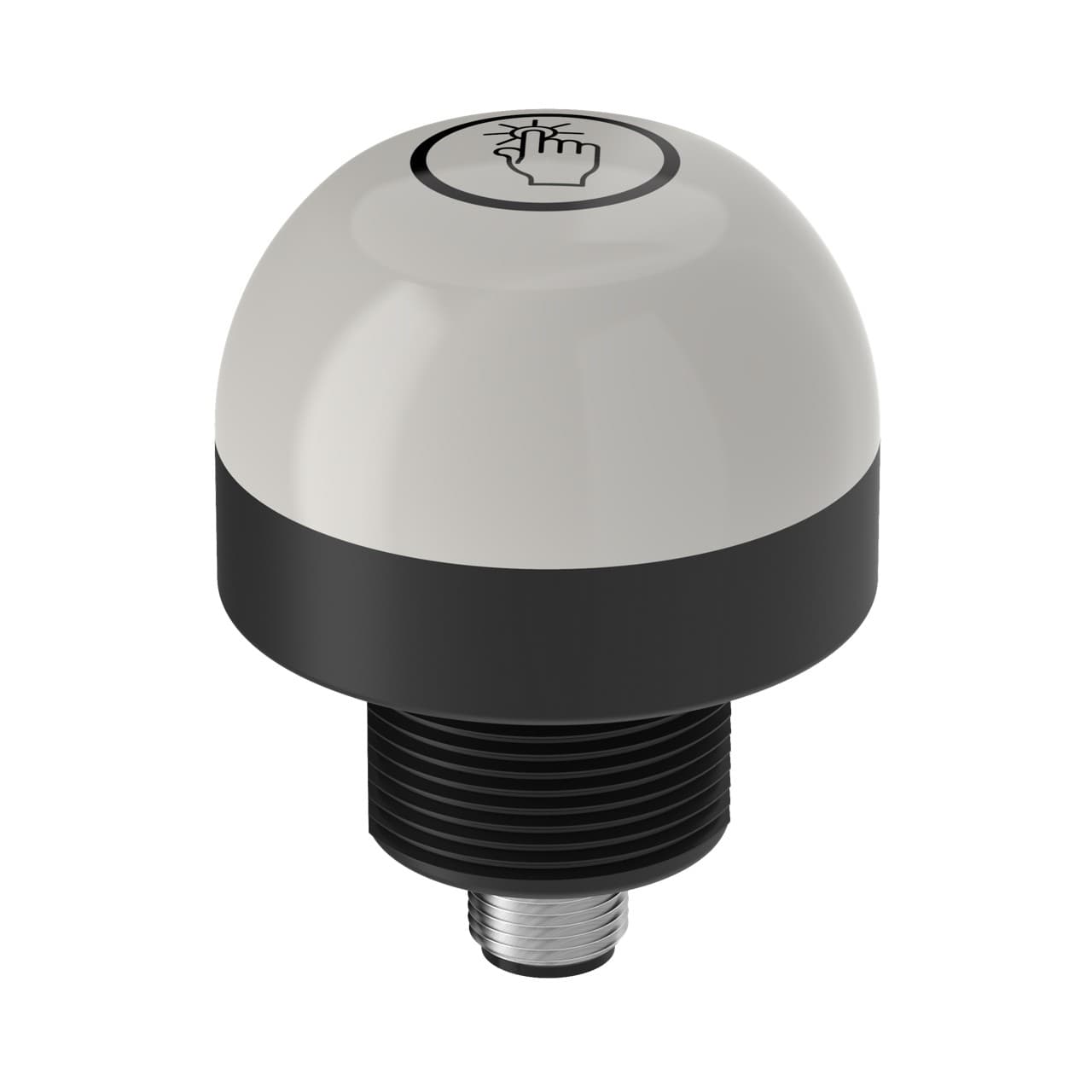

Banner Engineering K50RPTGRYF2Q, part of the EZ-LIGHT series, is a capacitive touch-sensitive pick-to-light device designed with LED illumination. This unit features a black housing with a dome window shape, constructed from polycarbonate (PC) for both the diffused window and the base. It is pre-wired with a 6" / 15cm pigtail that terminates with a 5-pin M12 Euro-style QD connector. The device operates on a supply voltage of 12Vdc-30Vdc, with 24Vdc nominal, and offers a surface or base pole mounting mode utilizing an M30 thread. The dome diameter measures 50mm / 2". It is designed to operate within an ambient air temperature range of -40°C to +50°C and is rated with a degree of protection of IP67 and IP69K. The operating mode includes a momentary job light (G; Green) that is ON when the job input is active, touch activation for output and sensing light (Y; Yellow), and a mispick light (R; Red) with output NC (Normally Closed) touch output when touched with an inactive job input. It features 1 x digital input (12-30Vdc; PNP) for JOB color control and 2 x digital outputs (12-30Vdc; PNP) for Touch and Mispick functions.
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K50RPTGRYF2Q Banner price in the box on the right side or send a quick quote.
Product Details
- Mounting Thread M30 x 1.5
- Quick Disconnect Type M12 (Euro)
- Max Current Color (mA) 75
- Input Type PNP
- Feature: Audible No
- Actuation Yes
- Lumens Color 1 29.0
- Color 3 - Wavelength/Color Temp/Coordinates 591 nm
- Activation Function Capacitive Touch
- Connection Integral QD
- Number of Input Pins/Conductors 8
- Environmental Rating IP67; IP69
- Primary Housing Color Black
- Pro-Editor Compatible (Discrete) No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color Option 2 Red
- Operation Normally Closed
- Max Op. Temperature (°C) 50
- Cable Length (m) 0.15
- Number of Colors / Segments 3
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Pick-to-Light Function F2
- Power Source DC
- Animation Option 1 Solid On
- Lumens Color 3 24.0
- Supply Voltage 12-30 V dc
- Button Operation Momentary
- Primary Housing Material Polycarbonate
- Color Option 1 Green
- Lumens Color 2 13.0
- Output Type PNP
- IO Link No
- Housing Style Base Mount - Dome Window
- Product Size (mm) 50
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Min Op. Temperature (°C) -40
- Feature: Chemical Resistant No
- Power DC
- Color Technology Standard LED
- Color Option 3 Yellow
- Max Output Response Time (ms) 50
- Feature: Hazardous Area No
- Modbus RTU No
- Storage Temp (°C) -40 to 70
- Feature: Washdown Rated Yes
- Wireless No
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Feature: Quick Disconnect Yes
- Multi-Color Device Single Color On
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 66.0
- Primary Window Material Polycarbonate Diffused
