K50RPT2GRYF2 Banner Pick-to-Light Sensors
Part#:K50RPT2GRYF2
Manufacturer:Banner
Alt. Part#:96770
Product Lifecycle:Active
Get a quick Quote!
K50 Series EZ-LIGHT: 3-Input-Color Touch Sensor Gen 2; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Input: PNP (NC); Colors: Green Red Yellow; 2 m (6.5 ft) PVC Cable
About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K50RPT2GRYF2 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight24.040376 g
- Country Of OriginUS
- Color 3 - Wavelength/Color Temp/Coordinates 591 nm
- Storage Temp (°C) -40 to 70
- Modbus RTU No
- Primary Housing Material Polycarbonate
- Lumens Color 1 29.0
- Number of Input Pins/Conductors 8
- Actuation Yes
- Animation Option 1 Solid On
- Max Current Color (mA) 75
- Input Type PNP
- Feature: Chemical Resistant No
- Housing Style Base Mount - Dome Window
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Operation Normally Closed
- Primary Housing Color Black
- Wireless No
- Power DC
- Color Option 1 Green
- Color Option 3 Yellow
- Environmental Rating IP67; IP69
- Primary Window Material Polycarbonate Diffused
- Mounting Thread M30 x 1.5
- Color Technology Standard LED
- Lumens Color 3 24.0
- Max Output Response Time (ms) 50
- Feature: Hazardous Area No
- Activation Function Capacitive Touch
- Color Option 2 Red
- Pick-to-Light Function F2
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Cable Length (m) 2
- Product Size (mm) 50
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 55.0
- Feature: Audible No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Connection Cable
- Output Type PNP
- Max Op. Temperature (°C) 50
- Feature: Washdown Rated Yes
- Power Source DC
- Number of Colors / Segments 3
- Lumens Color 2 13.0
- Supply Voltage 12-30 V dc
- Button Operation Momentary
- Min Op. Temperature (°C) -40
- IO Link No
- Multi-Color Device Single Color On
- Feature: Quick Disconnect No
- Pro-Editor Compatible (Discrete) No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
K50RPT2GRYF2 Description

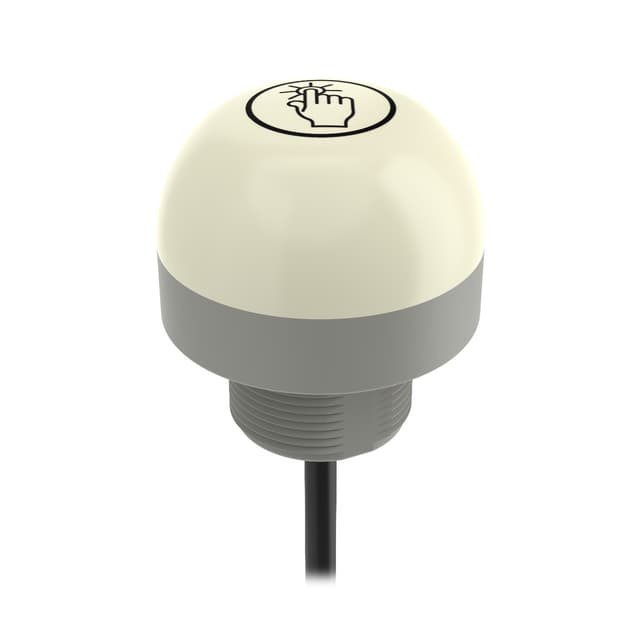

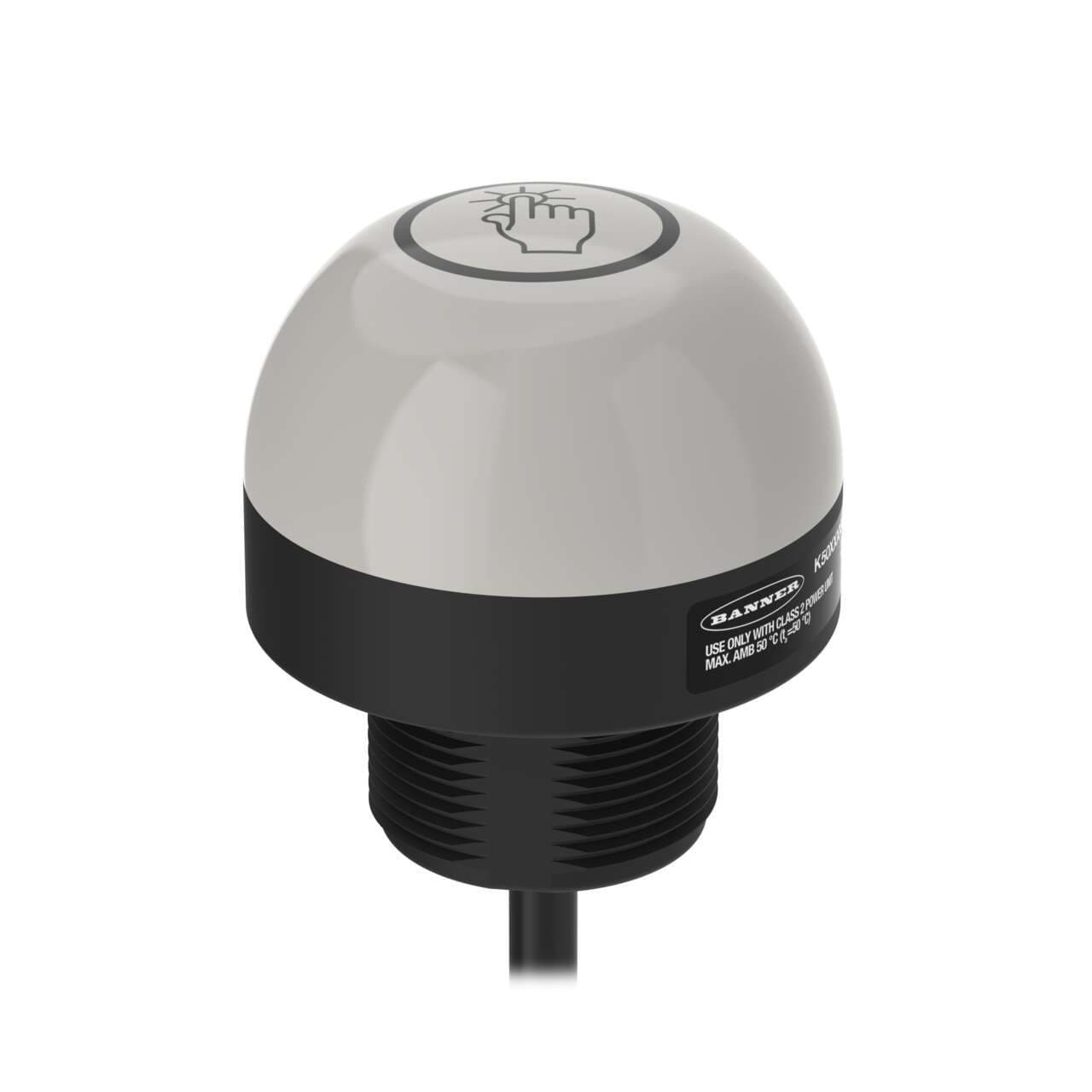

Banner Engineering K50RPT2GRYF2, part of the EZ-LIGHT series, is a capacitive touch-sensitive pick-to-light device designed with Gen.2 LED illumination in a black housing. It features a dome window shape with both the window and base made of polycarbonate (PC). This part is pre-wired with a 2m / 6.5ft 5-wire cable terminated with bare end flying leads and operates on a supply voltage of 12Vdc-30Vdc (24Vdc nom.). It offers surface or base pole M30 thread mounting options and has a 50mm / 2" dome diameter. The operating ambient air temperature range is -40°C to +50 °C, and it is rated with a degree of protection of IP67 and IP69K. The operating mode includes a momentary job light (G; Green) that is ON when the job input is active, touch activates output and sensing light (Y; Yellow) until job input is removed, and touch with inactive job input activates mispick light (R; Red) for 5s and output NC (Normally Closed) touch output. It also features 1 x digital input (12-30Vdc; PNP) for JOB color control and 2 x digital outputs (12-30Vdc; PNP) for Touch and Mispick functions.
