K50RPT2FGRYF2QP Banner Electronic Components
Part#:K50RPT2FGRYF2QP
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

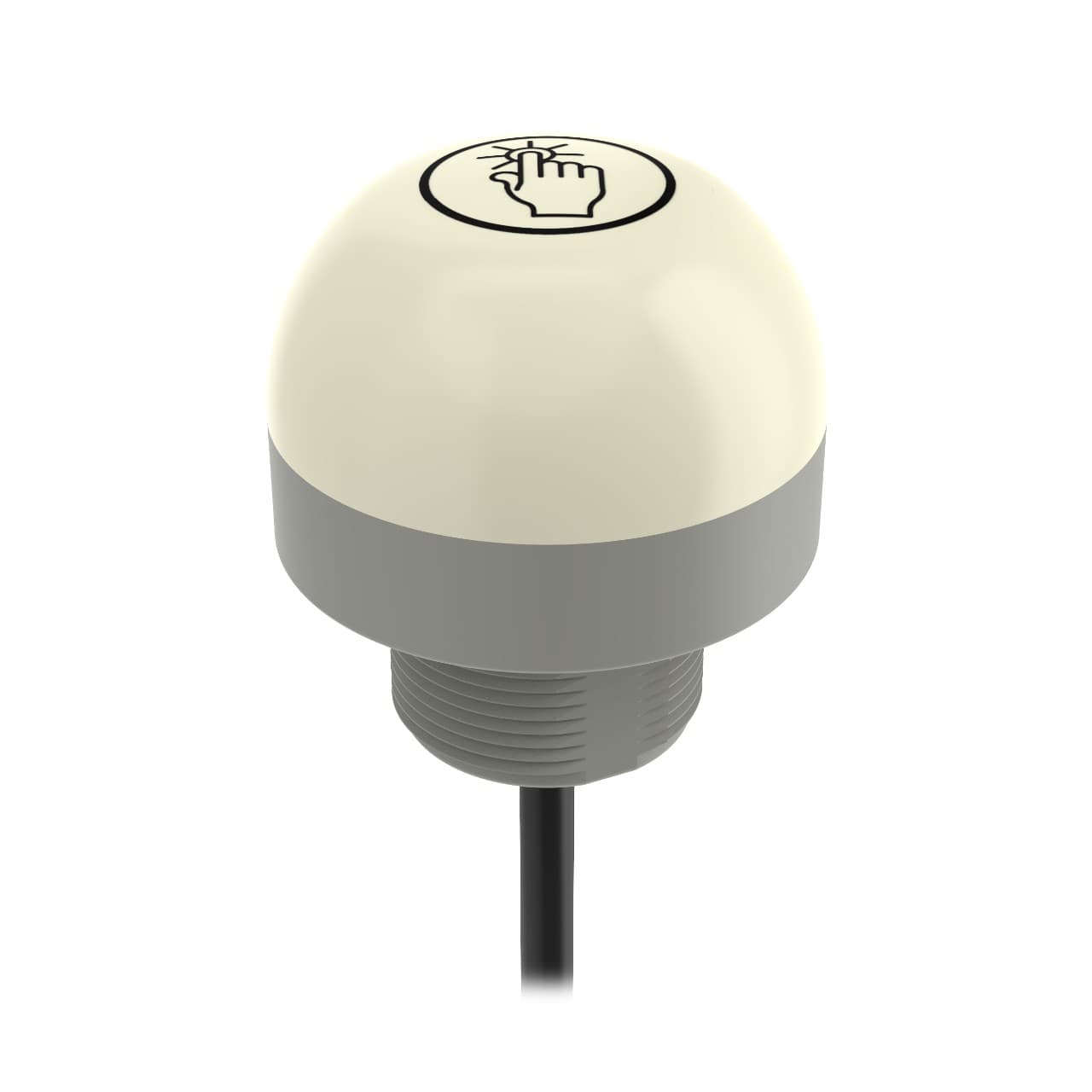

Banner Engineering K50RPT2FGRYF2QP, part of the EZ-LIGHT series, is a capacitive touch-sensitive pick-to-light device designed with Gen.2 hygienic features using FDA-grade materials for both its gray housing and the dome window. This product is equipped with a polycarbonate diffused window and a polycarbonate base, ensuring durability. It comes pre-wired with a 2m / 6.5ft 8-wire cable that terminates with bare end flying leads, facilitating easy installation. The device operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc as the nominal voltage. It offers versatile mounting options, including surface or base pole with an M30 thread, and features a 50mm / 2" dome diameter. The K50RPT2FGRYF2QP is designed to operate in a wide range of ambient air temperatures from -40°C to +50°C and boasts a high degree of protection with IP67, IP68, and IP69K ratings. Its operating mode includes a momentary job light (G/R/Y; Green or Red or Yellow) that is ON when one of the three job inputs is active, and a touch that activates output only with a Normally Closed (NC) touch output. Additionally, it has 3 x digital inputs (12-30Vdc; PNP) for JOB color control and 1 x digital output (12-30Vdc; PNP) for touch functionality.
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K50RPT2FGRYF2QP Banner price in the box on the right side or send a quick quote.
Product Details
- Actuation Yes
- Color Technology Standard LED
- Color 3 - Wavelength/Color Temp/Coordinates 591 nm
- Max Output Response Time (ms) 50
- Feature: Washdown Rated Yes
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Lumens Color 3 24.0
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Primary Housing Material FDA Polycarbonate
- Product Size (mm) 50
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 55.0
- Feature: Hazardous Area No
- Animation Option 1 Solid On
- Max Current Color (mA) 75
- Supply Voltage 12-30 V dc
- Button Operation Momentary
- Multi-Color Device Single Color On
- Power Source DC
- Lumens Color 1 29.0
- Number of Input Pins/Conductors 8
- Max Op. Temperature (°C) 50
- Wireless No
- Power DC
- Quick Disconnect Type M12 (Euro)
- Pick-to-Light Function F2
- Input Type PNP
- Storage Temp (°C) -40 to 70
- IO Link No
- Activation Function Capacitive Touch
- Connection Pigtail QD
- Lumens Color 2 13.0
- Output Type PNP
- Mounting Thread M30 x 1.5
- Color Option 1 Green
- Color Option 3 Yellow
- Primary Housing Color FDA Gray
- Environmental Rating IP67; IP69
- Number of Colors / Segments 3
- Housing Style Base Mount - Dome Window
- Color Option 2 Red
- Operation Normally Closed
- Min Op. Temperature (°C) -40
- Primary Window Material FDA Polycarbonate Diffused
- Pro-Editor Compatible (Discrete) No
- Modbus RTU No
- Feature: Audible No
- Feature: Chemical Resistant No
