K50RNT2FGRYF2QP Banner Electronic Components
Part#:K50RNT2FGRYF2QP
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

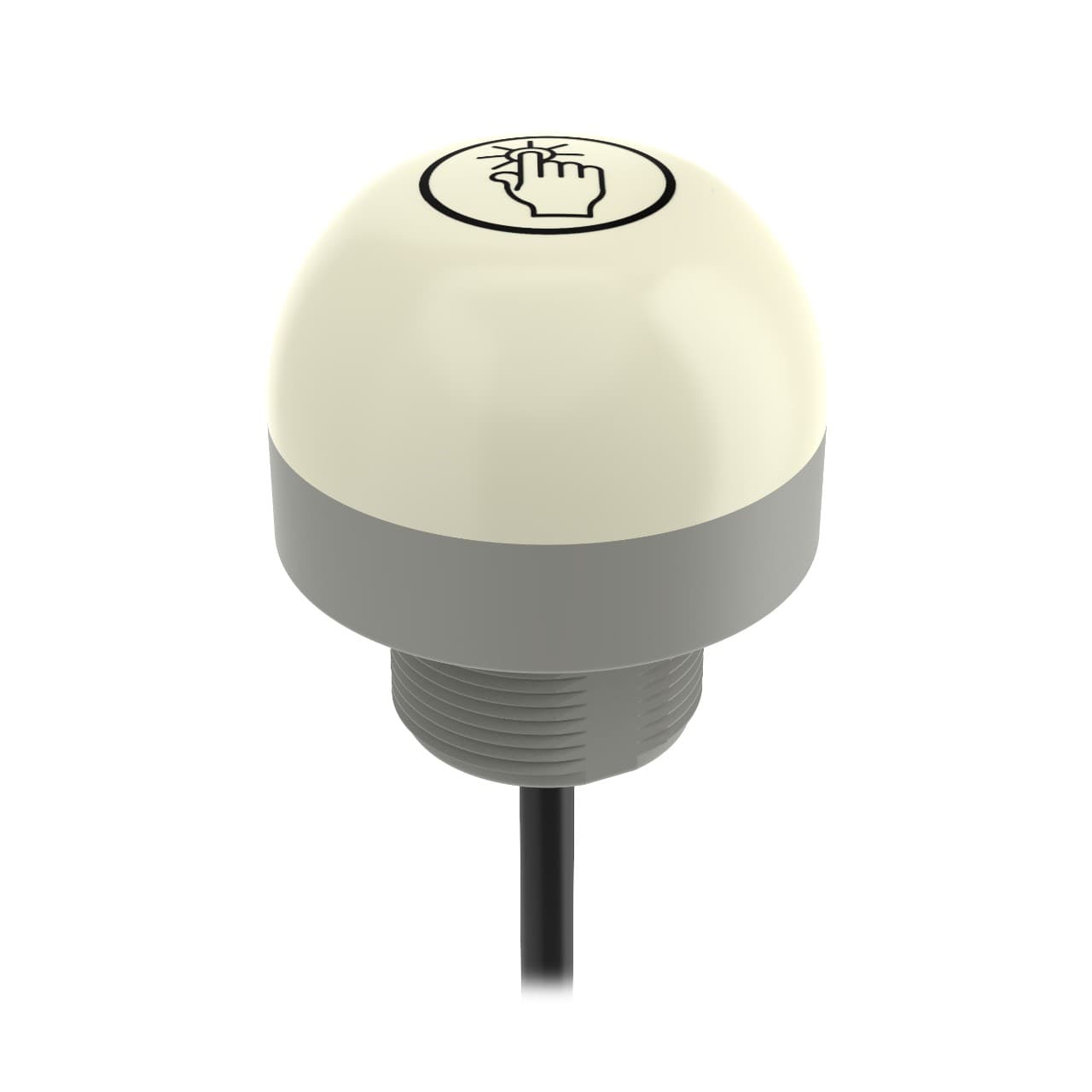

K50 Series EZ-LIGHT: 3-Input-Color Touch Sensor Gen 2 FDA;, Voltage: 12-30 V dc; Housing: FDA Polycarbonate; IP67 IP69K, Input: NPN (NC); Colors: Green Red Yellow, Euro 150 mm (6 in) PVC Pigtail
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K50RNT2FGRYF2QP Banner price in the box on the right side or send a quick quote.
Product Details
- Power DC
- Number of Colors / Segments 3
- Lumens Color 2 13.0
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Quick Disconnect Type M12 (Euro)
- Pick-to-Light Function F2
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 55.0
- Primary Housing Material FDA Polycarbonate
- Housing Style Base Mount - Dome Window
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Operation Normally Closed
- Power Source DC
- Color Technology Standard LED
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Supply Voltage 12-30 V dc
- Cable Length (m) 2
- Animation Option 1 Solid On
- Color 3 - Wavelength/Color Temp/Coordinates 591 nm
- Environmental Rating IP67; IP69
- Primary Window Material FDA Polycarbonate Diffused
- Actuation Yes
- Color Option 1 Green
- Color Option 3 Yellow
- Input Type NPN
- Button Operation Momentary
- Wireless No
- Mounting Thread M30 x 1.5
- Connection Pigtail QD
- Lumens Color 3 24.0
- Max Output Response Time (ms) 50
- Feature: Washdown Rated Yes
- Product Size (mm) 50
- Color Option 2 Red
- Number of Input Pins/Conductors 8
- Max Op. Temperature (°C) 50
- Activation Function Capacitive Touch
- Lumens Color 1 29.0
- Max Current Color (mA) 75
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Output Type NPN
- Primary Housing Color FDA Gray
- Feature: Quick Disconnect Yes
- IO Link No
- Feature: Hazardous Area No
- Modbus RTU No
- Min Op. Temperature (°C) -40
- Storage Temp (°C) -40 to 70
- Feature: Chemical Resistant No
- Multi-Color Device Single Color On
- Pro-Editor Compatible (Discrete) No
- Feature: Audible No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents K50RNT2FGRYF2QP Specs
