K50RLBTXGHQ Banner Electronic Components
Part#:K50RLBTXGHQ
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

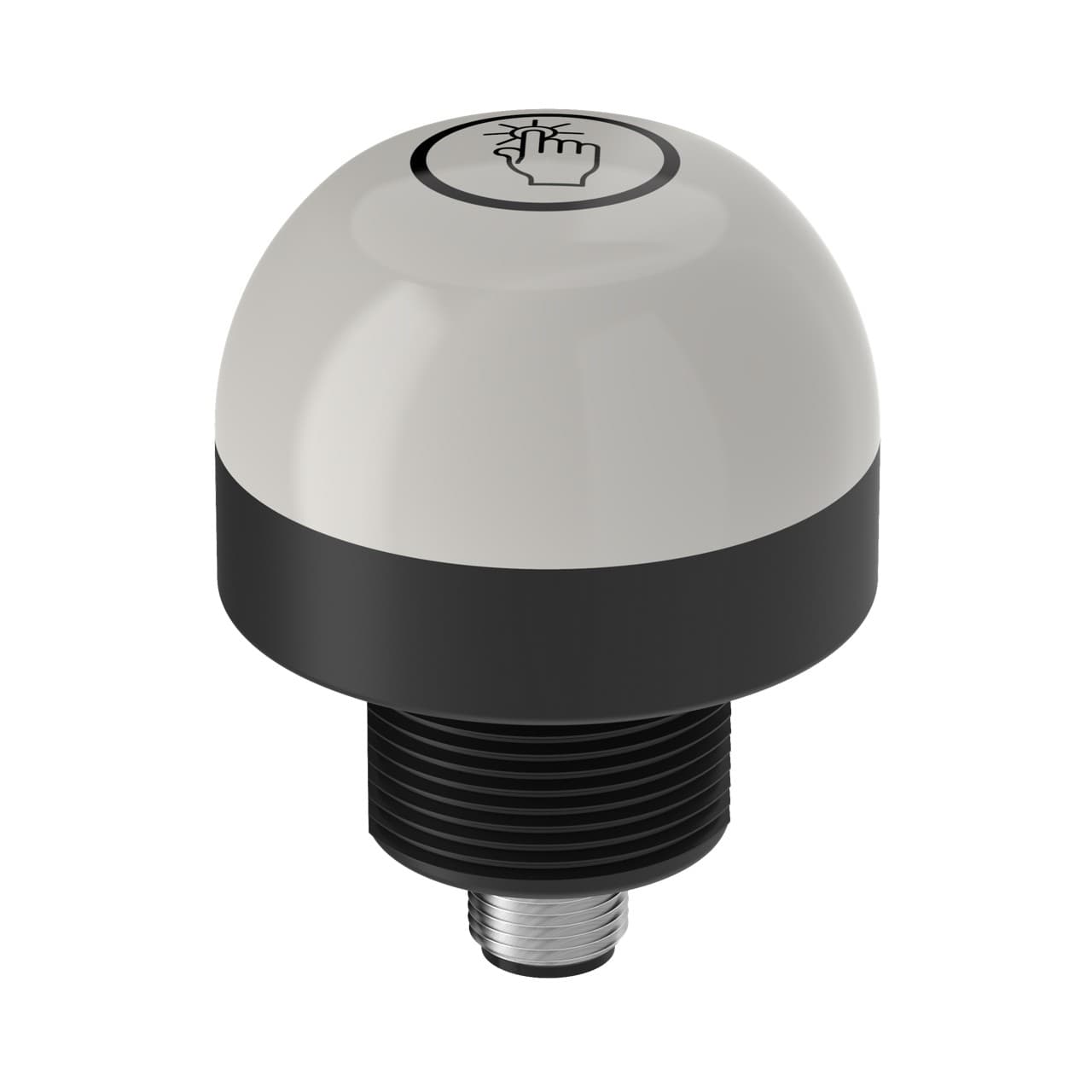

K50 Series EZ-LIGHT: 1-Color Touch Sensor; Latching Output, Voltage: 12-30V dc; Housing: Polycarbonate; IP67 IP69K, Output: Bipolar (NC); Colors: None - Not Activated, Green - Activated, Euro-style Quick-Disconnect Connector
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K50RLBTXGHQ Banner price in the box on the right side or send a quick quote.
Product Details
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Quick Disconnect Type M12 (Euro)
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 66.0
- Primary Window Material Polycarbonate Diffused
- Number of Colors / Segments 1
- Power DC
- Max Current Color (mA) 75
- Environmental Rating IP67; IP69
- Wireless No
- Animation Option 1 Solid On
- I/O Block Compatible Yes
- Feature: Quick Disconnect Yes
- Color Option 1 Green
- Number of Input Pins/Conductors 5
- Storage Temp (°C) -40 to 70
- Job Light Green
- Power Source DC
- Connection Integral QD
- Input Type PNP
- Min Op. Temperature (°C) -40
- IO Link No
- Actuation Yes
- Color Technology Standard LED
- Output Type Bipolar (NPN & PNP)
- Primary Housing Color Black
- Feature: Audible No
- Mounting Thread M30 x 1.5
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Max Output Response Time (ms) 150
- Feature: Washdown Rated Yes
- Pro-Editor Compatible (Discrete) No
- Housing Style Base Mount - Dome Window
- Pick-to-Light Function H
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Feature: Hazardous Area No
- Activation Function Capacitive Touch
- Lumens Color 1 29.0
- Operation Normally Closed
- Max Op. Temperature (°C) 50
- Modbus RTU No
- Primary Housing Material Polycarbonate
- Product Size (mm) 50
- Supply Voltage 12-30 V dc
- Button Operation Latching
- Feature: Chemical Resistant No
