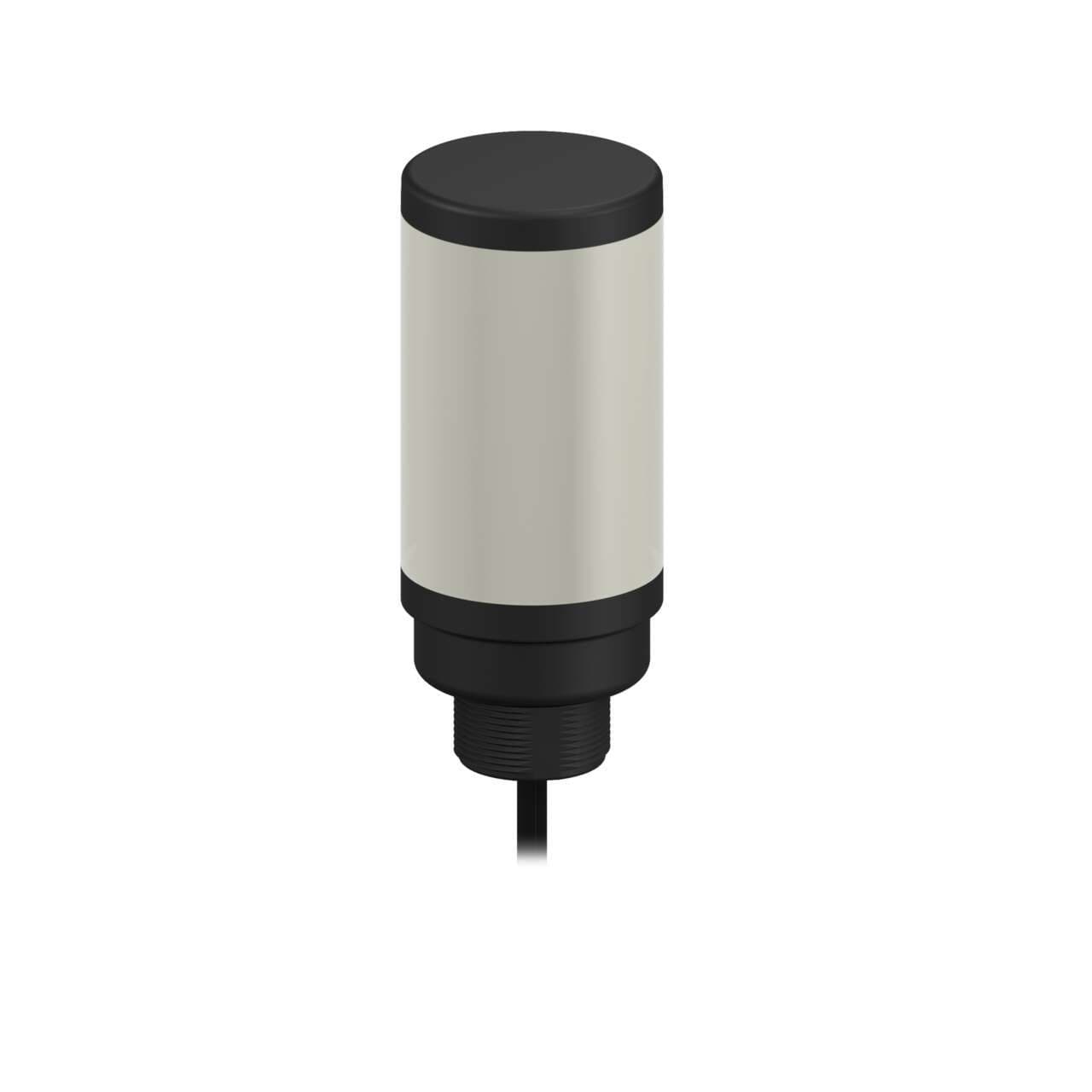

CL50YXYRPQP Banner Signal Towers
Part#:CL50YXYRPQP
Manufacturer:Banner
Alt. Part#:28559
Product Lifecycle:Active
Get a quick Quote!
Column Light: 3-Color Indicator; Voltage: 18-30 V dc; Environ. Rating: IP67; Input: PNP; Colors: Yellow Yellow Red; 5-pin M12 Pigtail QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the CL50YXYRPQP Banner price in the box on the right side or send a quick quote.
Product Details
- Weight181.4368 g
- Country Of OriginUS
- Number of Colors / Segments 3
- Color Option 1 Yellow
- Max Current Color (mA) 100
- Max Op. Temperature (°C) 50
- Primary Housing Material ABS/Polycarbonate
- Product Size (mm) 50
- Color 2 - Wavelength/Color Temp/Coordinates 590 nm
- Color 3 - Wavelength/Color Temp/Coordinates 625 nm
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Indication Yes
- Color Technology Standard LED
- Lumens Color 2 30.0
- Max Input Response Time (ms) 10
- Primary Window Material Polycarbonate Diffused
- Cable Length (m) 2
- Connection Pigtail QD
- Color Option 3 Red
- Input Type PNP
- Primary Housing Color Black
- Modbus RTU No
- Power DC
- Color 1 - Wavelength/Color Temp/Coordinates 590 nm
- Animation Option 3 Solid On
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 114.2
- Feature: Chemical Resistant No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Lumens Color 1 30.0
- Number of Input Pins/Conductors 5
- Min Op. Temperature (°C) -40
- IO Link No
- Housing Style Base Mount - Tower
- Quick Disconnect Type M12 (Euro)
- Supply Voltage 18-30 V dc
- Feature: Hazardous Area No
- Pro-Editor Compatible (Discrete) No
- Mounting Thread M30 x 1.5
- Color Option 2 Yellow
- Lumens Color 3 38.0
- NEMA Type and UL Type Rating NEMA and UL 13
- Multi-Color Device Single Color On
- Power Source DC
- Animation Option 1 Solid On
- Animation Option 2 Solid On
- Environmental Rating IP67
- Feature: Audible No
- Feature: Quick Disconnect Yes
- Wireless No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
CL50YXYRPQP Description
Banner Engineering CL50YXYRPQP is a beacon designed for surface or base pole mounting with an M30 or 1/2" NPSM thread. It features a polycarbonate diffused window and an ABS/polycarbonate housing and base, suitable for ambient air temperatures ranging from -40°C to +50°C. This beacon has a current consumption of 100mA and offers a degree of protection rated at IP67, NEMA 13, UL type 13. Its cylindrical shape incorporates 3 digital inputs (18-30Vdc; PNP) for color control, supporting a 1-tier 2-color Y/Y/R color pattern LED illumination. The CL50YXYRPQP is pre-wired with a 6" / 15cm pigtail terminated with a 5-pin M12 Euro-style QD connector, operates on a supply voltage of 18Vdc-30Vdc (24Vdc nom.), and has a diameter of 50mm / 2" with a black housing.
Related documents CL50YXYRPQP Specs
