CL50GRYPQ Banner Signal Towers
Part#:CL50GRYPQ
Manufacturer:Banner
Alt. Part#:10017
Product Lifecycle:Active
In-stock parts: 4
Jun 19, 2025
Column Light: 3-Color Indicator; Voltage: 18-30 V dc; Environ. Rating: IP67; Input: PNP; Colors: Green Red Yellow; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the CL50GRYPQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight156.942832 g
- Country Of OriginCN
- Power DC
- Animation Option 1 Solid On
- Max Current Color (mA) 100
- Min Op. Temperature (°C) -40
- IO Link No
- Number of Colors / Segments 3
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 114.2
- Feature: Audible No
- Product Size (mm) 50
- Color Option 2 Red
- Color 3 - Wavelength/Color Temp/Coordinates 590 nm
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Pro-Editor Compatible (Discrete) No
- Housing Style Base Mount - Tower
- Lumens Color 2 38.0
- Number of Input Pins/Conductors 4
- Primary Housing Color Black
- Primary Housing Material ABS/Polycarbonate
- Animation Option 2 Solid On
- Supply Voltage 18-30 V dc
- Feature: Hazardous Area No
- Mounting Thread M30 x 1.5
- Lumens Color 1 72.0
- Animation Option 3 Solid On
- Environmental Rating IP67
- Multi-Color Device Single Color On
- Indication Yes
- Quick Disconnect Type M12 (Euro)
- Max Op. Temperature (°C) 50
- Modbus RTU No
- Cable Length (m) 0.15
- Color Technology Standard LED
- Color Option 3 Yellow
- Input Type PNP
- Feature: Chemical Resistant No
- Power Source DC
- Color Option 1 Green
- Connection Integral QD
- Max Input Response Time (ms) 10
- Primary Window Material Polycarbonate Diffused
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Lumens Color 3 30.0
- NEMA Type and UL Type Rating NEMA and UL 13
- Wireless No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
CL50GRYPQ Description

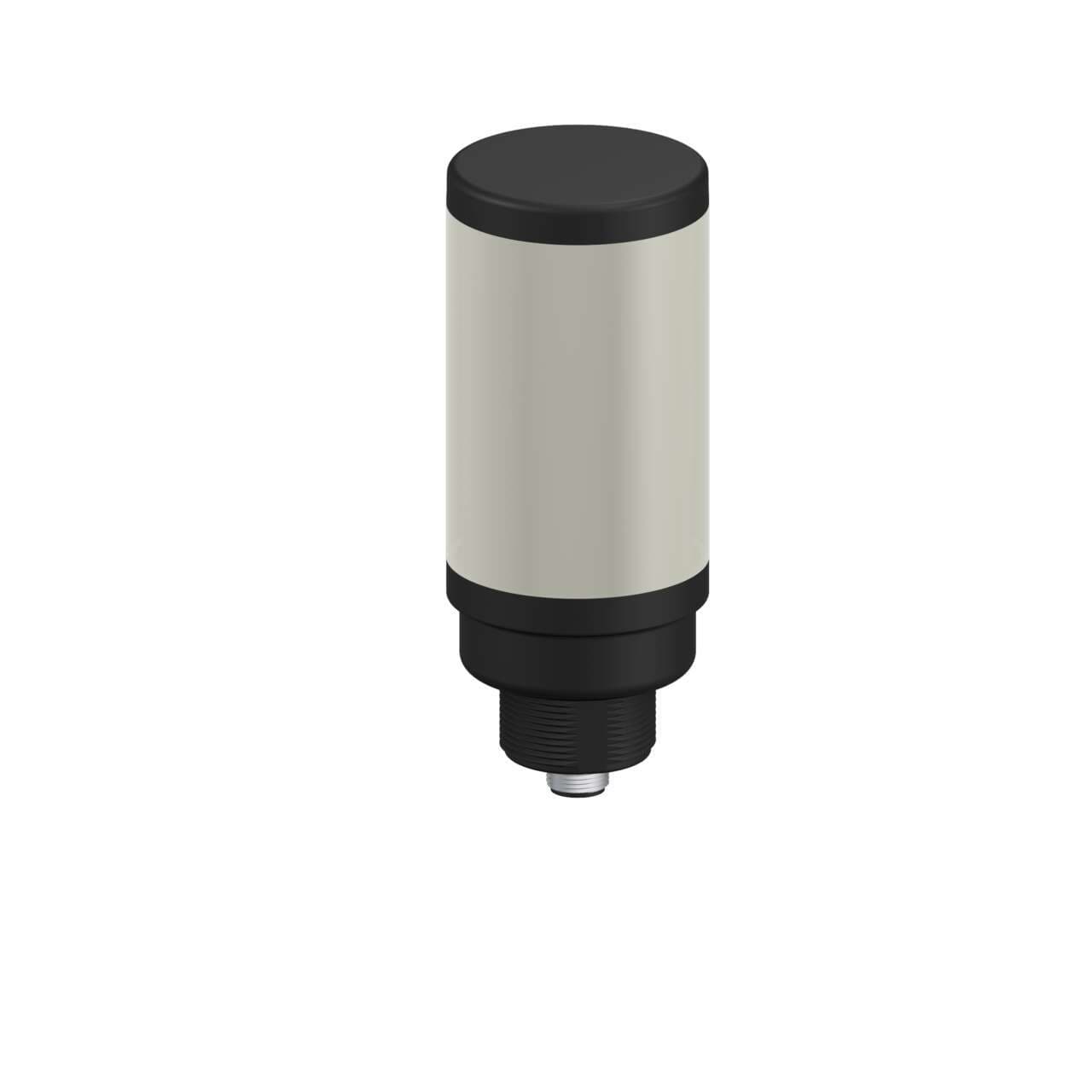

Banner Engineering CL50GRYPQ is a beacon designed for versatile signaling applications, featuring a 1-tier 3-color G/R/Y color pattern LED illumination. It is equipped for surface or base pole mounting with an M30 or 1/2" NPSM thread and constructed from a polycarbonate diffused window with ABS/polycarbonate housing and base, ensuring durability. This beacon operates within an ambient air temperature range of -40°C to +50°C and has a current consumption of 100mA. It offers a high degree of protection with an IP67, NEMA 13, UL type 13 rating, making it suitable for challenging environments. The cylindrical shape is complemented by a 50mm / 2" diameter, and it features 3 x digital inputs (18-30Vdc; PNP) for color control. The CL50GRYPQ is designed for easy integration into various systems, thanks to its pre-equipped 4-pin M12 Euro-style QD connector and supports a supply voltage range of 18Vdc-30Vdc (24Vdc nom.). The housing is finished in black.
