CL50GRYAP Banner Signal Towers
Part#:CL50GRYAP
Manufacturer:Banner
Alt. Part#:10491
Product Lifecycle:Active
Get a quick Quote!
Column Light: 3-Color Audible Indicator; Voltage: 18-30 V dc; Environ. Rating: IP50; Input: PNP; Colors: Green Red Yellow; 2 m (6.5 ft) Integral Cable
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the CL50GRYAP Banner price in the box on the right side or send a quick quote.
Product Details
- Weight309.349744 g
- Country Of OriginMX
- Mounting Thread M30 x 1.5
- Lumens Color 2 38.0
- Max Audible Intensity (db at 1m) 92
- Power DC
- Lumens Color 1 72.0
- Animation Option 3 Solid On
- Number of Input Pins/Conductors 5
- Cable Length (m) 2
- Product Size (mm) 50
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Supply Voltage 18-30 V dc
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 145.3
- Primary Housing Material ABS/Polycarbonate
- Connection Cable
- Audible Operating Frequency (kHz) 2.7
- Feature: Hazardous Area No
- Number of Colors / Segments 3
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Audible Alarm Type Continuous
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Housing Style Base Mount - Tower
- Color Technology Standard LED
- Animation Option 2 Solid On
- Input Type PNP
- Power Source DC
- Animation Option 1 Solid On
- Lumens Color 3 30.0
- Min Audible Intensity (db at 1m) 62
- Max Op. Temperature (°C) 50
- Wireless No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Max Current Color (mA) 100
- Color Option 3 Yellow
- Primary Housing Color Black
- Modbus RTU No
- Indication Yes
- Color Option 2 Red
- Color 3 - Wavelength/Color Temp/Coordinates 590 nm
- Min Op. Temperature (°C) -20
- Feature: Quick Disconnect No
- Color Option 1 Green
- Max Input Response Time (ms) 10
- Pro-Editor Compatible (Discrete) No
- Max Current - Audible Alarm (mA) 25
- IO Link No
- Environmental Rating IP50
- Multi-Color Device Single Color On
- NEMA Type and UL Type Rating NEMA and UL 13
- Feature: Chemical Resistant No
- Feature: Audible Yes
- Primary Window Material Polycarbonate Diffused
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
CL50GRYAP Description

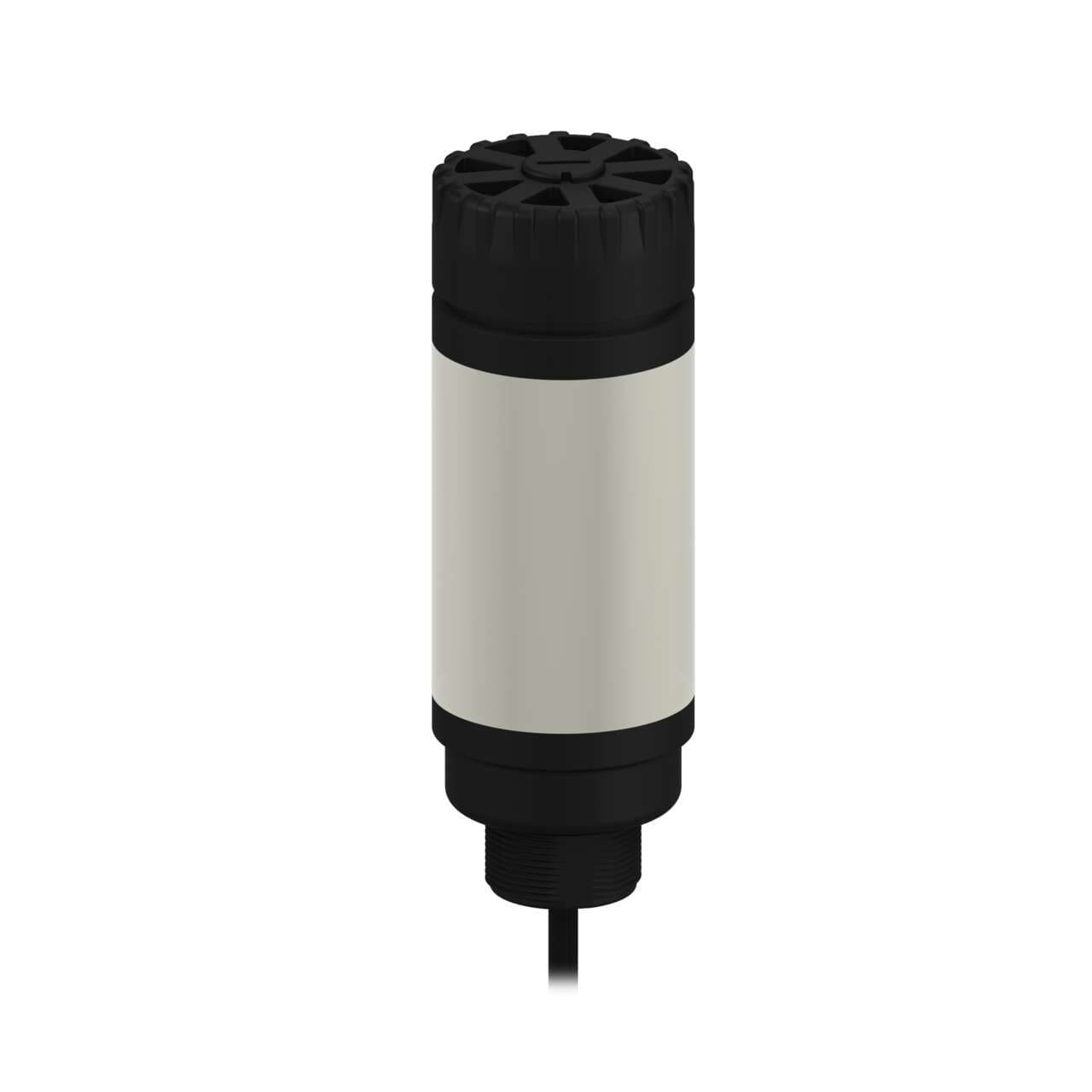

Banner Engineering CL50GRYAP is a beacon designed for surface or base pole mounting with an M30 or 1/2" NPSM thread. It features a polycarbonate diffused window and an ABS/polycarbonate housing and base, ensuring durability. This beacon operates within an ambient air temperature range of -20°C to +50°C and consumes 100mA of current. It offers a degree of protection rated at IP50 NEMA 13 UL type 13. The cylindrical shape of the CL50GRYAP incorporates 3 x digital inputs for color control (18-30Vdc; PNP) and 1 x digital input for alarm (18-30Vdc; PNP). It functions as an audible column light beacon with a 1-tier 3-color G/R/Y color pattern LED illumination. The connection is facilitated by a pre-wired 2m / 6.5ft 5-wire cable with bare end flying leads, and it requires a supply voltage of 18Vdc-30Vdc (24Vdc nom.). The beacon has a diameter of 50mm / 2" and features a black housing.
Related documents CL50GRYAP Specs
1-year warranty
