CL50GRYALSPCQ Banner Electronic Components
Part#:CL50GRYALSPCQ
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

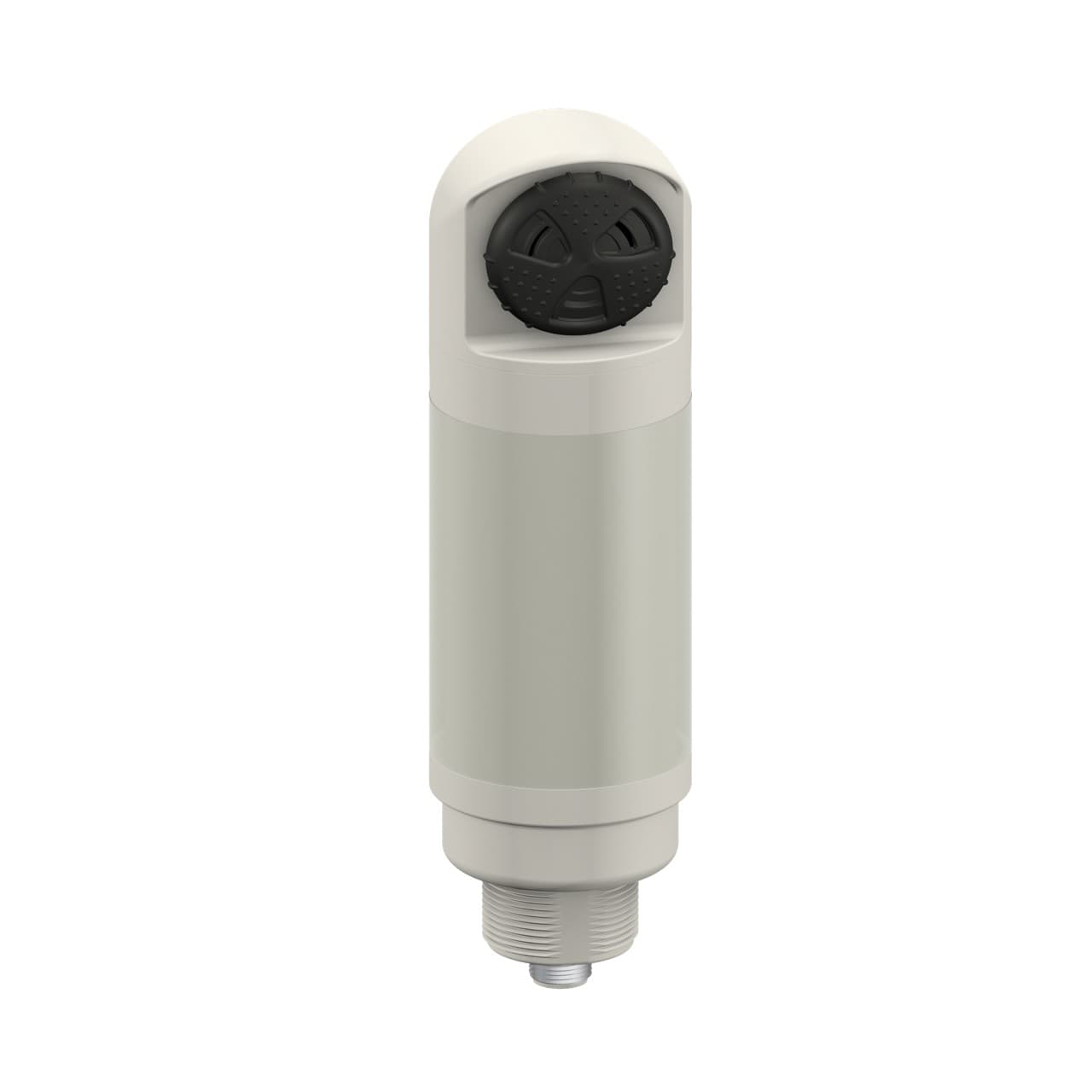

Banner Engineering CL50GRYALSPCQ is a beacon designed for surface or base pole mounting with an M30 or 1/2" NPSM thread. It features a polycarbonate diffused window and an ABS/polycarbonate housing and base, suitable for ambient air temperatures ranging from -20°C to +50°C. This beacon has a current consumption of 100mA and offers a degree of protection rated at IP67, NEMA 13, UL type 13. Its cylindrical shape incorporates 3 x digital inputs (18-30Vdc; PNP) for color control and 1 x digital input (18-30Vdc; PNP) for alarm input. The CL50GRYALSPCQ functions as a sealed audible column light beacon, with a continuous loud sound, 1-tier, and a 3-color G/R/Y color pattern LED illumination. It connects via a pre-equipped 5-pin M12 Euro-style QD connector and operates on a supply voltage of 18Vdc-30Vdc (24Vdc nom.). The beacon has a diameter of 50mm / 2" and features a gray housing.
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the CL50GRYALSPCQ Banner price in the box on the right side or send a quick quote.
Product Details
- Power Source DC
- Color Option 1 Green
- Animation Option 3 Solid On
- Audible Alarm Type Continuous
- Max Current - Audible Alarm (mA) 35
- Modbus RTU No
- Mounting Thread M30 x 1.5
- Color Option 2 Red
- Lumens Color 3 30.0
- NEMA Type and UL Type Rating NEMA and UL 13
- Max Op. Temperature (°C) 50
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Lumens Color 1 72.0
- Color 3 - Wavelength/Color Temp/Coordinates 590 nm
- Max Input Response Time (ms) 10
- Indication Yes
- Animation Option 1 Solid On
- Lumens Color 2 38.0
- Min Audible Intensity (db at 1m) 74
- Environmental Rating IP67
- Power DC
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Color Option 3 Yellow
- Input Type PNP
- Primary Window Material Polycarbonate Diffused
- IO Link No
- Number of Colors / Segments 3
- Connection Integral QD
- Number of Input Pins/Conductors 5
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Cable Length (m) 2
- Product Size (mm) 50
- Animation Option 2 Solid On
- Supply Voltage 18-30 V dc
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 168.2
- Feature: Quick Disconnect Yes
- Housing Style Base Mount - Tower
- Quick Disconnect Type M12 (Euro)
- Max Current Color (mA) 100
- Audible Operating Frequency (kHz) 2.9
- Primary Housing Material ABS/Polycarbonate
- Color Technology Standard LED
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Max Audible Intensity (db at 1m) 94
- Feature: Audible Yes
- Min Op. Temperature (°C) -20
- Feature: Chemical Resistant No
- Primary Housing Color Gray
- Multi-Color Device Single Color On
- Feature: Hazardous Area No
- Wireless No
- Pro-Editor Compatible (Discrete) No
