CL50XRYN Banner Signal Towers
Part#:CL50XRYN
Manufacturer:Banner
Alt. Part#:12714
Product Lifecycle:Active
Get a quick Quote!
Column Light: 2-Color Indicator; Voltage: 18-30 V dc; Environ. Rating: IP50; Input: NPN; Colors: Red Yellow; 2 m (6.5 ft) Integral Cable
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the CL50XRYN Banner price in the box on the right side or send a quick quote.
Product Details
- Weight255.825888 g
- Country Of OriginMX
- Power Source DC
- Color Option 2 Yellow
- Max Input Response Time (ms) 10
- Feature: Hazardous Area No
- Indication Yes
- Animation Option 1 Solid On
- Supply Voltage 18-30 V dc
- Primary Window Material Polycarbonate Diffused
- Mounting Thread M30 x 1.5
- Color 1 - Wavelength/Color Temp/Coordinates 625 nm
- Input Type NPN
- Primary Housing Color Black
- Number of Colors / Segments 2
- Color Option 1 Red
- Lumens Color 2 30.0
- Feature: Audible No
- Feature: Quick Disconnect No
- Cable Length (m) 2
- Connection Cable
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 114.2
- Multi-Color Device Single Color On
- Primary Housing Material ABS/Polycarbonate
- Lumens Color 1 38.0
- Environmental Rating IP67
- Feature: Chemical Resistant No
- Power DC
- Color Technology Standard LED
- Max Current Color (mA) 100
- Min Op. Temperature (°C) -40
- IO Link No
- Number of Input Pins/Conductors 4
- Max Op. Temperature (°C) 50
- Wireless No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Animation Option 2 Solid On
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Modbus RTU No
- Housing Style Base Mount - Tower
- Product Size (mm) 50
- Color 2 - Wavelength/Color Temp/Coordinates 590 nm
- NEMA Type and UL Type Rating NEMA and UL 13
- Pro-Editor Compatible (Discrete) No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
CL50XRYN Description

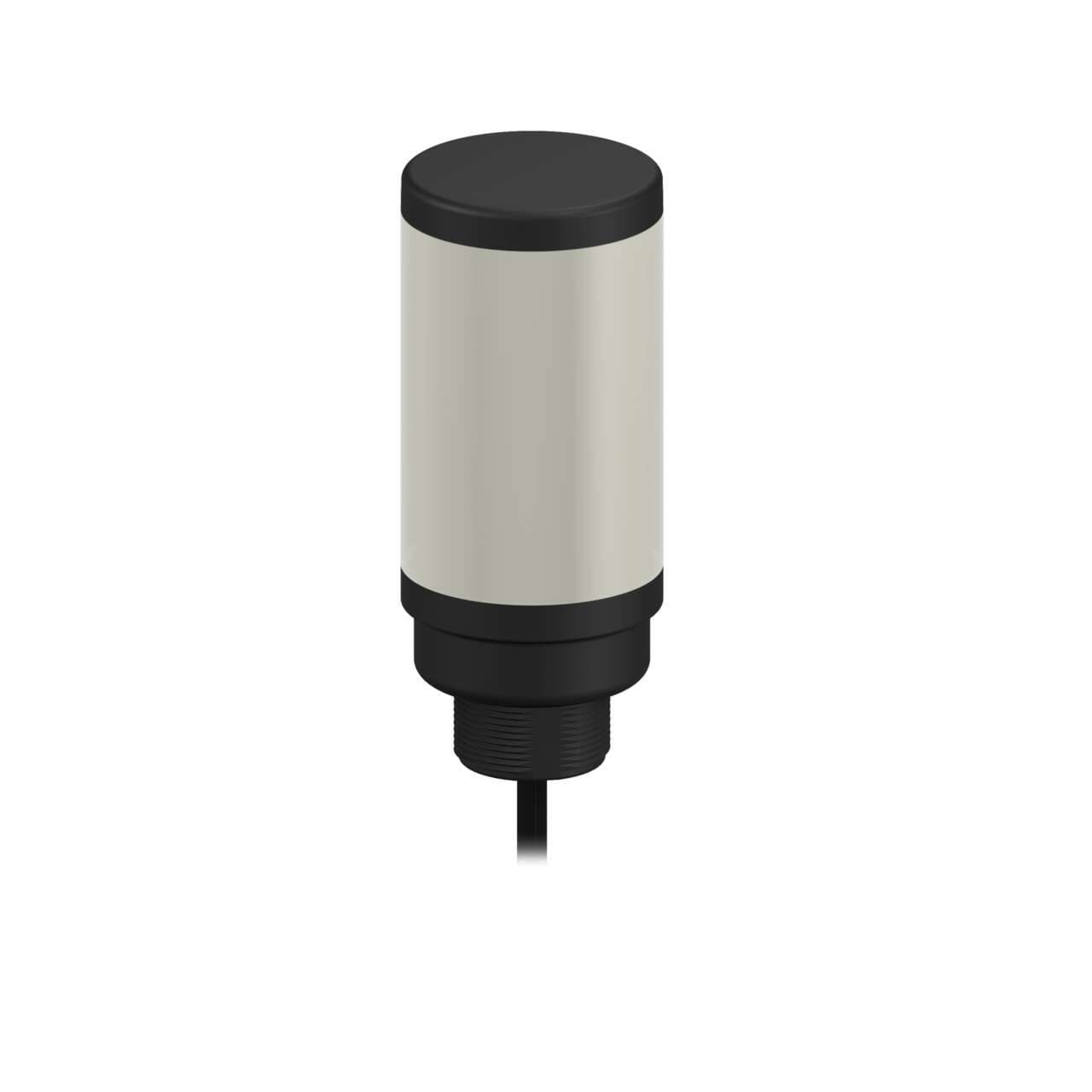

Banner Engineering CL50XRYN is a beacon designed for surface or base pole mounting with an M30 / 1/2" NPSM thread. It features a polycarbonate diffused window and an ABS/polycarbonate housing and base, ensuring durability. The beacon operates within an ambient air temperature range of -40°C to +50°C and consumes 100mA of current. It offers a degree of protection rated at IP67, NEMA 13, UL type 13, making it suitable for various industrial environments. The cylindrical shape of the CL50XRYN, along with its 1-tier 2-color R/Y color pattern LED illumination, is designed to provide clear and effective signaling. It includes 2 x digital inputs (18-30Vdc; NPN) for color control and is pre-wired with a 2m / 6.5ft 4-wire cable terminated with bare end flying leads for easy installation. The beacon requires a supply voltage of 18Vdc-30Vdc (24Vdc nom.) and has a diameter of 50mm / 2". The housing is black, offering a neutral appearance for various application settings.
Related documents CL50XRYN Specs
