CL50GRYAOSPQP Banner Signal Towers
Part#:CL50GRYAOSPQP
Manufacturer:Banner
Alt. Part#:84959
Product Lifecycle:Active
Get a quick Quote!

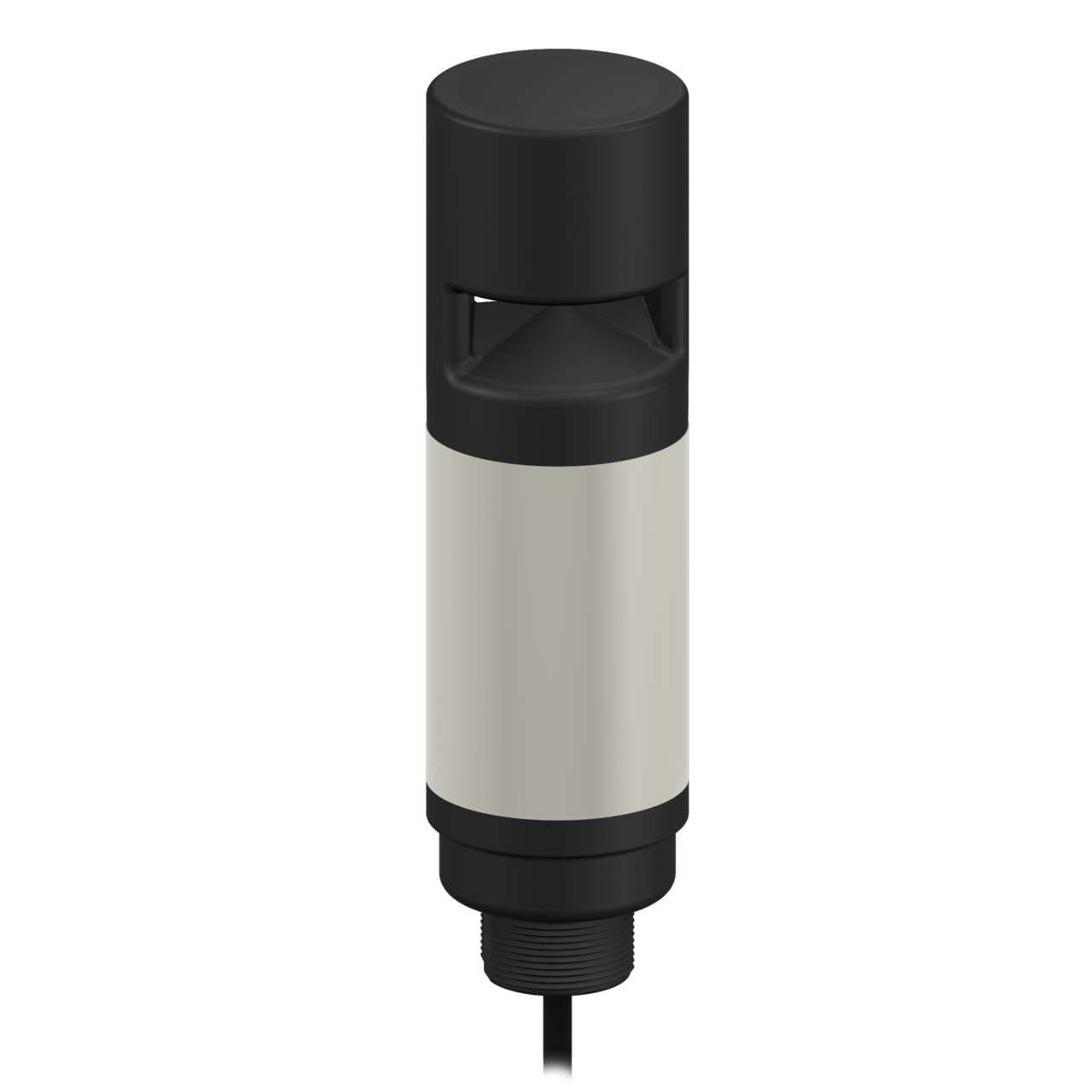

Column Light: 3-Color Sealed Omnidirectional Continuous Audible Indicator; Voltage: 18-30 V dc; Environ. Rating: IP67; Input: PNP; Colors: Green Red Yellow; 150 mm (6 in) 5-pin M12 PVC Pigtail QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the CL50GRYAOSPQP Banner price in the box on the right side or send a quick quote.
Product Details
- Weight158.7572 g
- Country Of OriginMX
- Housing Style Base Mount - Tower
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Color 3 - Wavelength/Color Temp/Coordinates 590 nm
- Mounting Thread M30 x 1.5
- Quick Disconnect Type M12 (Euro)
- Max Current Color (mA) 100
- Max Audible Intensity (db at 1m) 99
- Power Source DC
- Animation Option 1 Solid On
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Input Type PNP
- Max Op. Temperature (°C) 50
- Indication Yes
- Connection Pigtail QD
- Animation Option 3 Solid On
- Audible Operating Frequency (kHz) 2.1
- Feature: Audible Yes
- Product Size (mm) 50
- Color Technology Standard LED
- Min Op. Temperature (°C) -20
- Wireless No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Lumens Color 1 72.0
- Lumens Color 3 30.0
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 182.2
- Feature: Hazardous Area No
- Power DC
- Color Option 1 Green
- Color Option 3 Yellow
- Environmental Rating IP67
- Feature: Chemical Resistant No
- Number of Colors / Segments 3
- Cable Length (m) 2
- Animation Option 2 Solid On
- Audible Alarm Type Continuous
- Max Current - Audible Alarm (mA) 45
- IO Link No
- Primary Housing Material ABS/Polycarbonate
- Color Option 2 Red
- Number of Input Pins/Conductors 5
- NEMA Type and UL Type Rating NEMA and UL 13
- Lumens Color 2 38.0
- Supply Voltage 18-30 V dc
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Modbus RTU No
- Max Input Response Time (ms) 10
- Primary Housing Color Black
- Pro-Editor Compatible (Discrete) No
- Multi-Color Device Single Color On
- Primary Window Material Polycarbonate Diffused
- Feature: Quick Disconnect Yes
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
CL50GRYAOSPQP Description
Banner Engineering CL50GRYAOSPQP is a beacon designed for surface or base pole mounting with an M30 or 1/2" NPSM thread. It features a polycarbonate diffused window and an ABS/polycarbonate housing and base, suitable for ambient air temperatures ranging from -20°C to +50°C. This beacon has a current consumption of 100mA and offers a degree of protection rated at IP67, NEMA 13, UL type 13. Its cylindrical shape incorporates 3 x digital inputs (18-30Vdc; PNP) for color control and 1 x digital input (18-30Vdc; PNP) for alarm input. The CL50GRYAOSPQP functions as a sealed omni-directional audible column light with a continuous sound, 1-tier, 3-color G/R/Y color pattern LED illumination. It connects via a pre-wired 6" / 15cm pigtail terminated with a 5-pin M12 Euro-style QD connector and operates on a supply voltage of 18Vdc-30Vdc (24Vdc nom.). The beacon has a diameter of 50mm / 2" and features a black housing.
