CL50GRYAOSP Banner Signal Towers
Part#:CL50GRYAOSP
Manufacturer:Banner
Alt. Part#:84946
Product Lifecycle:Active
Get a quick Quote!
Column Light: 3-Color Sealed Omnidirectional Continuous Audible Indicator; Voltage: 18-30 V dc; Environ. Rating: IP67; Input: PNP; Colors: Green Red Yellow; 2 m (6.5 ft) Integral Cable
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the CL50GRYAOSP Banner price in the box on the right side or send a quick quote.
Product Details
- Weight158.7572 g
- Country Of OriginMX
- Housing Style Base Mount - Tower
- Animation Option 1 Solid On
- Color Option 3 Yellow
- Environmental Rating IP67
- Feature: Hazardous Area No
- Pro-Editor Compatible (Discrete) No
- Number of Colors / Segments 3
- Lumens Color 2 38.0
- Audible Alarm Type Continuous
- Indication Yes
- Color Option 2 Red
- Number of Input Pins/Conductors 5
- Primary Housing Color Black
- Feature: Quick Disconnect No
- Primary Housing Material ABS/Polycarbonate
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Max Current Color (mA) 100
- Max Input Response Time (ms) 10
- Input Type PNP
- NEMA Type and UL Type Rating NEMA and UL 13
- Multi-Color Device Single Color On
- Power Source DC
- Lumens Color 1 72.0
- Color 3 - Wavelength/Color Temp/Coordinates 590 nm
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 182.2
- Feature: Audible Yes
- Color Option 1 Green
- Animation Option 2 Solid On
- Supply Voltage 18-30 V dc
- Primary Window Material Polycarbonate Diffused
- Wireless No
- Power DC
- Product Size (mm) 50
- Lumens Color 3 30.0
- Audible Operating Frequency (kHz) 2.1
- Feature: Chemical Resistant No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color Technology Standard LED
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Max Current - Audible Alarm (mA) 45
- Max Op. Temperature (°C) 50
- Modbus RTU No
- Mounting Thread M30 x 1.5
- Connection Cable
- Animation Option 3 Solid On
- Max Audible Intensity (db at 1m) 99
- IO Link No
- Min Op. Temperature (°C) -20
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
CL50GRYAOSP Description

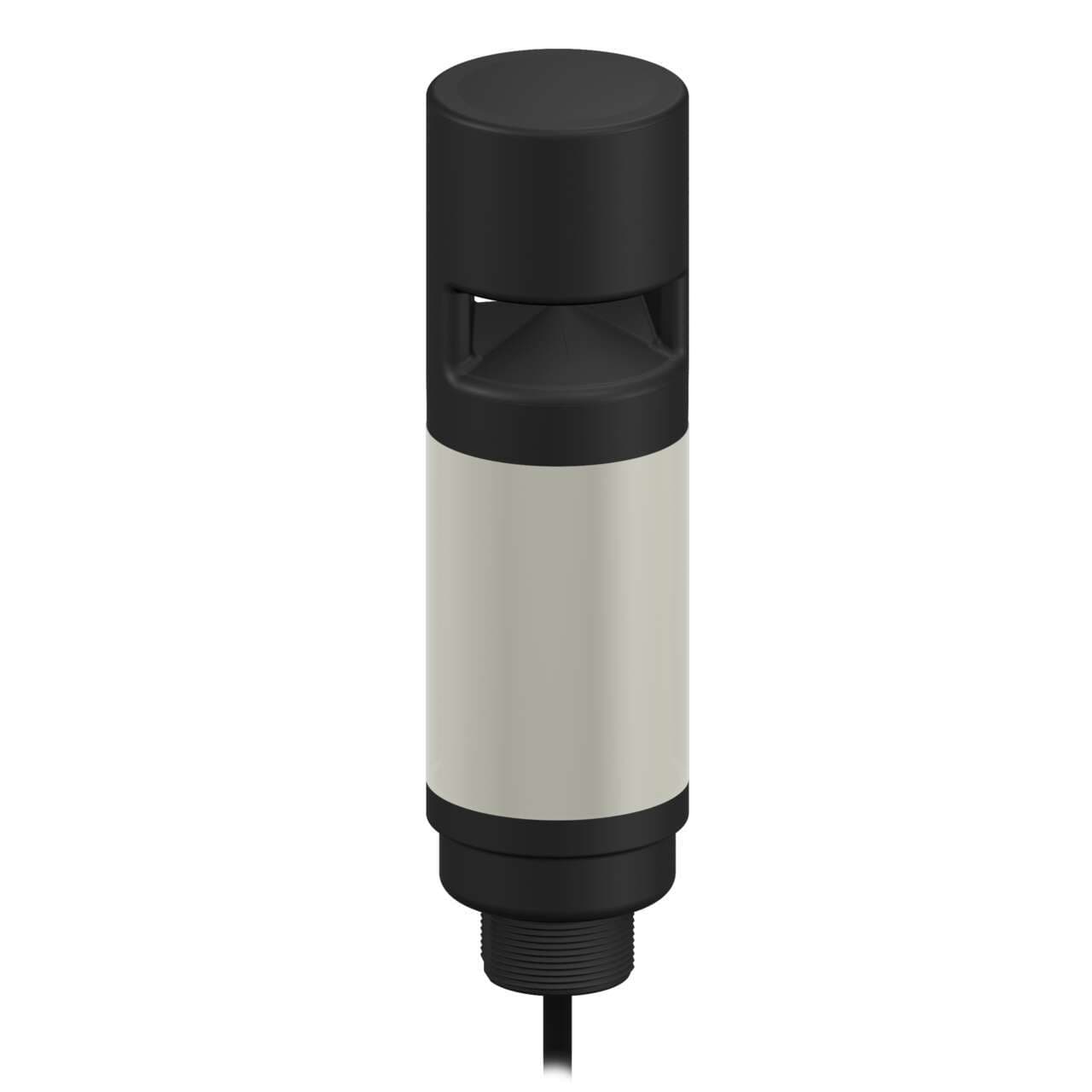

Banner Engineering CL50GRYAOSP is a beacon designed for surface or base pole mounting with an M30 or 1/2" NPSM thread. It features a polycarbonate diffused window and an ABS/polycarbonate housing and base, suitable for ambient air temperatures ranging from -20°C to +50°C. This beacon has a current consumption of 100mA and offers a degree of protection rated at IP67, NEMA 13, UL type 13. Its cylindrical shape incorporates 3 x digital inputs (18-30Vdc; PNP) for color control and 1 x digital input (18-30Vdc; PNP) for alarm input. The CL50GRYAOSP provides sealed omni-directional audible column light functionality with a continuous sound, 1-tier, 3-color G/R/Y color pattern LED illumination. It comes pre-wired with a 2m / 6.5ft 5-wire cable terminated with bare end flying leads, operates on a supply voltage of 18Vdc-30Vdc (24Vdc nom.), and has a diameter of 50mm / 2" with a black housing.
