CL50GRYAN Banner Signal Towers
Part#:CL50GRYAN
Manufacturer:Banner
Alt. Part#:10492
Product Lifecycle:Active
Get a quick Quote!
Column Light: 3-Color Audible Indicator; Voltage: 18-30 V dc; Environ. Rating: IP50; Input: NPN; Colors: Green Red Yellow; 2 m (6.5 ft) Integral Cable
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the CL50GRYAN Banner price in the box on the right side or send a quick quote.
Product Details
- Weight272.1552 g
- Country Of OriginMX
- Indication Yes
- Lumens Color 1 72.0
- Max Current Color (mA) 100
- Product Size (mm) 50
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Input Type NPN
- Color Option 1 Green
- Power DC
- Animation Option 1 Solid On
- Animation Option 3 Solid On
- Modbus RTU No
- Audible Alarm Type Continuous
- IO Link No
- Mounting Thread M30 x 1.5
- Color Option 2 Red
- Number of Input Pins/Conductors 5
- Number of Colors / Segments 3
- Color Technology Standard LED
- Lumens Color 3 30.0
- Max Input Response Time (ms) 10
- Power Source DC
- Connection Cable
- Primary Housing Material ABS/Polycarbonate
- Lumens Color 2 38.0
- Supply Voltage 18-30 V dc
- Pro-Editor Compatible (Discrete) No
- Housing Style Base Mount - Tower
- Animation Option 2 Solid On
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Wireless No
- Color 3 - Wavelength/Color Temp/Coordinates 590 nm
- Max Current - Audible Alarm (mA) 25
- NEMA Type and UL Type Rating NEMA and UL 13
- Max Audible Intensity (db at 1m) 92
- Environmental Rating IP50
- Primary Housing Color Black
- Color Option 3 Yellow
- Max Op. Temperature (°C) 50
- Multi-Color Device Single Color On
- Primary Window Material Polycarbonate Diffused
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 145.3
- Feature: Hazardous Area No
- Audible Operating Frequency (kHz) 2.7
- Feature: Chemical Resistant No
- Min Audible Intensity (db at 1m) 62
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Feature: Audible Yes
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Min Op. Temperature (°C) -20
- Feature: Quick Disconnect No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
CL50GRYAN Description

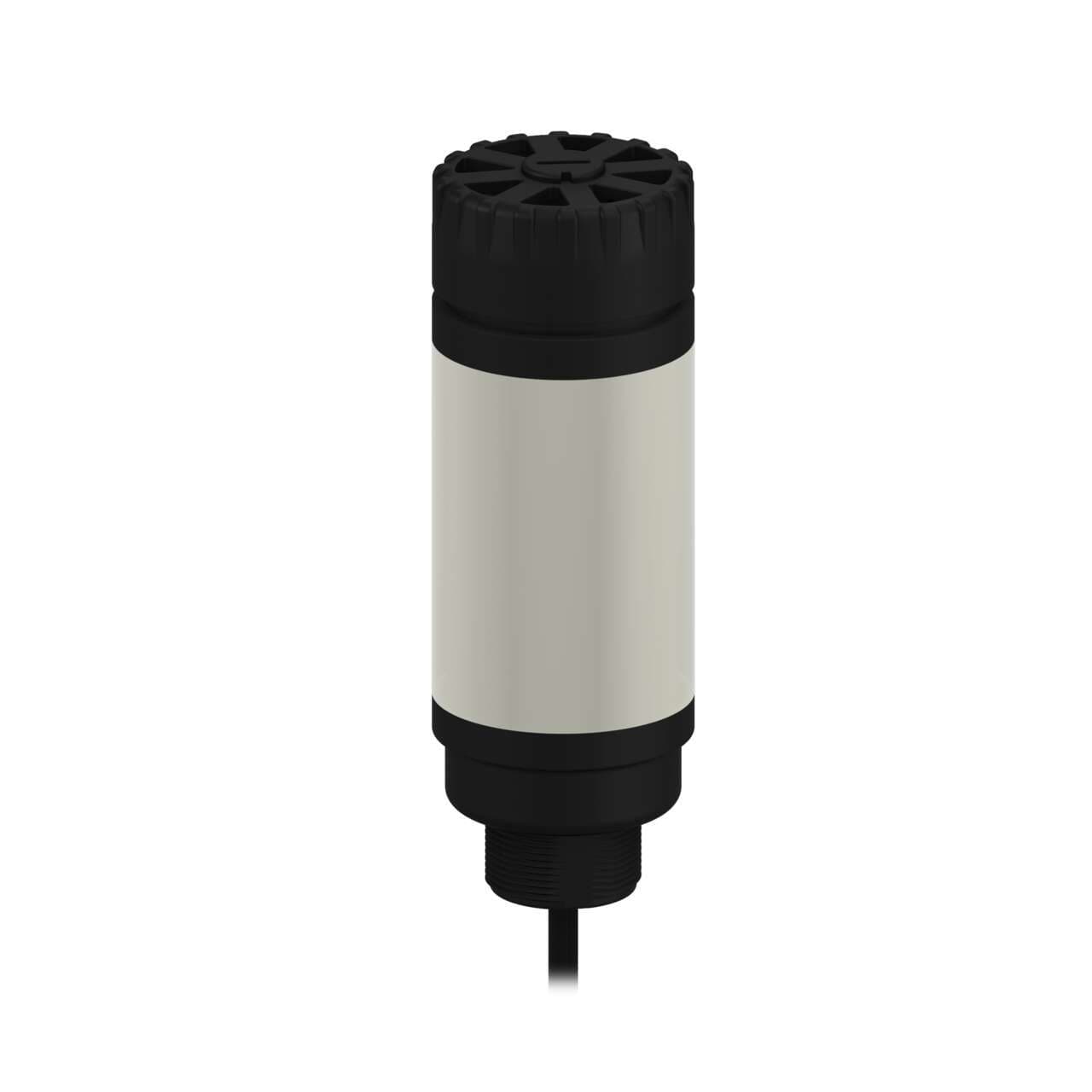

Banner Engineering CL50GRYAN is a beacon designed for surface or base pole mounting with an M30 or 1/2" NPSM thread. It features a polycarbonate diffused window and an ABS/polycarbonate housing and base, ensuring durability. The beacon operates within an ambient air temperature range of -20°C to +50°C and consumes 100mA of current. It offers a degree of protection rated at IP50 NEMA 13 UL type 13 and has a cylindrical shape. This model includes 3 x digital inputs (18-30Vdc; NPN) for color control and 1 x digital input (18-30Vdc; NPN) for alarm input. It functions as an audible column light beacon with a 1-tier 3-color G/R/Y color pattern LED illumination. The connection is facilitated by a pre-wired 2m / 6.5ft 5-wire cable terminated with bare end flying leads, and it requires a supply voltage of 18Vdc-30Vdc (24Vdc nom.). The beacon has a diameter of 50mm / 2" and features a black housing.
