CL50GRXAN Banner Signal Towers
Part#:CL50GRXAN
Manufacturer:Banner
Alt. Part#:10490
Product Lifecycle:Active
Get a quick Quote!
Column Light: 2-Color Audible Indicator; Voltage: 18-30 V dc; Environ. Rating: IP50; Input: NPN; Colors: Green Red; 2 m (6.5 ft) Integral Cable
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the CL50GRXAN Banner price in the box on the right side or send a quick quote.
Product Details
- Weight318.421584 g
- Country Of OriginMX
- Mounting Thread M30 x 1.5
- Color Option 2 Red
- Max Audible Intensity (db at 1m) 92
- Primary Housing Color Black
- Pro-Editor Compatible (Discrete) No
- Power DC
- Color Option 1 Green
- Number of Input Pins/Conductors 5
- Max Current - Audible Alarm (mA) 25
- Feature: Audible Yes
- Modbus RTU No
- Number of Colors / Segments 2
- Lumens Color 1 72.0
- Input Type NPN
- Max Op. Temperature (°C) 50
- Feature: Chemical Resistant No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Max Input Response Time (ms) 10
- IO Link No
- Cable Length (m) 2
- Product Size (mm) 50
- Lumens Color 2 38.0
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Min Audible Intensity (db at 1m) 62
- Power Source DC
- Animation Option 1 Solid On
- Supply Voltage 18-30 V dc
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 145.3
- Feature: Hazardous Area No
- Indication Yes
- Animation Option 2 Solid On
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Audible Operating Frequency (kHz) 2.7
- Min Op. Temperature (°C) -20
- Primary Housing Material ABS/Polycarbonate
- Connection Cable
- Max Current Color (mA) 100
- NEMA Type and UL Type Rating NEMA and UL 13
- Multi-Color Device Single Color On
- Housing Style Base Mount - Tower
- Color Technology Standard LED
- Audible Alarm Type Continuous
- Environmental Rating IP50
- Primary Window Material Polycarbonate Diffused
- Feature: Quick Disconnect No
- Wireless No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
CL50GRXAN Description

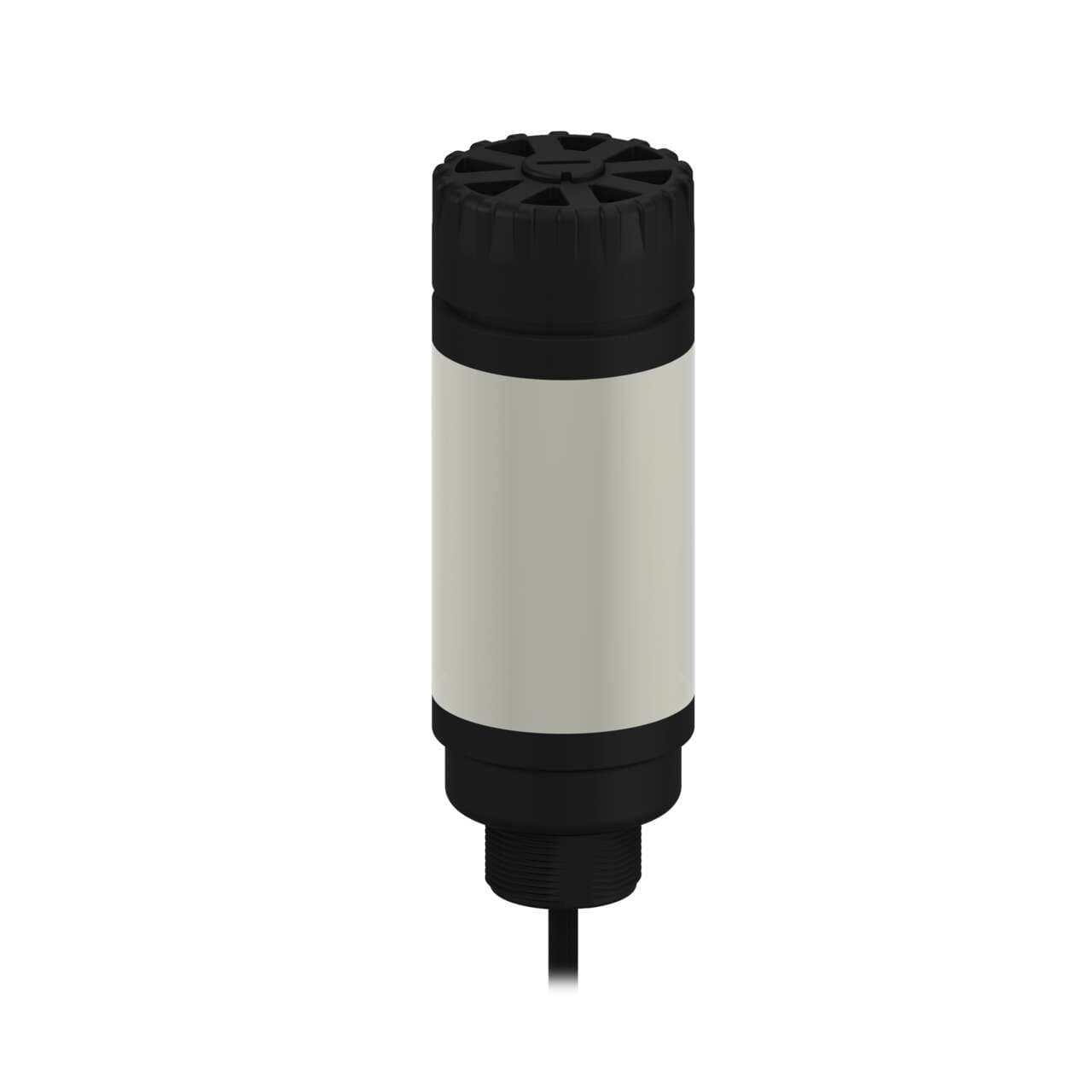

Banner Engineering CL50GRXAN is a beacon designed for surface or base pole mounting with an M30 or 1/2" NPSM thread. It features a polycarbonate diffused window and an ABS/polycarbonate housing and base, suitable for ambient air temperatures ranging from -20°C to +50°C. This beacon has a current consumption of 100mA and offers a degree of protection rated at IP50 NEMA 13 UL type 13. Its cylindrical shape incorporates 2 x digital inputs (18-30Vdc; NPN) for color control and 1 x digital input (18-30Vdc; NPN) for alarm input. The CL50GRXAN functions as an audible column light beacon, with a 1-tier 2-color G/R color pattern LED illumination. It comes pre-wired with a 2m / 6.5ft 5-wire cable terminated with bare end flying leads, requiring a supply voltage of 18Vdc-30Vdc (24Vdc nom.). The beacon has a diameter of 50mm / 2" and features a black housing.
