CL50GRXALSPQ Banner Signal Towers
Part#:CL50GRXALSPQ
Manufacturer:Banner
Alt. Part#:16904
Product Lifecycle:Active
Get a quick Quote!
Column Light: 2-Color Sealed Loud Audible Indicator; Voltage: 18-30 V dc; Environ. Rating: IP67; Input: PNP; Colors: Green Red; 5-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the CL50GRXALSPQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight249.4756 g
- Country Of OriginMX
- Power Source DC
- Lumens Color 1 72.0
- Number of Input Pins/Conductors 5
- Min Audible Intensity (db at 1m) 74
- Primary Window Material Polycarbonate Diffused
- Mounting Thread M30 x 1.5
- Quick Disconnect Type M12 (Euro)
- Max Current Color (mA) 100
- Audible Operating Frequency (kHz) 2.9
- Feature: Hazardous Area No
- Max Input Response Time (ms) 10
- Primary Housing Color Black
- Animation Option 1 Solid On
- Supply Voltage 18-30 V dc
- Max Op. Temperature (°C) 50
- Feature: Audible Yes
- Primary Housing Material ABS/Polycarbonate
- Color Option 2 Red
- Max Current - Audible Alarm (mA) 35
- Audible Alarm Type Continuous
- Modbus RTU No
- Number of Colors / Segments 2
- Product Size (mm) 50
- Lumens Color 2 38.0
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Multi-Color Device Single Color On
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Connection Integral QD
- Max Audible Intensity (db at 1m) 94
- NEMA Type and UL Type Rating NEMA and UL 13
- IO Link No
- Cable Length (m) 0.15
- Indication Yes
- Color Technology Standard LED
- Input Type PNP
- Min Op. Temperature (°C) -20
- Pro-Editor Compatible (Discrete) No
- Housing Style Base Mount - Tower
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 168.2
- Feature: Chemical Resistant No
- Power DC
- Color Option 1 Green
- Animation Option 2 Solid On
- Environmental Rating IP67
- Wireless No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
CL50GRXALSPQ Description

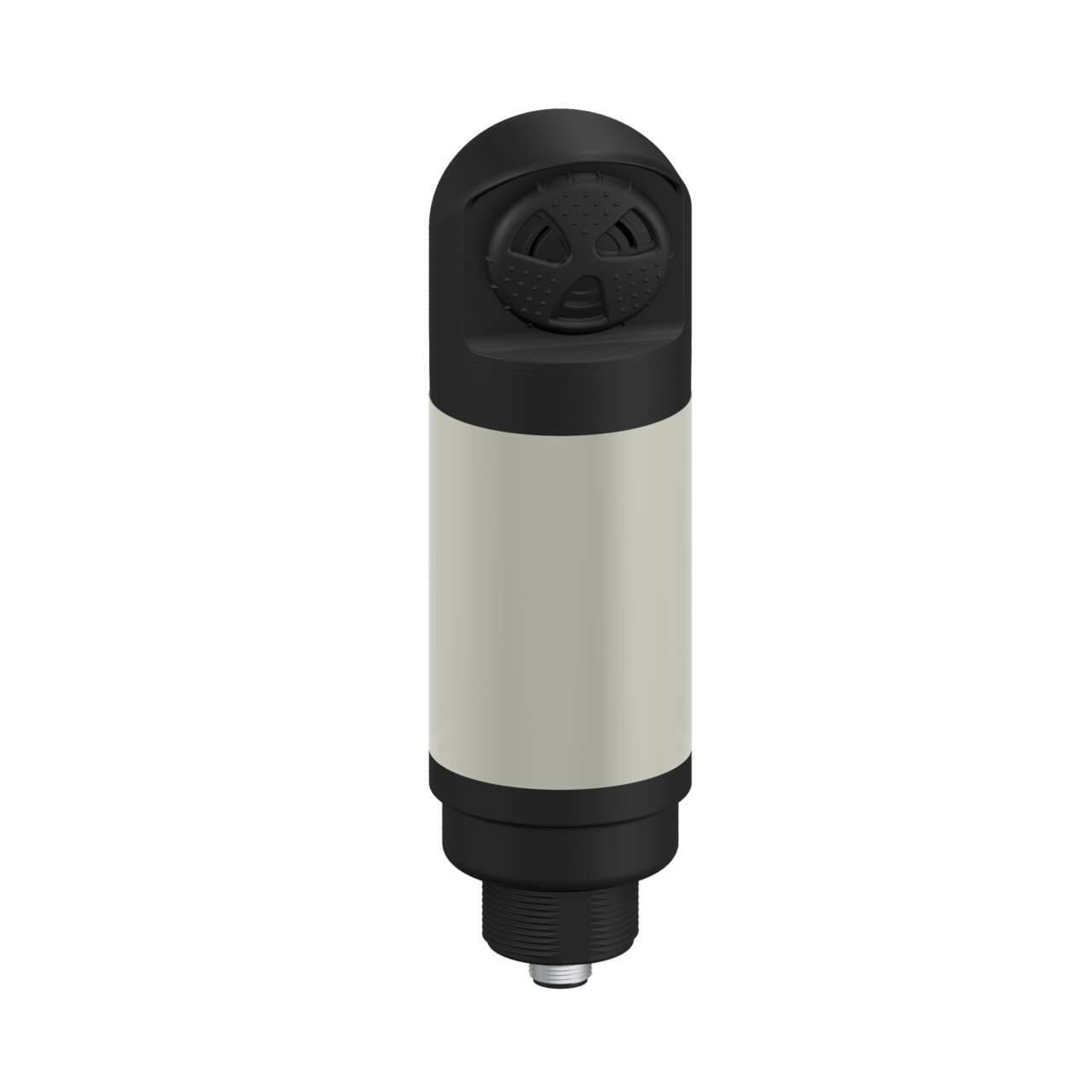

Banner Engineering CL50GRXALSPQ is a beacon designed for surface or base pole mounting with an M30 or 1/2" NPSM thread. It features a polycarbonate diffused window and an ABS/polycarbonate housing and base, ensuring durability. This beacon operates within an ambient air temperature range of -20°C to +50°C and consumes 100mA of current. It offers a high degree of protection with an IP67, NEMA 13, UL type 13 rating, making it suitable for challenging environments. The cylindrical beacon has two digital inputs for color control (18-30Vdc; PNP) and one digital input for alarm signals (18-30Vdc; PNP). It is designed to provide a continuous loud sound and 1-tier 2-color G/R color pattern LED illumination for effective signaling. The beacon is pre-equipped with a 5-pin M12 Euro-style QD connector for easy connection and operates on a supply voltage of 18Vdc-30Vdc (24Vdc nom.). With a diameter of 50mm / 2" and a black housing, this beacon is designed to meet various signaling needs in industrial settings.
