Variable Frequency Drives (VFD)

ATV71HU40Y

Schneider Electric ATV71HU40Y is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 71 series, designed for variable speed and frequency control with features including U/F ratio (2 points / 5 points), sensorless flux vector control, ENA System, and vector control with or without speed feedback. It delivers 220% of the nominal motor torque for 2 seconds and 170% of the nominal motor torque for 60 seconds. This model comes with a built-in EMC filter, built-in heatsink, and a coated version for enhanced durability. It operates on a supply voltage of 425-759Vac, accommodating 480Vac, 500Vac, 600Vac, and 690Vac nominal voltages. The dimensions are H420mm x W240mm x D236mm, and it features a conformal coating for chemical resistance. The degree of protection includes IP20, IP21, and UL type 1. The rated current specifications are 5.8A at 500Vac and 5.5A at 690Vac, with a maximum current of 9.57A for 2 seconds and 8.7A for 60 seconds. For installation, it supports wall mounting and communicates via Modbus and CANopen protocols. It is designed for a 3-phase network with an output frequency range of 0.1-599 Hz. The device includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source), an additional programmable digital input, and a PWR safety input. It also features 1 digital output (C/O SPDT relay contact) and 2 digital outputs (NO relay contacts), alongside 1 analog input (-10...+10Vdc) and 1 analog input (0-10Vdc / 0-20mA). The current consumption is 6.8A at 500Vac and 6.6A at 690Vac, with rated active power of 4kW at 690Vac and 3kW at 500Vac.

Schneider Electric

3G3RX2-A4220

RX2 Series High-Performance Inverter

Omron

SP5202-HF

NIDEC SP5202-HF is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for high frequency applications up to 3000Hz max. in an open-loop configuration with a single Safe Torque Off (STO) and air cooling. It features a frame size 5 with dimensions of H33.75" x W12.2" x D11.73" (H857mm x W310mm x D298mm), and operates on a supply voltage of 200Vac-240Vac (220Vac / 230Vac). The rated current is 154A under normal duty and 130A under heavy-duty conditions. This wall-mounted unit is designed to operate within an ambient air temperature range of 0°C to +40°C and has a degree of protection of IP20 NEMA 1. It supports Modbus RTU RS-485 communication protocol, with a network frequency of 48-65 Hz (supply input) and 0-3000 Hz (output). The SP5202-HF includes 3 x digital outputs (0-24Vdc; source), 1 x digital output (2A / 240Vac; source; relay contact type), 3 x digital inputs (0-24Vdc), and 3 x additional digital inputs (0-24Vdc). Analog interface comprises 1 x analog input (-9.8Vdc...9.8Vdc; differential) with 16-bit conversion resolution and 2 x analog inputs (0-20mA / 4-20mA / -9.8Vdc...9.8Vdc; single-ended) with 10-bit conversion resolution, along with 2 x analog outputs (0-20mA / 4-20mA / -10Vdc...10Vdc; single-ended; source) also with 10-bit conversion resolution. It is designed for a 3-phase input (3P) network, with a rated active power of 45kW under normal duty and 37kW under heavy-duty, equivalent to 60HP and 50HP respectively.

Nidec

CFW300A04P2S2NB20

DRIVE CFW300A04P2S2NB20

WEG

I55AE175A10V01002S

Lenze I55AE175A10V01002S is a variable speed/frequency drive (VSD/VFD) also known as a compact inverter, part of the Drives sub-range. It features DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, a flying restart circuit, and a PID controller. The design includes a standard I.O. with conformal coating, dimensions of H250mm x W60mm x D130mm, and supports CANopen communication protocol. It offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current is 4.2A for heavy-duty applications at 120Vac, with a supply voltage of 120Vac. It is designed for control cabinet or surface/wall mounting, operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at a switching frequency of 8kHz or 16kHz, with an IP20 degree of protection. This single-phase device supports a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 analog output (0-10Vdc; 0-20mA or 4-20mA), 5 digital inputs (PNP/NPN logic), 1 digital output (max. 100mA), and 2 analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 0.75kW, and the rated power is 1HP for heavy-duty applications at 120Vac.

Lenze

HVW701C058T4N01-X-X

WEG HVW701C058T4N01-X-X - STANDARD PANEL HVW701C058T4N01-X-X, HVAC Enclosed Drives (HVW)

WEG

I55AE211D10V0100MS

Lenze I55AE211D10V0100MS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter functionality, DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller operations. It features a standard I.O. with conformal coating, dimensions of H250mm x W60mm x D130mm, and supports Ethernet/IP communication protocol. The drive offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 6A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with an IP20 degree of protection. The drive accommodates single-phase or 3-phase networks, with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 x analog output, 5 x digital inputs with flexible functionality, 1 x digital output, and 2 x analog inputs, supporting a rated active power of 1.1kW and a rated power of 1-1/2HP for heavy-duty applications at 230-240Vac.

Lenze

ESV222N06TXC

ESV222N06TXC Lenze Variable Frequency Drive (VFD) - The SMV 3.0 hp (2.2 kW) drive features a 480 / 600 VAC 3Ø input in a convection cooled NEMA 4X (IP65) indoor enclosure. The SMVector NEMA 4X (IP65) offers exemplary performance even in harsh environments. These decentralized drives are suitable for wall mounting and are available in two enclosure materials suitable for either indoor or outdoor use. This drive is also available with an integral disconnect switch and integrated line filter ideal

Lenze

H300-03400062A10101AB653

NIDEC H300-03400062A10101AB653 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the H300 series designed with a built-in brake transistor, internal line choke, and air cooling. It features dimensions of frame size 3, measuring H15" x W3.3" x D7.9" (H382mm x W83mm x D200mm). This model supports Modbus RTU communication protocol and operates with a rated current of 6.2A under normal duty. It is designed for a supply voltage of 380Vac-480Vac (400Vac / 415Vac) and can function within an ambient air temperature range of -20°C to +40°C. The device offers a degree of protection rated at IP65, NEMA 4, UL type 12, and is suitable for a 3-phase input network with a supply input frequency of 60 Hz. It includes 2 analog outputs, 3 digital inputs (24Vdc), 3 configurable digital inputs (24Vdc), 1 digital input (0-24Vdc), and 2 digital outputs (relay contact type). Additionally, it features 1 analog input (4-20mA) and 1 analog input (0-10Vdc). The rated active power is 2.2kW, and the rated power is 3HP under normal duty conditions.

Nidec

M1105SB

Lenze M1105SB is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for general purpose applications. It features dimensions of H191mm x W155mm x D92mm and supports Modbus communication protocol. The device offers thermal overload protection and solid state motor overload protection. It operates with a rated current of 2.2A at 0-230Vac and a supply voltage of 120Vac / 240Vac. The M1105SB can be mounted in a control cabinet or on a surface/wall and is designed to operate in ambient air temperatures ranging from -10 to +50 °C. It has a NEMA 1 degree of protection and is compatible with single-phase / 1P networks, with an input frequency of 48-62 Hz and an output frequency of 0-120 Hz. The unit includes 1 analog output proportional to speed (frequency), 1 analog output proportional to load, 4 digital inputs (terminal 13A-13D), 1 digital input (terminal 12A START), 1 digital input (terminal 1 STOP), and 2 digital outputs (NPN; sinking) (terminal 14 and 15). Additionally, it features 1 analog input (0-10Vdc) (terminal 5A) and 1 analog input (4-20mA) (terminal 5B). The rated active power is 0.37kW at 120-240Vac, and the rated power is 1/2HP at 120-240Vac.

Lenze

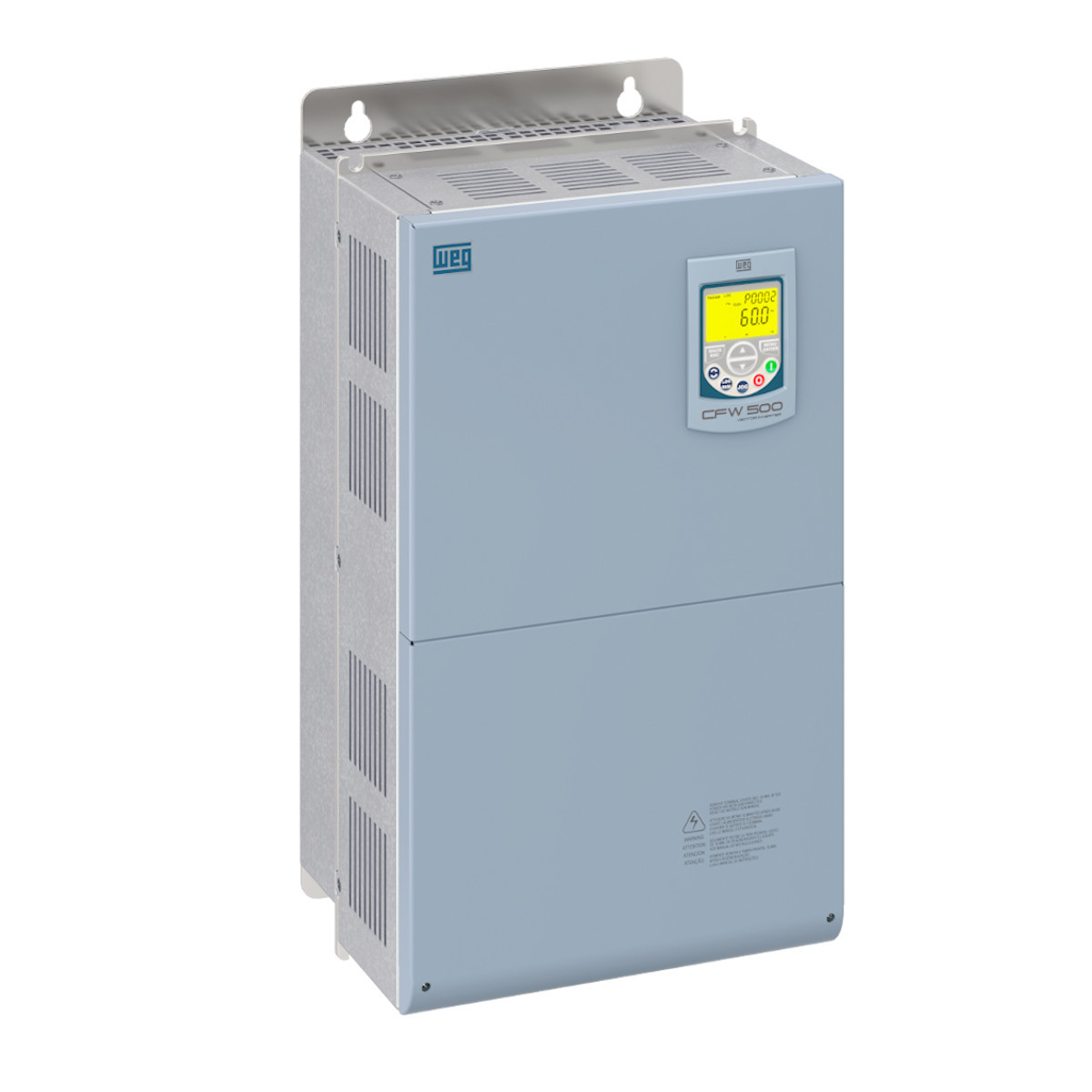

CFW500F88P0T4DB20G2

DRIVE CFW500F88P0T4DB20G2

WEG

CFW700E142T2DBN1C3

WEG CFW700E142T2DBN1C3 - DRIVE CFW700E0142T2DBN1C3, CFW500/700 Drives

WEG

C300-07400770A10101AB100

NIDEC C300-07400770A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the C300 series designed with dual Safe Torque Off (STO) and air cooling. It operates on a supply voltage of 380Vac-480Vac, including 400Vac and 415Vac, within a frame size 7 measuring H21.93" x W10.63" x D11.02" (H557mm x W270mm x D280mm) and has a degree of protection rated at IP20 NEMA 1. The rated current is 94A under normal duty and 77A under heavy-duty conditions. It supports Modbus RTU communication protocol over a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. The ambient air temperature for operation spans from -20°C to +60°C. It features 1 x analog output (10Vdc; source; single-ended), 5 x digital inputs (0-24Vdc; PNP/NPN) plus 1 additional digital input (0-24Vdc), and 1 x digital output (50mA / 0-24Vdc; source; PWM) along with 1 x digital output (2A / 240Vac; source; relay contact type). The analog inputs include 1 x analog input (0-20mA / 4-20mA / 0-10Vdc; single-ended; 11-bit conversion resolution) and 1 x analog input (0-10Vdc; single-ended; 11-bit conversion resolution). The rated active power is 45kW for normal duty and 37kW for heavy-duty, with a rated power of 60HP for both operating conditions.

Nidec

M400-09601040E10101AN100

NIDEC M400-09601040E10101AN100 is a Variable Speed/Frequency Drive (VSD/VFD) from the M400 series designed with dual Safe Torque Off (STO) and requires an external choke and air cooling. It has dimensions of frame size 9E, measuring H39.8" x W12.2" x D11.4" (H1010mm x W310mm x D290mm). This model supports multiple communication protocols including CANopen, DeviceNet, Ethernet/IP, Modbus RTU, Modbus TCP, PROFINET RT, and PROFIBUS DP. It operates with a rated current of 125A under normal duty and 104A under heavy-duty conditions. The supply voltage is rated for 500Vac-690Vac (600Vac), with an ambient air temperature range for operation from -20°C to +55°C. It offers a degree of protection of IP20 NEMA 1 and is designed for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. The device includes 2 analog outputs, 8 digital inputs, and 3 digital outputs, alongside 2 analog inputs with a conversion resolution of 11-bit. The rated active power is 110kW for normal duty and 90kW for heavy-duty, corresponding to 150HP and 125HP, respectively.

Nidec

HVW701B017T4N01-I-X

WEG HVW701B017T4N01-I-X - STANDARD PANEL HVW701B017T4N01-I-X, HVAC Enclosed Drives (HVW)

WEG

ESV183N04TFF

ESV183N04TFF Lenze Variable Frequency Drive (VFD) - The SMV 25.0 hp (18.5 kW) drive features a 400 / 480 VAC 3Ø filtered input in a fan cooled NEMA 4X (IP65) indoor/outdoor enclosure. The SMVector NEMA 4X (IP65) offers exemplary performance even in harsh environments. These decentralized drives are suitable for wall mounting and are available in two enclosure materials suitable for either indoor or outdoor use. This drive is also available with an integral disconnect switch and integrated line

Lenze

M702-07400660A10101AB100

NIDEC M702-07400660A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with a built-in brake transistor and dual Safe Torque Off (STO) for air cooling. It features dimensions of frame size 7, measuring H20" x W10.63" x D11.02" (H508mm x W270mm x D280mm). This model supports various communication protocols including Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT. It operates with a rated current of 79A under normal duty and 66A under heavy-duty conditions. The supply voltage required is 380Vac-480Vac (400Vac / 415Vac), and it is designed to function within an ambient air temperature range of -20°C to +40°C. The degree of protection provided is IP20, NEMA 1, UL open. It is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. The device includes 2 x digital inputs (0-24Vdc, with terminal 8 configurable as a motor protection thermistor), 2 x digital outputs (100mA / 0-24Vdc; source), and 1 x digital output (2A / 240Vac; source; relay contact type). The rated active power is 37kW under normal duty and 30kW under heavy-duty, with a rated power of 50HP for both conditions.

Nidec

I55AE175F1AV11001S

Lenze I55AE175F1AV11001S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for compact inverter applications including DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It features a built-in RFI filter, safe torque off (STO) safety application, I.O. conformal coating, and has dimensions of H180mm x W60mm x D130mm. This model does not include a communication interface but offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It supports a rated current of 2.4A for heavy-duty applications at 400Vac and 2.1A at 480Vac, with a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with an IP20 degree of protection. The network is 3-phase (3P / 3AC) with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 2 x analog outputs, 7 x digital inputs with flexible functionality, 2 x digital outputs, and 2 x analog inputs, supporting a rated active power of 0.75kW and rated power of 1HP for heavy-duty applications at 400-480Vac.

Lenze

CFW110058T4O55DSZPGM

WEG CFW110058T4O55DSZPGM - DRIVE CFW110058T4O55DSZ-PGM, CFW11 Pump Genius

WEG

HVW701A007DN01200001

WEG HVW701A007DN01200001 - STANDARD PANEL HVW701A007DN01200001, HVAC Enclosed Drives (HVW)

WEG
