Variable Frequency Drives (VFD)

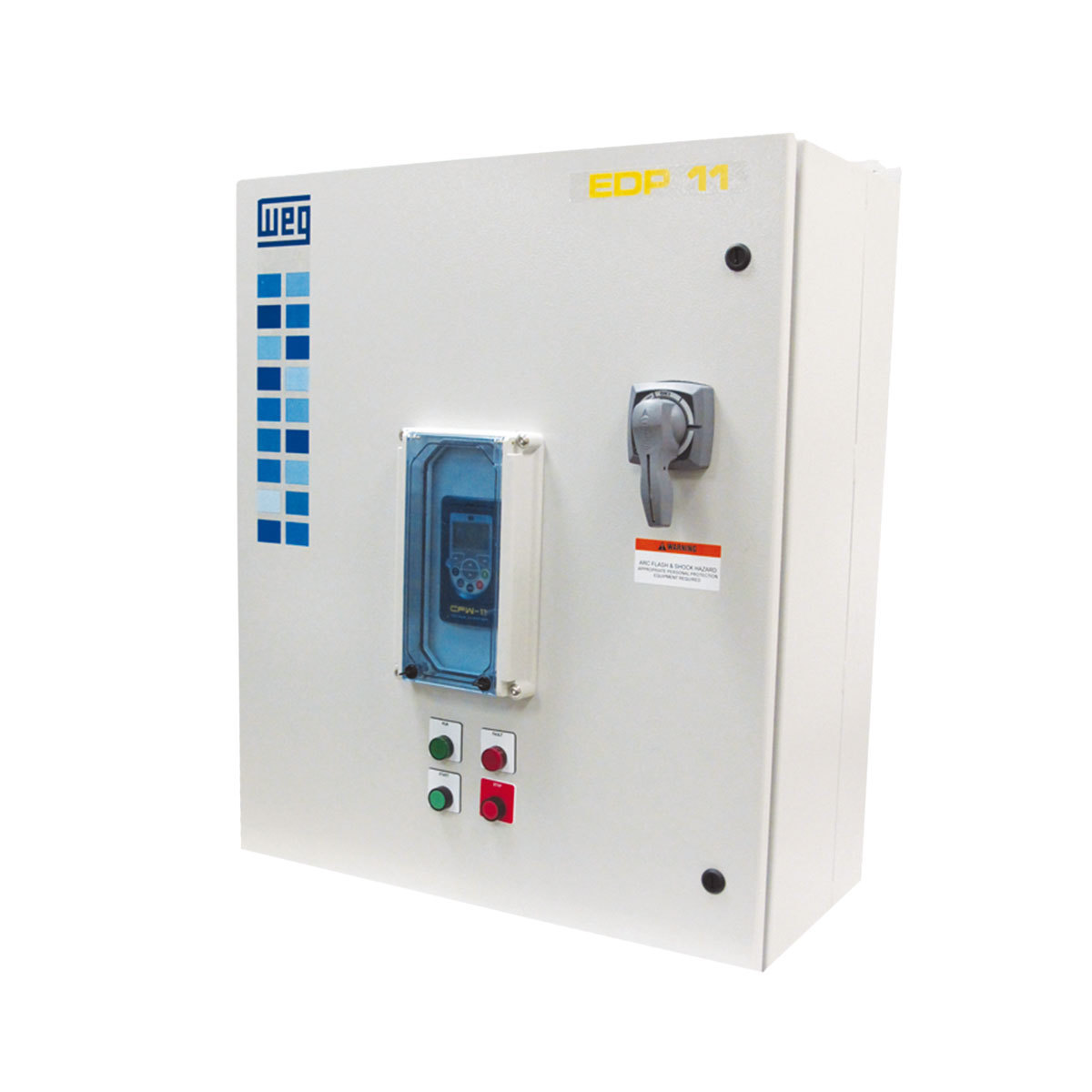

EDP11S045GN1211000

STANDARD PANEL EDP11S045GN1211000

WEG

ATV71HC40N4383

Schneider Electric ATV71HC40N4383 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 71 series designed for synchronous motor control with a built-in DC choke, EMC filter, and heatsink. It features sensorless flux vector control, ENA System Vector control with or without speed feedback, and can deliver 220% of the nominal motor torque for 2 seconds and 170% of the nominal motor torque for 60 seconds. The unit operates on a supply voltage of 323-528Vac (380Vac / 400Vac / 480Vac / 500Vac nominal) and offers a degree of protection of IP30 UL type 1. Its dimensions are H1390mm x W890mm x D377mm, and it has a conformal coating for chemical resistance. The rated current specifications include 671A and 759A at 380Vac for 355kW and 400kW respectively, with a maximum current of up to 1252A for 400kW for 2 seconds. It supports wall mounting, uses Modbus and CANopen communication protocols, and is designed for a 3-phase network with an output frequency range of 0.1-500 Hz. The device includes 1 analog output, 5+1 programmable digital inputs, 3 digital outputs, and 2 analog inputs, catering to a wide range of automation needs. The rated active power is 400kW, equivalent to 600HP.

Schneider Electric

C200-01100024A10101AB100

NIDEC C200-01100024A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the C200 series designed with air cooling. It operates on a supply voltage of 100Vac-120Vac and has dimensions of frame size 1 H6.3" x W2.95" x D5.1" (H160mm x W75mm x D130mm), with a degree of protection rated at IP20 NEMA 1. The rated current is 2.4A for both normal and heavy-duty operations. It supports Modbus RTU communication protocol over a single-phase input (2P) network with a frequency range of 45-66 Hz for supply input and 0-550 Hz for output. The ambient air temperature for operation ranges from -20°C to +60°C. It features 1 x analog output (10Vdc; source; single-ended), 5 x digital inputs (0-24Vdc; PNP/NPN) plus 1 x digital input (0-24Vdc), and 1 x digital output (50mA / 0-24Vdc; source; PWM) plus 1 x digital output (2A / 240Vac; source; relay contact type). Additionally, it has 1 x analog input (0-20mA / 4-20mA / 0-10Vdc; single-ended; 11-bit conversion resolution) and 1 x analog input (0-10Vdc; single-ended; 11-bit conversion resolution). The rated active power is 0.25kW and the rated power is 1/2HP for both normal and heavy-duty applications.

Nidec

C300-06400350A10101AB100

NIDEC C300-06400350A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the C300 series designed with dual Safe Torque Off (STO) and air cooling. It operates on a supply voltage of 380Vac-480Vac, including 400Vac and 415Vac, within a frame size of 6 measuring H15.39" x W8.27" x D8.94" (H291mm x W210mm x D227mm). This model offers an IP20 NEMA 1 degree of protection and supports a rated current of 38A under normal duty and 35A under heavy-duty conditions. It utilizes the Modbus RTU communication protocol over a 3-phase input network with a supply input frequency range of 45-66 Hz and an output frequency range of 0-550 Hz. The ambient air temperature for operation spans from -20°C to +60°C. It features 1 analog output (10Vdc; source; single-ended), 5 digital inputs (0-24Vdc; PNP/NPN) plus 1 additional digital input (0-24Vdc), and 2 digital outputs (one 50mA / 0-24Vdc; source; PWM and one 2A / 240Vac; source; relay contact type). The analog inputs include 1 input for 0-20mA / 4-20mA / 0-10Vdc (single-ended; 11-bit conversion resolution) and another for 0-10Vdc (single-ended; 11-bit conversion resolution). This device is rated for an active power of 18.5kW under normal duty and 15kW under heavy-duty, with a rated power of 25HP for both conditions.

Nidec

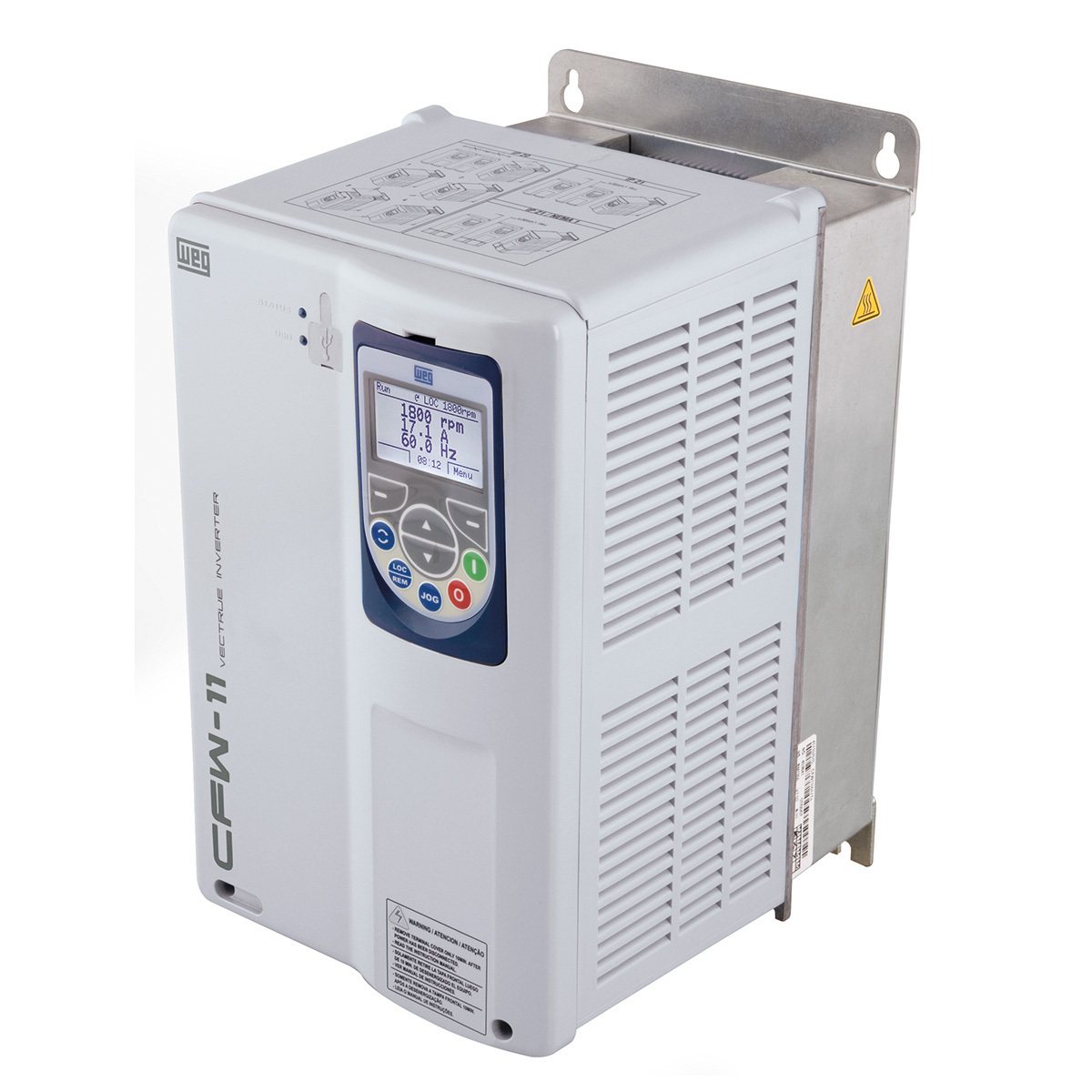

CFW110033T2ON1Z-PGM

DRIVE CFW110033T2ON1Z-PGM

WEG

HVW701B024T2N01-I-B

WEG HVW701B024T2N01-I-B - STANDARD PANEL HVW701B024T2N01-I-B, HVAC Enclosed Drives (HVW)

WEG

C200-03400094A10101AB100

NIDEC C200-03400094A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the C200 series designed with air cooling. It operates on a supply voltage of 380Vac-480Vac, including 400Vac and 415Vac, within a frame size 3, measuring H8.9" x W3.54" x D6.3" (H226mm x W90mm x D160mm). This model offers a degree of protection rated at IP20 NEMA 1 and supports a rated current of 9.4A for both normal and heavy-duty applications. It utilizes the Modbus RTU communication protocol over a 3-phase input network, with a supply input frequency range of 45-66 Hz and an output frequency range of 0-550 Hz. The ambient air temperature for operation spans from -20°C to +60°C. It features 1 analog output (10Vdc; source; single-ended), 5 digital inputs (0-24Vdc; PNP/NPN) plus 1 additional digital input (0-24Vdc), and 2 digital outputs (one 50mA / 0-24Vdc; source; PWM and another 2A / 240Vac; source; relay contact type). Additionally, it includes 2 analog inputs (one 0-20mA / 4-20mA / 0-10Vdc; single-ended; 11-bit conversion resolution and another 0-10Vdc; single-ended; 11-bit conversion resolution). The rated active power and power in HP for both normal and heavy-duty operations are 4kW and 5HP, respectively.

Nidec

I55AE211A1AV01003S

Lenze I55AE211A1AV01003S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed/frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionalities. It adheres to the safe torque off (STO) safety standard and features I.O. conformal coating. The dimensions are H250mm x W60mm x D130mm. It supports Modbus RTU communication protocol and includes protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current is 6A (heavy-duty; 120Vac) with a supply voltage of 120Vac. It is suitable for control cabinet or surface/wall mounting. The operational ambient air temperature ranges up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at a switching frequency of 8kHz or 16kHz, with a degree of protection of IP20. It operates on a single-phase / 1P network with a frequency of 45-65 Hz (input) and 0-599 Hz (output). The device includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), 5 x digital inputs (PNP/NPN logic), 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 1.1kW (heavy-duty; 120Vac), and the rated power is 1-1/2HP (heavy-duty; 120Vac).

Lenze

M701-10202830E10101AN100

NIDEC M701-10202830E10101AN100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M701 series designed for variable speed control with a single Safe Torque Off (STO) feature, requiring an external choke and air cooling for operation. It has dimensions of frame size 10E, measuring H39.7" x W12.21" x D11.42" (H1010mm x W310mm x D290mm). This model supports RS-485 Modbus RTU communication protocol and operates with a rated current of 325A under normal duty and 283A under heavy-duty conditions. It is designed for a supply voltage of 200Vac-240Vac (220Vac / 230Vac) and can function within an ambient air temperature range of -20°C to +40°C. The device offers an IP20 NEMA 1 UL open degree of protection and is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. It features 2 analog outputs (0-20mA / 4-20mA / -10...+10Vdc; source; 10-bit conversion resolution), 6 digital inputs (0-24Vdc), 4 digital outputs (0-24Vdc; source and 2A / 240Vac; source; relay contact type), and 3 analog inputs (1 x differential and 2 x single-ended; 0-20mA / 4-20mA / -10...+10Vdc; 11-bit conversion resolution). The rated active power is 90kW under normal duty and 75kW under heavy-duty, with a rated power of 125HP and 100HP, respectively.

Nidec

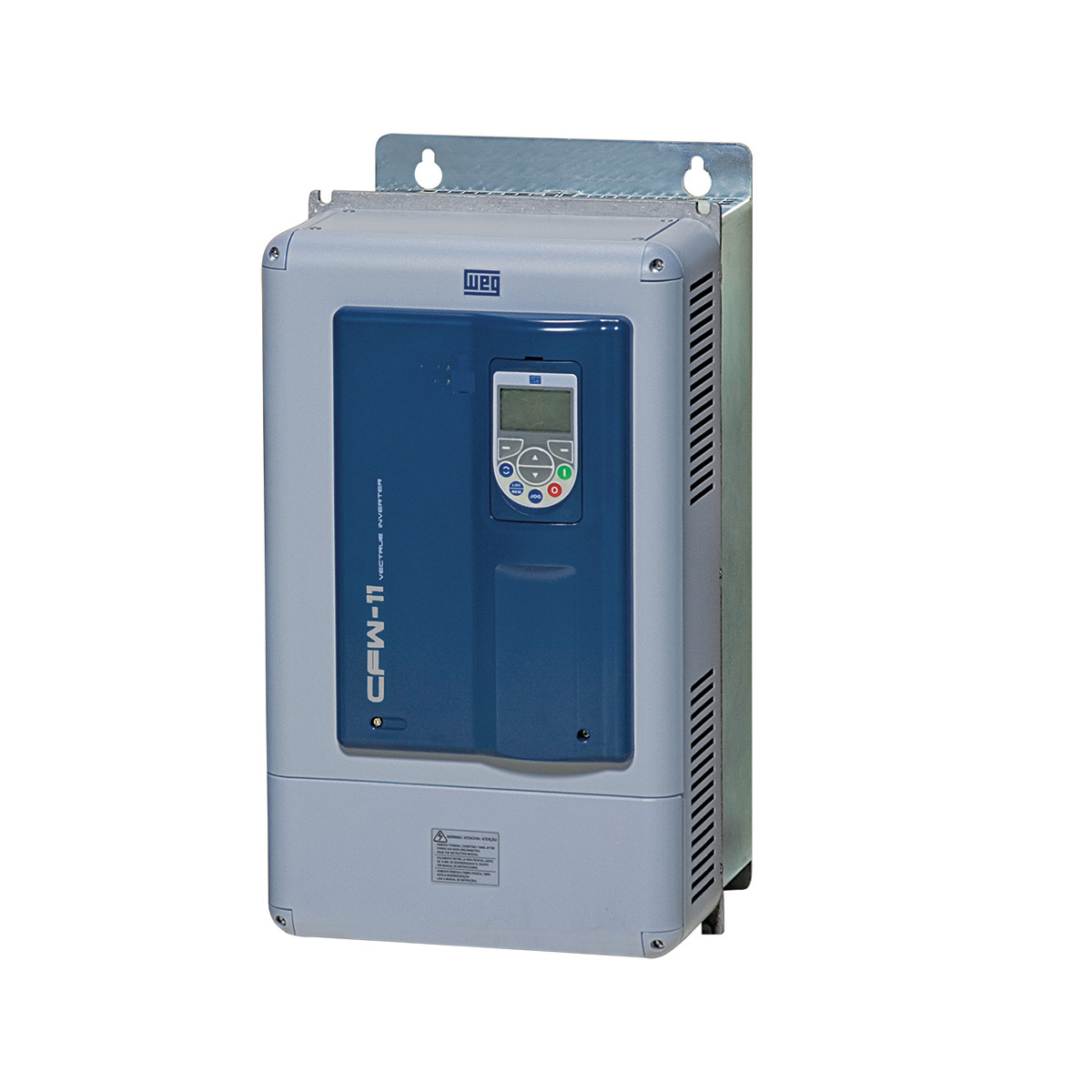

CFW110088T4OYZ

DRIVE CFW110088T4OYZ

WEG

I55AE222B10V11002S

Lenze I55AE222B10V11002S is a Variable Speed/Frequency Drive (VSD/VFD) from the Drives sub-range, designed for compact inverter applications with DC-injection braking and brake management for brake control. It features S-ramps for smooth acceleration and deceleration, a flying restart circuit, and a PID controller. The design includes a built-in RFI filter, standard I.O., and conformal coating. Its dimensions are H250mm x W60mm x D130mm, and it supports the CANopen communication protocol. Protection functions cover overvoltage category, leakage current, earth fault resistance, and overtemperature of the motor. The rated current is 9.6A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. It is suitable for control cabinet or surface/wall mounting, with an ambient air temperature for operation of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz. The degree of protection is IP20, designed for a single-phase network with an input frequency of 45-65 Hz and an output frequency of 0-599 Hz. It includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), 5 x digital inputs (with options for frequency or encoder input), 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 2.2kW, and the rated power is 3HP for heavy-duty applications at 230-240Vac.

Lenze

CFW500C07P0T5DBN1

WEG CFW500C07P0T5DBN1 - DRIVE CFW500C07P0T5DBN1, CFW500/700 Drives

WEG

M600-10202830E10101AB100

NIDEC M600-10202830E10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M600 series designed with a built-in brake transistor, single Safe Torque Off (STO), and requires an external choke with air cooling for operation. It features dimensions of frame size 10E, measuring H39.7" x W12.21" x D11.42" (H1010mm x W310mm x D290mm). This model supports RS-485 Modbus RTU communication protocol and operates with a rated current of 325A under normal duty and 283A under heavy-duty conditions. It is designed for a supply voltage of 200Vac-240Vac (220Vac / 230Vac) and can function within an ambient air temperature range of -20°C to +40°C. The device offers an IP20 NEMA 1 degree of protection and is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. It includes 2 x analog outputs, 3 x digital inputs, 3 x digital outputs plus 1 x relay contact type digital output, and 3 x analog inputs with varying specifications. The rated active power is 90kW for normal duty and 75kW for heavy-duty, corresponding to 125HP and 100HP, respectively.

Nidec

ATV312HD11S6

Schneider Electric ATV312HD11S6 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 312 series, designed with sensorless flux vector control and an energy-saving ratio of 170-200% of the nominal motor torque. It features a built-in heatsink, operates on a supply voltage of 447-660Vac (480Vac / 500Vac / 525Vac / 600Vac nom.), and has dimensions of H329.5mm x W245mm x D192mm. This model offers an IP21 degree of protection, a rated current of 17A (525Vac; 4kHz) with a maximum current of 25.5A for 60 seconds, and supports wall mounting. Communication is facilitated through Modbus and CANopen protocols, and it is designed for a 3-phase (3P) network with an output frequency range of 0.1-500 Hz. The ATV312HD11S6 includes 1 analog output (0-10Vdc), 1 analog output (0-20mA), 6 digital inputs (24Vdc; sink/source) (LI1-LI6), 1 digital output (C/O SPDT relay contact) (R1), 1 digital output (NO relay contact) (R2), and 3 analog inputs for versatile connectivity. It has a current consumption of 27.8A (525Vac; Isc = 22kA) or 24.4A (600Vac), with a rated active power of 11kW, rated power of 15HP, and power dissipation/losses of 257 W.

Schneider Electric

I51AE240F10V11001S

Lenze I51AE240F10V11001S is a Variable Speed/Frequency Drive (VSD/VFD) also known as a compact inverter, designed for variable speed control and equipped with DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, a flying restart circuit, and a PID controller. It features a built-in RFI filter, basic I.O., and conformal coating. The device supports CANopen and Modbus RTU communication protocols. Protection functions include overvoltage category, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 9.5A for heavy-duty operations at 400Vac and 8.2A at 480Vac. The supply voltage is rated for 400Vac / 480Vac. This inverter is designed for control cabinet or surface/wall mounting. It operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with a degree of protection of IP20. It is suitable for a 3-phase network (3P / 3AC) with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The inverter includes 1 analog output, 5 digital inputs with flexible functionality, 1 digital output, and 2 analog inputs. It has a rated active power of 5.5kW for light-duty and 4kW for heavy-duty operations at 400-480Vac, corresponding to 7-1/2HP and 5HP, respectively.

Lenze

ATV71HU75S6X

Schneider Electric ATV71HU75S6X is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 71 series. It features sensorless flux vector control, ENA System Vector control with or without speed feedback, and can deliver 220% of the nominal motor torque for 2 seconds and 170% of the nominal motor torque for 60 seconds. This model is designed with a built-in heatsink and operates on a supply voltage of 425-660Vac, including nominal voltages of 440Vac, 480Vac, 500Vac, and 600Vac. It has dimensions of H295mm x W210mm x D213mm and offers a degree of protection rated at IP20, IP21, and UL type 1. The rated current is 13.5A at 500Vac (4kHz), 11A at 575Vac (4kHz), with a maximum current of 22.3A for 2 seconds and 20.3A for 60 seconds. It supports wall mounting and uses Modbus and CANopen communication protocols. This 3-phase network device outputs frequencies ranging from 0.1 to 599 Hz and includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source), an additional programmable digital input, and a PWR safety input. It also features 1 digital output (C/O SPDT relay contact) and 2 digital outputs (NO relay contacts), alongside 2 analog inputs for comprehensive control. The current consumption is 21.4A at 500Vac and 18.4A at 600Vac, with a rated active power of 7.5kW and a rated power of 10HP.

Schneider Electric

HVW701B024T2N01-J-A

WEG HVW701B024T2N01-J-A - STANDARD PANEL HVW701B024T2N01-J-A, HVAC Enclosed Drives (HVW)

WEG

I55AE175D1AV01001S

Lenze I55AE175D1AV01001S is a variable speed/frequency drive (VSD/VFD) or inverter within the Drives sub-range, designed for compact inverter applications including DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It features a safe torque off (STO) safety application and I.O. conformal coating. The dimensions are H180mm x W60mm x D130mm. This model does not include a communication interface but offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 4.2A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. The mounting mode is suitable for control cabinet or surface/wall mounting. The ambient air temperature for operation varies with the switching frequency, allowing a maximum of 45°C at 2kHz or 4kHz and 40°C at 8kHz or 16kHz. It has an IP20 degree of protection and supports both single-phase and three-phase networks, with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The device includes 2 x analog outputs, 7 x digital inputs with flexible functionality, 2 x digital outputs, and 2 x analog inputs, all supporting various configurations. The rated active power is 0.75kW, and the rated power is 1HP for heavy-duty applications at 230-240Vac.

Lenze

ATV71HD45Y

Schneider Electric ATV71HD45Y is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 71 series, designed for variable speed and frequency control with a U/F ratio of 2 points / 5 points. It features sensorless flux vector control, ENA System, and vector control with or without speed feedback, capable of delivering 220% of the nominal motor torque for 2 seconds and 170% of the nominal motor torque for 60 seconds. This model comes with a built-in EMC filter, built-in heatsink, and a coated version for enhanced durability. It operates on a supply voltage of 425-759Vac, with specific nominal voltages at 480Vac, 500Vac, 600Vac, and 690Vac. The dimensions are H630mm x W320mm x D290mm, and it has a conformal coating for chemical resistance. The degree of protection includes IP20, IP21, and UL type 1. The rated current specifications are 59A at 500Vac, 52A at 575Vac, 54A at 690Vac, with a maximum current of 97.35A for 2 seconds and 88.5A for 60 seconds. It supports wall mounting and uses Modbus and CANopen communication protocols. Designed for a 3-phase network with an output frequency range of 0.1-599 Hz, it includes 1 analog output, 5+1 programmable digital inputs, 3 digital outputs, and 2 analog inputs. The current consumption is specified at 62A for 500Vac, 51A for 600Vac, and 55A for 690Vac, with rated active power of 45kW at 690Vac and 37kW at 500Vac, equivalent to 50HP.

Schneider Electric

VFD015C4EA-21

Variable Frequency Drive, 3 phase, 460 VAC build-in EMI Input, 2 HP, frame A, wall mount, IP20, NEMA 1

Delta
