Variable Frequency Drives (VFD)

HVW701A010T2N01-J-B

WEG HVW701A010T2N01-J-B - STANDARD PANEL HVW701A010T2N01-J-B, HVAC Enclosed Drives (HVW)

WEG

GA80U4012ABM

GA80U4012ABM Yaskawa - Variable frequency drive (VFD), 3 phase, 480 VAC, 12 A, IP20, General Purpose GA800 Series

Yaskawa

HVW701A013T4N01-J-B

WEG HVW701A013T4N01-J-B - STANDARD PANEL HVW701A013T4N01-J-B, HVAC Enclosed Drives (HVW)

WEG

CFW500A04P3S2NB20Y2

WEG CFW500A04P3S2NB20Y2 - DRIVE CFW500A04P3S2NB20Y2, CFW500/700 Drives

WEG

CFW500A07P0S2NB20Y2

WEG CFW500A07P0S2NB20Y2 - DRIVE CFW500A07P0S2NB20Y2, CFW500/700 Drives

WEG

I55AE275F10V1100MS

Lenze I55AE275F10V1100MS is a variable speed/frequency drive (VSD/VFD) or inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionality. It features a built-in RFI filter, standard I.O. conformal coating, and supports Ethernet/IP communication protocol. The device offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It operates with a rated current of 23A (light-duty; 400Vac), 18.3A (light-duty; 480Vac), 16.5A (heavy-duty; 400Vac), and 14A (heavy-duty; 480Vac), and a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it can function within an ambient air temperature of up to 45°C (at a switching frequency of 2kHz or 4kHz) and up to 40°C (at a switching frequency of 8kHz or 16kHz), with a degree of protection of IP20. The network type is 3-phase (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), 5 x digital inputs (PNP/NPN logic), 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 11kW (light-duty; 400-480Vac) and 7.5kW (heavy-duty; 400-480Vac), with a rated power of 15HP (light-duty; 400-480Vac) and 10HP (heavy-duty; 400-480Vac).

Lenze

F600-08601080A10101AB103

NIDEC F600-08601080A10101AB103 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for 3-phase input with a supply voltage range of 500Vac-690Vac, specifically optimized for 600Vac and a network frequency of 60 Hz. It features a rated current of 108A and supports a rated active power of 90kW or 125HP under normal duty conditions. The device is equipped with 1 analog input (4-20mA / 0-10Vdc; single-ended), 1 analog output (0-10Vdc), 3 digital inputs (24Vdc), and an additional 3 digital inputs (0-24Vdc; configurable), alongside 2 digital outputs (240Vac; relay contact type). It operates efficiently within an ambient air temperature range of -20°C to +40°C. The F600 series inverter boasts an IP20 degree of protection, a built-in brake transistor, an internal line choke, and air cooling for its design. Its dimensions are frame size 8, measuring H31.6" x W12.2" x D11.4" (H803mm x W310mm x D290mm). Communication is facilitated via the Modbus RTU protocol, ensuring compatibility with various industrial setups.

Nidec

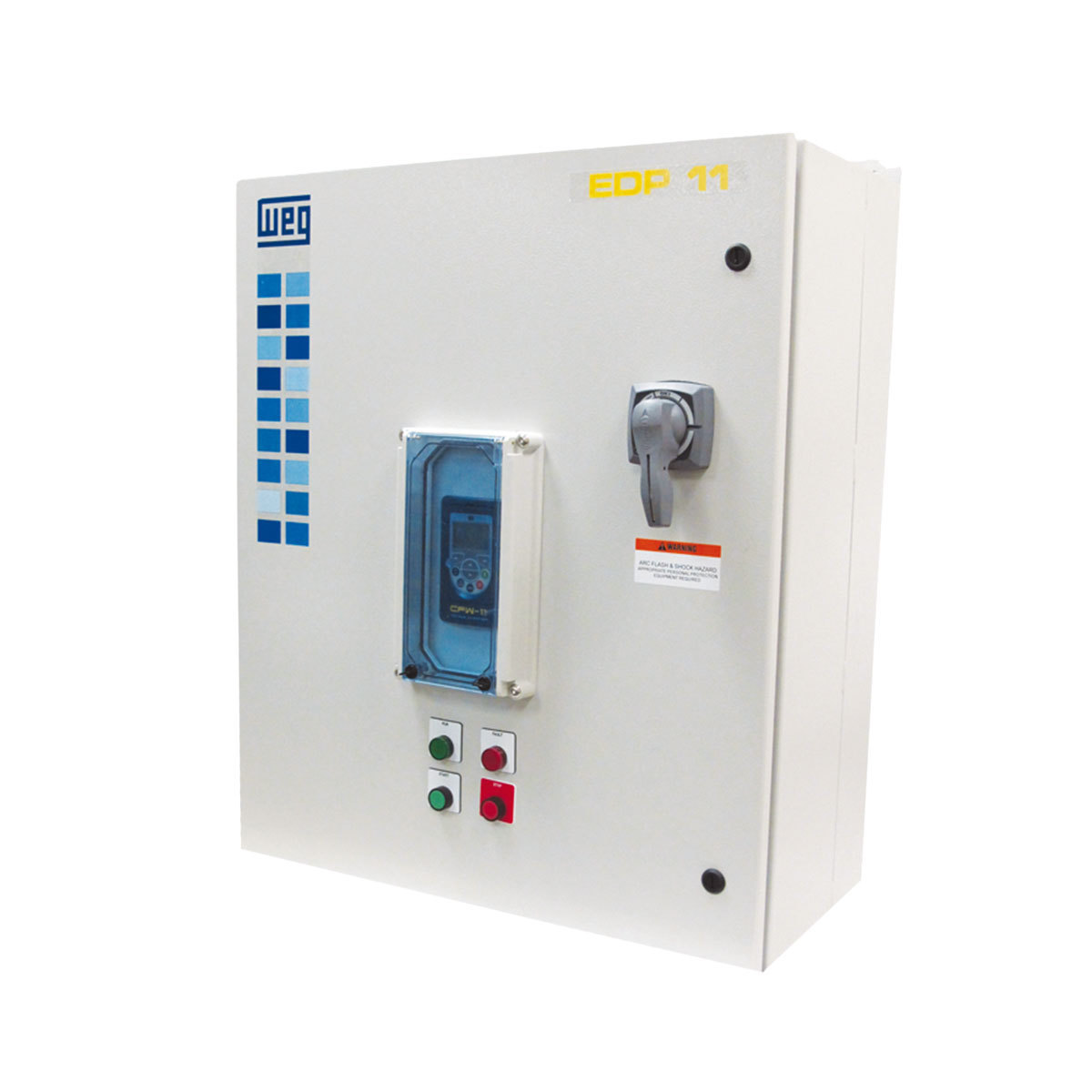

EDP11S070GN1211000PG

STANDARD PANEL EDP11S070GN1211000PG

WEG

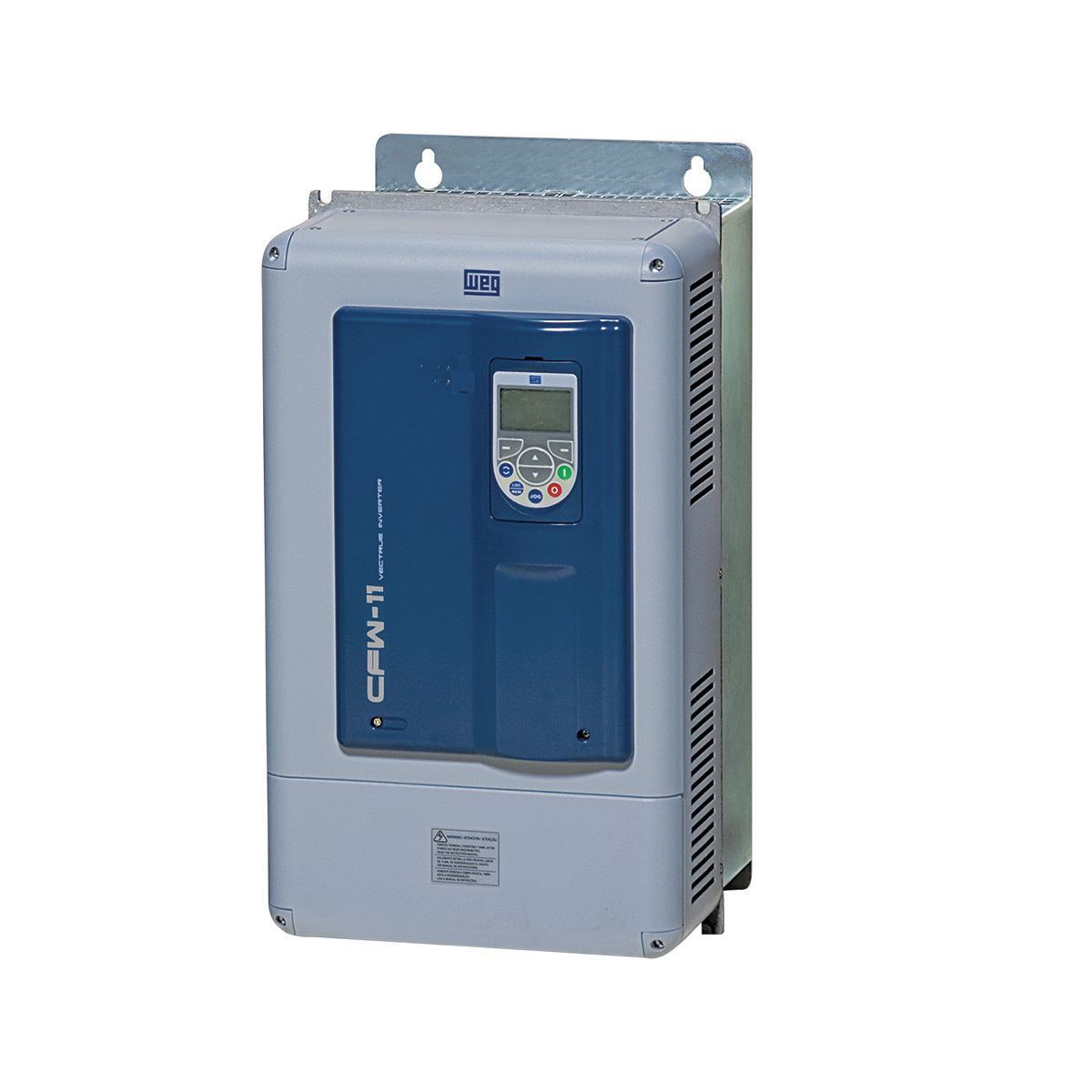

CFW110070T4ON1Z

DRIVE CFW110070T4SZ

WEG

I55AE155F10V11012S

Lenze I55AE155F10V11012S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control with additional features including DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It incorporates a built-in RFI filter, standard I.O., and conformal coating. The dimensions are H180mm x W60mm x D130mm. It supports Ethernet POWERLINK for communication and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current is 1.8A for heavy-duty applications at 400Vac and 1.6A at 480Vac, with a supply voltage of 400Vac / 480Vac. It is suitable for control cabinet or surface/wall mounting, operates within an ambient air temperature of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with a degree of protection of IP20. The network type is 3-phase (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It features 1 analog output, 5 digital inputs with flexible functionality, 1 digital output, and 2 analog inputs. The rated active power is 0.55kW, and the rated power is 3/4HP for heavy-duty applications at 400-480Vac.

Lenze

HVW701C054DN01200000

WEG HVW701C054DN01200000 - STANDARD PANEL HVW701C054DN01200000, HVAC Enclosed Drives (HVW)

WEG

GA80U4005AWM

GA80U4005AWM Yaskawa - Variable frequency drive (VFD), 3 phase, 480 VAC, 5 A, Flange (Type 12 Backside), General Purpose GA800 Series

Yaskawa

EDP11S010DN1210000

STANDARD PANEL EDP11S010DN1210000

WEG

I55AE255C10V0100WS

Lenze I55AE255C10V0100WS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionalities. It features a standard I.O. with conformal coating, dimensions of H250mm x W90mm x D130mm, and supports Modbus TCP communication protocol. The drive offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It operates with a rated current of 27.6A for light-duty (230-240Vac) and 23A for heavy-duty (230-240Vac), and a supply voltage of 230Vac / 240Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at a switching frequency of 8kHz or 16kHz, with an IP20 degree of protection. The network type is 3-phase (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 analog output, 5 digital inputs with optional uses for two of them, 2 analog inputs with optional voltage or current input, and 1 digital output. The rated active power is 7.5kW for light-duty and 5.5kW for heavy-duty, corresponding to 10HP and 7-1/2HP, respectively.

Lenze

CFW080073BDN4A1Z

WEG CFW080073BDN4A1Z - INVERTER USCFW080073B2024EON4A1Z, CFW08 / CFW500 Washdown Drives

WEG

C200-06500150A10101AB100

NIDEC C200-06500150A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the C200 series, designed with air cooling. It operates on a supply voltage of 500Vac-575Vac, with dimensions of frame size 6 H15.39" x W8.27" x D8.94" (H291mm x W210mm x D227mm), and offers a degree of protection rated at IP20 NEMA 1. The rated current is 17A under normal duty and 15A under heavy-duty conditions. It supports Modbus RTU communication protocol over a 3-phase input network, with a network frequency of 45-66 Hz (supply input) and an output frequency range of 0-550 Hz. The ambient air temperature for operation ranges from -20°C to +60°C. It features 1 x analog output (10Vdc; source; single-ended), 5 x digital inputs (0-24Vdc; PNP/NPN) plus 1 additional digital input (0-24Vdc), and 1 x digital output (50mA / 0-24Vdc; source; PWM) plus 1 x digital output (2A / 240Vac; source; relay contact type). The analog inputs include 1 x analog input (0-20mA / 4-20mA / 0-10Vdc; single-ended; 11-bit conversion resolution) and 1 x analog input (0-10Vdc; single-ended; 11-bit conversion resolution). The rated active power is 11kW under normal duty and 7.5kW under heavy-duty, with a rated power of 15HP (normal duty) and 10HP (heavy-duty).

Nidec

CFW700E105T4DB20C3

WEG CFW700E105T4DB20C3 - DRIVE CFW700E0105T4DB20C3, CFW500/700 Drives

WEG

CFW700E142T2NB20C3

WEG CFW700E142T2NB20C3 - DRIVE CFW700E0142T2NB20C3, CFW500/700 Drives

WEG

SP1201-HF

NIDEC SP1201-HF is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for high frequency applications up to 3000Hz max. in an open-loop configuration with a single Safe Torque Off (STO) and air cooling. It features a frame size 1 with dimensions of H15.2" x W3.93" x D8.62" (H386mm x W100mm x D219mm), and operates on a supply voltage of 200Vac-240Vac (220Vac / 230Vac). The rated current is 5.2A under normal duty and 4.3A under heavy-duty conditions. This wall-mounted unit is designed to operate within an ambient air temperature range of 0°C to +40°C and has a degree of protection rated at IP20 NEMA 1. It supports Modbus RTU RS-485 communication protocol and has a network frequency of 48-65 Hz (supply input) and 0-3000 Hz (output). The SP1201-HF includes 3 x digital outputs (0-24Vdc; source), 1 x digital output (2A / 240Vac; source; relay contact type), 3 x digital inputs (0-24Vdc), and analog inputs/outputs with varying specifications. It is designed for a 3-phase input network and offers rated active power of 1.1kW under normal duty and 0.75kW under heavy-duty, equivalent to 1.5HP / 1-1/2HP and 1HP respectively.

Nidec

CFW110053T6ON1NBYZ

DRIVE CFW110053T6ON1NBYZ

WEG
