Variable Frequency Drives (VFD)

F600-05500061A10101AB653

NIDEC F600-05500061A10101AB653 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for 3-phase input with a supply voltage range of 500Vac-575Vac and a network frequency of 60 Hz. It features a built-in brake transistor, an internal line choke, and air cooling for its operation. The device operates within an ambient air temperature range of -20°C to +40°C and offers a degree of protection rated at IP65. It has dimensions of frame size 5, measuring H15.4" x W5.6" x D7.6" (H391mm x W143mm x D200mm). For connectivity, it includes 1 x analog input (4-20mA / 0-10Vdc; single-ended), 1 x analog output (0-10Vdc), 3 x digital inputs (24Vdc), 3 x digital inputs (0-24Vdc; configurable), and 2 x digital outputs (240Vac; relay contact type). The F600 series drive supports Modbus RTU communication protocol, has a rated current of 6.1A (Normal duty), rated active power of 4kW (Normal duty), and rated power of 5HP (Normal duty).

Nidec

ATV61HD45M3X337

Schneider Electric ATV61HD45M3X337 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 61 series designed for variable speed and frequency control with a U/F ratio that can be set at 2 points, 5 points, or for energy saving. It features sensorless flux vector control in standard or energy-saving modes and vector control without speed feedback, capable of delivering 120% of the nominal motor torque. This model comes with a built-in heatsink in a coated version for enhanced durability, operates on a supply voltage of 170-264Vac (200Vac / 220Vac / 230Vac / 240Vac nom.), and offers dimensions of H550mm x W320mm x D266mm. It has a conformal coating for chemical resistance, an IP20 UL type 1 degree of protection, and supports a rated current of 176A at 230Vac with a 12kHz frequency, peaking at 211.2A max. current for 60 seconds. Designed for wall mounting, it utilizes Modbus and CANopen communication protocols, operates on a 3-phase network, and outputs frequencies ranging from 0.1-599 Hz. The device includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source) plus 1 additional digital input programmable as discrete or PTC input and another for PWR safety, along with 2 digital outputs. It also features 2 analog inputs for comprehensive control. The current consumption is rated at 167A for 200Vac and 147A for 240Vac, with a rated active power of 45kW and a rated power of 60HP.

Schneider Electric

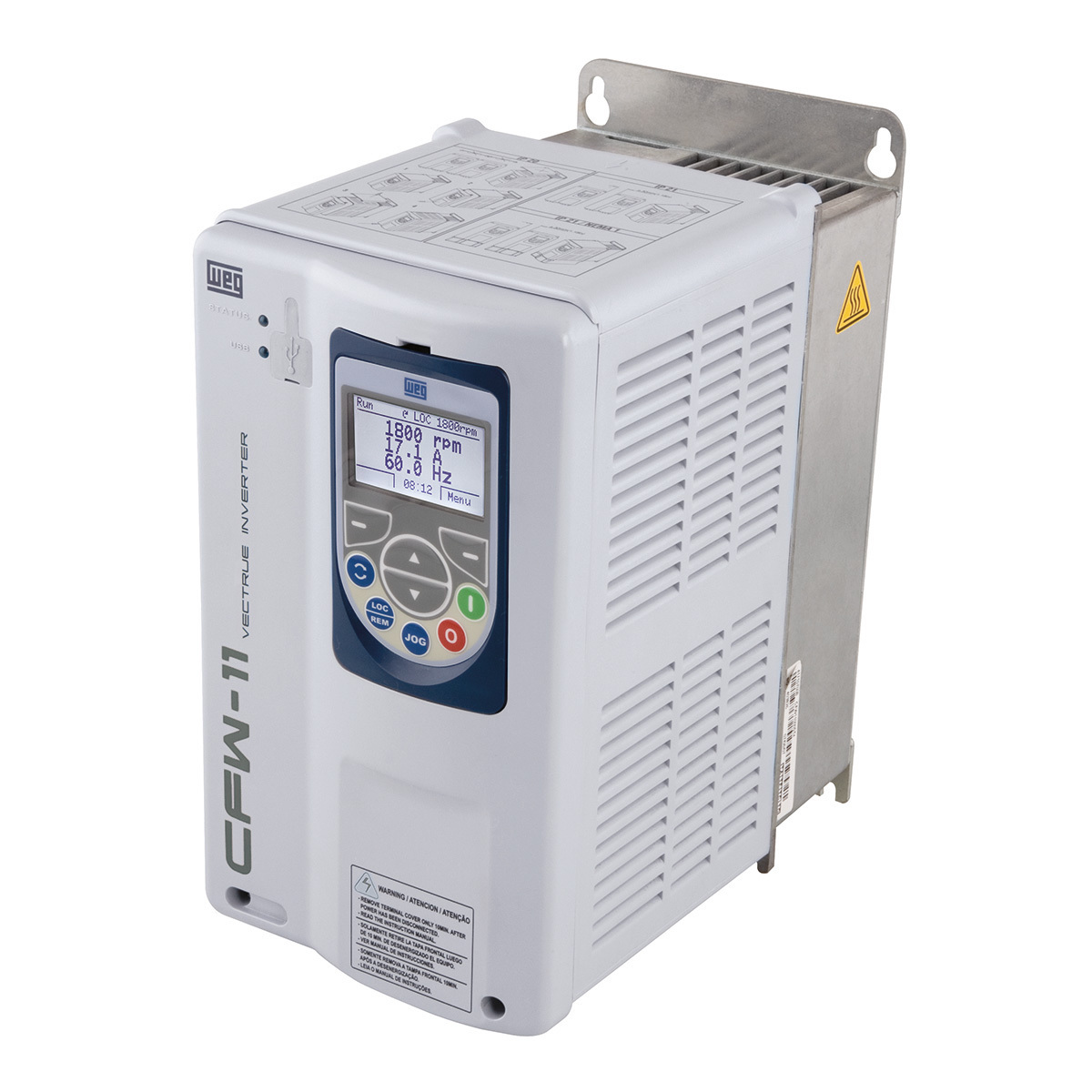

CFW110007B2ON1Z-PGM

DRIVE CFW110007B2ON1Z-PGM

WEG

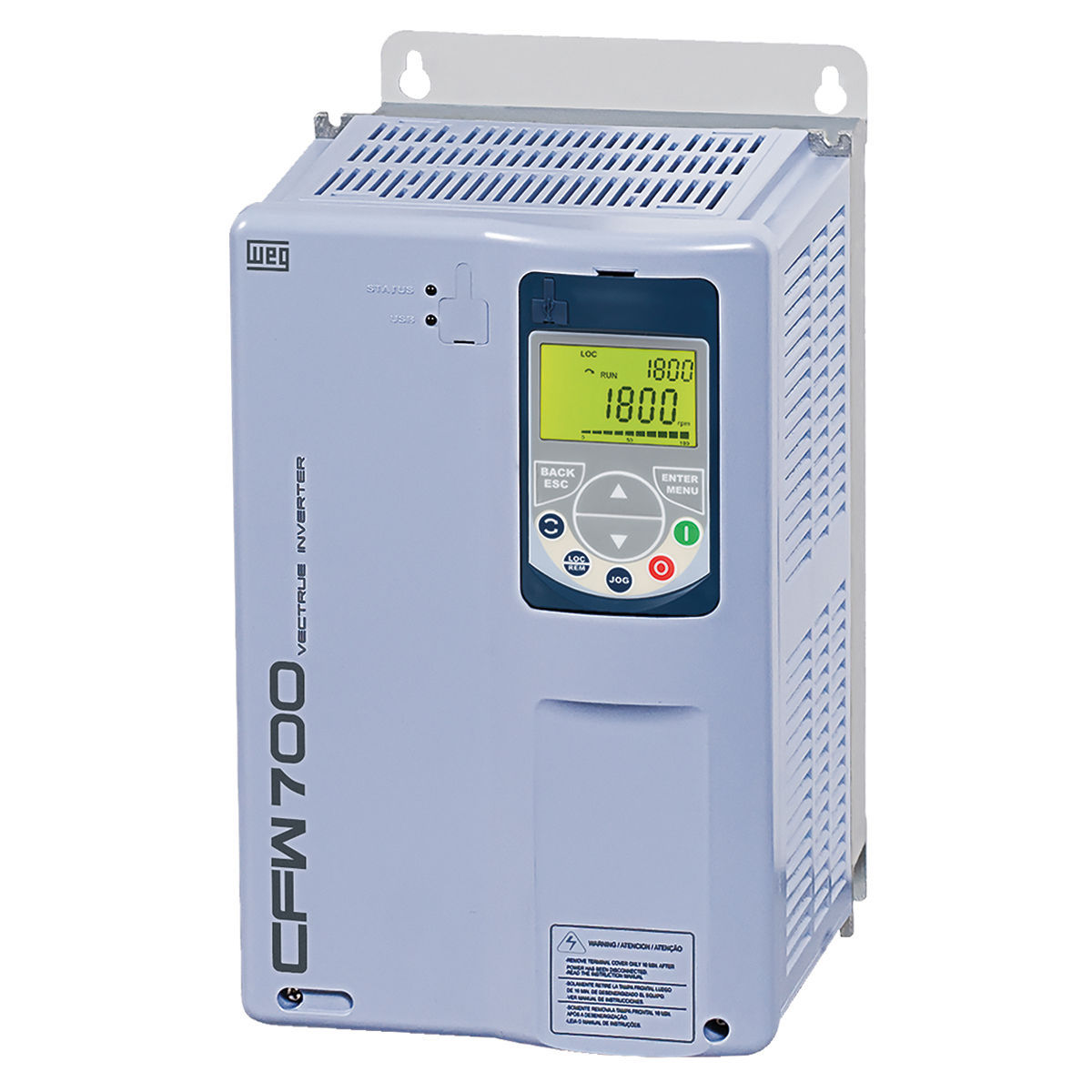

CFW700B17P0T4DB20

DRIVE CFW700B17P0T4DB20

WEG

EDP11S003GN1201000

STANDARD PANEL EDP11S003GN1201000

WEG

I55AE318F1AV1100KS

Lenze I55AE318F1AV1100KS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed/frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionality. It features a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and dimensions of H347mm x W204.5mm x D222mm. This model supports EtherCAT communication protocol and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It operates with a rated current of 48A (light-duty; 400Vac), 40.8A (light-duty; 480Vac), 40A (heavy-duty; 400Vac), and 34A (heavy-duty; 480Vac), and a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C (at a switching frequency of 2kHz or 4kHz) and up to 40°C (at a switching frequency of 8kHz or 16kHz), with a degree of protection of IP20. It is designed for a 3-phase network (3P / 3AC) with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The drive includes 1 x analog output, multiple digital inputs with flexible functionality, 2 x analog inputs, and is rated for 22kW (light-duty; 400-480Vac) or 18.5kW (heavy-duty; 400-480Vac) with a power rating of 30HP (light-duty; 400-480Vac) or 25HP (heavy-duty; 400-480Vac).

Lenze

SL208S

Lenze SL208S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed with a built-in line filter. It features dimensions of H146mm x W74mm x D92mm and operates on a supply voltage of 200Vac-240Vac (208Vac / 220Vac / 230Vac) with a rated current of 3.7A at 208Vac and 3.2A at 230Vac. This part is suitable for control cabinet or surface/wall mounting and can operate within an ambient air temperature range of 0-40°C. Although it lacks a communication interface, it supports a network frequency of 48-62 Hz on input and 0-240 Hz on output. The SL208S includes 1 digital output (normally open relay; contacts rated 3A at 250Vac), 1 digital output (current-sourcing; rated 50mA at 12Vdc), and 4 digital inputs (active-high) (terminal 1; 13A; 13B; 13E). It is designed for a single-phase network and offers a rated active power of 0.55kW and a rated power of 3/4HP across 208Vac-240Vac.

Lenze

C200-07400770A10101AB100

NIDEC C200-07400770A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the C200 series, designed with air cooling. It operates on a supply voltage of 380Vac-480Vac (400Vac / 415Vac) and has dimensions of frame size 7 H21.93" x W10.63" x D11.02" (H557mm x W270mm x D280mm). This model offers a degree of protection of IP20 NEMA 1 and supports a rated current of 94A for Normal duty and 77A for Heavy-duty. It utilizes the Modbus RTU communication protocol over a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. The ambient air temperature for operation is between -20°C and +60°C. It features 1 x analog output (10Vdc; source; single-ended), 5 x digital inputs (0-24Vdc; PNP/NPN) plus 1 x digital input (0-24Vdc), and 1 x digital output (50mA / 0-24Vdc; source; PWM) plus 1 x digital output (2A / 240Vac; source; relay contact type). Additionally, it includes 1 x analog input (0-20mA / 4-20mA / 0-10Vdc; single-ended; 11-bit conversion resolution) and 1 x analog input (0-10Vdc; single-ended; 11-bit conversion resolution). The rated active power is 45kW for Normal duty and 37kW for Heavy-duty, with a rated power of 60HP for both Normal and Heavy-duty applications.

Nidec

I55AE255C10V01002S

Lenze I55AE255C10V01002S is a Variable Speed/Frequency Drive (VSD/VFD) from the Drives sub-range, designed for compact inverter applications with features including DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It has a standard I.O. with conformal coating, dimensions of H250mm x W90mm x D130mm, and uses the CANopen communication protocol. The drive offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It supports a rated current of 27.6A for light-duty (230-240Vac) and 23A for heavy-duty (230-240Vac) operations, with a supply voltage of 230Vac / 240Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with an IP20 degree of protection. The network type is 3-phase (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 analog output, 5 digital inputs with flexible functionality, 1 digital output, and 2 analog inputs, supporting a rated active power of 7.5kW for light-duty and 5.5kW for heavy-duty, equivalent to 10HP and 7-1/2HP respectively.

Lenze

I55AE137F10V11000S

Lenze I55AE137F10V11000S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for compact inverter applications with DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It features a built-in RFI filter, standard I.O., and conformal coating. The dimensions are H155mm x W60mm x D130mm. This model does not include a communication interface but offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 1.3A for heavy-duty applications at 400-480Vac, with a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with a protection degree of IP20. The network type is 3-phase (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 analog output (0-10Vdc; 0-20mA or 4-20mA), 5 digital inputs (PNP/NPN logic), 1 digital output (max. 100mA), and 2 analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 0.37kW, and the rated power is 1/2HP for heavy-duty applications at 400-480Vac.

Lenze

M702-05400270A10101AB100

NIDEC M702-05400270A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with a built-in brake transistor and dual Safe Torque Off (STO) for air cooling. It features dimensions of frame size 5, measuring H14.37" x W5.63" x D7.87" (H365mm x W143mm x D200mm). This model supports Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT communication protocols. It operates with a rated current of 30A under normal duty and 27A under heavy-duty conditions. The supply voltage required is 380Vac-480Vac (400Vac / 415Vac), and it is designed to function within an ambient air temperature range of -20°C to +40°C. The degree of protection offered is IP20, NEMA 1, UL open. It is equipped for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. The device includes 2 x digital inputs (0-24Vdc, with terminal 8 configurable as a motor protection thermistor) and 3 x digital outputs (2 x 100mA / 0-24Vdc source and 1 x 2A / 240Vac source, relay contact type). Its rated active power is 15kW under normal duty and 11kW under heavy-duty, with a rated power of 20HP for both conditions.

Nidec

SP0202-EZ

NIDEC SP0202-EZ is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed with an E.Z. Motion module featuring a single Safe Torque Off (STO) and air cooling. It has dimensions of frame size 0, measuring H12.677" x W2.441" x D8.898" (H322mm x W62mm x D226mm), and operates on a supply voltage of 200Vac-240Vac (220Vac / 230Vac) with a rated current of 3.1A for heavy-duty applications. This wall-mounted unit is designed to function within an ambient air temperature range of 0°C to +40°C and offers a degree of protection rated at IP20 NEMA 1. It supports Modbus RTU RS-485 communication protocol and operates on a network frequency of 48-65 Hz (supply input) and 0-550 Hz (output). The SP0202-EZ features 3 x digital outputs (0-24Vdc; source), 1 x digital output (2A / 240Vac; source; relay contact type), 3 x digital inputs (0-24Vdc), and analog inputs including 1 x (-9.8Vdc...9.8Vdc; differential) and 2 x (0-20mA / 4-20mA / -9.8Vdc...9.8Vdc; single-ended) with 16-bit and 10-bit conversion resolutions respectively. It also has 2 x analog outputs (0-20mA / 4-20mA / -10Vdc...10Vdc; single-ended; source) with a 10-bit conversion resolution. The device is capable of delivering a rated active power of 0.55kW and a rated power of 3/4HP for both normal and heavy-duty operations. It supports both single-phase input (2P) and 3-phase input (3P) network types.

Nidec

HS71-07200610A10101AB100

NIDEC HS71-07200610A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the HS71 series designed for variable speed/frequency control with rated frequency outputs of 0-3000Hz in open loop and 0-1250Hz in closed loop applications. It features a built-in brake transistor and a single Safe Torque Off (STO) function, suitable for high-speed applications, and utilizes air cooling for temperature management. The dimensions are frame size 7, measuring H21.9" x W10.6" x D11" (H557mm x W270mm x D280mm). It supports RS-485 communication protocol and operates with a rated current of 75A under normal duty and 61A under heavy-duty conditions. The supply voltage requirement is AC 200Vac-240Vac (220Vac / 230Vac), and it can operate in ambient air temperatures ranging from -20°C to +40°C. This model has an IP20, NEMA 1, UL open degree of protection, and is designed for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency up to 3000 Hz. It includes 2 x analog outputs, 3 x digital inputs, 3 x digital outputs including one 2A / 240Vac relay contact type, and 3 x analog inputs with varying conversion resolutions. The rated active power is 18.5kW under normal duty and 15kW under heavy-duty, equivalent to 25HP and 20HP respectively.

Nidec

HVW701A010T4N01-X-C

WEG HVW701A010T4N01-X-C - STANDARD PANEL HVW701A010T4N01-X-C, HVAC Enclosed Drives (HVW)

WEG

EDP11S028DN1201000

STANDARD PANEL EDP11S028DN1201000

WEG

EDP11S105DN12

STANDARD PANEL EDP11S105DN12

WEG

M15200E

Lenze M15200E is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed with a water-tight and dust-tight corrosion-resistant stainless steel housing. It supports Modbus communication protocol and is equipped with thermal overload protection and solid state motor overload protection. The device has a rated current of 22A for supply voltages of 480Vac / 590Vac and is suitable for control cabinet or surface/wall mounting. It operates within an ambient air temperature range of -10 to +40 °C and offers a degree of protection of NEMA 4X. The M15200E is designed for a 3-phase network with an input frequency of 48-62 Hz and an output frequency of 0-120 Hz. It features 1 analog output proportional to speed (frequency), 1 analog output proportional to load, 4 digital inputs, 1 digital input for start, 1 digital input for stop, and 2 digital outputs (NPN; sinking). Additionally, it includes 1 analog input (0-10Vdc) and 1 analog input (4-20mA). The rated active power is 15kW, and the rated power is 20HP for supply voltages of 480Vac / 590Vac.

Lenze

F600-10601970E10101AN103

NIDEC F600-10601970E10101AN103 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for 3-phase input with a supply voltage range of 500Vac-690Vac, specifically optimized for 600Vac and a network frequency of 60 Hz. It features a rated current of 197A and supports a rated active power of 185kW or 250HP under normal duty conditions. The device is equipped with 1 analog input (4-20mA / 0-10Vdc; single-ended), 1 analog output (0-10Vdc), 3 digital inputs (24Vdc), 3 additional digital inputs (0-24Vdc; configurable), and 2 digital outputs (240Vac; relay contact type). It operates efficiently within an ambient air temperature range of -20°C to +40°C and is protected by an IP20 enclosure. The dimensions of this unit are frame size 10E, measuring H42.1" x W12.2" x D11.4" (H1069mm x W310mm x D290mm). This model utilizes an external line choke air cooling design for thermal management and communicates via the Modbus RTU protocol.

Nidec

F600-03200066A10101AB103

NIDEC F600-03200066A10101AB103 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for controlling motor speed and frequency. It operates within an ambient air temperature range of -20°C to +40°C. This model features 1 analog output (0-10Vdc), 2 digital outputs (240Vac; relay contact type), and 1 analog input (4-20mA / 0-10Vdc; single-ended) alongside 3 digital inputs (24Vdc) that are configurable between 0-24Vdc. It is protected by an IP20 enclosure and has dimensions of frame size 3, measuring H15" x W3.3" x D7.9" (H382mm x W83mm x D200mm). The F600 series drive includes a built-in brake transistor, an internal line choke, and utilizes air cooling for temperature management. It requires a supply voltage of 200Vac-240Vac (220Vac / 230Vac) with a network frequency of 60 Hz and supports Modbus RTU communication protocol. The rated current for normal duty is 6.6A, with a rated active power of 1.1kW and a rated power of 1.5HP / 1-1/2HP for normal duty operations. It is designed for a 3-phase input network (3P).

Nidec

CFW110053T6ON1NBYZ

DRIVE CFW110053T6ON1NBYZ

WEG
