Variable Frequency Drives (VFD)

EDP11S088GN1211000

STANDARD PANEL EDP11S088GN1211000

WEG

CFW700E0211T4NB20C3

WEG CFW700E0211T4NB20C3 - DRIVE CFW700E0211T4NB20C3, CFW500/700 Drives

WEG

HVW701A010T2N01-X-A

WEG HVW701A010T2N01-X-A - STANDARD PANEL HVW701A010T2N01-X-A, HVAC Enclosed Drives (HVW)

WEG

EDP11S016DN3R10000

STANDARD PANEL EDP11S016DN3R10000

WEG

F600-03400123A10101AB653

NIDEC F600-03400123A10101AB653 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for 3-phase input with a supply voltage range of 380Vac-480Vac, specifically 400Vac / 415Vac, and operates on a 60 Hz network frequency. It features a built-in brake transistor, an internal line choke, and utilizes air cooling for temperature management. This model is capable of operating within an ambient air temperature range of -20°C to +40°C. It offers a rated current of 12.3A under normal duty conditions, with a rated active power of 5.5kW and a rated power of 7.5HP / 7-1/2HP, also under normal duty. The F600 series drive includes 1 analog input (4-20mA / 0-10Vdc; single-ended), 1 analog output (0-10Vdc), 3 digital inputs (24Vdc), and 3 additional digital inputs (0-24Vdc; configurable), along with 2 digital outputs (240Vac; relay contact type). It supports Modbus RTU communication protocol and is housed in a frame size 3, measuring H15" x W3.3" x D7.9" (H382mm x W83mm x D200mm), with a degree of protection rated at IP65.

Nidec

M702-11403770E10101AN100

NIDEC M702-11403770E10101AN100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with dual Safe Torque Off (STO), requiring an external choke and air cooling. It features dimensions of frame size 11E, measuring H46.9" x W12.2" x D48.9" (H1190mm x W310mm x D312mm). This model supports various communication protocols including Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT. It operates with a rated current of 437A under normal duty and 377A under heavy-duty conditions. The supply voltage is rated for 380Vac-480Vac (400Vac / 415Vac), and it can function within an ambient air temperature range of -20°C to +40°C. The degree of protection is IP20, NEMA 1, UL open. It is designed for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. The device includes 2 x digital inputs (0-24Vdc, with terminal 8 configurable as a motor protection thermistor) and 3 x digital outputs (2 x 100mA / 0-24Vdc source and 1 x 2A / 240Vac source, relay contact type). The rated active power is 225kW under normal duty and 185kW under heavy-duty, corresponding to 350HP and 300HP, respectively.

Nidec

HVW701C070T2N01-X-C

WEG HVW701C070T2N01-X-C - STANDARD PANEL HVW701C070T2N01-X-C, HVAC Enclosed Drives (HVW)

WEG

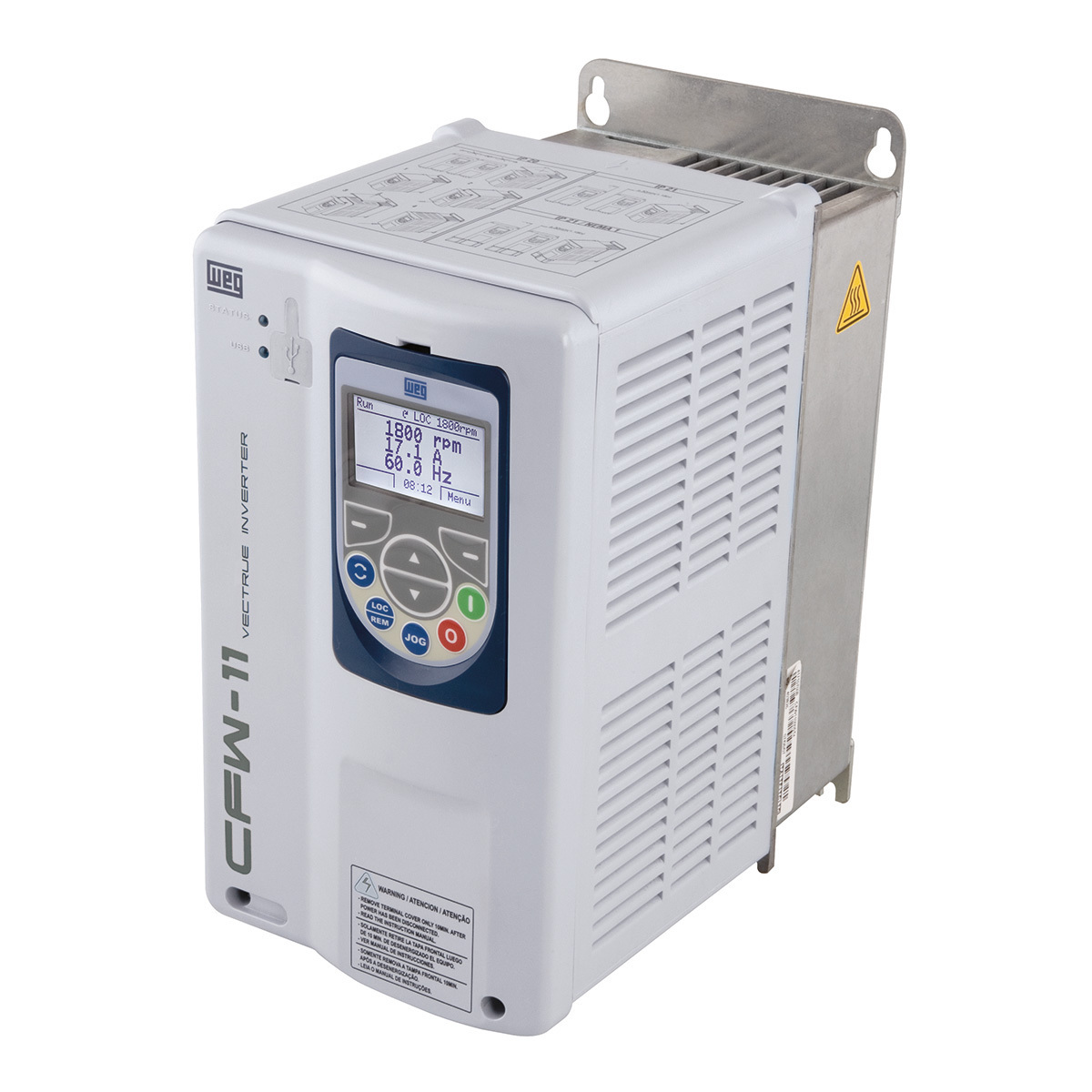

CFW110005T4ON1Z-PGS

DRIVE CFW110005T4ON1Z-PGS

WEG

I55AE255F1AV1100WS

Lenze I55AE255F1AV1100WS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed/frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionality. It features a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and supports Modbus TCP communication protocol. This model has dimensions of H250mm x W90mm x D130mm and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It operates with a rated current of 15.6A (light-duty; 400Vac), 13.2A (light-duty; 480Vac), 13A (heavy-duty; 400Vac), and 11A (heavy-duty; 480Vac), and a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it operates efficiently within an ambient air temperature range, with a maximum of 45°C at a switching frequency of 2kHz or 4kHz, and 40°C at 8kHz or 16kHz. The degree of protection is IP20, designed for a 3-phase network (3P / 3AC) with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 x analog output, multiple digital inputs with flexible functionality, 1 x digital output, and 2 x analog inputs, supporting both voltage and current input or output options. The rated active power is 7.5kW (light-duty; 400-480Vac) and 5.5kW (heavy-duty; 400-480Vac), with a rated power of 10HP (light-duty; 400-480Vac) and 7-1/2HP (heavy-duty; 400-480Vac).

Lenze

M600-08600630A10101AB100

NIDEC M600-08600630A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M600 series designed with a built-in brake transistor and a single Safe Torque Off (STO) feature, utilizing air cooling. It has dimensions of frame size 8, measuring H29.65" x W12.21" x D11.42" (H753mm x W310mm x D290mm). This model supports RS-485 Modbus RTU communication protocol and operates with a rated current of 86A under normal duty and 63A under heavy-duty conditions. It is designed for a supply voltage of 500Vac-690Vac (600Vac) and can function in ambient air temperatures ranging from -20°C to +40°C. The device offers an IP20 NEMA 1 degree of protection and is compatible with a 3-phase input (3P) network, with a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. It features 2 x analog outputs, 3 x digital inputs, 3 x additional digital inputs, 3 x digital outputs, and 3 x analog inputs with varying specifications. The rated active power is 75kW under normal duty and 55kW under heavy-duty, corresponding to 100HP and 75HP, respectively.

Nidec

GA80U4007ABM

GA80U4007ABM Yaskawa - Variable frequency drive (VFD), 3 phase, 480 VAC, 7 A, IP20, General Purpose GA800 Series

Yaskawa

I55AE125A10V0100WS

Lenze I55AE125A10V0100WS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter functionality, DC-injection braking, brake management, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller operations. It features a standard I.O. with conformal coating, dimensions of H180mm x W60mm x D130mm, and supports Modbus TCP communication protocol. The drive offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 1.7A for heavy-duty applications at 120Vac, with a supply voltage of 120Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with an IP20 degree of protection. The network type is single-phase / 1P, with a network frequency of 45-65 Hz input and 0-599 Hz output. It includes 1 analog output, 5 digital inputs with flexible functionality, 1 digital output, and 2 analog inputs, all supporting various signal types. The rated active power is 0.25kW, and the rated power is 1/3HP for heavy-duty applications at 120Vac.

Lenze

I55AE137F10V1100WS

Lenze I55AE137F10V1100WS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter DC-injection braking, brake management for brake control, and includes S-ramps for smooth acceleration and deceleration. It features a flying restart circuit, PID controller, and is equipped with a built-in RFI filter standard I.O. conformal coating. The dimensions are H155mm x W60mm x D130mm. It supports Modbus TCP communication protocol and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current is 1.3A for heavy-duty applications at 400-480Vac, with a supply voltage of 400Vac / 480Vac. It is designed for control cabinet or surface/wall mounting, operates within an ambient air temperature of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at a switching frequency of 8kHz or 16kHz, with a degree of protection of IP20. It operates on a 3-phase network (3P / 3AC) with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The device includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), 5 x digital inputs (PNP/NPN logic), 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). It has a rated active power of 0.37kW and a rated power of 1/2HP for heavy-duty applications at 400-480Vac.

Lenze

ESV303N04TXB

ESV303N04TXB Lenze Variable Frequency Drive (VFD) - The SMV 40.0 hp (30.0 kW) drive features a 400 / 480 VAC 3Ø input in a fan cooled NEMA 1 (IP31) indoor enclosure. The SMVector NEMA 1 (IP31) is a compact and cost effective drive for a wide range of AC motor applications demanding dynamic speed and torque control. The SMVector NEMA 1 (IP31) is available in power ranges from 0.33...60.0 hp (0.25 kW...45.0 kW) and global voltages from 120 VAC...600 VAC.

Lenze

I55AE230F1AV1100MS

Lenze I55AE230F1AV1100MS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionality. It features a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and supports Ethernet/IP communication protocol. Protection functions include overvoltage category, leakage current, earth fault resistance, and overtemperature of motor. The rated current is 8.8A for light-duty at 400Vac, 7.6A for light-duty at 480Vac, 7.3A for heavy-duty at 400Vac, and 6.3A for heavy-duty at 480Vac, with a supply voltage of 400Vac / 480Vac. It is designed for control cabinet or surface/wall mounting, operates within an ambient air temperature of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at a switching frequency of 8kHz or 16kHz, with a degree of protection of IP20. The network type is 3-phase (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), 5 x digital inputs (PNP/NPN logic), 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 4kW for light-duty and 3kW for heavy-duty, both at 400-480Vac, with a rated power of 5HP for light-duty and 4HP for heavy-duty, at the same voltage range.

Lenze

ESV751N01SXB

ESV751N01SXB Lenze Variable Frequency Drive (VFD) - The SMV 1.0 hp (0.75 kW) drive features a 120 VAC (doubler) / 240 VAC 1Ø input in a convection cooled NEMA 1 (IP31) indoor enclosure. The SMVector NEMA 1 (IP31) is a compact and cost effective drive for a wide range of AC motor applications demanding dynamic speed and torque control. The SMVector NEMA 1 (IP31) is available in power ranges from 0.33...60.0 hp (0.25 kW...45.0 kW) and global voltages from 120 VAC...600 VAC.

Lenze

ESV371N01SXE

ESV371N01SXE Lenze Variable Frequency Drive (VFD) - The SMV 0.50 hp (0.37 kW) drive features a 120 VAC (doubler) / 240 VAC 1Ø input in a convection cooled NEMA 4X (IP65) indoor/outdoor enclosure. The SMVector NEMA 4X (IP65) offers exemplary performance even in harsh environments. These decentralized drives are suitable for wall mounting and are available in two enclosure materials suitable for either indoor or outdoor use. This drive is also available with an integral disconnect switch and integ

Lenze

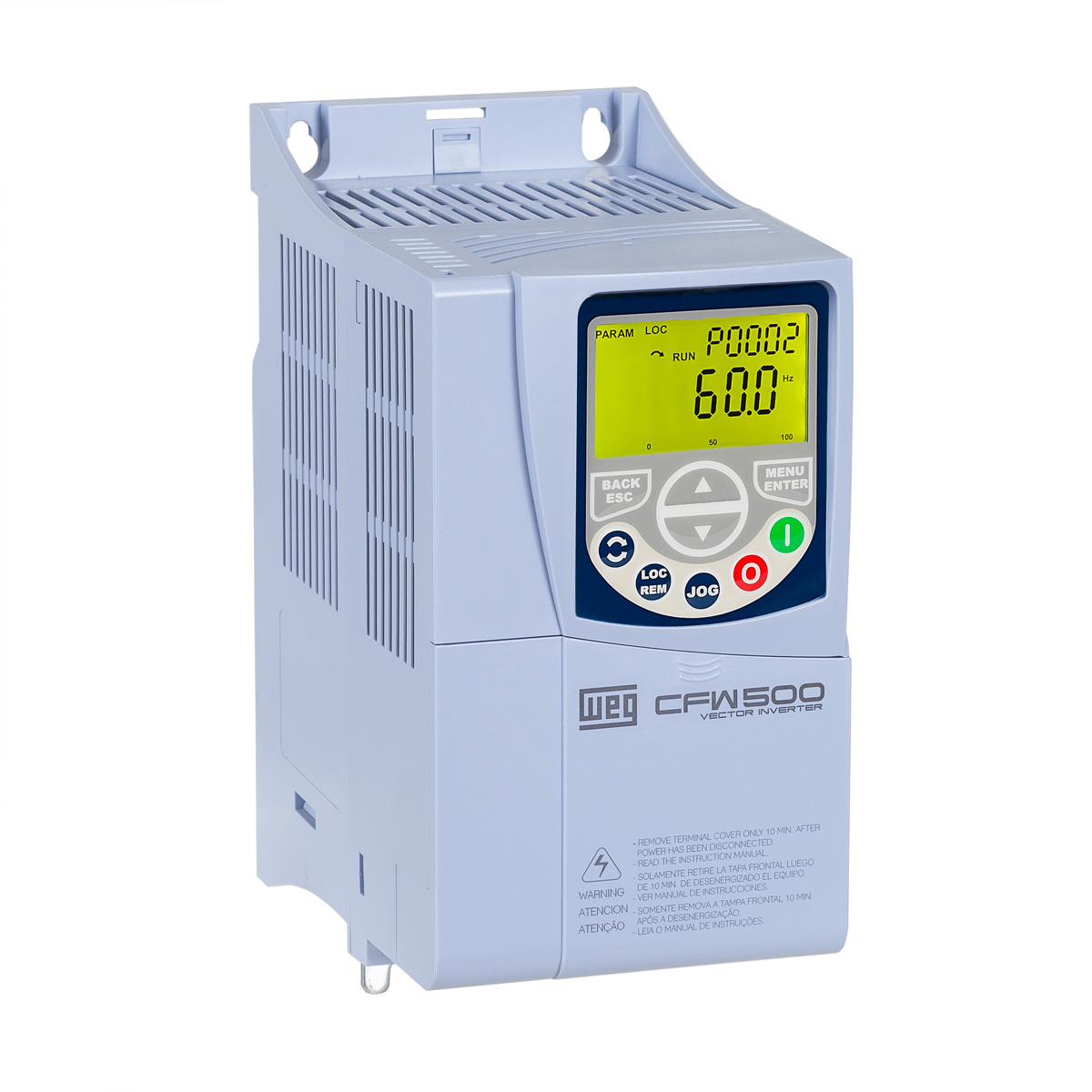

CFW500B02P6T4DB20G2

DRIVE CFW500B02P6T4DB20G2

WEG

I55AE137B10V11003S

Lenze I55AE137B10V11003S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter functionality, DC-injection braking, brake management, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller operations. It features a built-in RFI filter, standard I.O., and conformal coating, with dimensions of H155mm x W60mm x D130mm. This model supports Modbus RTU communication protocol and includes protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 2.4A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with an IP20 degree of protection. The network type is single-phase / 1P, with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 analog output (0-10Vdc; 0-20mA or 4-20mA), 5 digital inputs (PNP/NPN logic), 1 digital output (max. 100mA), and 2 analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 0.37kW, and the rated power is 1/2HP for heavy-duty applications at 230-240Vac.

Lenze

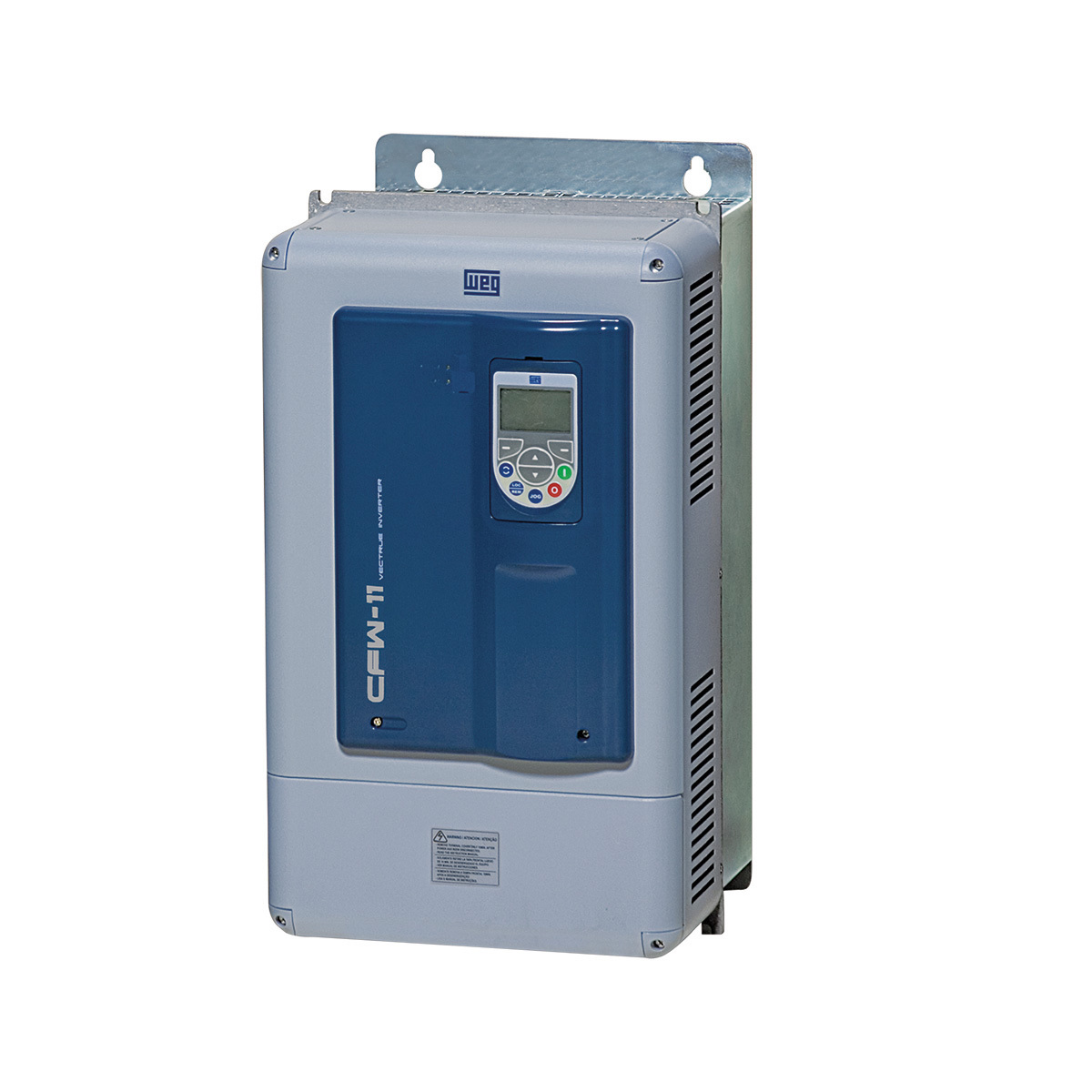

CFW110088T4ON1Z-PGS

DRIVE CFW110088T4ON1Z-PGS

WEG
