Variable Frequency Drives (VFD)

M15150C

Lenze M15150C is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for variable speed and frequency control with a water-tight and dust-tight design suitable for control cabinet or surface/wall mounting. It supports Modbus communication protocol and is equipped with thermal overload protection and solid state motor overload protection. The device operates with a rated current of 17A at supply voltages of 480Vac or 590Vac and is designed for a 3-phase network with an input frequency of 48-62 Hz and an output frequency range of 0-120 Hz. The ambient air temperature for operation ranges from -10 to +40°C, and it offers a degree of protection of NEMA 4. It features 1 analog output proportional to speed, 1 analog output proportional to load, 4 digital inputs plus 1 for start and 1 for stop functions, 2 digital outputs (NPN; sinking), and 2 analog inputs for 0-10Vdc and 4-20mA signals. The rated active power is 11kW, and the rated power is 15HP for both 480Vac and 590Vac.

Lenze

HS70-07401000A10101AB100

NIDEC HS70-07401000A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the HS70 series designed for high-speed applications. It features a built-in brake transistor and a single Safe Torque Off (STO) function, utilizing air cooling for temperature management. This model has dimensions of frame size 7, measuring H21.9" x W10.6" x D11" (H557mm x W270mm x D280mm), and supports Ethernet communication protocol. It operates with a rated current of 112A under normal duty and 100A under heavy-duty conditions, with a supply voltage range of 380Vac-480Vac (specifically 400Vac / 415Vac). The ambient air temperature for operation ranges from -20°C to +40°C, and it has an IP20 NEMA 1 UL open degree of protection. The device is designed for a 3-phase input network with a supply input frequency of 45-66 Hz and can output frequencies from 0-3000 Hz in open loop and 0-1250 Hz in closed loop. It includes 2 analog outputs, 6 digital inputs, and 4 digital outputs, with analog inputs featuring 11-bit conversion resolution. The rated active power is 55kW for normal duty and 45kW for heavy-duty, with both rated at 75HP.

Nidec

ATV71HC28N4D

Schneider Electric ATV71HC28N4D is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 71 series designed for variable speed and frequency control. It features sensorless flux vector control, ENA System, and vector control with or without speed feedback, capable of delivering 220% of the nominal motor torque for 2 seconds and 170% for 60 seconds. This model comes with a built-in EMC filter, a built-in heatsink, and a coated version without a DC choke. It operates on a supply voltage of 323-528Vac (380Vac / 400Vac / 480Vac / 500Vac nom.) and has dimensions of H1190mm x W595mm x D377mm. The ATV71HC28N4D offers chemical resistance with a conformal coating (reinforced version) and has an IP30 UL type 1 degree of protection. It supports a rated current of 550A (380Vac; 2.5kHz), 550A (460Vac; 2.5kHz), with a maximum current of 907A for 2 seconds and 825A for 60 seconds. Wall mounting is the prescribed mounting mode. Communication is facilitated via Modbus and CANopen protocols, and it is designed for a 3-phase (3P) network with an output frequency range of 0.1-500 Hz. The unit includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source) plus 1 additional digital input programmable as discrete or PTC input and another for PWR safety, along with 3 digital outputs. It also features 2 analog inputs for comprehensive control. The current consumption is rated at 494A (380Vac) and 396A (480Vac), with a rated active power of 280kW and a rated power of 450HP.

Schneider Electric

C300-02200033A10101AB100

NIDEC C300-02200033A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the C300 series designed with dual Safe Torque Off (STO) and air cooling. It operates on a supply voltage of 200Vac-240Vac (220Vac / 230Vac) and is housed within a frame size 2, measuring H8.07" x W2.95" x D5.9" (H205mm x W75mm x D150mm), with a degree of protection rated at IP20 NEMA 1. The rated current for both normal and heavy-duty operations is 3.3A, supporting a rated active power of 0.55kW and a rated power of 3/4HP under both conditions. It features Modbus RTU communication protocol and can be connected to either a single-phase input (2P) or a 3-phase input (3P) network, with a network frequency range of 45-66 Hz (supply input) and an output frequency range of 0-550 Hz. The ambient air temperature for operation spans from -20°C to +60°C. For connectivity, it includes 1 x analog output (10Vdc; source; single-ended), 5 x digital inputs (0-24Vdc; PNP/NPN) plus 1 additional digital input (0-24Vdc), 1 x digital output (50mA / 0-24Vdc; source; PWM), and 1 x digital output (2A / 240Vac; source; relay contact type). Additionally, it is equipped with 1 x analog input (0-20mA / 4-20mA / 0-10Vdc; single-ended; 11-bit conversion resolution) and 1 x analog input (0-10Vdc; single-ended; 11-bit conversion resolution).

Nidec

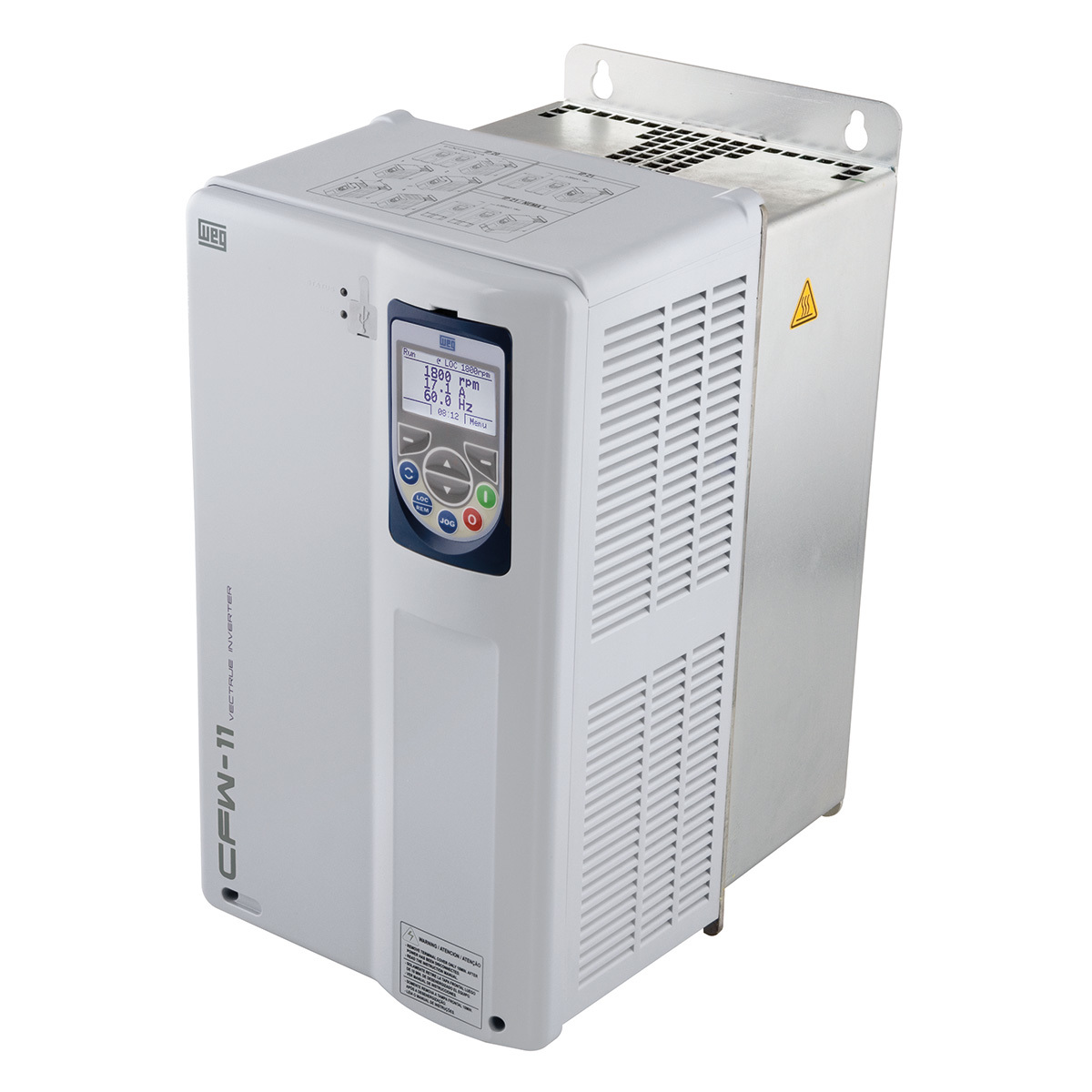

CFW110045T4OFAZ

DRIVE CFW110045T4OFAZ

WEG

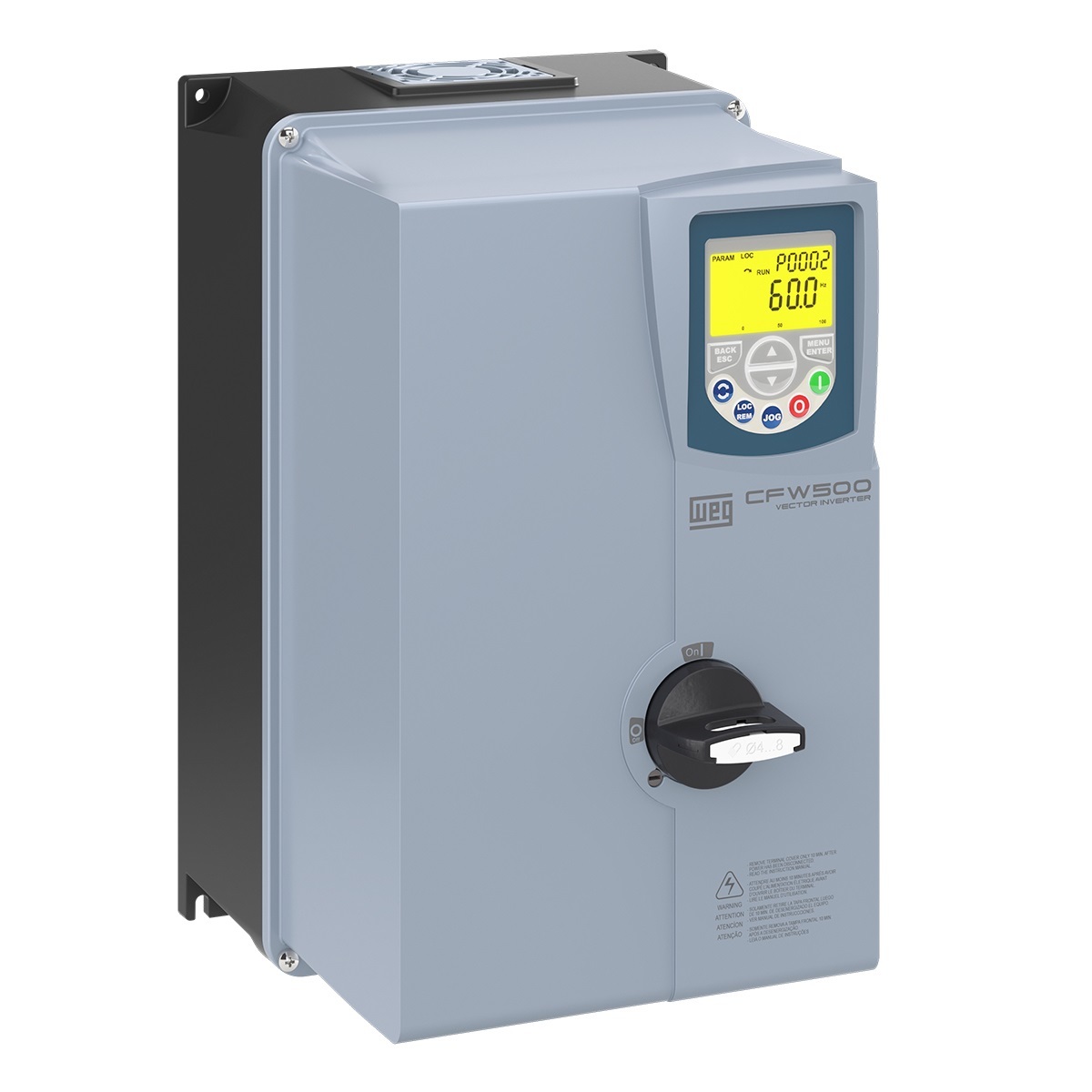

CFW500B10P0T5DB66DS

DRIVE CFW500B10P0T5DB66DS

WEG

I55AE222D10V0100KS

Lenze I55AE222D10V0100KS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed/frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionalities. It features a standard I.O. with conformal coating, dimensions of H250mm x W60mm x D130mm, and supports EtherCAT communication protocol. The drive offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 9.6A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with an IP20 degree of protection. The network compatibility includes single-phase or 3-phase with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It features 1 x analog output, multiple digital inputs with optional uses, 1 x digital output, and 2 x analog inputs with optional voltage or current input functionality. The rated active power is 2.2kW, and the rated power is 3HP for heavy-duty applications at 230-240Vac.

Lenze

ACS355-03U-01A9-4

ABB Control - ACS355-03U-01A9-4

ABB Control

M141000B

Lenze M141000B is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for general purpose applications. It features dimensions of H737mm x W620mm x D301mm and supports Modbus communication protocol. This model offers thermal overload protection and solid state motor overload protection. It operates with a rated current of 143A at 400Vac and 124A at 460Vac, and it can be supplied with either 400Vac or 480Vac. The M141000B is suitable for control cabinet or surface/wall mounting and can operate in ambient air temperatures ranging from -10 to +50 °C. It has a NEMA 1 degree of protection and is designed for a 3-phase network, with an input frequency of 48-62 Hz and an output frequency of 0-120 Hz. The unit includes 1 analog output proportional to speed (frequency), 1 analog output proportional to load, 4 digital inputs plus 1 for START and 1 for STOP, and 2 digital outputs (NPN; sinking). Additionally, it features 1 analog input for 0-10Vdc and 1 for 4-20mA. The rated active power is 75kW, and the rated power is 100HP for both 400Vac and 480Vac.

Lenze

I55AE215F10V1100LS

Lenze I55AE215F10V1100LS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed control, compact inverter DC-injection braking, brake management for brake control, and includes S-ramps for smooth acceleration and deceleration. It features a flying restart circuit and a PID controller. The design incorporates a built-in RFI filter, standard I.O., and conformal coating. Its dimensions are H250mm x W60mm x D130mm. It supports PROFINET communication protocol and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current is 3.9A for heavy-duty applications at 400Vac and 3.5A at 480Vac, with a supply voltage of 400Vac / 480Vac. It is suitable for control cabinet or surface/wall mounting, operates within an ambient air temperature of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with an IP20 degree of protection. The network type is 3-phase (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), 5 x digital inputs (PNP/NPN logic), 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 1.5kW, and the rated power is 2HP for heavy-duty applications at 400-480Vac.

Lenze

I55AE255C1AV0100WS

Lenze I55AE255C1AV0100WS is a variable speed/frequency drive (VSD/VFD) from the Drives sub-range, designed for compact inverter applications with features including DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It adheres to the safe torque off (STO) safety standard and includes an I.O. conformal coating. The dimensions are H250mm x W90mm x D130mm. It supports Modbus TCP communication protocol and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current is 27.6A for light-duty (230-240Vac) and 23A for heavy-duty (230-240Vac) operations. It operates on a supply voltage of 230Vac / 240Vac and can be mounted in a control cabinet or on a surface/wall. The ambient air temperature for operation varies with the switching frequency, allowing a maximum of 45°C at 2kHz or 4kHz and 40°C at 8kHz or 16kHz. It has an IP20 degree of protection, is designed for a 3-phase network (3P / 3AC), and operates with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The drive includes 1 analog output (0-10Vdc; 0-20mA or 4-20mA), 5 digital inputs (PNP/NPN logic), 1 digital output (max. 100mA), and 2 analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 7.5kW for light-duty and 5.5kW for heavy-duty operations, corresponding to 10HP and 7-1/2HP, respectively.

Lenze

VFD300C63C-21

Variable Frequency Drive, 3 phase, 690 VAC Input, 25 HP, frame C, IP20, NEMA 1

Delta

QMP550A4R

NIDEC QMP550A4R is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for 4 quadrant operation with air cooling. It operates within an ambient air temperature range of 0°C to +55 °C and has a rated current of 550A. This model supports a supply voltage range of 208Vac-480Vac, accommodating various standard voltages such as 220Vac, 230Vac, 240Vac, 380Vac, 400Vac, and 415Vac. The dimensions of the QMP550A4R are frame size 2B, measuring H43" x W20.3" x D13.5" (H1092mm x W516mm x D343mm), and it has a degree of protection rated at IP00. It is designed for a single-phase input network (2P) and uses the Modbus RTU communication protocol. The device features 3 x digital outputs (240mA total including term.22 / 0-24Vdc; source) and 2 x digital outputs (5A / 240Vac; source; relay contact type), along with 1 x analog input (-10Vdc to 10Vdc; differential with 14-bit conversion resolution) and 2 x analog inputs (0-20mA / 4-20mA / -10Vdc to 10Vdc; single-ended with 10-bit conversion resolution). Additionally, it includes 3 x digital inputs (0-24Vdc), a rated active power of 200kW, rated power of 300HP, and 2 x analog outputs (0-20mA / 4-20mA / -10Vdc to 10Vdc; source; single-ended with 10-bit conversion resolution).

Nidec

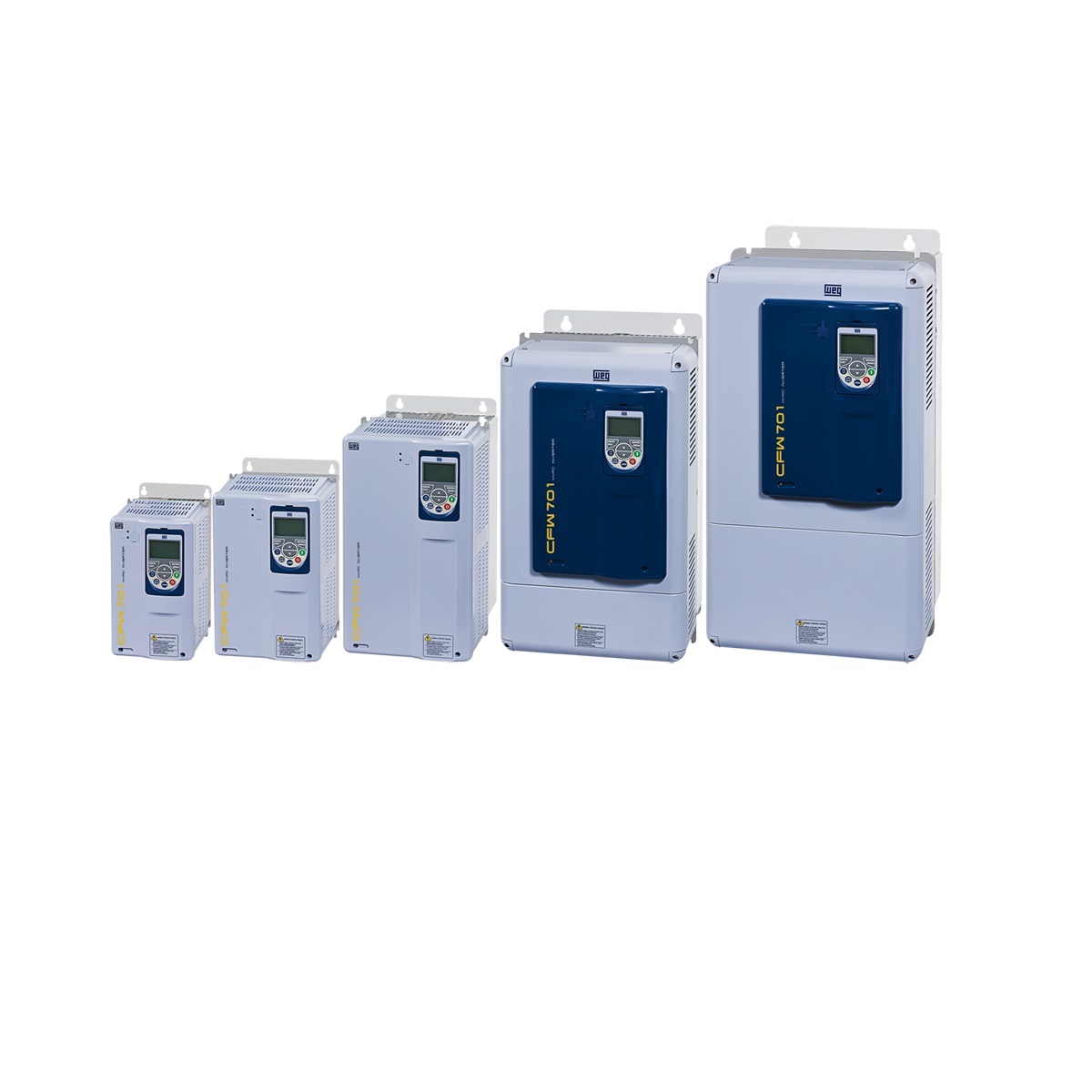

CFW701A10P0S2DBN1C3

DRIVE CFW701A10P0S2DBN1C3

WEG

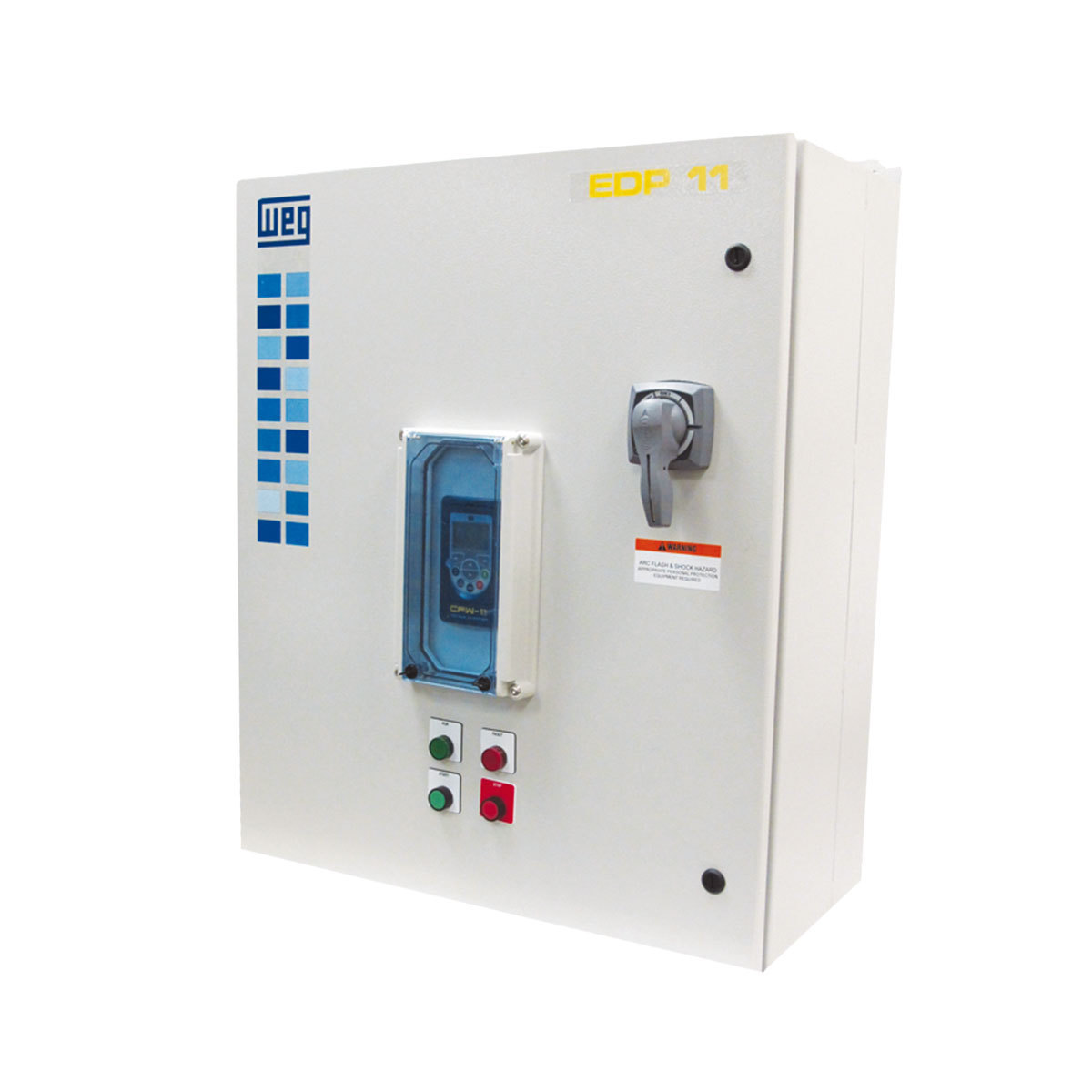

EDP11S088GN3R

STANDARD PANEL EDP11S088GN3R

WEG

HS72-03400100A10101AB100

NIDEC HS72-03400100A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the HS72 series designed for high-speed applications with a built-in brake transistor and dual Safe Torque Off (STO) features. It operates with variable frequency outputs of 0-3000Hz in open loop and 0-1250Hz in closed loop, supported by air cooling. The device has dimensions of frame size 3, measuring H15" x W3.3" x D7.9" (H382mm x W83mm x D200mm). It utilizes Ethernet for communication and is rated for a current of 12.3A under normal duty and 10A under heavy-duty conditions. The supply voltage required is 380Vac-480Vac (400Vac / 415Vac), and it can operate in ambient air temperatures ranging from -20°C to +40°C. The HS72-03400100A10101AB100 offers an IP20 NEMA 1 UL open degree of protection, accepts a 3-phase input, and works within a network frequency of 45-66 Hz for supply input and can output 0-3000 Hz. It includes 2 x digital inputs (0-24Vdc), with one terminal that can be configured as a motor protection thermistor, and 3 x digital outputs (2 x 100mA / 0-24Vdc; source and 1 x 2A / 240Vac; source; relay contact type). The rated active power is 5.5kW for normal duty and 4kW for heavy-duty, corresponding to a rated power of 7.5HP / 7-1/2HP for normal duty and 5HP for heavy-duty applications.

Nidec

ATV312HU22M2B

Schneider Electric ATV312HU22M2B is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 312 series designed for sensorless flux vector control with an energy-saving ratio of 170-200% of the nominal motor torque. It features a built-in EMC filter and heatsink, and it is a version without a control I.O. card to allow space for a communication card. The supply voltage is 170-264Vac (200Vac / 220Vac / 230Vac / 240Vac nom.), with dimensions of H184mm x W142mm x D152mm and an IP21 degree of protection. It has a rated current of 11A (200Vac; 4kHz) and a maximum current of 16.5A for 60 seconds. Designed for wall mounting, it supports Modbus and CANopen communication protocols, operates on a single-phase (1P) network with an output frequency of 0.1-500 Hz. The device includes 1 x analog output (0-10Vdc), 1 x analog output (0-20mA), 6 x digital inputs (24Vdc; sink/source) (LI1-LI6), 1 x digital output (C/O SPDT relay contact) (R1), 1 x digital output (NO relay contact) (R2), and 3 x analog inputs for versatile connectivity. It consumes 21.9A (200Vac; Isc = 1kA) or 18.4A (240Vac), with a rated active power of 2.2kW, rated power of 3HP, and power dissipation/losses of 123 W.

Schneider Electric

UMI-1320EU-B7

UMI-1320EU-B7 Unitronics - Unitronics VFD - B7 Series, 380-480V, 3 Phase, 132kW, 175HP, STO included

Unitronics

M000-09402000AU0100AN100

NIDEC M000-09402000AU0100AN100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M000 series designed with an internal line choke air cooling system. It features a frame size of 9A with dimensions of H41.3" x W12.2" x D11.4" (H1049mm x W310mm x D290mm). This model is rated for a heavy-duty current of 200A and operates on a supply voltage of 380Vac-480Vac (400Vac / 415Vac), suitable for network frequencies of 50 Hz. It offers a degree of protection of IP20 NEMA 1 and supports rated active power ranging from 90kW to 110kW (125HP to 150HP) for heavy-duty applications.

Nidec

M600-11502000E10101AN100

NIDEC M600-11502000E10101AN100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M600 series designed for variable speed control with a single Safe Torque Off (STO) and requires an external choke with air cooling. It features dimensions of frame size 11E, measuring H46.9" x W12.2" x D48.9" (H1190mm x W310mm x D312mm), and operates on a RS-485 Modbus RTU communication protocol. The rated current is 248A for Normal duty and 200A for Heavy-duty, with a supply voltage range of 500Vac-575Vac. It is designed to operate in ambient air temperatures ranging from -20°C to +40°C and has a degree of protection of IP20 NEMA 1. This inverter supports a 3-phase input network with a frequency range of 45-66 Hz for supply input and 0-550 Hz for output. It includes 2 x analog outputs, 3 x digital inputs, 3 x digital outputs plus 1 x relay contact type digital output, and 3 x analog inputs with varying specifications for comprehensive control. The rated active power is 175kW for Normal duty and 150kW for Heavy-duty, equivalent to 250HP and 200HP respectively.

Nidec
