Signal Towers

TL50BAOSIQ

Tower Light: 1-Color Sealed; Omnidirectional Continuous Audible Indicator w/Intensity Adjust; Voltage: 18-30 V dc or 24 V ac; Environmental Rating: IP67; Input: Bimodal; Color: Blue; 4-pin M12 Integral QD

Banner

TL50GORA

Banner Engineering TL50GORA is a tower light from the Core series, designed with a continuous sound 3-tiers 3-color G+O+R color pattern LED illumination. It functions as an audible tower or stack light, featuring polycarbonate (PC) windows and segments with an ABS base and covers. This product has a 50mm / 2" diameter and comes pre-wired with a 2m / 6.5ft 5-wire cable terminated with bare end flying leads. The housing is black, and it operates on a supply voltage of 24Vac or 18Vdc-30Vdc (24Vdc nom.). It offers a surface or base pole mounting option with an M30 thread. The TL50GORA can operate in ambient air temperatures ranging from -20°C to +50°C and has a degree of protection rated at IP50 NEMA 13 UL type 13. Its cylindrical shape is designed for easy integration, and it has a current consumption of 45mA. The device includes 3 x digital inputs for color control and 1 x digital input for alarm input, both supporting 18-30Vdc / 24Vac; PNP/NPN.

Banner

TL50BL4AKQ

TL50 Pro Tower Light with IO-Link Audible, Beacon Black Housing: 4 Lighted Segments; Voltage: 18-30 V dc; Environmental Rating: IP50; Colors: Multicolor; 4-pin M12 Integral QD

Banner

TL50RYGAQ

Tower Light: 3-Color Audible Indicator; Voltage: 18-30 V dc or 24 V ac; Environmental Rating: IP50; Input: Bimodal; Colors: Red Yellow Green; 5-pin M12 Integral QD

Banner

TL50PBL4Q

TL50 Pro Tower Light, Beacon Black Housing: 4 Segment; Voltage: 10-30 V dc; Environ. Rating: IP67; Colors: Multicolor; 5-pin M12 Integral QD

Banner

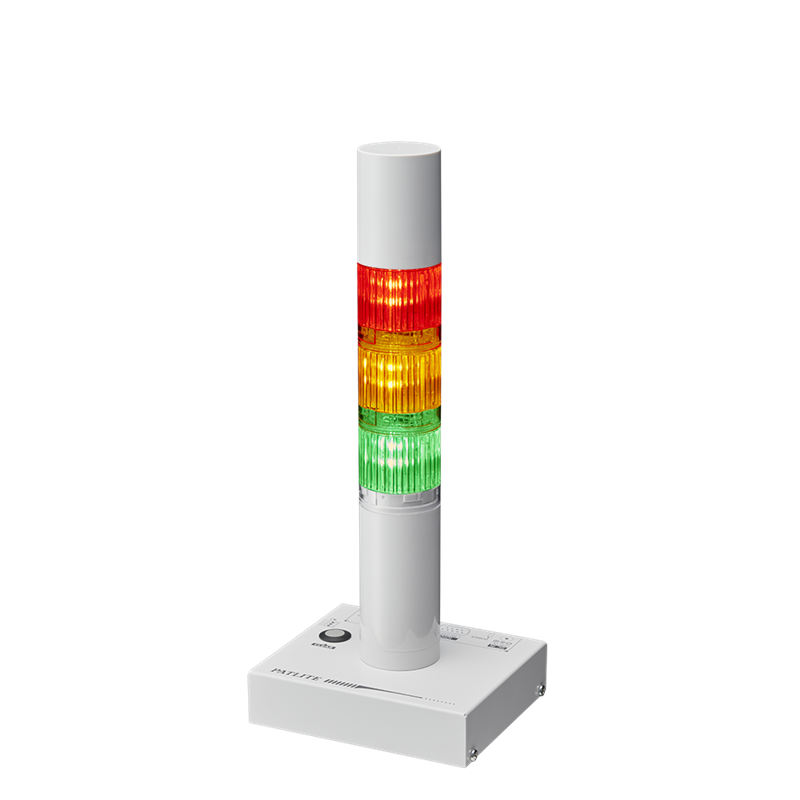

ME-302P-RYG+FB123

Continuous light, PNP open collector compatible, 200mm long body, silver body. Red, amber, green LED module.

Patlite

TL50GGBYRQ

Tower Light: 5-Color Indicator; Voltage: 18-30 V dc or 24 V ac; Environmental Rating: IP67; Input: Bimodal; Colors: Green Green Blue Yellow Red; 8-pin M12 Integral QD

Banner

TL50BLZW2B2Y2R2AOS4I

Banner Engineering TL50BLZW2B2Y2R2AOS4I is a monolithic tower light from the Universal voltage series, featuring a staccato sound with adjustable intensity. This 4-tier, 4-color (W2+B2+Y2+R2) LED illumination tower light is designed with polycarbonate windows and segments, an ABS base and covers, and a black housing. It has a 50mm / 2" diameter and is pre-wired with a 2m / 6.5ft 6-wire cable terminated with bare end flying leads. The supply voltage is AC 100Vac-240Vac (120Vac / 220Vac / 230Vac; 50Hz/60Hz), suitable for a wide range of applications. It offers a surface / base pole mounting option with an M30 thread. The tower light operates within an ambient air temperature range of -20°C to +50°C and is rated with a degree of protection of IP67 NEMA 13, indicating a high level of protection against dust and water. The shape is cylindrical, with a current consumption of 55mA. It includes 4 x digital inputs for color control and 1 x digital input for alarm input, all supporting 100-240Vac.

Banner

TL50HZGRC

Banner Engineering TL50HZGRC is a tower light from the Universal voltage core high-intensity series, featuring a 2-tiers 2-color G+R color pattern LED illumination designed for high-brightness applications. This monolithic tower light is constructed with polycarbonate (PC) windows and segments, and an ABS base and covers, ensuring durability. It has a 50mm / 2" diameter and comes pre-wired with a 2m / 6.5ft 4-wire cable terminated with bare end flying leads for easy installation. The housing is gray, and it operates on a supply voltage of 100Vac-240Vac (120Vac / 220Vac / 230Vac), making it versatile for various industrial environments. It can be mounted via surface or base pole with an M30 thread. The TL50HZGRC is designed to operate in ambient air temperatures ranging from -40°C to +50°C and offers a degree of protection rated at IP67, NEMA 13, UL type 13, making it suitable for harsh conditions. Its cylindrical shape and current consumption of 60mA, along with 2 x digital inputs (100-240Vac) for color control, complete its technical specifications.

Banner

PHE-3FB3N-RYG

PC controlled signal tower, RS-232C & USB interface, continuous, flashing and alarm

Patlite

LR4-102LJBW-Y

40mm 1-tier Signal Tower, 24V DC, Pole Mount with L Bracket and Cable, Flashing/Buzzer, Off-white Body, Amber LED Module

Patlite

TL50ZGYRQP

TL50 Tower Light: 3-Color Indicator; Voltage: 100-240 V ac; Environmental Rating: IP67; Colors: Green Yellow Red; 150 mm (6 in) Micro PVC Pigtail QD

Banner

TL70WRYGAQP

Banner Engineering TL70WRYGAQP is a tower light from the Modular series, featuring a multitone, 4-tiers, 4-color (white, red, yellow, green) LED illumination pattern designed for audible tower or stack light applications. It is constructed with polycarbonate (PC) windows, segments, and housing, ensuring durability. This product has a diameter of 70mm / 2-3/4" and comes pre-wired with a 6" / 15cm pigtail that terminates with an 8-pin M12 Euro-style quick disconnect (QD) connector. The housing is black, and it operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc nominal. It offers flexible mounting options, including surface or base pole with an M30 thread. The TL70WRYGAQP is designed to operate in ambient air temperatures ranging from -40°C to +50°C and is rated at an IP65 degree of protection for resistance against dust and water ingress. Its cylindrical shape incorporates 4 x digital inputs (12-30Vdc; PNP/NPN) for color control and 1 x digital input (12-30Vdc; PNP/NPN) for alarm input.

Banner

LR5-101LJNW-C

50mm diameter UL CE IP54 DC 12V, Pole Mount with/L-bracket/Cable, No Flashing/Buzzer, Off-white

Patlite

TL50HRYGAOSQ

High Intensity Tower Light: 3-Color Sealed; Omnidirectional Continuous Audible Indicator; Voltage: 18-30 V dc or 24 V ac; Environmental Rating: IP67; Input: Bimodal; Colors: Red Yellow Green; 5-pin M12 Integral QD

Banner

TL50HBGYR

TL50H Tower Light: 4-Color Indicator; Voltage: 18-30 V dc or 24 V ac; Environmental Rating: IP67; Input: Bimodal; Colors: Blue Green Yellow Red; 2 m (6.5 ft) Integral Cable

Banner

NHV6-0MN

Network Monitor Signal Tower w/ Ethernet, E-Mail Detection, MP3 supports w/o Power Supply (ADP-001)

Patlite

LR6-502PJNW-RYGBC

60mm 5-tier Signal Tower, 24V DC, Pole Mount with Circular Bracket and Cable, No Flashing/Buzzer, Off-white

Patlite

WLS27CGYRXX6-0285DS24Q

WLS27 Multicolor Light Strip; I/O Block Control; Length: 285 mm; Voltage: 24 V dc; Environmental Rating: IP66; IP67; IP69K; Colors: Green, Yellow, Red; Cascadable; 4-pin M12 Integral QD

Banner

TL50HGYRAOS3I

Banner Engineering TL50HGYRAOS3I is a tower light from the Core high-intensity series featuring a monolithic design with a 1.6Hz pulsed sound of adjustable intensity. This 3-tier, 3-color (Green, Yellow, Red) LED illumination tower light is constructed with polycarbonate (PC) windows and segments, and an ABS base and covers, ensuring durability. It has a 50mm / 2" diameter and comes pre-wired with a 2m / 6.5ft 5-wire cable terminated with bare end flying leads for easy installation. The housing is black, and it operates on a supply voltage of 24Vac or a DC range of 18Vdc-30Vdc (24Vdc nominal). Designed for surface or base pole mounting with an M30 thread, it can operate in ambient air temperatures ranging from -20°C to +50°C. This product offers a degree of protection rated at IP67, NEMA 13, UL type 13, making it suitable for various environmental conditions. Its cylindrical shape is complemented by a current consumption of 100mA. For control, it features 3 x digital inputs for color control and 1 x digital input for alarm input, all supporting 18-30Vdc / 24Vac; PNP/NPN.

Banner
