TL50BL4AKQ Banner Signal Towers
Part#:TL50BL4AKQ
Manufacturer:Banner
Alt. Part#:804971
Product Lifecycle:Active
Get a quick Quote!
TL50 Pro Tower Light with IO-Link Audible, Beacon Black Housing: 4 Lighted Segments; Voltage: 18-30 V dc; Environmental Rating: IP50; Colors: Multicolor; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the TL50BL4AKQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight281.22704 g
- Country Of OriginUS
- Power DC
- Animation Option 1 Programmable
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Max Input Response Time (ms) 20
- IO Link Yes
- Number of Colors / Segments 4
- Mounting Thread M30 x 1.5
- Number of Input Pins/Conductors 4
- Max Current - Audible Alarm (mA) 25
- Feature: Hazardous Area No
- Pro-Editor Compatible (Discrete) No
- Housing Style Base Mount - Tower
- Number of Tower Light Segments 5
- Supply Voltage 18-30 V dc
- Environmental Rating IP50
- Feature: Chemical Resistant No
- Product Size (mm) 50
- Color Option 1 RGB
- Audible Alarm Type Continuous
- Min Op. Temperature (°C) -20
- Feature: Quick Disconnect Yes
- Color Technology RGB IO-Link
- Input Type Communication Protocol
- Modbus RTU No
- Power Source DC
- Quick Disconnect Type M12 (Euro)
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 181.9
- Primary Window Material Polycarbonate Clear
- Primary Housing Material ABS
- Indication Yes
- Connection Integral QD
- Audible Operating Frequency (kHz) 2.7
- Max Op. Temperature (°C) 50
- Feature: Audible Yes
- Color Input Control Communication Protocol
- Max Current Color (mA) 100
- Max Audible Intensity (db at 1m) 92
- NEMA Type and UL Type Rating NEMA and UL 13
- Wireless No
- Dimming Option Programmable
- Min Audible Intensity (db at 1m) 62
- Primary Housing Color Black
- Indication Intensity High Brightness & Daylight Visible
- Multi-Color Device Simultaneous Colors On
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
TL50BL4AKQ Description

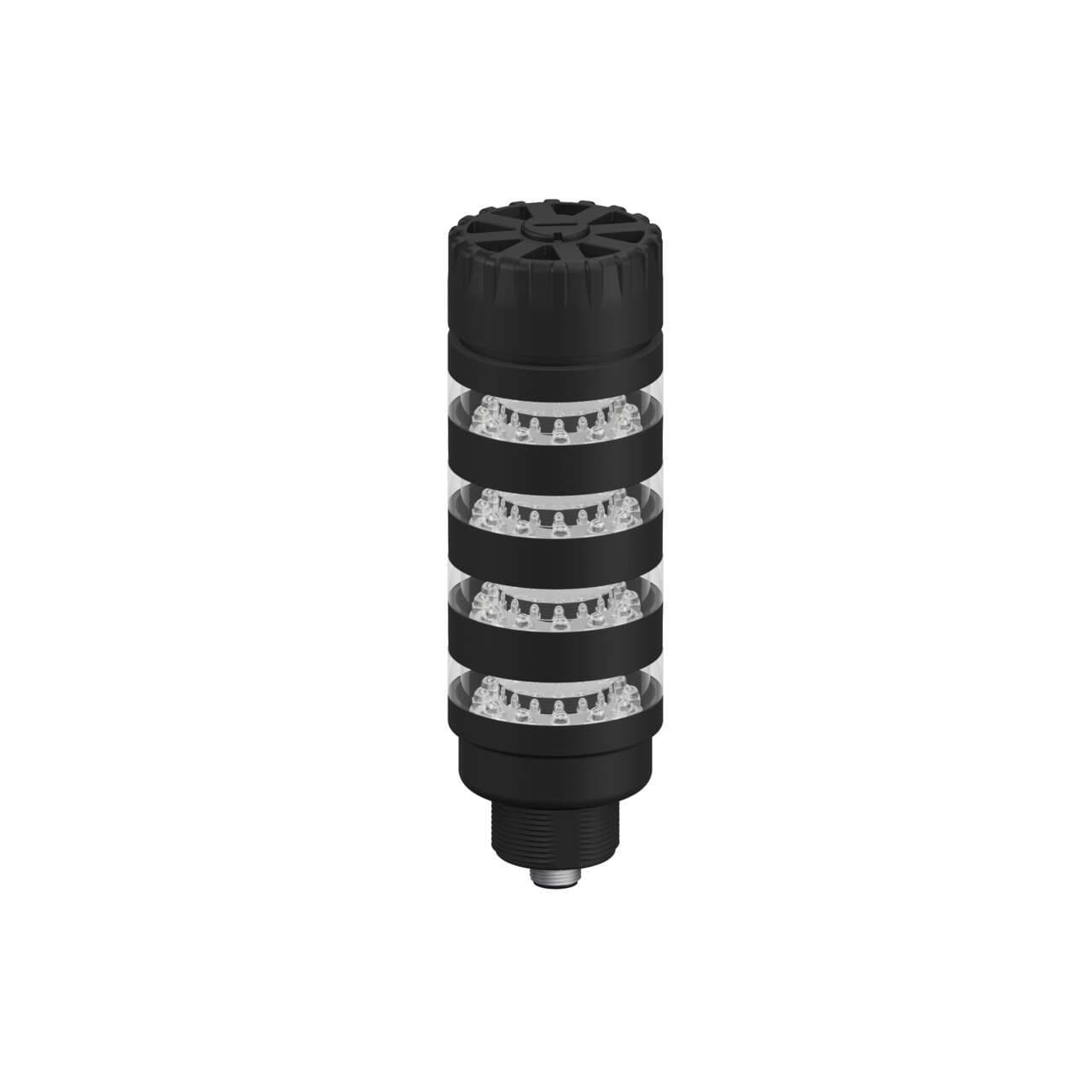

Banner Engineering TL50BL4AKQ is a tower light featuring a monolithic design with continuous sound and IO-Link compatibility. It includes 4 tiers of 14-color multicolor LED illumination, designed for audible programmable functions. The construction utilizes polycarbonate (PC) for windows and segments, with an ABS base and covers. This part has a 50mm / 2" diameter and comes with a pre-equipped 4-pin M12 Euro-style QD connector. The housing is black, and it supports a supply voltage of 24Vac (50Hz/60Hz) and a DC range of 18Vdc-30Vdc (24Vdc nominal). It offers surface or base pole mounting options with an M30 thread and can operate in ambient air temperatures ranging from -20°C to +50°C. The TL50BL4AKQ is rated with an IP50, NEMA 13, UL type 13 degree of protection, features a cylindrical shape, and has a current consumption of 100mA.
