Contactors

AF38-22-00-13

AF38-22-00-13 ABB Control - AF38 4P CONTR, 100-250VAC/DC

ABB Control

LC1DT60A3FD

Schneider Electric LC1DT60A3FD is a magnetic contactor within the Deca sub-range, featuring EverLink(TM) terminal design for secure connections. It is equipped with spring connections for control and screw connections for power, ensuring a robust installation. This 4-pole (4NO) contactor is designed to handle a rated current of 60A under AC-1 conditions and can be mounted on a DIN rail. With a net width of 70 mm and an IP20 degree of protection, it is compact and offers basic protection against touch. The control voltage ranges from 82.5-137.5Vdc, with a nominal voltage of 110Vdc, allowing for flexibility in control voltage requirements. It includes 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts, both of the instantaneous type, providing additional control options. The LC1DT60A3FD is capable of withstanding rated impulse voltages up to 6 kV and has a mechanical durability of 6 million operations at no load. It supports a rated voltage of up to 690V AC phase-to-phase, making it suitable for a wide range of applications.

Schneider Electric

CWC012-00-40V24

WEG CWC012-00-40V24 - MINICONTACTOR BU CWC012-00-40V24, Miniature Contactors (CWC)

WEG

J7KNA-AR-40 110

Omron J7KNA-AR-40 110 - 4 pole Contactor

Omron

AF091FP-2D1-GESM

ABB Control - AF091FP-2D1-GESM

ABB Control

GJL1311201R8000

ABB GJL1311201R8000 is a magnetic mini contactor from the B7 contactors sub-range. It features screw-clamp connections and is designed with 4 poles (4NO). The rated current varies: 20A at 380-400Vac and 40°C, 16A at 380-400Vac and 55°C, 6A at 690Vac and 40°C, 6A at 690Vac and 55°C, 4A at 24-120Vac and 220-240Vac, 3A at 380-400Vac, and 2A at 500Vac, all under AC-1 conditions. For AC-15, the ratings are 4A at 24-120Vac and 220-240Vac, 3A at 380-400Vac, and 2A at 500Vac. Under UL/CSA FLA, it supports 13.8A at 115Vac (single-phase), 7.8A at 200Vac (3-phase), 9.6A at 220-240Vac (3-phase), 10A at 230Vac (single-phase), 7.6A at 440-480Vac (3-phase), and 6.1A at 550-600Vac (3-phase). The rated insulation voltage is 690 V (IEC/VDE) and 600 V (UL/CSA), with a mounting mode on the plate. Dimensions are 57.5 mm in height, 52.5 mm in width, and 46.5 mm in depth. Current consumption is 3.5VA for both inrush and holding (coil). The control voltage (AC) is 220Vac-240Vac (230Vac) at 40Hz-450Hz. Rated operating voltage (Ue) is 690 V, with 0 NO and 0 NC auxiliary contacts. The rated impulse voltage (Uimp) is 6 kV. Rated active power is 3kW at 220-240Vac, 5.5kW at 380-440Vac and 500Vac, and 3kW at 690Vac, all under AC-3 conditions. Rated power (HP) under UL/CSA is 3HP at 220-240Vac, 5HP at 440-480Vac, and 5HP at 550Vac-600Vac, all 3-phase. Operating rates are 300 cycles/hour (AC-1), 600 cycles/hour (AC-3), 360 cycles/hour (AC-15), 600 cycles/hour (DC-1), 360 cycles/hour (DC-13), and 600 cycles/hour (DC-3).

ABB Control

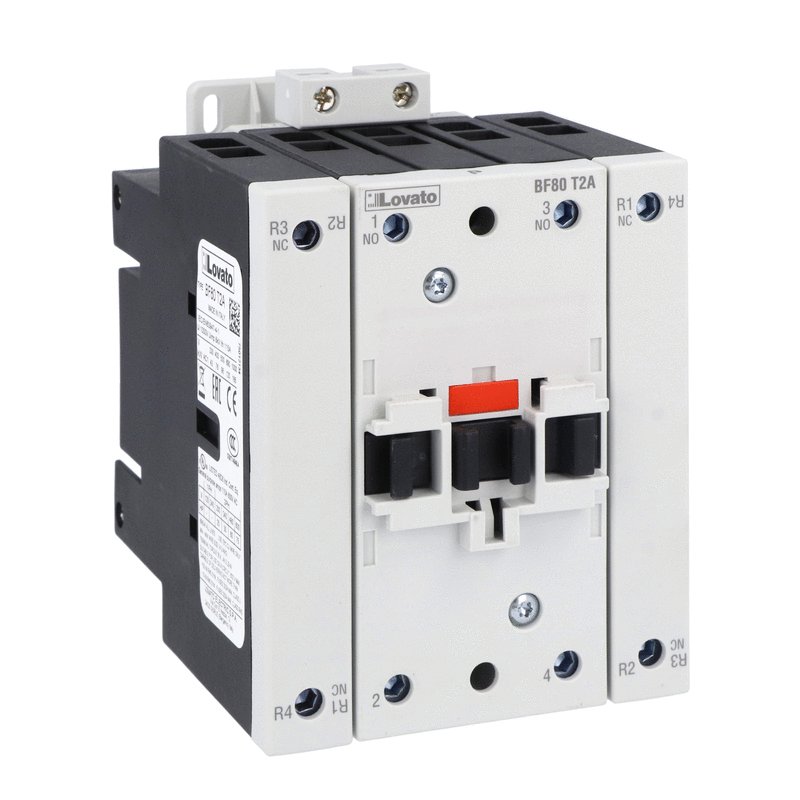

BF80T2A024

BF80T2A024 Lovato - Four-pole contactor, IEC operating current Ith (AC1) = 115A, AC coil 50/60Hz, 24VAC, 2NO and 2NC

Lovato Electric

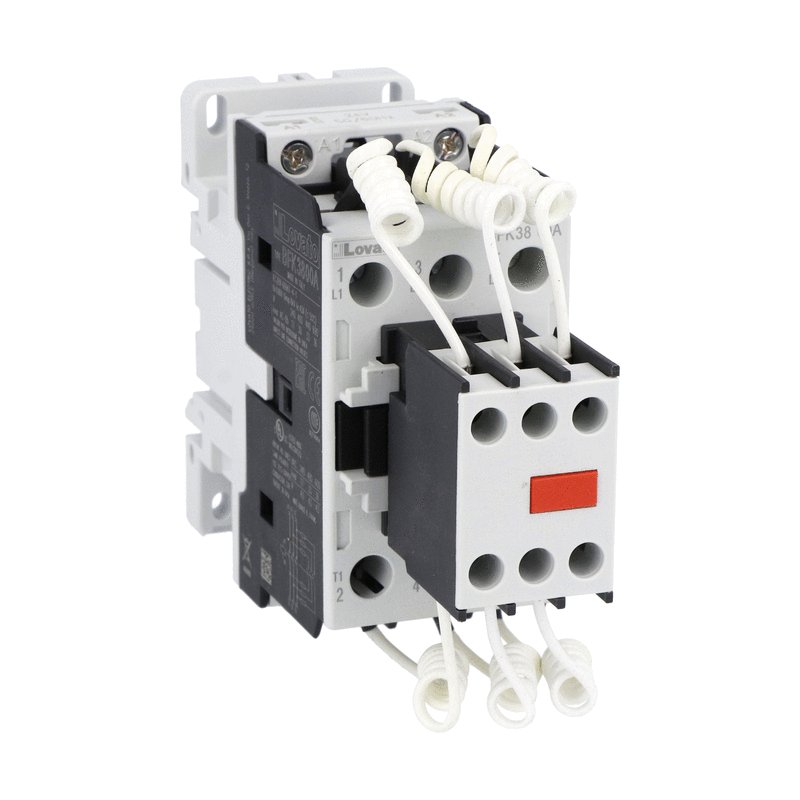

BFK3800A024

BFK3800A024 Lovato - Contactor for power factor correction with AC control circuit, including limiting resistors, maximum IEC operational power 400V = 30kvar, coil 24VAC 50/60Hz

Lovato Electric

CA8-09C-M40-24DD

Sprecher + Schuh CA8-09C-M40-24DD - CA8 Miniature Contactor, 9A, 24V DC w/Diode, 4NO

Sprecher + Schuh

LC1D65AUD

Schneider Electric LC1D65AUD is a magnetic contactor from the Deca sub-range, featuring an EverLink(TM) terminal design and screw connections. It is a 3-pole (3P; 3NO) contactor with a rated current of 80A for AC-1 applications and 65A for 440Vac in AC-3 applications. This contactor is designed for DIN rail mounting and has a net width of 55 mm. It offers a degree of protection of IP20 and operates with a control voltage (DC) range of 187.5-312.5Vdc (250Vdc nominal; 0.75...1.25 x Uc). The rated operating voltage (Ue) is up to 690 V, and it includes 1 normally open (NO) auxiliary contact. The rated impulse voltage (Uimp) is 6 kV. Its rated active power ranges from 18.5kW at 220-230Vac to 37kW at 660-690Vac in AC-3 applications. It also features 1 normally closed (NC) auxiliary contact with 1NO+1NC instantaneous auxiliary contacts type. The rated power in horsepower (HP) varies from 5HP at 115Vac in single-phase to 50HP at 575-600Vac in three-phase applications, according to UL/CSA standards. The mechanical durability of the LC1D65AUD is rated at 6,000,000 operations, and its electrical durability with load is 1,400,000 operations. The rated voltage (AC) for phase-to-phase applications is 690 V.

Schneider Electric

CA8-09-M31-120

Sprecher + Schuh CA8-09-M31-120 - CA8 Miniature Contactor, 9A, 110V 50Hz/120V 60Hz AC, M31

Sprecher + Schuh

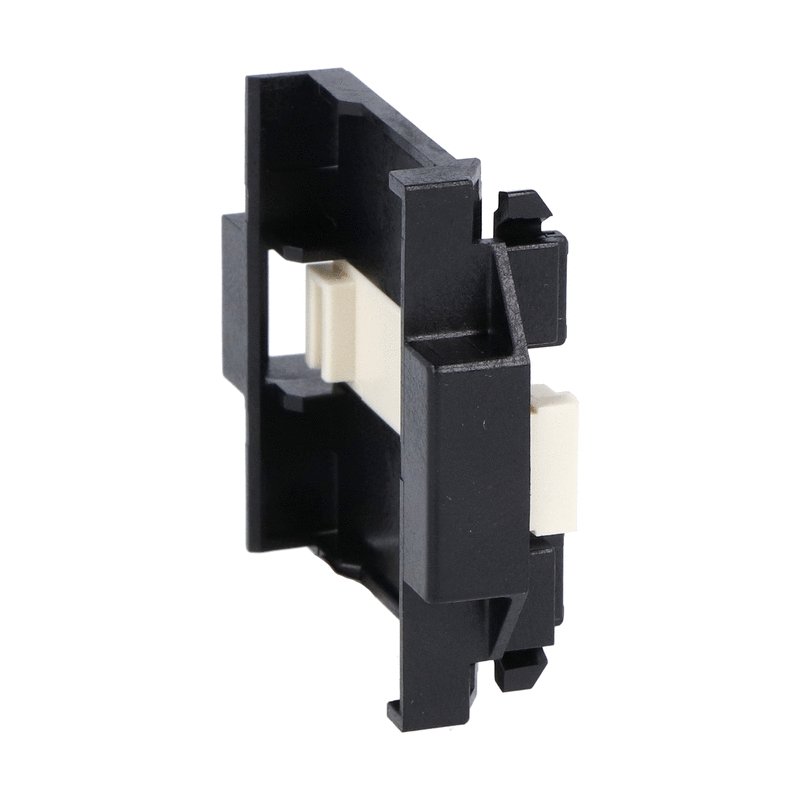

11G483

11G483 Lovato - Adapter for auxiliary contact side mounting, for BF...series contactors, for G481 or G482

Lovato Electric

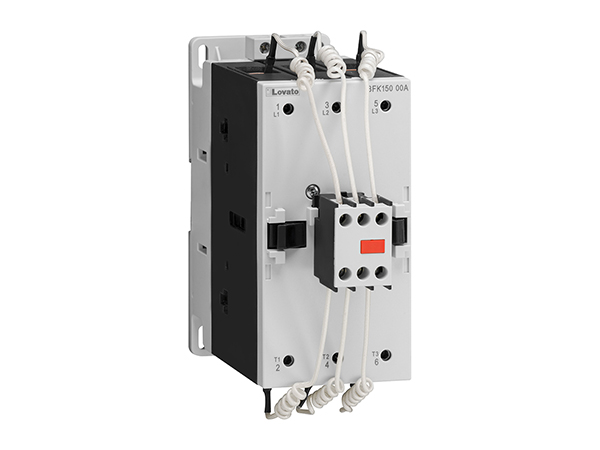

BFK15000A024

BFK15000A024 Lovato - Contactor for power factor correction with AC control circuit, including limiting resistors, maximum IEC operational power 400V = 100kvar, coil 24VAC 50/60Hz

Lovato Electric

AF265-30-22-43

AF265-30-22-43 ABB Control - 3P, 350A, 220-240 V 50/60 HZ,2/2

ABB Control

J7KN-10D-01 24D

Omron J7KN-10D-01 24D - Contactor

Omron

CA7-37-10-120-L04

Sprecher + Schuh CA7-37-10-120-L04 - CA7 Contactor, 37A, 110V 50Hz / 120V 60Hz AC, 1NO, 4NC Aux

Sprecher + Schuh

AF116-30-11B-33

AF116-30-11B-33 ABB Control - CTR AF116 3POLE 100-250V 1NO1NC

ABB Control

CA7-12E-10-U110E

Sprecher + Schuh CA7-12E-10-U110E - CA7 Contactor, 12A, 110-125V DC Elec. Coil, 1NO, Reversed Coil

Sprecher + Schuh

AF261B1-2D11

AF26,NR,3PH,CB,N1,100-250V

ABB Control

CA7-97D-00-24DD

Sprecher + Schuh CA7-97D-00-24DD - CA7 Contactor, 97A, 24V DC w/Diode,

Sprecher + Schuh
