Contactors

11BG1201A46060

11BG1201A46060 Lovato - Three-pole contactor, IEC operating current Ie (AC3) = 12A, AC coil 60Hz, 460VAC, 1NC auxiliary contact

Lovato Electric

AF26M-30-02-11

MI,3P,25.3A,20-60VDC/24-60VAC,2NC

ABB Control

LC1D50A6N7

Schneider Electric LC1D50A6N7 is a magnetic contactor from the Deca sub-range, featuring an EverLink(TM) terminal design and ring-lugs connections. This 3-pole (3P; 3NO) contactor supports a rated current of 80A for AC-1 applications and 50A for 440Vac AC-3 applications. It is designed for DIN rail mounting and has a net width of 55 mm. The contactor offers a degree of protection of IP20 and operates with a control voltage (AC) range of 332-456Vac (415Vac nominal; 50Hz; 0.8...1.1 x Uc) and 353-456Vac (415Vac nominal; 60Hz; 0.85...1.1 x Uc). The rated operating voltage (Ue) is 690 V, and it includes 1 normally open (NO) auxiliary contact and 1 normally closed (NC) auxiliary contact, with a contacts type of 1NO+1NC instantaneous aux. The rated impulse voltage (Uimp) is 6 kV. Rated active power spans from 15kW at 220-230Vac to 33kW at 660-690Vac in AC-3 applications. Rated power in horsepower (HP) ranges from 3HP at 115Vac to 40HP at 575-600Vac, covering both single-phase and 3-phase applications under UL/CSA standards. The mechanical durability of the contactor is rated at 6,000,000 operations, and its electrical durability with load is 1,450,000 operations. The rated voltage (AC) for phase-to-phase applications is 690 V.

Schneider Electric

CA7-30-00-380

Contactor, 3 Pole, Non-Reversing, 65A, 380-400/440 VAC Coil

Sprecher + Schuh

BFX93A230

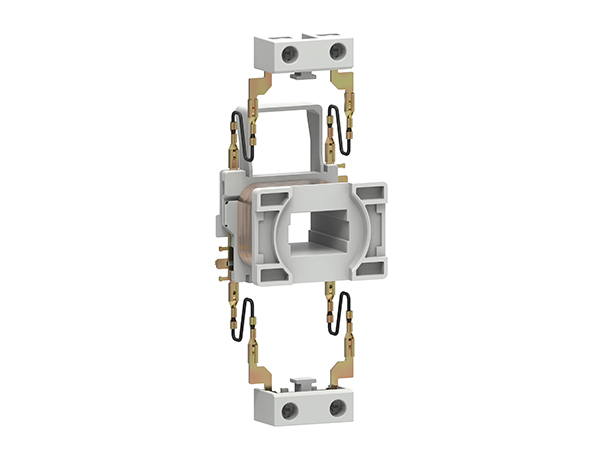

BFX93A230 Lovato - AC coil for contactors BF40A-BF50A-BF65A-BF94A, 50/60Hz 230VAC

Lovato Electric

CAU7-72D-02-110DD

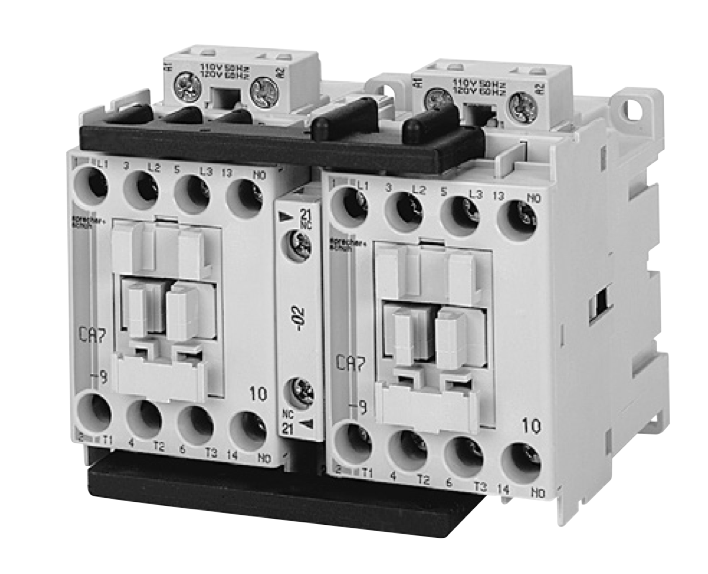

Sprecher + Schuh CAU7-72D-02-110DD - CAU7 Contactor FVR, 72A, 110V DC w/ Diode, 2NC

Sprecher + Schuh

AF091SF2-2Q1J

ABB Control - AF091SF2-2Q1J

ABB Control

LC1DT60A6LE7

Schneider Electric LC1DT60A6LE7 is a magnetic contactor from the Deca sub-range, featuring an EverLink(TM) terminal design for ring-lugs connections. This 4-pole (4P; 4NO) contactor is designed for a rated current of 60A (AC-1) and can be mounted on a DIN rail. It has a net width of 70 mm and offers a degree of protection rated at IP20. The control voltage (AC) ranges from 167-228Vac (208Vac nominal; 50Hz; 0.8...1.1 x Uc) to 176.8-228.8Vac (208Vac nominal; 60Hz; 0.85...1.1 x Uc). It includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contacts, with the contacts type being 1NO+1NC instantaneous aux. The mechanical durability of this contactor is rated at 6,000,000 operations at no load, and it can handle a rated impulse voltage (Uimp) of 6 kV. The rated voltage (AC) for phase-to-phase connections is up to 690 V.

Schneider Electric

AF3011-2E2

ABB Control - AF3011-2E2

ABB Control

11B145400440

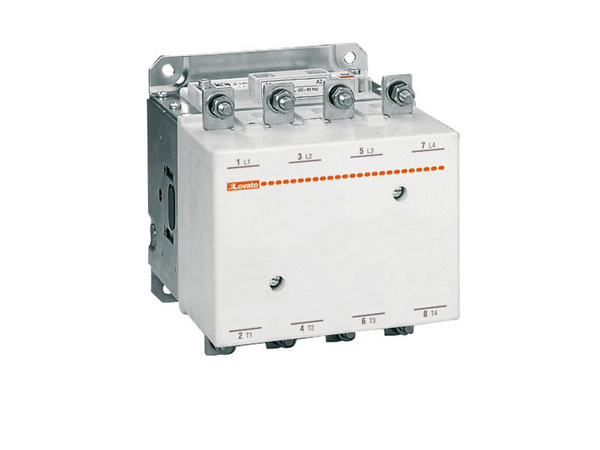

11B145400440 Lovato - Four-pole contactor, IEC operating current Ith (AC1) = 250A, AC/DC coil, 440...480VAC/DC

Lovato Electric

LC2DT20GD

Schneider Electric LC2DT20GD is a pre-assembled reversing magnetic contactor within the Deca sub-range. It features a mechanical interlock design and screw connections for installation. This contactor has 2 x 4-poles (2x4NO) configuration and is rated for a current of 20A under AC-1 conditions. It offers a degree of protection rated at IP20 and operates with a control voltage (DC) range of 94-156Vdc, with a nominal voltage of 125Vdc. The rated operating voltage (Ue) stands at 690 V, and it includes 2 Normally Open (NO) auxiliary contacts and 2 Normally Closed (NC) auxiliary contacts. The contactor is equipped with 1NO+1NC instantaneous auxiliary contacts per contactor. It is designed to handle a rated impulse voltage (Uimp) of 6 kV and supports a rated voltage (AC) for phase-to-phase connections of 690 V.

Schneider Electric

AF091F2-CM1J

ABB Control - AF091F2-CM1J

ABB Control

BFX93A110

BFX93A110 Lovato - AC coil for contactors BF40A-BF50A-BF65A-BF94A, 50/60Hz 110VAC

Lovato Electric

CAU7-23E-22-24E-LW

Sprecher + Schuh CAU7-23E-22-24E-LW - CAU7 Contactor FVR, 23A, 24V DC Elec. Coil, 2NO 2NC, Less Wiring

Sprecher + Schuh

AF205-30-11-13

AF205-30-11-13 ABB Control - CTR,3P,192A,100-250VAC/DC,1/1

ABB Control

LC1K0910Z7

Schneider Electric LC1K0910Z7 is a magnetic contactor within the K sub-range, featuring screw connections and three poles (3P; 3NO). It has a rated current of 20A under AC-1 conditions and 9A at 440Vac under AC-3 conditions. The net width of the contactor is 45 mm, and it offers a degree of protection rated at IP20. The control voltage for AC ranges from 16-23Vac (with a nominal 20Vac at 50Hz/60Hz, and a voltage tolerance of 0.8...1.15 x Uc). Its rated operating voltage (Ue) reaches up to 690 V, and it includes 1 Normally Open (NO) auxiliary contact. The rated impulse voltage (Uimp) is 8 kV, and the rated active power varies from 2.2kW at 220-230Vac to 4kW at 660-690Vac, all under AC-3 conditions. This model does not have Normally Closed (NC) auxiliary contacts. Its mechanical durability at no load is rated for 10,000,000 operations, and the rated voltage (AC) phase-to-phase stands at 690 V.

Schneider Electric

AF30-30-00-41

AF30-30-00-41 ABB Control - CTR,3P,32.2A,24-60VAC

ABB Control

J7KNA-09-01 230

Omron J7KNA-09-01 230 - Contr,9A,0NO,1NC,120VAC

Omron

AF2612-2PA

ABB Control - AF2612-2PA

ABB Control

BF26T2A22060

BF26T2A22060 Lovato - Four-pole contactor, IEC operating current Ith (AC1) = 45A, AC coil 60Hz, 220VAC, 2NO and 2NC

Lovato Electric
