Contactors

J7KCR-12-10 DC110

J7KCR-12-10 DC110, Magnetic Contactor, Max Load Current: 5-15A, Max Rated Load Voltage : 200-400 VAC, Input Voltage Range: 94-121 VDC

Omron

1SFL607102R1200

ABB 1SFL607102R1200 is a magnetic contactor designed for various applications, featuring lugs/bars connections for easy installation. It supports a rated current of up to 600A at 690Vac for AC-1 design conditions. The contactor is equipped with normally open auxiliary contacts and is capable of handling rated power in AC-1 conditions up to 500A at 690Vac. It offers a resistance of 70Ω and operates efficiently within an ambient air temperature range suitable for AC-3 applications. The device is designed to operate with a supply voltage in AC-1 conditions and can manage loads up to 370A at 220-440Vac in AC-3 operation mode. It has a net height of 225 mm and dimensions that accommodate 4-poles (4P) with 4NO contacts. The contactor ensures a response time compliant with IEC/VDE and UL/CSA standards, with a connection capacity suitable for 48Vac-130Vac operations. It is designed for mounting on a plate, with a short circuit breaking rating and manufacturer product specifications indicating a power handling capacity up to 315kW at 690Vac in AC-3 conditions. The device operates at a maximum continuous operating voltage (Uc) of 690V and is designed for 3-phase systems, supporting a wide range of horsepower ratings across different voltages in UL/CSA conditions. It features a visual position indicator for 0 NC contacts and is specified for use with AF370 contactors, ensuring compatibility and streamlined integration into various electrical systems.

ABB Control

LC1D50A3D7

Schneider Electric LC1D50A3D7 is a magnetic contactor from the Deca sub-range, featuring an EverLink(TM) terminal design with spring connections for control and screw connections for power. This 3-pole (3P; 3NO) contactor supports a rated current of 80A under AC-1 conditions and 50A at 440Vac under AC-3 conditions. It is designed for DIN rail mounting and has a net width of 55 mm. The LC1D50A3D7 offers a degree of protection rated at IP20 and operates with a control voltage (AC) range of 33.6-46.2Vac at 50Hz and 35.7-46.2Vac at 60Hz, with a nominal voltage of 42Vac. The rated operating voltage (Ue) is up to 690 V, and it includes 1 normally open (NO) auxiliary contact and 1 normally closed (NC) auxiliary contact, both of the instantaneous type (1NO+1NC). The rated impulse voltage (Uimp) is 6 kV. This contactor can handle rated active power ranging from 15kW at 220-230Vac to 33kW at 660-690Vac under AC-3 conditions. It also supports rated power in horsepower (HP) for various voltages and phases under UL/CSA standards, including 3HP at 115Vac single-phase and up to 40HP at 575-600Vac 3-phase. The mechanical durability of the LC1D50A3D7 is rated at 6,000,000 operations, and its electrical durability with load is 1,450,000 operations. The rated voltage (AC) for phase-to-phase connections is 690 V.

Schneider Electric

BF26T4A46060

BF26T4A46060 Lovato - Four-pole contactor, IEC operating current Ith (AC1) = 45A, AC coil 60Hz, 460VAC

Lovato Electric

BF0910A110

BF0910A110 Lovato - Three-pole contactor, IEC operating current Ie (AC3) = 9A, AC coil 50/60Hz, 110VAC, 1NO auxiliary contact

Lovato Electric

AF301B1-AE26J9

ABB Control - AF301B1-AE26J9

ABB Control

AF261B2-FU5C

ABB Control - AF261B2-FU5C

ABB Control

CWM105-00-30C40

WEG CWM105-00-30C40 - CONTACTOR CWM105-00-30C40, Contactors (CWM)

WEG

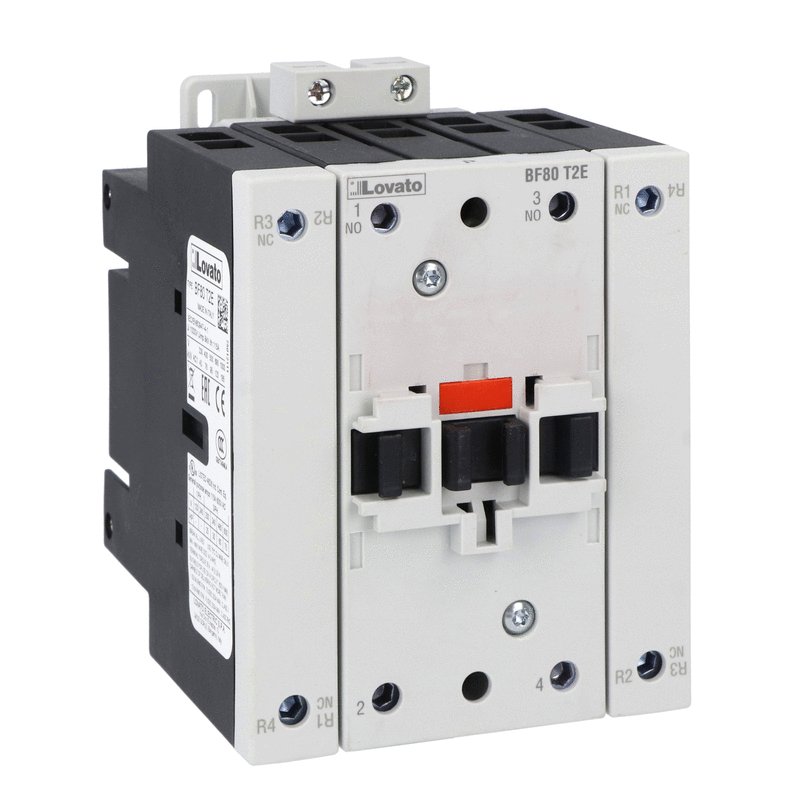

BF80T2E024

BF80T2E024 Lovato - Four-pole contactor, IEC operating current Ith (AC1) = 115A, AC/DC coil, 24VAC/DC, 2NO and 2NC

Lovato Electric

AF116-40-22B-11

AF116-40-22B-11 ABB Control - CONTACTOR AF116 4P BAR CON 24-60V

ABB Control

CA7-90-M40-277

Sprecher + Schuh CA7-90-M40-277 - CA7 Contactor, 90A, 240V 50Hz / 277V 60Hz AC, 4NO

Sprecher + Schuh

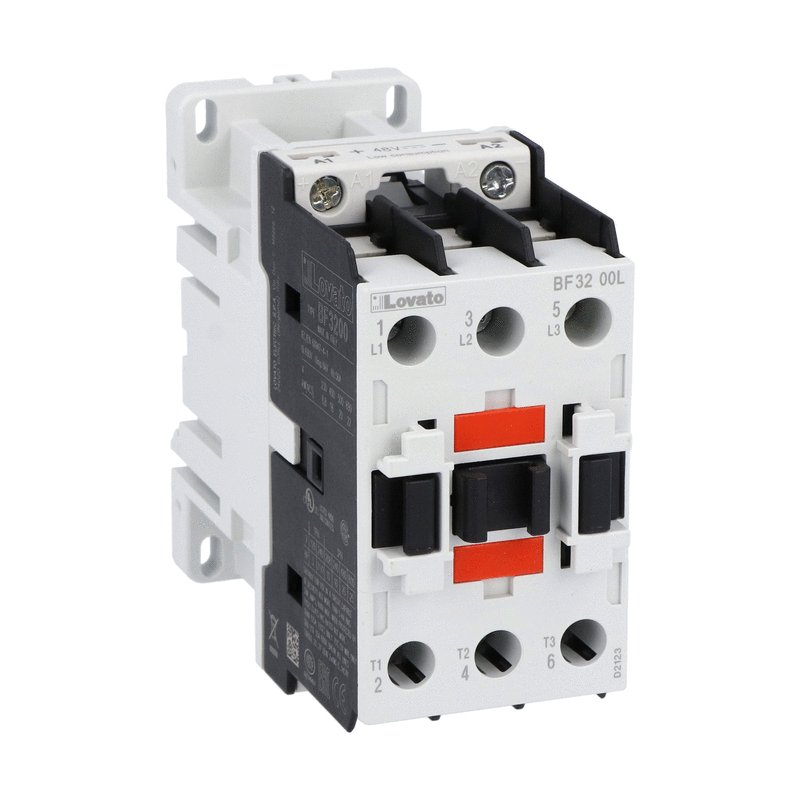

BF3200L024

BF3200L024 Lovato - Three-pole contactor, IEC operating current Ie (AC3) = 32A, DC coil low consumption, 24VDC

Lovato Electric

AF09-40-00-14LU

AF09-40-00-14LU ABB Control - AF09 4POLE 250-500VAC/DC LTG CONTACTOR

ABB Control

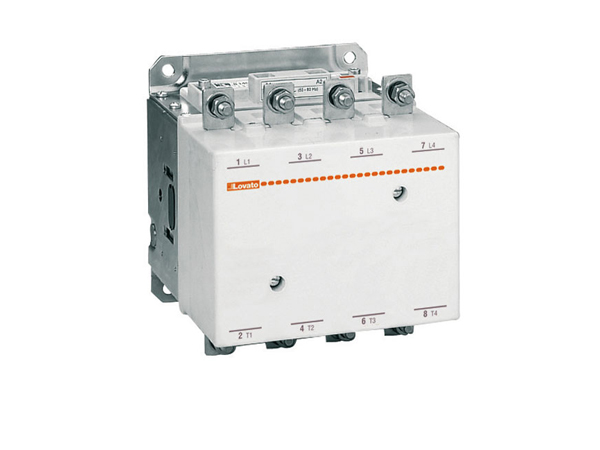

11B1600424220

11B1600424220 Lovato - Four-pole contactor, IEC operating current Ith (AC1) = 1600A, AC coil, 220...240VAC

Lovato Electric

11B63040048

11B63040048 Lovato - Four-pole contactor, IEC operating current Ith (AC1) = 800A, AC/DC coil, 48VAC/DC

Lovato Electric

AF261BX-CE25J9

ABB Control - AF261BX-CE25J9

ABB Control

CAU7-16-22-220W-L31

Sprecher + Schuh CAU7-16-22-220W-L31 - CAU7 Contactor FVR, 16A, 200-220V 50Hz / 208-220V 60Hz AC, 2NO 2NC, 3NO 1NC Aux

Sprecher + Schuh

CWCH09-10-30V04

WEG CWCH09-10-30V04 - MINICONTACTOR CWCH09-10-30V04, Miniature Contactors (CWC)

WEG

11BG0031D060

11BG0031D060 Lovato - Control relay with DC coil, 60VDC, 3NO and 1NC

Lovato Electric

CA8-09-10-230

Sprecher + Schuh CA8-09-10-230 -

Sprecher + Schuh
