Contactors

CWM65-00-30V04

WEG CWM65-00-30V04 - CONTACTOR CWM65-00-30V04, Contactors (CWM)

WEG

CA7-60-10-24Z

Sprecher + Schuh CA7-60-10-24Z - CA7 Contactor, 60A, 24V 50/60Hz AC, 1NO

Sprecher + Schuh

LC2D50AV7

Schneider Electric LC2D50AV7 is a pre-assembled reversing magnetic contactor from the Deca sub-range, featuring EverLink(TM) terminals and a mechanical interlock. It is designed with screw connections and consists of 2 x 3-poles (2x3P; 2x3NO) configuration. The rated current is 80A for AC-1 and 50A for 440Vac in AC-3, with a degree of protection rated at IP20. The control voltage (AC) ranges from 320-440Vac at 50Hz and 340-440Vac at 60Hz, with a nominal voltage of 400Vac. The rated operating voltage (Ue) is up to 690 V, and it includes 2 Normally Open (NO) auxiliary contacts and 2 Normally Closed (NC) auxiliary contacts, with a contact type of 1NO+1NC instantaneous auxiliary contacts per contactor. The rated impulse voltage (Uimp) is 6 kV. Its rated active power in kW varies from 15kW at 220-230Vac to 33kW at 660-690Vac in AC-3. The rated power in HP ranges from 3HP at 115Vac in single-phase to 40HP at 575-600Vac in three-phase, under UL/CSA standards. The rated voltage (AC) for phase-to-phase applications is 690 V.

Schneider Electric

LC1F115FD

Schneider Electric LC1F115FD is a high-power magnetic contactor within the F sub-range, designed for surface mounting. It features a 3-pole (3P; 3NO) configuration with ring-lugs/bar connections for electrical interfacing. The contactor is rated for currents up to 200A in AC-1 applications and 115A at 440Vac in AC-3 scenarios. Control voltage for the device is specified at 93.5-121Vdc, with a nominal value of 110Vdc, corresponding to 0.85...1.1 times the control voltage (Uc). The rated operating voltage (Ue) reaches up to 1000 V, and it has no normally open (NO) or normally closed (NC) auxiliary contacts. The rated impulse voltage (Uimp) is 8 kV. It supports rated active power (kW) across various voltages, including 30kW at 220-230Vac, 55kW at 380-400Vac, 59kW at both 415Vac and 440Vac, 75kW at 500Vac, 80kW at 660-690Vac, and 65kW at 1000Vac in AC-3 applications. The mechanical durability of the LC1F115FD, at no load, is rated for 10,000,000 operations, and the phase-to-phase rated voltage (AC) is 1000 V.

Schneider Electric

LC2D40AFD

Schneider Electric LC2D40AFD is a pre-assembled reversing magnetic contactor from the Deca sub-range, featuring EverLink(TM) terminals and a mechanical interlock. It has screw connections and consists of 2 x 3-poles (2x3P; 2x3NO) with a rated current of 60A (AC-1) and 40A (440Vac; AC-3). The contactor offers a degree of protection of IP20 and operates with a control voltage (DC) range of 82.5-137.5Vdc (110Vdc nominal; 0.75...1.25 x Uc). Its rated operating voltage (Ue) is up to 690 V, and it includes 2 Normally Open (NO) auxiliary contacts and 2 Normally Closed (NC) auxiliary contacts. The rated impulse voltage (Uimp) is 6 kV. The rated active power (kW) spans from 11kW at 220-230Vac to 30kW at 660-690Vac, all within AC-3 classification. It also features 1NO+1NC instantaneous auxiliary contacts per contactor. The rated power (HP) varies from 3HP at 115Vac in single-phase to 30HP at 575-600Vac in three-phase, under UL/CSA standards, with a phase-to-phase rated voltage (AC) of 690 V.

Schneider Electric

AF1250-30-22-70

AF1250-30-22-70 ABB Control - AF1250-30-22 100-250V 50/60HZ / 100-250V

ABB Control

BF230T4E110

BF230T4E110 Lovato - Four-pole contactor, IEC operating current Ith (AC1) = 350A, AC/DC coil, 60...130VAC/DC

Lovato Electric

LC1D40A3S7

Schneider Electric LC1D40A3S7 is a magnetic contactor from the Deca sub-range, featuring EverLink(TM) terminals. It is designed with spring connections for control and screw connections for power, and it has 3 poles (3P; 3NO). The rated current is 60A for AC-1 and 40A for 440Vac in AC-3. This contactor is suitable for DIN rail mounting and has a net width of 55 mm. It offers a degree of protection of IP20 and operates with a control voltage of 400-550Vac (500Vac nominal; 50Hz; 0.8...1.1 x Uc) and 425-550Vac (500Vac nominal; 60Hz; 0.85...1.1 x Uc). The rated operating voltage (Ue) is 690 V, and it includes 1 normally open (NO) auxiliary contact. The rated impulse voltage (Uimp) is 6 kV. Its rated active power ranges from 11kW at 220-230Vac to 30kW at 660-690Vac in AC-3. It also features 1 normally closed (NC) auxiliary contact and contacts type of 1NO+1NC instantaneous aux. The rated power in horsepower (HP) varies from 3HP at 115Vac in single-phase to 30HP at 575-600Vac in 3-phase, according to UL/CSA standards. The mechanical durability is rated at 6,000,000 operations, and electrical durability with load is 1,500,000 operations. The rated voltage (AC) phase-to-phase is 690 V.

Schneider Electric

11BGF0022A400

11BGF0022A400 Lovato - Control relay with AC coil 50/60Hz, 400VAC, 2NO and 2NC, Faston terminals

Lovato Electric

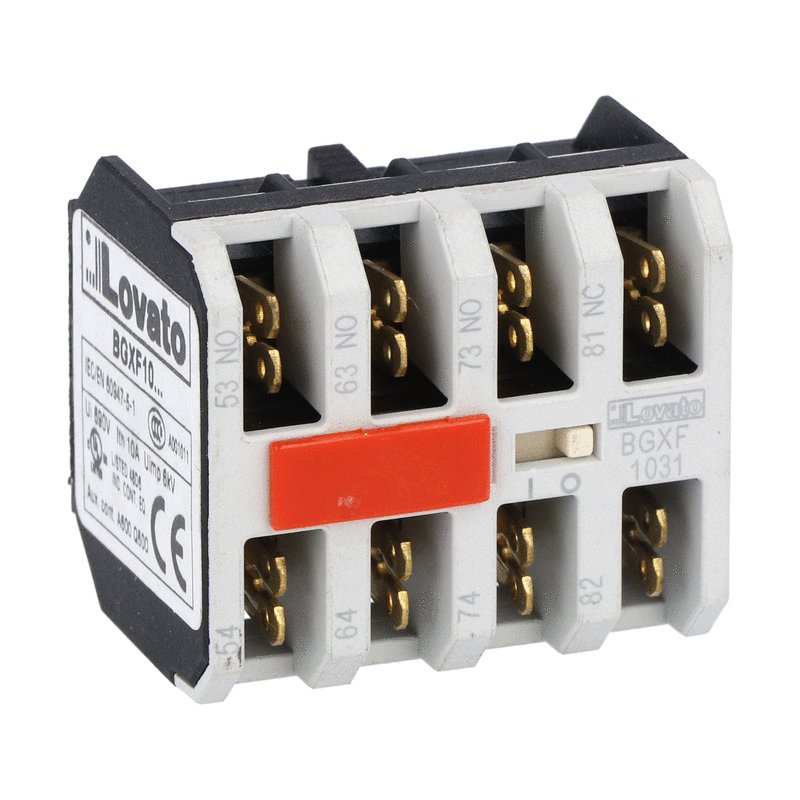

11BGXF1031

11BGXF1031 Lovato - Auxiliary contact, Faston terminals,for BG... series mini-contactors, 3NO+1NC

Lovato Electric

BFX641D110

BFX641D110 Lovato - Mechanical latch. Screw terminals for BF95-BF150. 110VDC

Lovato Electric

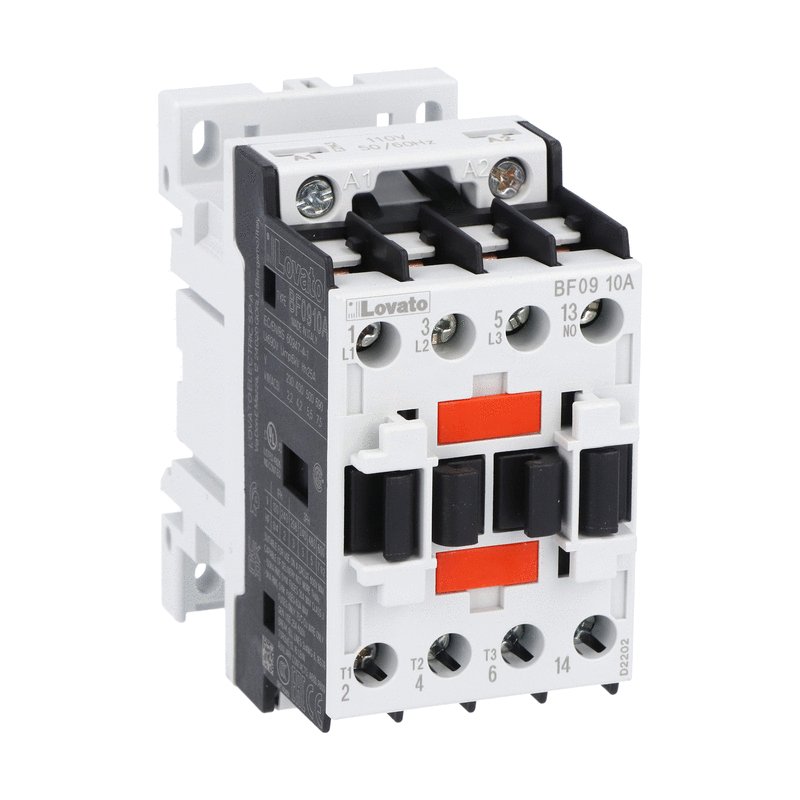

BF0910A230

BF0910A230 Lovato - Three-pole contactor, IEC operating current Ie (AC3) = 9A, AC coil 50/60Hz, 230VAC, 1NO auxiliary contact

Lovato Electric

BF1810A02460

BF1810A02460 Lovato - Three-pole contactor, IEC operating current Ie (AC3) = 18A, AC coil 60Hz, 24VAC, 1NO auxiliary contact

Lovato Electric

LC1D40A3GD

Schneider Electric LC1D40A3GD is a magnetic contactor from the Deca sub-range featuring EverLink(TM) terminal design. It offers spring connections for control and screw connections for power, with a configuration of 3 poles (3P; 3NO). This contactor is rated for currents of 60A (AC-1) and 40A (440Vac; AC-3), and it can be mounted on a DIN rail. The unit has a net width of 55 mm and provides an IP20 degree of protection. The control voltage (DC) ranges from 94-156Vdc (125Vdc nominal; 0.75...1.25 x Uc), and it operates at a rated voltage (Ue) of up to 690 V. It includes 1 Normally Open (NO) auxiliary contact and 1 Normally Closed (NC) auxiliary contact, both of the instantaneous type (1NO+1NC). The rated impulse voltage (Uimp) is 6 kV. Its rated active power spans from 11kW at 220-230Vac to 30kW at 660-690Vac in AC-3 category. The rated power in horsepower (HP) varies from 3HP at 115Vac in single-phase to 30HP at 575-600Vac in three-phase, under UL/CSA standards. This contactor is designed for mechanical durability of 6 million operations and electrical durability of 1.5 million operations with load, at a phase-to-phase rated voltage of 690 V.

Schneider Electric

BF1801A012

BF1801A012 Lovato - 3P CONTACTOR 18A 1NC 12V AC COIL 50/60Hz

Lovato Electric

AF261FX-CU2H

AF26,NR,3PH,FD,N4X,480/120V

ABB Control

DPBF3200D024

DPBF3200D024 Lovato - 3P CONTACTOR 32A AC3 24VDC

Lovato Electric

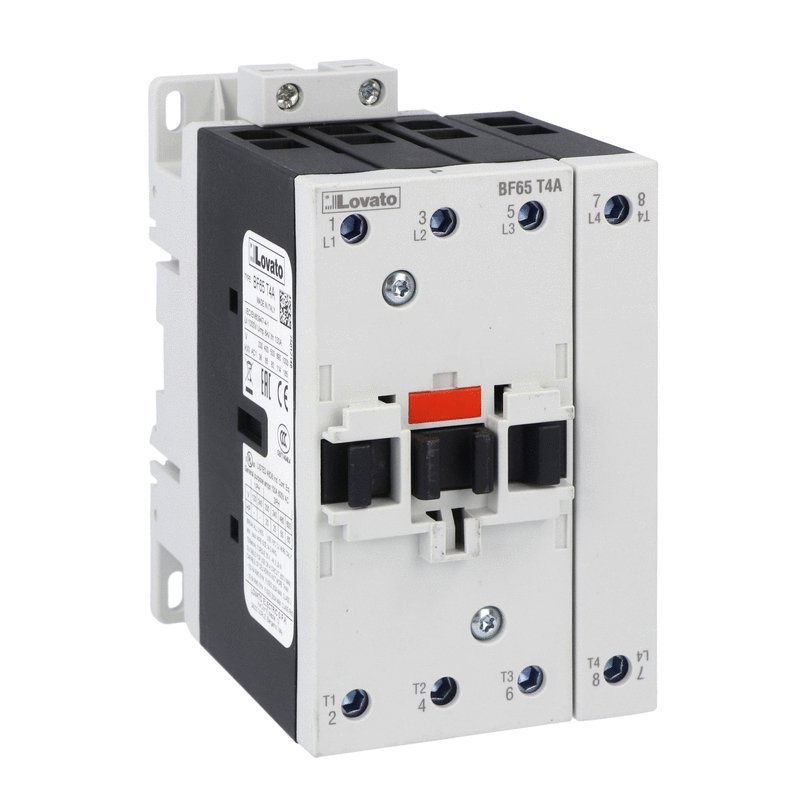

BF65T4A57560

BF65T4A57560 Lovato - Four-pole contactor, IEC operating current Ith (AC1) = 100A, AC coil 60Hz, 575VAC

Lovato Electric

CWC07-00-40C12

WEG CWC07-00-40C12 - MINICONTACTOR CWC07-00-40C12, Miniature Contactors (CWC)

WEG

AF3012-CV

ABB Control - AF3012-CV

ABB Control
