Contactors

CA7-16-10-480

Sprecher + Schuh CA7-16-10-480 - CA7 Contactor, 16A, 440V 50Hz / 480V 60Hz AC, 1NO

Sprecher + Schuh

LC1D50ED

Schneider Electric LC1D50ED is a magnetic contactor from the Deca sub-range, featuring screw connections and designed with 3 poles (3P; 3NO). It has a rated current of 80A for AC-1 and 50A for 440Vac in AC-3 conditions. This contactor is suitable for DIN rail mounting and offers an IP20 degree of protection. The control voltage (DC) ranges from 36-60Vdc, with a nominal 48Vdc, and it operates at a rated voltage (Ue) of up to 690 V. It includes 1 normally open (NO) auxiliary contact and 1 normally closed (NC) auxiliary contact, both of the instantaneous type (1NO+1NC). The rated impulse voltage (Uimp) is 6 kV. Its rated active power reaches up to 15kW at 220-230Vac, 22kW at 380-400Vac, 25kW at 415Vac, 30kW at 440Vac and 500Vac, and 33kW at 660-690Vac, all in AC-3 conditions. The rated power in horsepower (HP) spans from 3HP at 115Vac to 40HP at 575-600Vac, under various single-phase and 3-phase conditions, compliant with UL/CSA standards. The mechanical durability of this contactor is rated at 15 million operations at no load, and it supports a phase-to-phase rated voltage of 690 V.

Schneider Electric

AF38-40-00-14

AF38-40-00-14 ABB Control - CTR,4P,AC1-55A,250-500VAC/DC

ABB Control

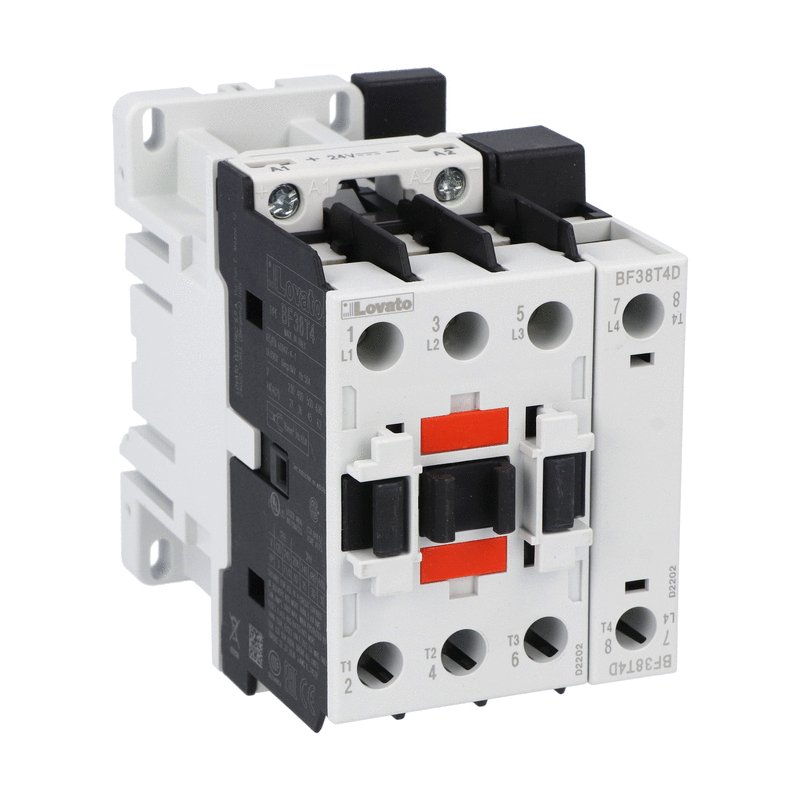

BF38T4D220

BF38T4D220 Lovato - Four-pole contactor, IEC operating current Ith (AC1) = 56A, DC coil, 220VDC

Lovato Electric

11BGF0901L024

11BGF0901L024 Lovato - Three-pole contactor, IEC operating current Ie (AC3) = 9A, DC coil low consumption, 24VDC, 1NC auxiliary contact, Faston terminals

Lovato Electric

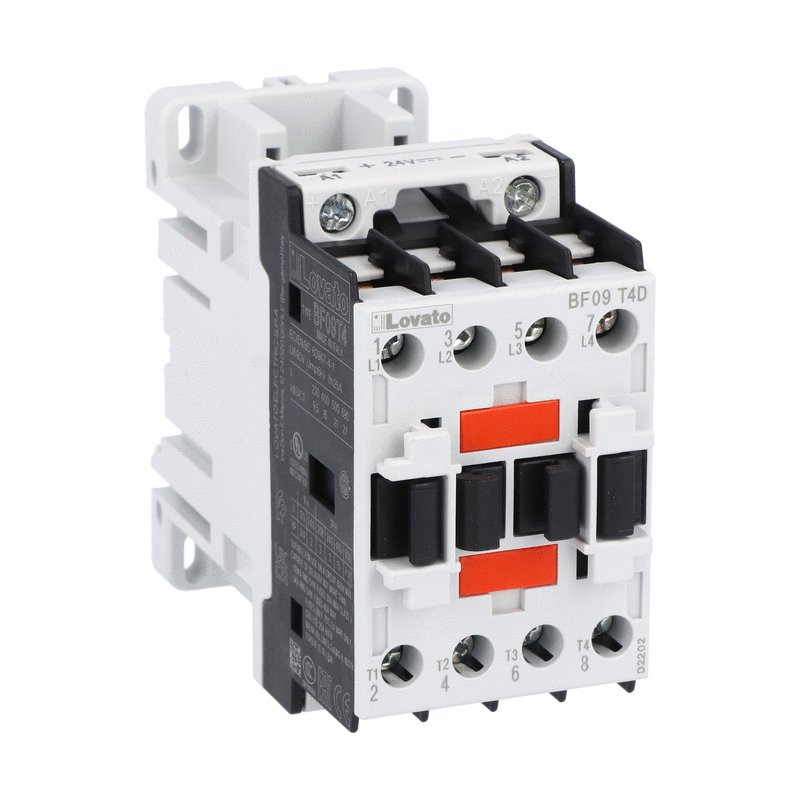

BF09T4D220

BF09T4D220 Lovato - Four-pole contactor, IEC operating current Ith (AC1) = 25A, DC coil, 220VDC

Lovato Electric

LC1D186GD

Schneider Electric LC1D186GD is a magnetic contactor from the Deca sub-range, designed with ring-lugs connections and three poles (3P; 3NO). It has a rated current of 32A for AC-1 and 18A for 440Vac in AC-3, and it can be mounted on a DIN rail. The net width of the contactor is 45 mm, and it offers a degree of protection of IP20. The control voltage (DC) ranges from 94-156Vdc, with a nominal value of 125Vdc. The rated operating voltage (Ue) is up to 690 V, and it includes 1 normally open (NO) auxiliary contact. The rated impulse voltage (Uimp) is 6 kV. This contactor supports rated active power ranging from 4kW at 220-230Vac to 10kW at 660-690Vac in AC-3. It also features 1 normally closed (NC) auxiliary contact with contacts type of 1NO+1NC instantaneous aux. The rated power in horsepower (HP) varies from 1HP at 115Vac in single-phase to 15HP at 575-600Vac in three-phase, according to UL/CSA standards. The mechanical durability of the LC1D186GD is rated at 15 million operations at no load, and its electrical durability with load is 1.6 million operations. The rated voltage for phase-to-phase connections is 690 V.

Schneider Electric

11B500L00110110

11B500L00110110 Lovato - Three-pole contactor, IEC operating current Ie (AC3) = 520A, AC/DC coil, already fitted with mechanical latch (G495), 110...125VAC/DC, mechanical latch 110...125VAC

Lovato Electric

AF091F2-CC11E

ABB Control - AF091F2-CC11E

ABB Control

LC1D256FE7

Schneider Electric LC1D256FE7 is a magnetic contactor from the Deca sub-range, designed for ring-lugs connections. It features 3 poles (3P; 3NO) and is rated for currents of 40A (AC-1) and 25A (440Vac; AC-3). This contactor is suitable for DIN rail mounting and has a net width of 45 mm. It offers a degree of protection of IP20 and operates within control voltage ranges of 92-126Vac (115Vac nominal; 50Hz; 0.8...1.1 x Uc) and 98-126Vac (115Vac nominal; 60Hz; 0.85...1.1 x Uc). The rated operating voltage (Ue) is up to 690 V, and it includes 1 Normally Open (NO) auxiliary contact and 1 Normally Closed (NC) auxiliary contact, both of the instantaneous type (1NO+1NC). The rated impulse voltage (Uimp) is 6 kV. Its rated active power spans from 5.5kW at 220-230Vac to 15kW at 660-690Vac (AC-3), and its rated power in horsepower ranges from 2HP at 115Vac to 20HP at 575-600Vac, accommodating various single-phase and three-phase applications. The mechanical durability of the LC1D256FE7 is rated at 15 million operations at no load, and its electrical durability is rated at 1.6 million operations with load. The rated voltage for phase-to-phase connections is 690 V.

Schneider Electric

BFA0184202460

BFA0184202460 Lovato - 3P REV. CONTACTOR 18A 1NC 24V AC COIL

Lovato Electric

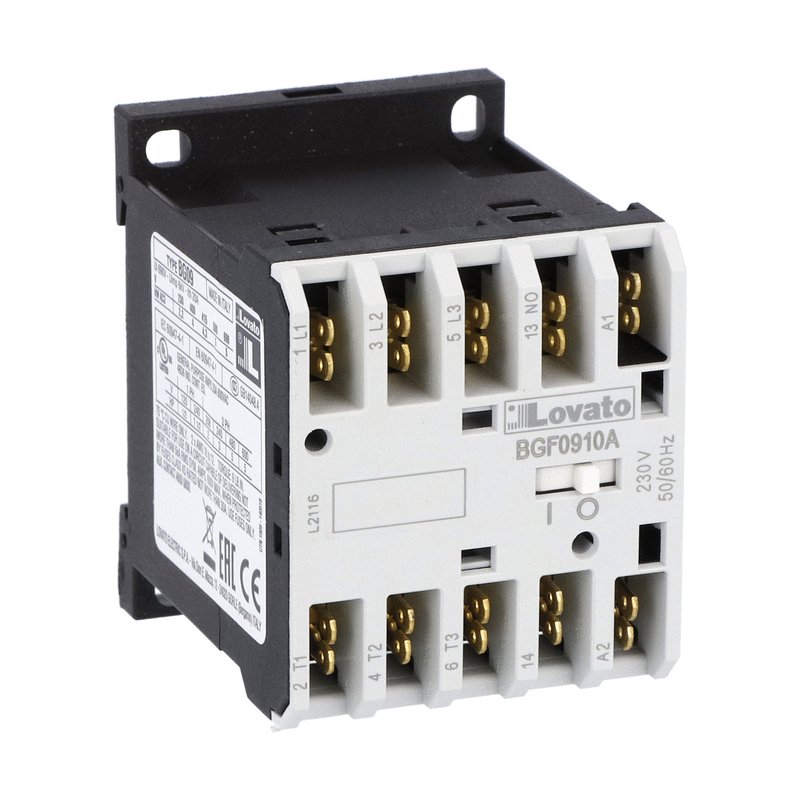

11BGF0910A23060

11BGF0910A23060 Lovato - Three-pole contactor, IEC operating current Ie (AC3) = 9A, AC coil 60Hz, 230VAC, 1NO auxiliary contact, Faston terminals

Lovato Electric

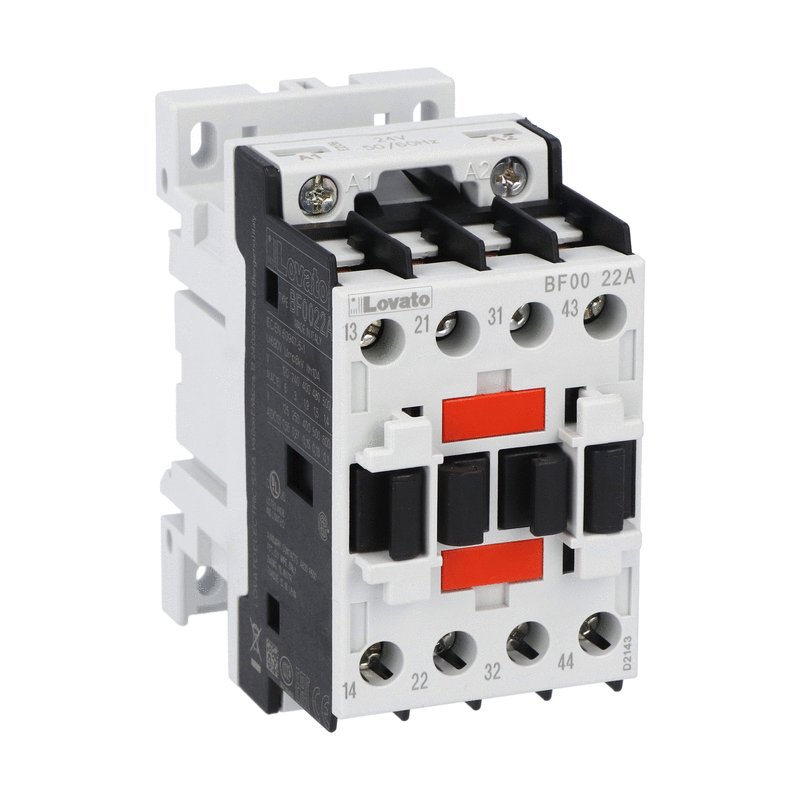

BF0022A024

BF0022A024 Lovato - Control relay with AC coil 50/60Hz, 24VAC, 2NO and 2NC

Lovato Electric

LC1D50A3M7

Schneider Electric LC1D50A3M7 is a magnetic contactor from the Deca sub-range, featuring EverLink(TM) terminal design for connection. It is equipped with spring connections for control and screw connections for power. This 3-pole (3P; 3NO) contactor supports a rated current of 80A under AC-1 conditions and 50A at 440Vac under AC-3 conditions. It is designed for DIN rail mounting and has a net width of 55 mm. The LC1D50A3M7 offers a degree of protection rated at IP20 and operates with a control voltage (AC) range of 176-242Vac at 50Hz and 187-242Vac at 60Hz. The rated operating voltage (Ue) is 690 V, and it includes 1 normally open (NO) auxiliary contact and 1 normally closed (NC) auxiliary contact, both of the instantaneous type (1NO+1NC). The rated impulse voltage (Uimp) is 6 kV. Its rated active power ranges from 15kW to 33kW across various AC-3 voltage levels, and its rated power in horsepower (HP) spans from 3HP to 40HP across different voltages and phases, according to UL/CSA standards. The mechanical durability of the LC1D50A3M7 is rated at 6,000,000 operations, and its electrical durability with load is 1,450,000 operations. The rated voltage (AC) for phase-to-phase connections is 690 V.

Schneider Electric

11BA167124

11BA167124 Lovato - AC/DC coil assembly (coil, rectifier and coil protection) for B250-B310-B400 contactors

Lovato Electric

AF091FX-EP1

ABB Control - AF091FX-EP1

ABB Control

CA7-30E-10-U24E

Sprecher + Schuh CA7-30E-10-U24E - CA7 Contactor, 30A, 24V DC Elec. Coil, 1NO, Reversed Coil

Sprecher + Schuh

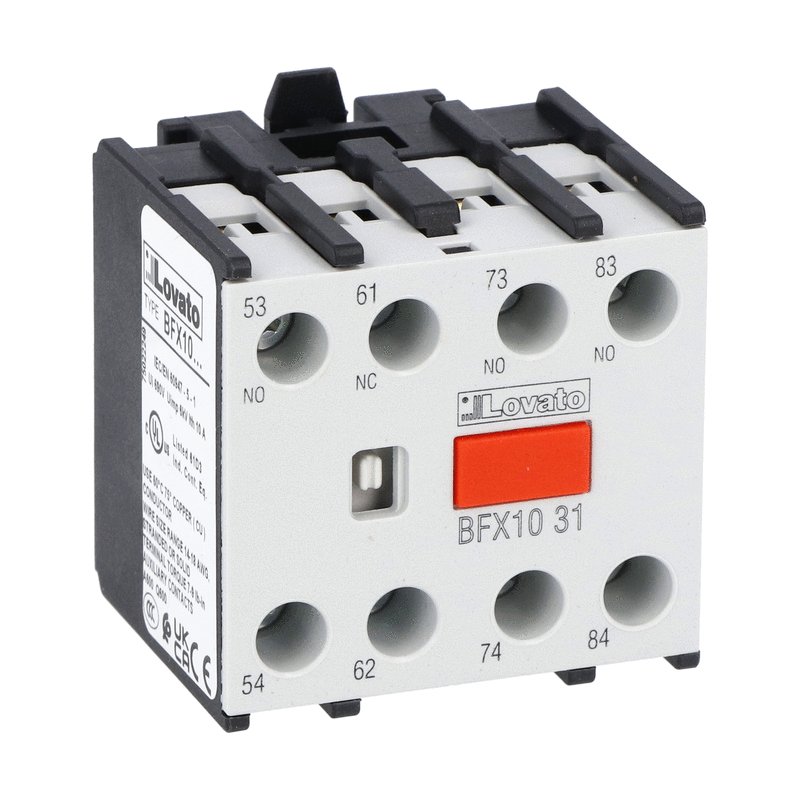

BFX1031

BFX1031 Lovato - Auxiliary contact with front centre mounting. Screw terminals, for BF00, BF09...BF150 series contactors, 3NO+1NC

Lovato Electric

LC1D096R7

Schneider Electric LC1D096R7 is a magnetic contactor from the Deca sub-range, designed for ring-lugs connections. It features 3 poles (3P; 3NO) and is rated for currents of 25A (AC-1) and 9A (440Vac; AC-3). This contactor can be mounted on a DIN rail and has a net width of 45 mm. It offers a degree of protection of IP20 and operates with a control voltage (AC) range of 352-484Vac (440Vac nominal; 50Hz; 0.8...1.1 x Uc) and 374-484Vac (440Vac nominal; 60Hz; 0.85...1.1 x Uc). The rated operating voltage (Ue) is up to 690 V, and it includes 1 normally open (NO) auxiliary contact. The rated impulse voltage (Uimp) is 6 kV, and it has a rated active power of up to 5.5kW across various AC-3 voltage ratings. It also features 1 normally closed (NC) auxiliary contact with contacts type of 1NO+1NC instantaneous aux. The rated power (HP) varies from 0.33HP at 115Vac to 7.5HP at 575-600Vac, under UL/CSA standards for single-phase and 3-phase connections. Its mechanical durability is rated at 15 million operations at no load, and its electrical durability is rated at 2 million operations with load. The rated voltage (AC) for phase-to-phase connections is 690 V.

Schneider Electric

LC2D50AD7

Schneider Electric LC2D50AD7 is a pre-assembled reversing magnetic contactor from the Deca sub-range, featuring EverLink(TM) terminals and a mechanical interlock. It has screw connections and consists of 2 x 3-poles (2x3P; 2x3NO) with a rated current of 80A (AC-1) and 50A (440Vac; AC-3). The contactor offers a degree of protection of IP20 and operates with a control voltage (AC) of 33.6-46.2Vac (42Vac nominal; 50Hz; 0.8...1.1 x Uc) and 35.7-46.2Vac (42Vac nominal; 60Hz; 0.85...1.1 x Uc). Its rated operating voltage (Ue) is 690 V, and it includes 2 Normally Open (NO) auxiliary contacts and 2 Normally Closed (NC) auxiliary contacts, with a contacts type of 1NO+1NC instantaneous aux. contacts per contactor. The rated impulse voltage (Uimp) is 6 kV. It supports a rated active power (kW) of 15kW (220-230Vac; AC-3), 22kW (380-400Vac; AC-3), 25kW (415Vac; AC-3), 30kW (440Vac; AC-3), 30kW (500Vac; AC-3), and 33kW (660-690Vac; AC-3). The rated power (HP) is 3HP (115Vac; single-phase; 50Hz/60Hz; UL/CSA), 7.5HP (230-240Vac; single-phase; 50Hz/60Hz; UL/CSA), 15HP (200-208Vac; 3-phase; 50Hz/60Hz; UL/CSA), 15HP (230-240Vac; 3-phase; 50Hz/60Hz; UL/CSA), 40HP (460-480Vac; 3-phase; 50Hz/60Hz; UL/CSA), and 40HP (575-600Vac; 3-phase; 50Hz/60Hz; UL/CSA), with a phase-to-phase rated voltage (AC) of 690 V.

Schneider Electric
