Contactors

LC1D188R7

Schneider Electric LC1D188R7 is a magnetic contactor from the Deca sub-range, featuring screw connections and a 4-pole (2NO+2NC) configuration. It has a rated current of 32A (AC-1) and is designed for DIN rail mounting with a net width of 45 mm. This contactor offers a degree of protection of IP20 and operates with a control voltage (AC) of 352-484Vac (440Vac nominal; 50Hz; 0.8...1.1 x Uc) and 374-484Vac (440Vac nominal; 60Hz; 0.85...1.1 x Uc). The rated operating voltage (Ue) is 690 V, and it includes 1 NO and 1 NC auxiliary contacts with a rated impulse voltage (Uimp) of 6 kV. The contacts type is 1NO+1NC instantaneous auxiliaries, and it boasts a mechanical durability of 15 million operations at no load. The rated voltage (AC) phase-to-phase is also 690 V.

Schneider Electric

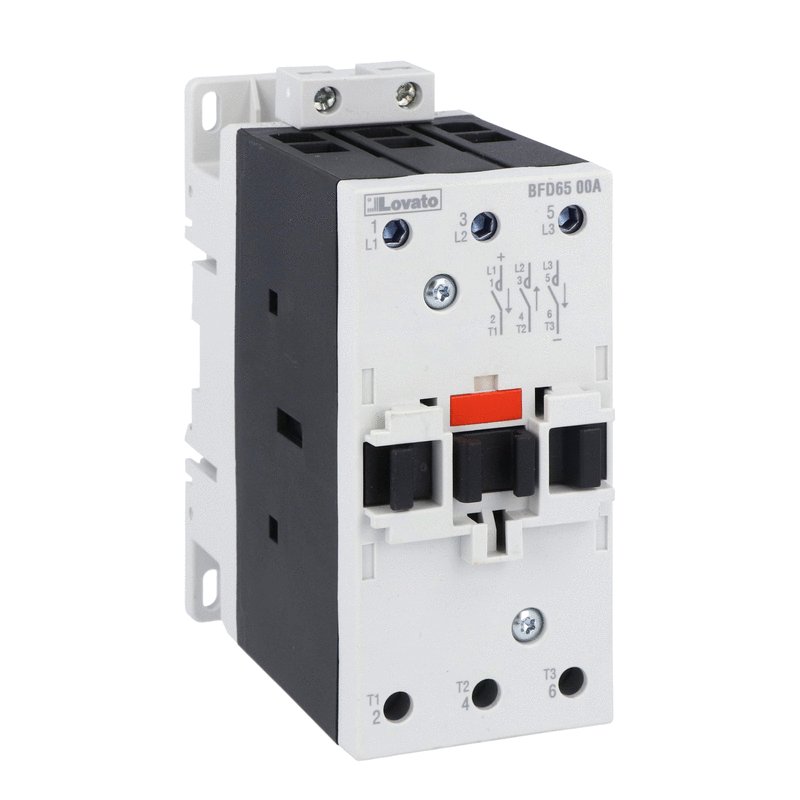

BFD6500A024

BFD6500A024 Lovato - Three-pole contactor, 35A/1000V DC1, AC coil, 24VAC 50/60Hz

Lovato Electric

AF2612-1P

ABB Control - AF2612-1P

ABB Control

AF301B1-CV7J

AF30,NR,3PH,CB,N1,480/120V

ABB Control

BFD6500A400

BFD6500A400 Lovato - Three-pole contactor, 35A/1000V DC1, AC coil, 400VAC 50/60Hz

Lovato Electric

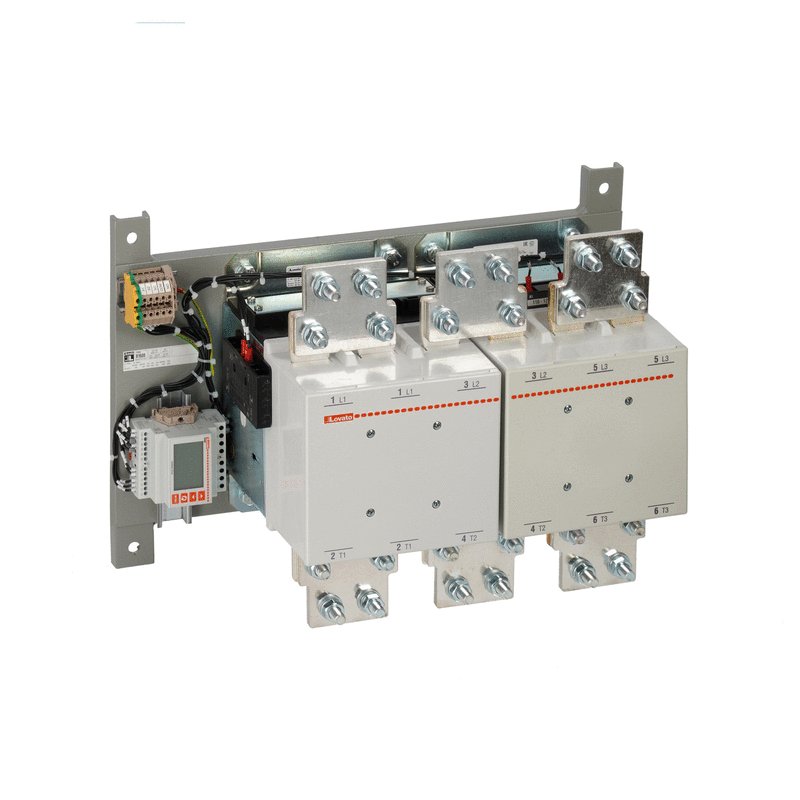

11B125024220

11B125024220 Lovato - Three-pole contactor, IEC operating current Ith (AC1) = 1250A, AC coil, 220...240VAC

Lovato Electric

CWC016-10-30V04

WEG CWC016-10-30V04 - MINICONTACTOR BU CWC016-10-30V04, Miniature Contactors (CWC)

WEG

LC2DT20E7

Schneider Electric LC2DT20E7 is a pre-assembled reversing magnetic contactor within the Deca sub-range, featuring a mechanical interlock design and screw connections for installation. It is equipped with 2 x 4-poles (2x4NO) and supports a rated current of 20A under AC-1 conditions. The contactor offers a degree of protection rated at IP20 and operates within control voltage ranges of 38.4-52.8Vac (48Vac nominal; 50Hz; 0.8...1.1 x Uc) and 40.8-52.8Vac (48Vac nominal; 60Hz; 0.85...1.1 x Uc). It is designed for a rated operating voltage (Ue) of up to 690 V and includes 2 Normally Open (NO) and 2 Normally Closed (NC) auxiliary contacts, with a contact type configuration of 1NO+1NC instantaneous auxiliary contacts per contactor. The rated impulse voltage (Uimp) is 6 kV, and the rated voltage (AC) for phase-to-phase connections is 690 V.

Schneider Electric

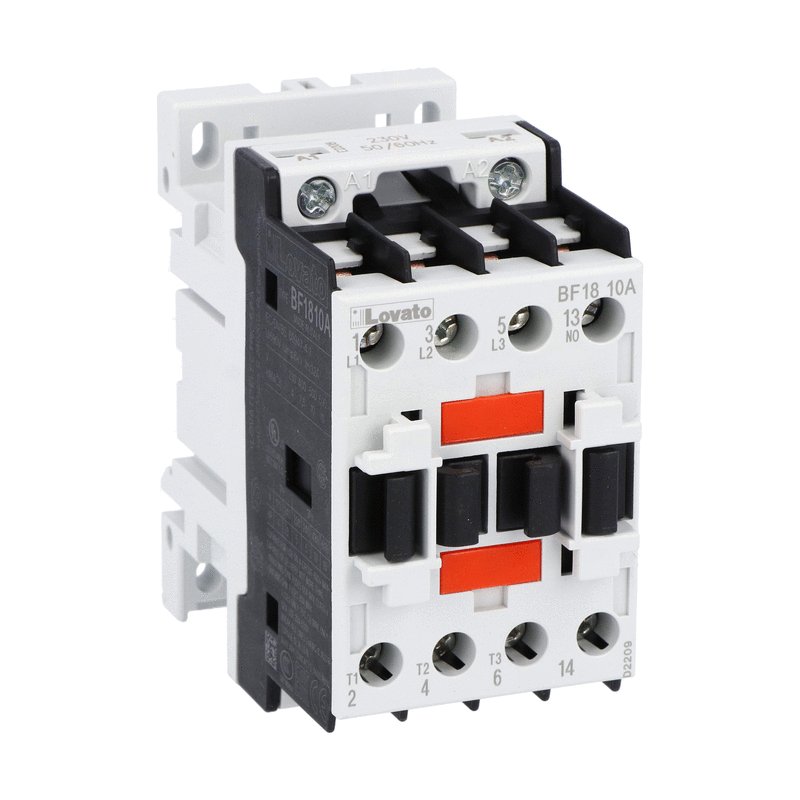

BF1810A230

BF1810A230 Lovato - Three-pole contactor, IEC operating current Ie (AC3) = 18A, AC coil 50/60Hz, 230VAC, 1NO auxiliary contact

Lovato Electric

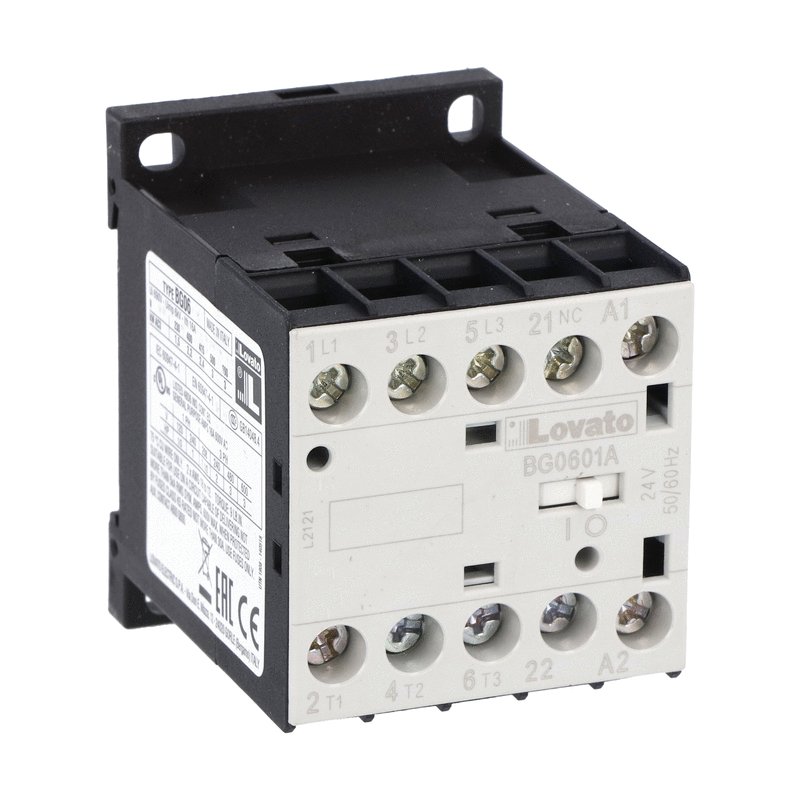

11BG0601A230

11BG0601A230 Lovato - Three-pole contactor, IEC operating current Ie (AC3) = 6A, AC coil 50/60Hz, 230VAC, 1NC auxiliary contact

Lovato Electric

LC1D323JD

Schneider Electric LC1D323JD is a magnetic contactor from the Deca sub-range, featuring spring connections and designed with 3 poles (3P; 3NO). It has a rated current of 50A (AC-1) and 32A (440Vac; AC-3), with a mounting mode suitable for DIN rail installation. The net width of the contactor is 45 mm, and it offers a degree of protection rated at IP20. The control voltage (DC) ranges from 9-15Vdc (12Vdc nominal; 0.75...1.25 x Uc), and the rated operating voltage (Ue) is up to 690 V. This contactor includes 1 normally open (NO) auxiliary contact and 1 normally closed (NC) auxiliary contact, both of the instantaneous type (1NO+1NC). The rated impulse voltage (Uimp) is 6 kV. It supports rated active power of 7.5kW (220-230Vac; AC-3) up to 18.5kW (660-690Vac; AC-3), and rated power (HP) ranges from 2HP (115Vac; single-phase; 50Hz/60Hz; UL/CSA) to 25HP (575-600Vac; 3-phase; 50Hz/60Hz; UL/CSA). The mechanical durability of the LC1D323JD is up to 15,000,000 operations, and its electrical durability (with load) reaches 1,600,000 operations. The rated voltage (AC) for phase-to-phase connections is 690 V.

Schneider Electric

CA7-60-01-208

Contactor, 3 Pole, Non-Reversing, 100A, NC Auxiliary Contact, 208 VAC Coil

Sprecher + Schuh

CA7Y2-43-22-120-LW

Sprecher + Schuh CA7Y2-43-22-120-LW - CA7Y2 Contactor Wye-Delta, 43A, 110V 50Hz / 120V 60Hz AC, 2NO 2NC,

Sprecher + Schuh

J7KN-32 180

Omron J7KN-32 180 - Contactor

Omron

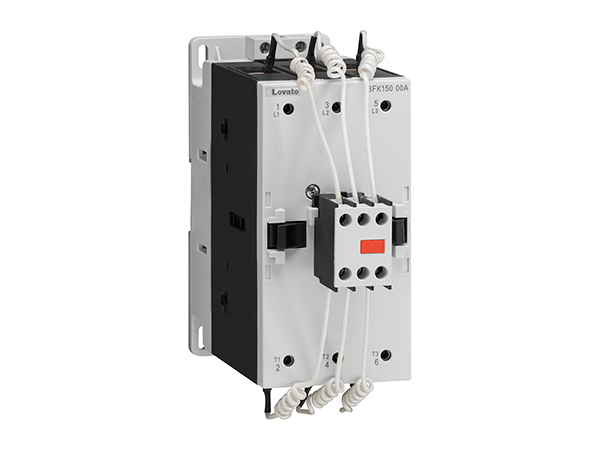

BFK11500A024

BFK11500A024 Lovato - Contactor for power factor correction with AC control circuit, including limiting resistors, maximum IEC operational power 400V = 75kvar, coil 24VAC 50/60Hz

Lovato Electric

CA8-12-01-208

Sprecher + Schuh CA8-12-01-208 - CA8 Miniature Contactor, 12A, 200-220V 50Hz / 208-220V 60Hz AC, 1NC

Sprecher + Schuh

LC2D183BL

Schneider Electric LC2D183BL is a pre-assembled reversing magnetic contactor from the Deca sub-range, designed with a low-consumption coil that consumes less than 2.4W and features a mechanical interlock. It offers spring connections and consists of 2 x 3-poles (2x3P; 2x3NO) with a rated current of 32A for AC-1 and 18A for 440Vac in AC-3 applications. The contactor is protected by an IP20 enclosure and operates with a control voltage (DC) range of 19.2-30Vdc, nominally at 24Vdc. It supports a rated operating voltage (Ue) up to 690 V and includes 2 Normally Open (NO) auxiliary contacts, with a rated impulse voltage (Uimp) of 6 kV. The rated active power spans from 4kW at 220-230Vac to 10kW at 660-690Vac in AC-3, complemented by 2 Normally Closed (NC) auxiliary contacts and 1NO+1NC instantaneous auxiliary contacts per contactor. Its rated power in horsepower (HP) varies from 1HP at 115Vac in single-phase to 15HP at 575-600Vac in three-phase applications, under UL/CSA standards. The phase-to-phase rated voltage (AC) is 690 V, ensuring compatibility with a wide range of industrial applications.

Schneider Electric

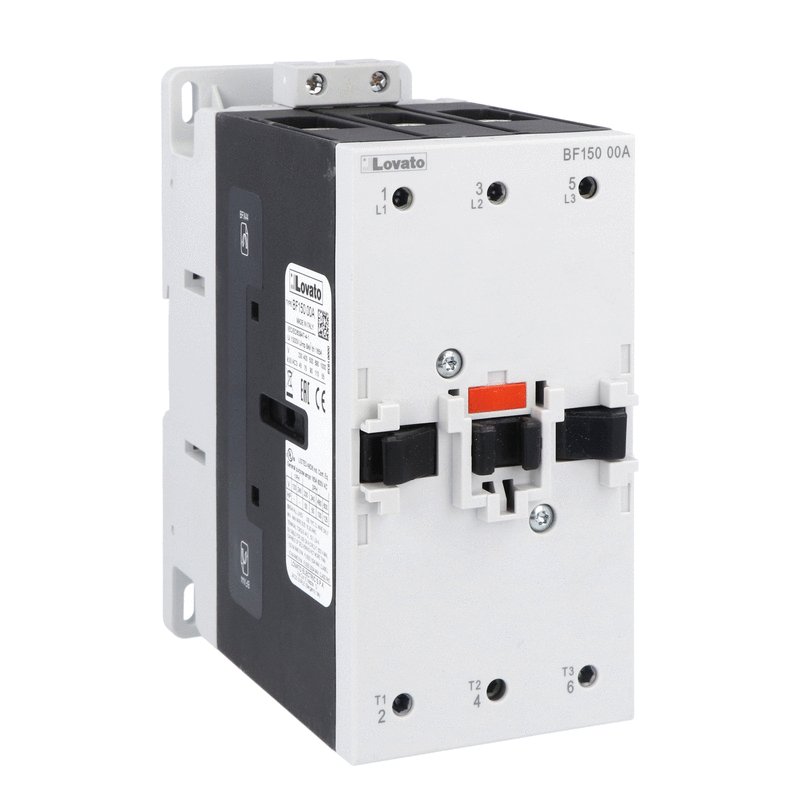

BF15000A048

BF15000A048 Lovato - Three-pole contactor, IEC operating current Ie (AC3) = 150A, AC coil 50/60Hz, 48VAC

Lovato Electric

CA7-90D-M22-220DD

Sprecher + Schuh CA7-90D-M22-220DD -

Sprecher + Schuh

CA8-12-10-480

Sprecher + Schuh CA8-12-10-480 - CA8 Miniature Contactor, 12A, 440V 50Hz/ 480V 60Hz AC, 1NO

Sprecher + Schuh
