Contactors

AF30M-30-22-14

MI,3P,32.2A,250-500VAC/DC,2/2

ABB Control

J7KN-10D-10 24D

Omron J7KN-10D-10 24D - Contactor

Omron

LC1DGKV7

Schneider Electric LC1DGKV7 is a magnetic contactor from the Deca sub-range designed for capacitor switching duty. It features screw connections and is equipped with three poles (3P; 3NO) for mounting on a DIN rail. This contactor offers a degree of protection of IP20 and operates with a control voltage (AC) of 400Vac at 50Hz/60Hz. The rated operating voltage (Ue) is 690 V, and it includes 1 normally open (NO) auxiliary contact and 2 normally closed (NC) auxiliary contacts, with a contact type of 1NO+2NC instantaneous auxiliaries. The LC1DGKV7 has an electrical durability of 300,000 operations at 400Vac and 200,000 operations at 690Vac, with a rated impulse voltage (Uimp) of 6 kV. The rated voltage (AC) for phase-to-phase connections is 690 V.

Schneider Electric

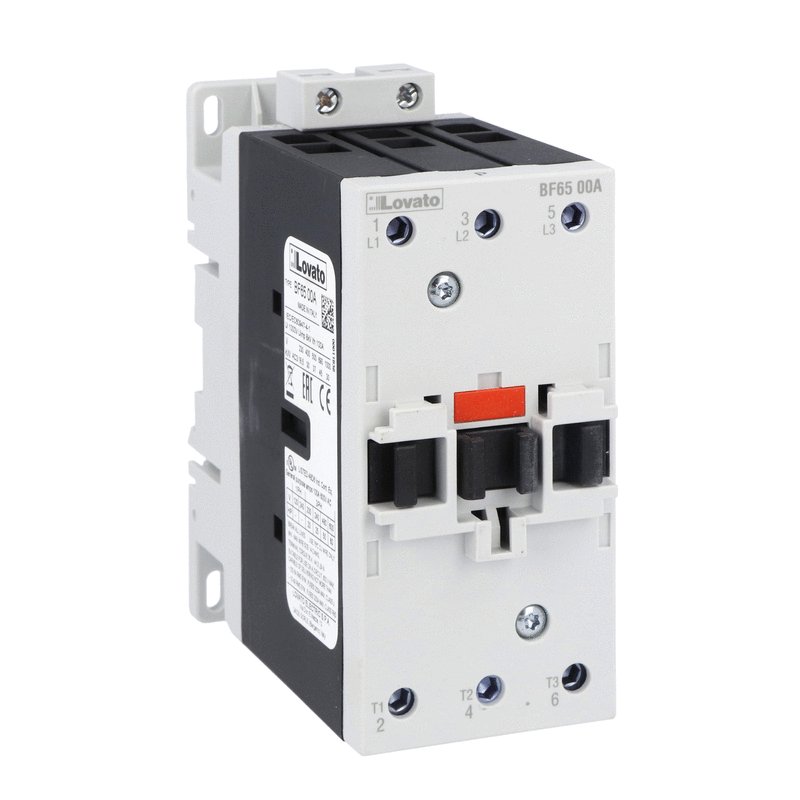

BF6500A57560

BF6500A57560 Lovato - Three-pole contactor, IEC operating current Ie (AC3) = 65A, AC coil 60Hz, 575VAC

Lovato Electric

AF261B2-CP1J

ABB Control - AF261B2-CP1J

ABB Control

LC7K0610M7

Schneider Electric LC7K0610M7 is a contactor from the K sub-range designed with a silent magnetic operation and a built-in surge suppressor. It features screw connections and is equipped with 3 poles (3P; 3NO), supporting a rated current of 6A at 440Vac under AC-3 utilization category. This contactor offers a degree of protection rated at IP20 and operates with a control voltage (AC) range of 176-242Vac (220Vac nominal; 50Hz/60Hz; 0.8...1.1 x Uc). The rated operating voltage (Ue) is 690 V, and it includes 1 Normally Open (NO) auxiliary contact. The rated impulse voltage (Uimp) stands at 8 kV. It is capable of handling rated active power loads of 1.5kW at 220-230Vac, 2.2kW at 380-415Vac, 3kW at 440Vac, 3kW at 500Vac, and 3kW at 660-690Vac, all under AC-3 conditions. This model does not include Normally Closed (NC) auxiliary contacts. Its mechanical durability is rated for 10,000,000 operations at no load, and the rated voltage (AC) for phase-to-phase connections is 690 V.

Schneider Electric

J7TKN-B-4

Omron J7TKN-B-4 - Contactor

Omron

AF3012-AWA

ABB Control - AF3012-AWA

ABB Control

11BGF0022A22060

11BGF0022A22060 Lovato - Control relay with AC coil 60Hz, 220VAC, 2NO and 2NC, Faston terminals

Lovato Electric

AF261SN2-1PJ9

AF26,,1PH,NF,N3R/4/12,24V

ABB Control

LC2V320FE7

Schneider Electric LC2V320FE7 is a pre-assembled reversing vacuum contactor within the V sub-range, featuring a mechanical interlock design. It is equipped with ring-lugs/bar connections and consists of 2 x 3-poles (2x3P; 2x3NO) with a rated current of 320A for both AC-1 and AC-3 (440Vac) applications. The control voltage (AC) ranges from 88-132Vac (110-120Vac nominal; 50Hz/60Hz; 0.8...1.1 x Uc). This contactor supports a rated operating voltage (Ue) of 1500 V and includes 1 Normally Open (NO) auxiliary contact and 1 Normally Closed (NC) auxiliary contact. The rated impulse voltage (Uimp) is 8 kV. It is capable of handling rated active power (kW) of 90kW at 230Vac, 160kW at 400Vac, 220kW at 525Vac, 280kW at 690Vac, and 400kW at 1000Vac in AC-3 applications. The rated voltage (AC) for phase-to-phase connections is 1500 V.

Schneider Electric

11BGF0901A400

11BGF0901A400 Lovato - Three-pole contactor, IEC operating current Ie (AC3) = 9A, AC coil 50/60Hz, 400VAC, 1NC auxiliary contact, Faston terminals

Lovato Electric

LC2D40AS7

Schneider Electric LC2D40AS7 is a pre-assembled reversing magnetic contactor from the Deca sub-range, featuring EverLink(TM) terminals and a mechanical interlock. It has screw connections and consists of 2 x 3-poles (2x3P; 2x3NO) with a rated current of 60A (AC-1) and 40A (440Vac; AC-3). The contactor offers a degree of protection of IP20 and operates with a control voltage (AC) of 400-550Vac (500Vac nominal; 50Hz; 0.8...1.1 x Uc) and 425-550Vac (500Vac nominal; 60Hz; 0.85...1.1 x Uc). Its rated operating voltage (Ue) is 690 V, and it includes 2 Normally Open (NO) auxiliary contacts and 2 Normally Closed (NC) auxiliary contacts. The rated impulse voltage (Uimp) is 6 kV. The rated active power (kW) spans from 11kW at 220-230Vac to 30kW at 660-690Vac in AC-3 category. It also features 1NO+1NC instantaneous auxiliary contacts per contactor. The rated power (HP) ranges from 3HP at 115Vac in single-phase to 30HP at 575-600Vac in three-phase, adhering to UL/CSA standards, with a phase-to-phase rated voltage (AC) of 690 V.

Schneider Electric

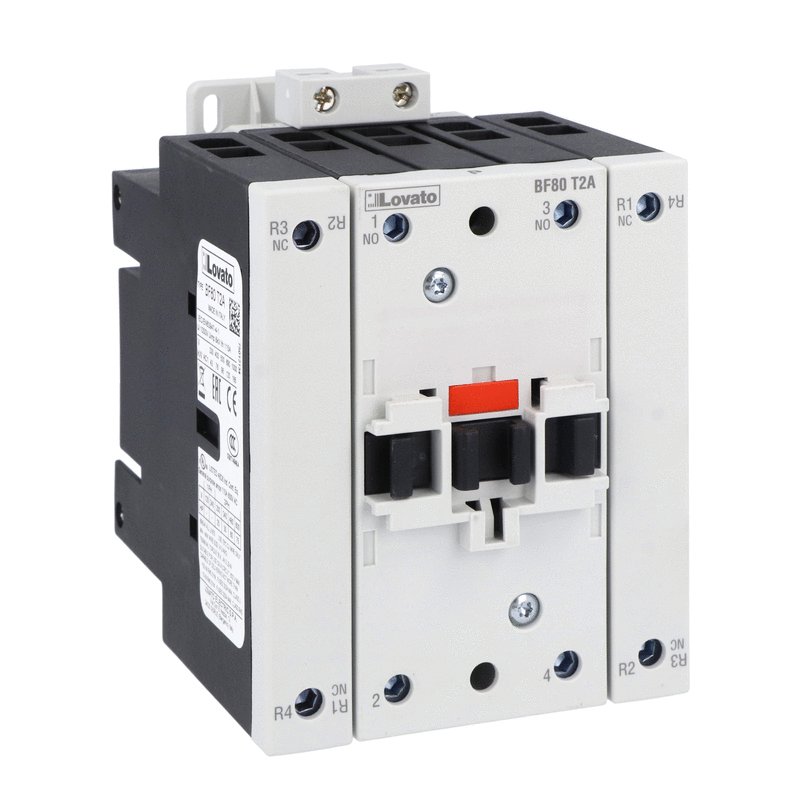

BF80T2A048

BF80T2A048 Lovato - Four-pole contactor, IEC operating current Ith (AC1) = 115A, AC coil 50/60Hz, 48VAC, 2NO and 2NC

Lovato Electric

BF40T4A04860

BF40T4A04860 Lovato - Four-pole contactor, IEC operating current Ith (AC1) = 70A, AC coil 60Hz, 48VAC

Lovato Electric

CA7-60-01-600

Sprecher + Schuh CA7-60-01-600 - CA7 Contactor, 60A, 550V 50Hz / 600V 60Hz AC, 1NC

Sprecher + Schuh

LP1D65008GD

Schneider Electric LP1D65008GD is a magnetic contactor from the Deca sub-range, featuring screw connections and a 4-pole (4P; 2NO+2NC) configuration. It has a rated current of 80A (AC-1), with a net width of 85 mm and an IP20 degree of protection. The control voltage (DC) is specified at 107-137Vdc (125Vdc nom.; 0.85...1.1 x Uc), and the rated operating voltage (Ue) reaches up to 690 V. This model does not include normally open (NO) or normally closed (NC) auxiliary contacts. It is designed to withstand a rated impulse voltage (Uimp) of 8 kV and offers a mechanical durability of 15,000,000 operations at no load. The rated voltage (AC) for phase-to-phase connections is 690 V.

Schneider Electric

LP1D40008UD

Schneider Electric LP1D40008UD is a magnetic contactor from the Deca sub-range, designed with screw connections and featuring 4 poles (2NO+2NC). It has a rated current of 60A (AC-1), a net width of 85 mm, and offers a degree of protection of IP20. The control voltage (DC) ranges from 212.5-275Vdc, with a nominal value of 250Vdc, operating within 0.85 to 1.1 times the control voltage (Uc). This contactor is capable of handling a rated operating voltage (Ue) up to 690 V and a rated impulse voltage (Uimp) of 8 kV. It has no normally open (NO) or normally closed (NC) auxiliary contacts. The mechanical durability of this part is rated at 15,000,000 operations at no load, and it supports a rated voltage (AC) for phase-to-phase connections of 690 V.

Schneider Electric

LC2D80Q7

Schneider Electric LC2D80Q7 is a pre-assembled reversing magnetic contactor from the Deca sub-range, featuring a mechanical interlock design and screw connections. It includes 2 x 3-poles (2x3P; 2x3NO) with a rated current of 125A (AC-1) and 80A (440Vac; AC-3). The contactor offers a degree of protection of IP20 and operates with a control voltage (AC) of 304-418Vac (380Vac nom.; 50Hz; 0.8...1.1 x Uc) and 323-418Vac (380Vac nom.; 60Hz; 0.85...1.1 x Uc). Its rated operating voltage (Ue) is 1000 V, and it includes 2 Normally Open (NO) auxiliary contacts and 2 Normally Closed (NC) auxiliary contacts. The rated impulse voltage (Uimp) is 8 kV. The contactor supports rated active power (kW) of 22kW (220-230Vac; AC-3), 37kW (380-400Vac; AC-3), 45kW (415Vac; AC-3), 45kW (440Vac; AC-3), 55kW (500Vac; AC-3), and 45kW (660-690Vac; AC-3). It also features 1NO+1NC instantaneous auxiliary contacts per contactor and is rated for power (HP) of 7.5HP (115Vac; single-phase; 50Hz/60Hz; UL/CSA), 15HP (230-240Vac; single-phase; 50Hz/60Hz; UL/CSA), 25HP (200-208Vac; 3-phase; 50Hz/60Hz; UL/CSA), 30HP (230-240Vac; 3-phase; 50Hz/60Hz; UL/CSA), 60HP (460-480Vac; 3-phase; 50Hz/60Hz; UL/CSA), and 60HP (575-600Vac; 3-phase; 50Hz/60Hz; UL/CSA). The rated voltage (AC) - Phase-to-phase is 1000 V.

Schneider Electric

CA7-85-120-W0

Sprecher + Schuh CA7-85-120-W0 - CA7 Enc. Contactor FVNR, 85 A, 110V 50Hz / 120V 60Hz AC, Type 4, No Control

Sprecher + Schuh
