Contactors

AF261F1-CE22D

AF26,NR,3PH,FD,N1,480/120V

ABB Control

AF091F2-CM1F

ABB Control - AF091F2-CM1F

ABB Control

LC1D115FC7

Schneider Electric LC1D115FC7 is a magnetic contactor from the Deca sub-range, featuring screw connections and designed with 3 poles (3P; 3NO). It has a rated current of 200A for AC-1 and 115A for 440Vac in AC-3 conditions. This contactor is suitable for DIN rail mounting and has a net width of 120 mm. It offers a degree of protection rated at IP20 and operates with a control voltage (AC) range of 102-146Vac (127Vac nominal; 50Hz/60Hz; 0.8...1.15 x Uc). The rated operating voltage (Ue) is up to 1000 V, and it includes 1 normally open (NO) auxiliary contact. The rated impulse voltage (Uimp) is 8 kV. Its rated active power capacity spans from 30kW at 220-230Vac to 80kW at 660-690Vac in AC-3, and it also includes 1 normally closed (NC) auxiliary contact with a contact type of 1NO+1NC instantaneous aux. The rated power in horsepower (HP) ranges from 30HP at 200-208Vac to 100HP at 575-600Vac for 3-phase systems under UL/CSA standards. It boasts a mechanical durability of 8 million operations and an electrical durability of 950,000 operations with load, with a phase-to-phase rated voltage of 1000 V.

Schneider Electric

CDP2-B3P30A-277

Sprecher + Schuh CDP2-B3P30A-277 - CDP2 Definite Purpose Contactor, 30A FLA/40A Res., 277V 60Hz AC, 3-Pole

Sprecher + Schuh

LC1DT60ALE7

Schneider Electric LC1DT60ALE7 is a magnetic contactor from the Deca sub-range, featuring EverLink(TM) terminals and screw connections. This 4-pole (4P; 4NO) contactor is designed for a rated current of 60A (AC-1) and can be mounted on a DIN rail. It has a net width of 70 mm and offers a degree of protection of IP20. The control voltage for AC ranges from 167-228Vac (208Vac nominal; 50Hz; 0.8...1.1 x Uc) to 176.8-228.8Vac (208Vac nominal; 60Hz; 0.85...1.1 x Uc). It includes 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts, with the contacts type being 1NO+1NC instantaneous auxiliaries. The rated impulse voltage (Uimp) is 6 kV, and it has a mechanical durability of 6,000,000 operations at no load. The rated voltage (AC) for phase-to-phase is 690 V.

Schneider Electric

AF261B2-GU5J

ABB Control - AF261B2-GU5J

ABB Control

LC1DT60A6G7

Schneider Electric LC1DT60A6G7 is a magnetic contactor from the Deca sub-range, featuring an EverLink(TM) terminal design for secure connections. This contactor is equipped with ring-lugs connections and has a 4-pole (4P; 4NO) configuration. It is designed to handle a rated current of 60A (AC-1) and can be mounted on a DIN rail. The unit has a net width of 70 mm and offers a degree of protection rated at IP20. The control voltage (AC) ranges from 96-132Vac (120Vac nominal; 50Hz; 0.8...1.1 x Uc) to 102-132Vac (120Vac nominal; 60Hz; 0.85...1.1 x Uc). It includes 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts, with the contacts type being 1NO+1NC instantaneous auxiliaries. The mechanical durability of the contactor is rated at 6,000,000 operations at no load, and it can operate at a rated impulse voltage (Uimp) of 6 kV. The rated voltage (AC) for phase-to-phase connections is up to 690 V.

Schneider Electric

CWC012-10-30V10

WEG CWC012-10-30V10 - MINICONTACTOR BU CWC012-10-30V10, Miniature Contactors (CWC)

WEG

AF116-30-11B-34

AF116-30-11B-34 ABB Control - CTR AF116 3POLE 250-500V 1NO1NC

ABB Control

LC1DT60A6U7

Schneider Electric LC1DT60A6U7 is a magnetic contactor from the Deca sub-range, featuring an EverLink(TM) terminal design and ring-lugs connections. This 4-pole (4P; 4NO) contactor is designed for a rated current of 60A (AC-1) and can be mounted on a DIN rail. It has a net width of 70 mm and offers a degree of protection of IP20. The control voltage (AC) ranges from 192-264Vac (240Vac nominal; 50Hz; 0.8...1.1 x Uc) to 204-264Vac (240Vac nominal; 60Hz; 0.85...1.1 x Uc). It includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contacts, both of the instantaneous type (1NO+1NC). The rated impulse voltage (Uimp) is 6 kV, and it boasts a mechanical durability of 6,000,000 operations at no load. The rated voltage (AC) for phase-to-phase connections is up to 690 V.

Schneider Electric

AF3012-2WF9

ABB Control - AF3012-2WF9

ABB Control

BF1201A110

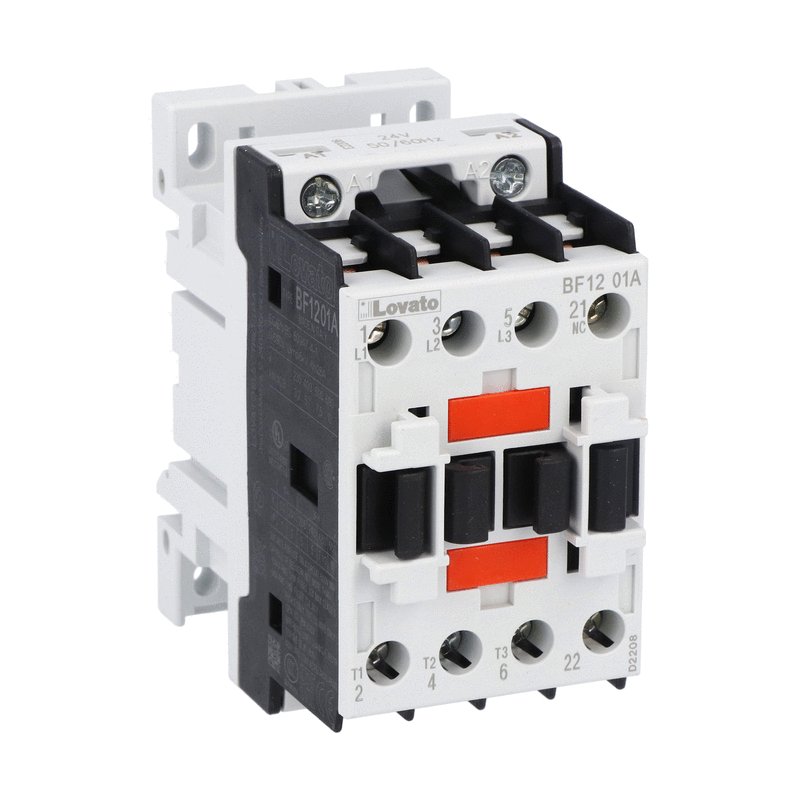

BF1201A110 Lovato - Three-pole contactor, IEC operating current Ie (AC3) = 12A, AC coil 50/60Hz, 110VAC, 1NC auxiliary contact

Lovato Electric

CAU7-16E-22-220E

Sprecher + Schuh CAU7-16E-22-220E - CAU7 Contactor FVR, 16A, 220-250V DC Elec. Coil, 2NO 2NC

Sprecher + Schuh

11BA1671380

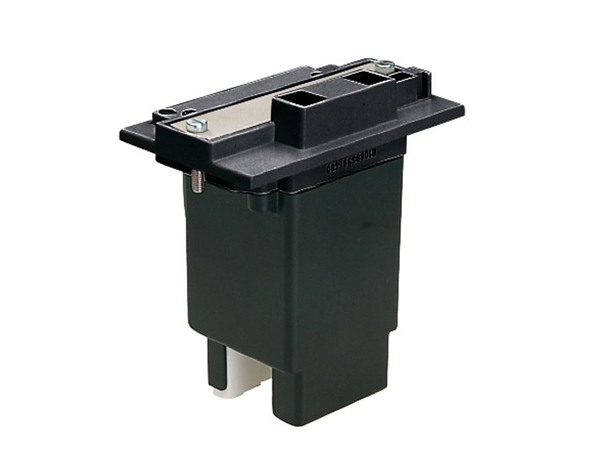

11BA1671380 Lovato - AC/DC coil assembly (coil, rectifier and coil protection) for B250-B310-B400 contactors

Lovato Electric

11G3564

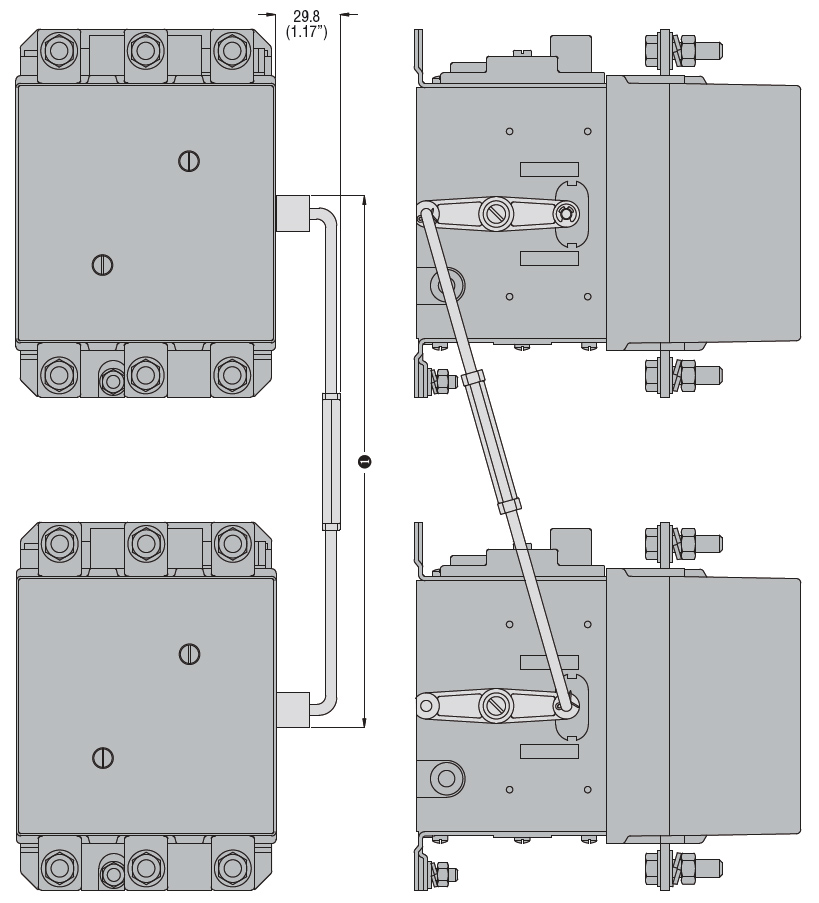

11G3564 Lovato - Mechanical interlock, for B... series contactors, one on top of other

Lovato Electric

AF261N2-EPD

ABB Control - AF261N2-EPD

ABB Control

AF261B2-GL1S9

AF26,NR,3PH,CB,N3R/4/12,480/24V

ABB Control

LC1K090047B7

Schneider Electric LC1K090047B7 is a magnetic contactor within the K sub-range, featuring Faston spade connections and a 4-pole (4NO) configuration. It has a rated current of 20A under AC-1 conditions and 110A (Irms AC), with a net width of 45 mm. This contactor is designed with an IP20 degree of protection and operates with a control voltage (AC) range of 19.2-27.6Vac (24Vac nominal; 50Hz/60Hz; 0.8...1.15 x Uc). The rated operating voltage (Ue) is 690 V, and it has no Normally Open (NO) or Normally Closed (NC) auxiliary contacts. The rated impulse voltage (Uimp) is 8 kV, and it boasts a mechanical durability of 10,000,000 operations at no load. The rated voltage (AC) for phase-to-phase is also 690 V.

Schneider Electric

11BGF0901D110

11BGF0901D110 Lovato - Three-pole contactor, IEC operating current Ie (AC3) = 9A, DC coil, 110VDC, 1NC auxiliary contact, Faston terminals

Lovato Electric

DPBG12T4A46060

DPBG12T4A46060 Lovato - 4P DP MINI CONTACTOR 14A 4NO 460V AC COIL

Lovato Electric
