AC/DC Power Supplies

CPS20.121

PULS CPS20.121 is a DIN rail mounting power supply unit with an aluminium housing designed for a wide range of industrial applications. It operates within an ambient air temperature range of -25 to +70°C and supports a net width of 65 mm. The unit consumes 1.8A, 3.3A, and 4A under 230Vac, 120Vac, and 100Vac input conditions respectively, with a peak inrush current of 13A at both 230Vac and 120Vac inputs. It boasts an efficiency of up to 0.926, 0.914, and 0.909 under 230Vac, 120Vac, and 100Vac inputs respectively. The dimensions are W65mm x H124mm x D127mm. It features a start-up delay of 700-900ms and rise times of 72ms and 120ms under nominal input conditions. The CPS20.121 includes protection functions such as output overvoltage protection and overload/short-circuit protection, with the capability for series or parallel operation to increase output power. It is designed to handle back-feeding loads up to 16V without malfunctioning. Power dissipation/losses are calculated at 28.8 W, with an output stage capacitance of 5600 µF. Its electrical durability ranges from 50,000 to 492,000 hours, depending on operating conditions. The ripple is maintained at 100mVpp. This AC/DC power supply unit offers a 20% power reserve, is part of the C-series, and includes ATEX approval, DC-OK relay contact output, and screw-clamp connections. It accepts a supply voltage range of 85Vac-264Vac, with specific shutdown voltages under varying loads. The rated current is 30A at 12Vdc, with a rated power of 405W at 15Vdc and 360W at 12Vdc. The output voltage is adjustable between 12Vdc and 15Vdc, featuring a 200mV turn-ON overshoot and a hold time of 35ms.

Puls

RD-125-2412

AC-DC Dual output enclosed power supply; Output 12Vdc at 7A +24Vdc at 5A; free air convection

MEAN WELL

RSP-200-2.5

AC-DC Single Output Enclosed power supply; Output 2.5VDC Single Output at 40A; PFC; free air convection

MEAN WELL

IRM-05-3.3

AC-DC Single output Encapsulated power supply; Input 85-264Vac; Output 3.3Vdc at 1.25A; PCB mount; miniature size

MEAN WELL

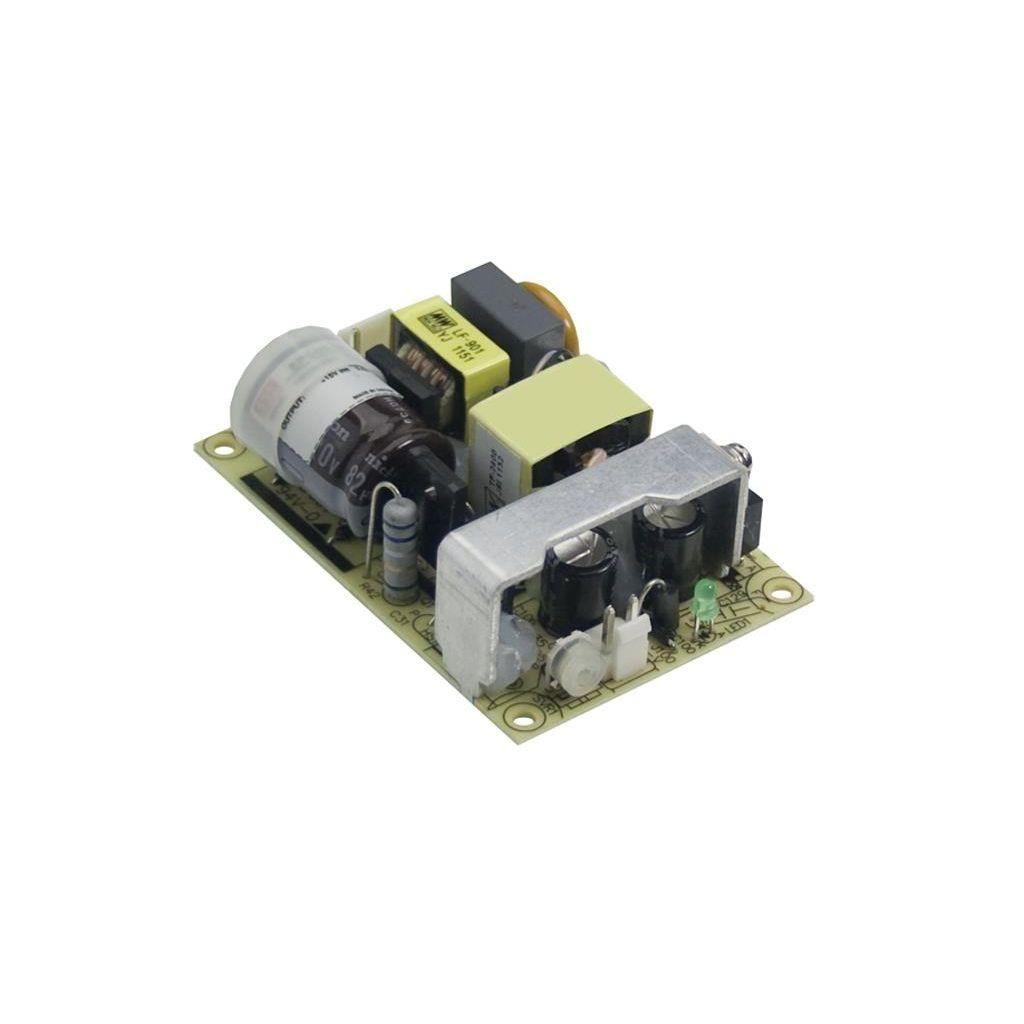

EPS-35-12

AC-DC Single output Open frame power supply; Output 12Vdc at 3A

MEAN WELL

S8FS-G15005CD

S8FS-G Switch Mode Power Supply

Omron

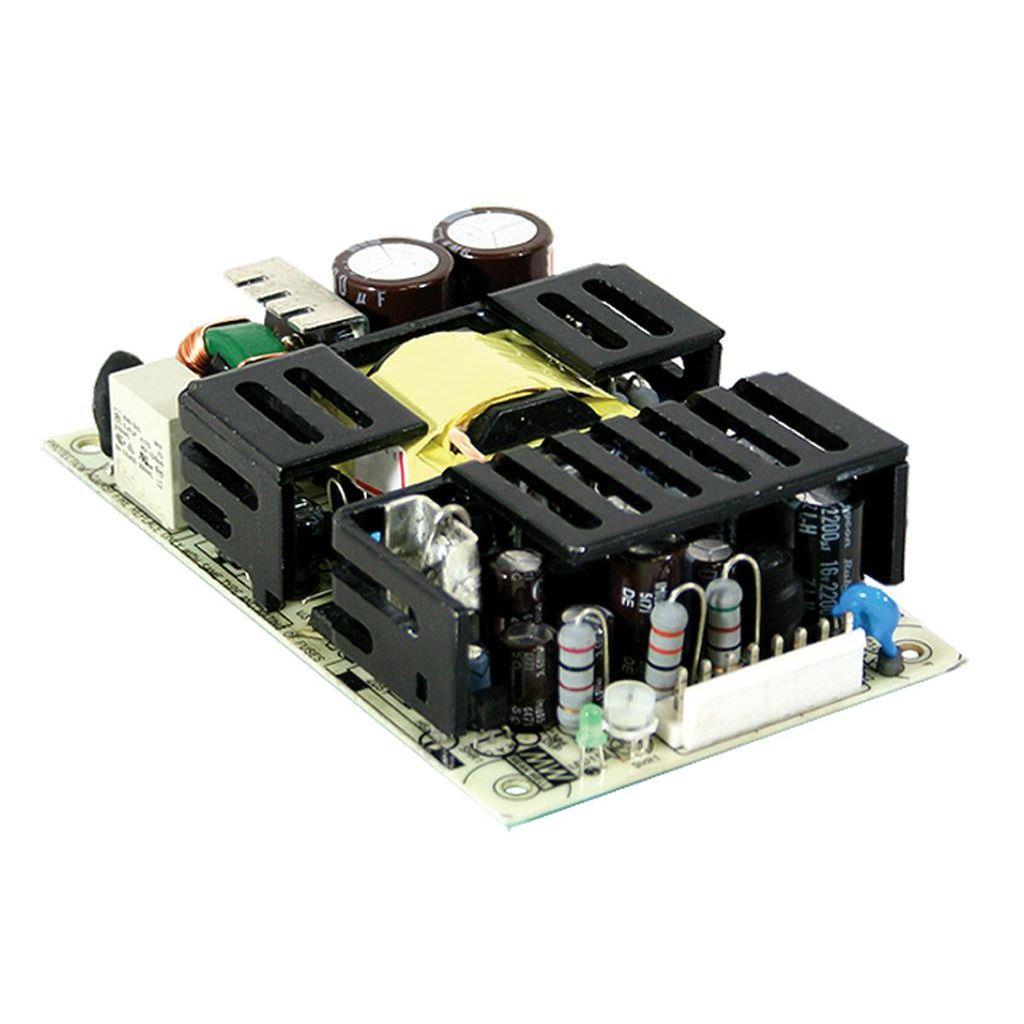

RPT-75D

AC-DC Triple output Medical Open frame power supply; Output 5Vdc at 7A +24Vdc at 2A +12Vdc at 1A; 2xMOPP

MEAN WELL

85055

85055 Murrelektronik - MPS POWER SUPPLY 1-PHASE, IN: 185-265VAC OUT: 22-28V/10ADC

Murr Elektronik

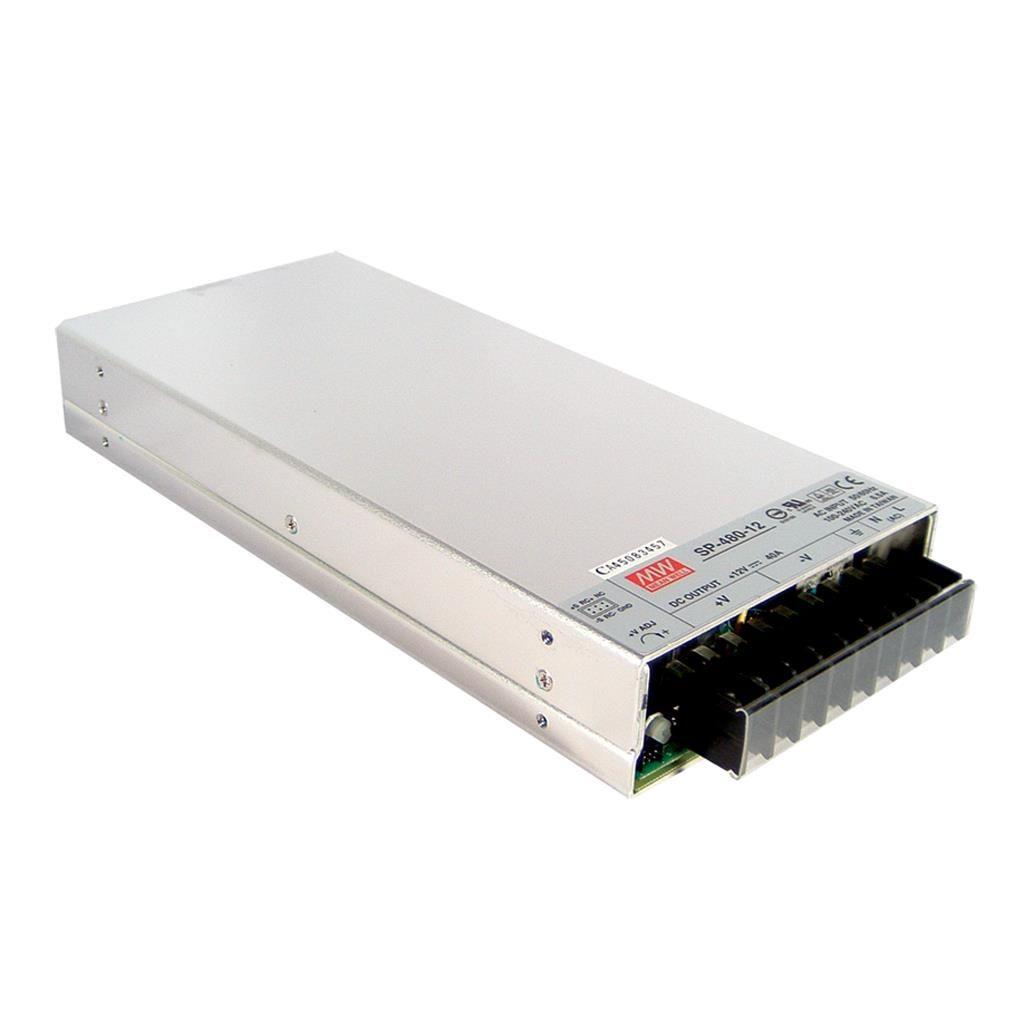

SP-480-48

AC-DC Enclosed power supply; Output 48Vdc at 10A; PFC; forced air cooling; SP-480-48 is succeeded by RSP-500-48.

MEAN WELL

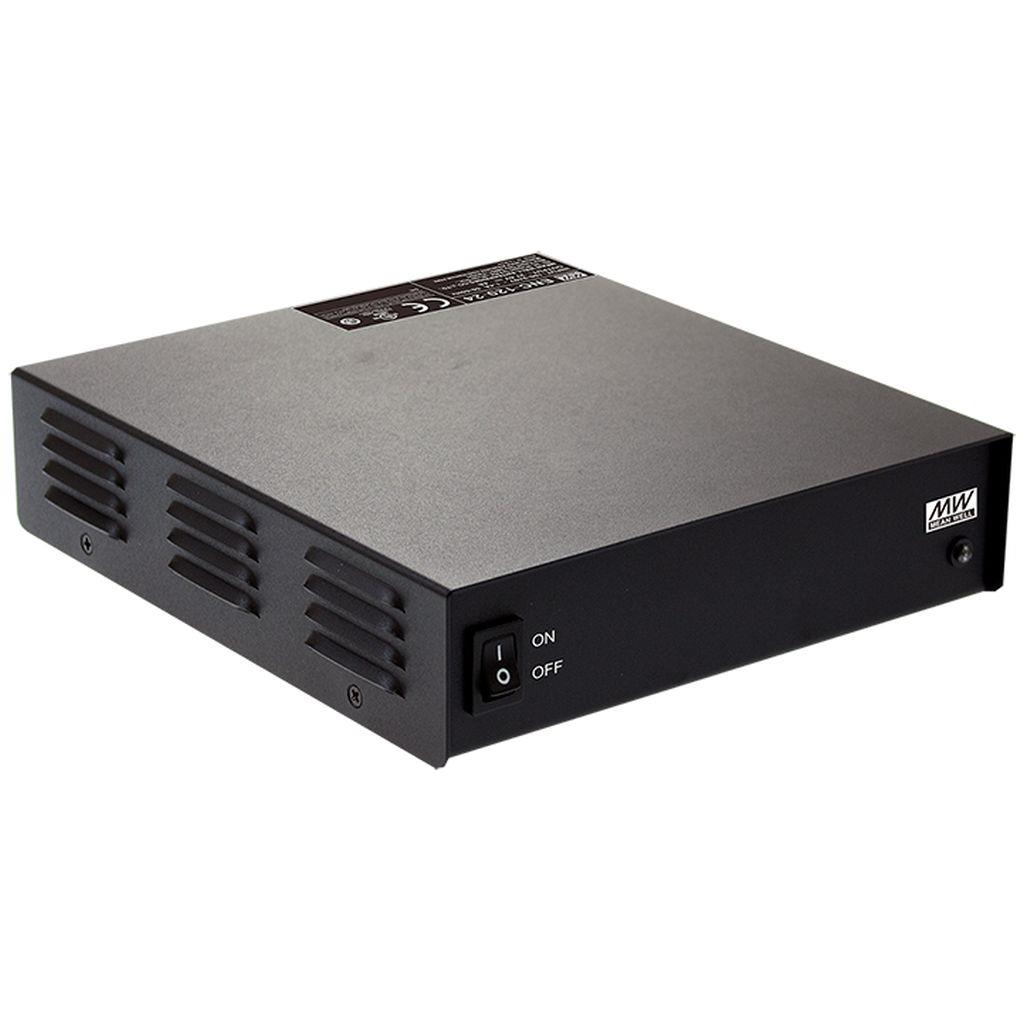

ENP-120-24

AC-DC Single output power supply with PFC; 3 stage charging; Universal AC input; Output 27.6VDC at 5.4A

MEAN WELL

SCP30T515DN

SCP30T515DN SolaHD - SolaHD™ SCP Series 30 Watt Switched Power Supplies - PN SCP30T515DN

SolaHD

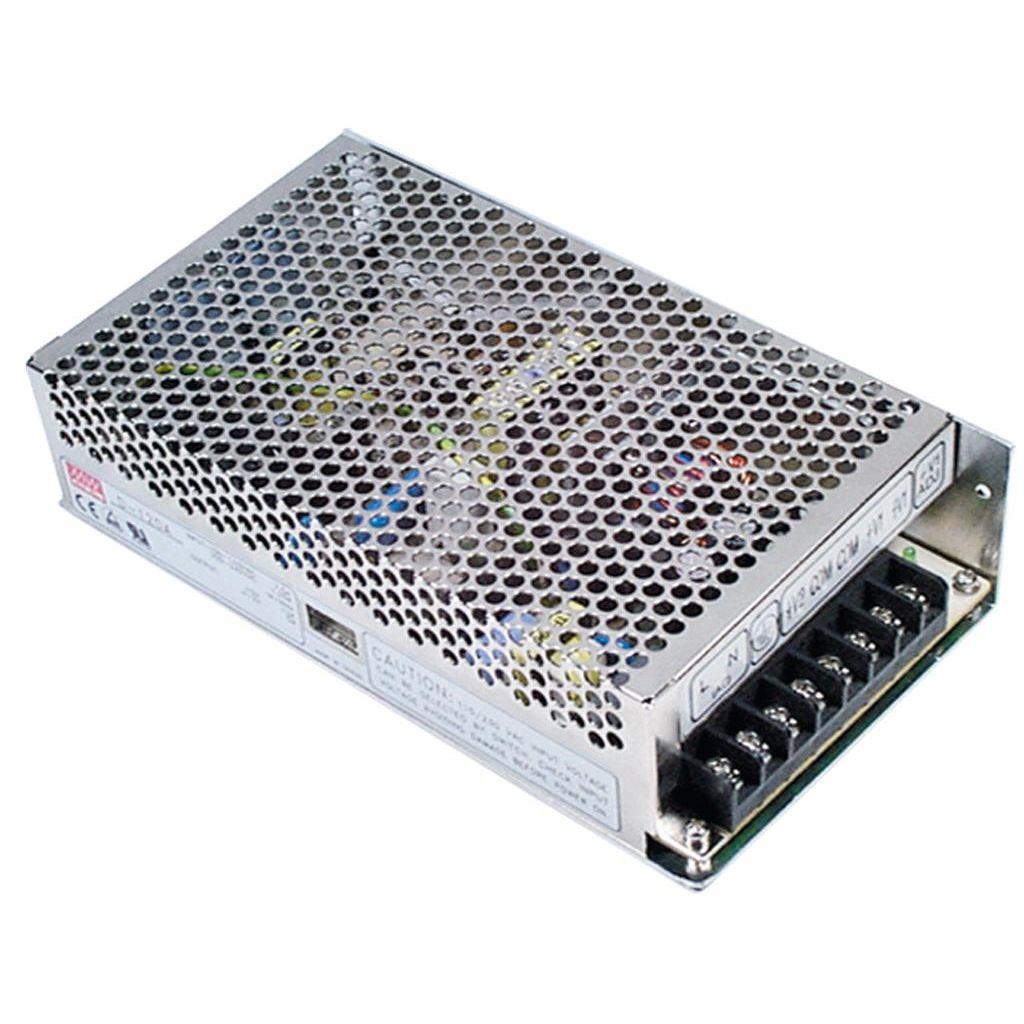

T-120C

AC-DC Enclosed triple output power supply; Output +5Vdc at 10A +15Vdc at 3.5A -15Vdc at 1A; T-120C is succeeded by RT-125C.

MEAN WELL

WDR-240-24

AC-DC Industrial DIN rail power supply; Output 24Vdc at 10A; metal case; Ultra wide input 180-550Vac for single and two phase mains network

MEAN WELL

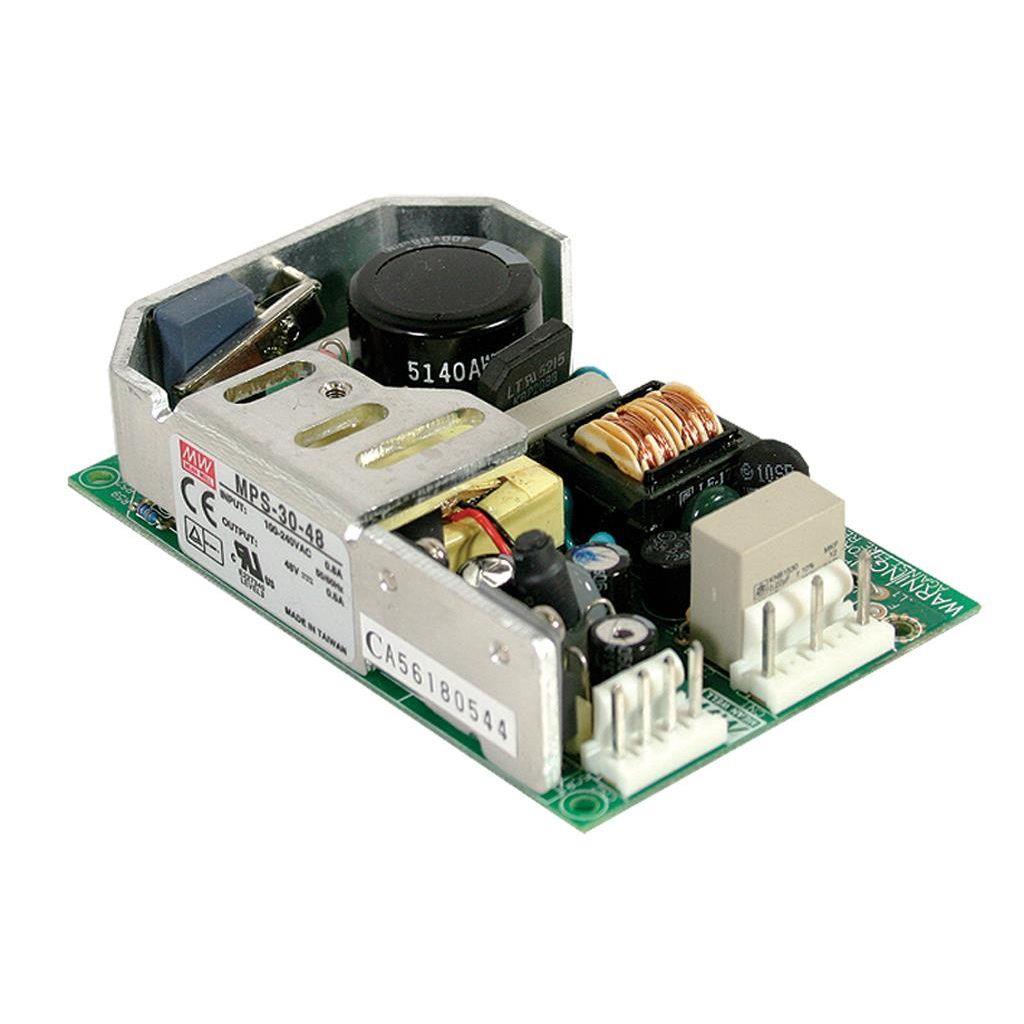

MPS-30-27

AC-DC Single output Medical Open frame power supply; Output 27Vdc at 1.1A; 2xMOPP; MPS-30-27 is succeeded by RPS-30-24.

MEAN WELL

CT10.481

PULS CT10.481 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 62mm. The unit consumes 0.6A with a 3 x 480Vac input and 0.7A with a 3 x 400Vac input, both at full 48Vdc output, with a peak inrush current of 10A. It boasts an efficiency of 0.929 for 3x480Vac input and 0.928 for 3x400Vac input. The dimensions are W62mm x H124mm x D117mm. It includes a 90ms start-up delay, a 55ms rise time at nominal input with a constant full current load and 0mF load capacitance, and a 140ms rise time with 5mF load capacitance. The unit features output overvoltage protection, an active input inrush current limiter, and supports series/parallel operation for increased output power. It is resistant to back-feeding loads up to 63V. Power dissipation/losses are 18.3W for 3x480Vac input and 18.6W for 3x400Vac input at full output load. The output stage capacitance is 2400µF. Electrical durability ranges from 78,000 to 704,000 hours depending on the operating conditions. The ripple is 100mVpp (20Hz...20MHz; 50Ω). This AC/DC power supply unit/converter offers a 20% power reserve and includes a DC-OK relay contact output. It features screw-clamp connections and supports a supply voltage of 323Vac-576Vac (wide range; 3-phase input) with a rated current of 6A at 48Vdc from -25 to +45°C and 3.75A at 48Vdc from -25 to +70°C. The output voltage is adjustable between 48Vdc and 56Vdc, with a hold time of 54ms at 3x480Vac input and 34ms at 3x400Vac input.

Puls

PSL148048

PSL148048 Lovato - DIN rail switching power supply, single-phase. 48VDC, 10A/480W

Lovato Electric

S8VS-18024B-F

S8VS Switch Mode Power Supply

Omron

SDN912100P

SDN912100P SolaHD - SolaHD™ SDN-P DIN Rail Series Power Supplies - PN SDN912100P

SolaHD

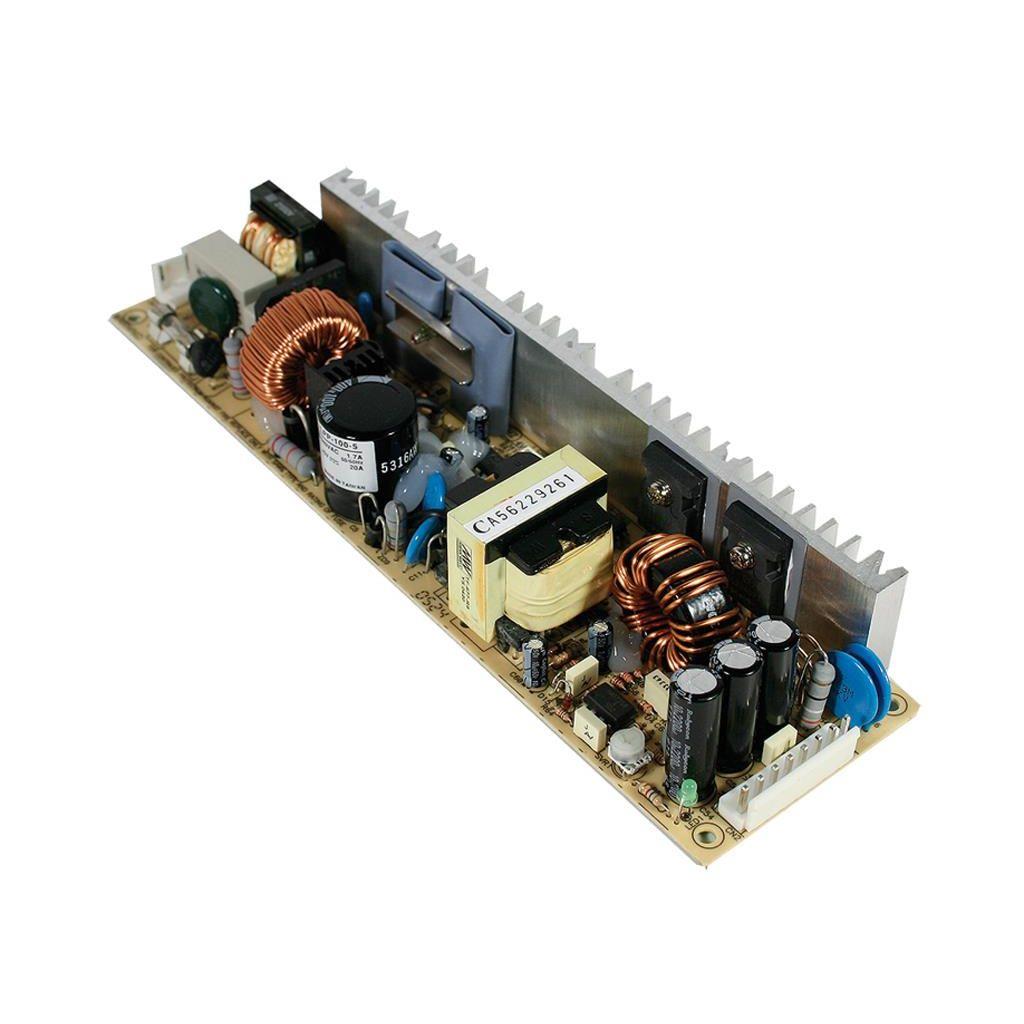

LPP-100-27

AC-DC Single output Open frame power supply with PFC; Output 27Vdc at 3.8A

MEAN WELL

HRPG-1000-48

AC-DC Single output Enclosed power supply with PFC; Output 48Vdc at 21A; 5Vdc at 0.3A auxiliary output; remote ON/OFF; remote sense; DC OK signal

MEAN WELL
