AC/DC Power Supplies

SL10.104

Power Supply, 180W, 100-120 / 200-240VAC 1PH, 12-15VDC, 15-12A

Puls

MPM-20-24

AC-DC Single output Medical Encapsulated power supply; Output 24Vdc at 0.9A; PCB through hole; 2xMOPP

MEAN WELL

EPP-150-15

AC-DC Single output Open frame power supply; Output 15Vdc at 6.7A

MEAN WELL

CP20.241-R2-C1

PULS CP20.241-R2-C1 is a DIN rail mounting power supply unit with an aluminium housing designed for a wide range of industrial applications. It operates within an ambient air temperature range of -40 to +70°C and has a net width of 48 mm. The unit consumes current differently based on the input, including 2.25A with 230Vac input, 4.28A with 120Vac input, 5.17A with 100Vac input, and 4.64A with 110Vdc input for a 24Vdc / 10A output, with peak inrush currents of 5.5A and 12A for 230Vac and 120Vac inputs respectively. It features an IP20 degree of protection and achieves efficiencies of 0.952 and 0.938 with 230Vac and 120Vac inputs, respectively. The power supply is resistant to harsh environments, thanks to its conformal coated PCB, and has dimensions of W48mm x H124mm x D127mm. It includes a 450ms start-up delay and rise times of 145ms and 160ms under specified conditions. Protection functions include output overvoltage protection and overload/short-circuit protection, with capabilities for series/parallel operation and resistance to back-feeding loads up to 35V. Power dissipation losses are 24.2W and 31.7W for 230Vac and 120Vac inputs, respectively, with an output stage capacitance of 8000 µF. Electrical durability varies with conditions, offering up to 465,000 hours at 25°C with a 10A output and 1AC 230Vac input. The ripple is specified as 100mVpp. This AC/DC power supply unit, part of the CP-series, is designed with built-in decoupling MOSFET for redundancy, hot-swappable connectors, ATEX approval, and a 20% power reserve. It supports a supply voltage range of 88Vdc-180Vdc for DC and 85Vac-264Vac for AC, with specific shutdown and turn-on voltages. The rated current is 24A at 48Vdc in temperatures up to +45°C, with derating at higher temperatures. It provides a fixed 24Vdc output voltage and includes a 32ms hold time at standard AC inputs.

Puls

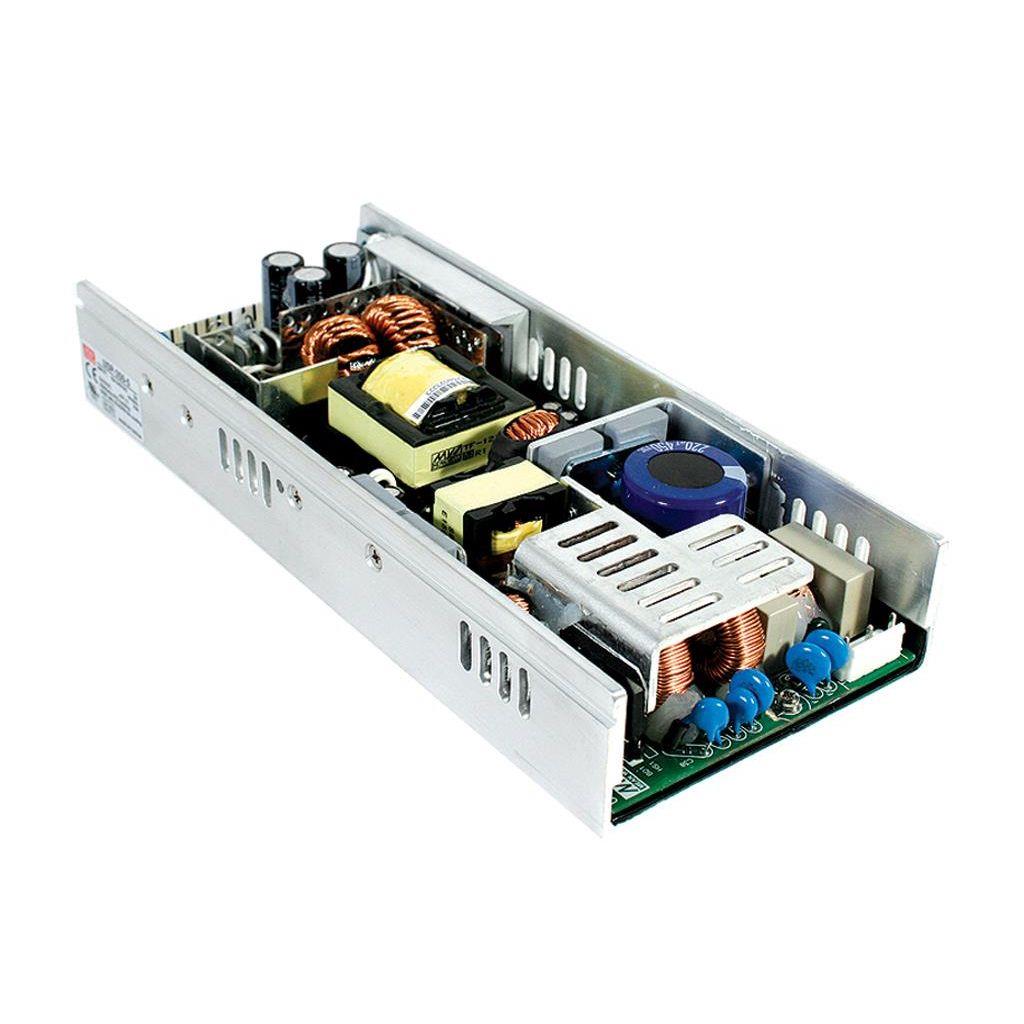

USP-350-48

AC-DC Single output power supply; Output 48Vdc at 7.3A; U-bracket low profile format 38mm; USP-350-48 is succeeded by UHP-350-48.

MEAN WELL

SL20.300

Power Supply, 480W, 380-400VAC 3PH, 24-28VDC, 20-18A

Puls

HDR-150-15

AC-DC Ultra slim DIN rail power supply; Input range 85-264VAC; Output 15VDC at 9.5A

MEAN WELL

CP5.481

PULS CP5.481 is a DIN rail mounting power supply unit with an aluminium housing, designed for a wide range of industrial applications. It operates within an ambient air temperature range of -10 to +70°C, with linear derating between +60 and +70°C. The unit consumes current at varying rates depending on the input voltage, including 0.61A at 230Vac, 1.09A at 120Vac, and 1.31A at 100Vac for full output, among other specified rates. It features an IP20 degree of protection and achieves an efficiency of up to 93.5% at 230Vac input. The dimensions are specified as 32mm in width, 124mm in height, and 102mm in depth. The CP5.481 includes a time delay for start-up and rise, with specific values provided for different conditions. It offers protection functions such as output overvoltage and overload/short-circuit protection, with the capability for series or parallel operation for increased output voltages or power. The unit is resistant to back-feeding loads up to 63V. Power dissipation losses are detailed for various input conditions, and the output stage capacitance is 750µF. Electrical durability is extensively detailed, highlighting operational hours under various conditions and temperatures. The ripple voltage is specified under different load conditions. This AC/DC power supply unit is part of the CP-series, designed with NEC Class 2, a 20% power reserve, and includes a DC-OK relay contact output. Connection is facilitated through screw-clamp connections. It supports a wide range of supply voltages both in AC and DC, with detailed specifications for rated current and power across different temperatures, and an adjustable output voltage range of 48-56Vdc. The hold time after power loss is also specified for different input conditions.

Puls

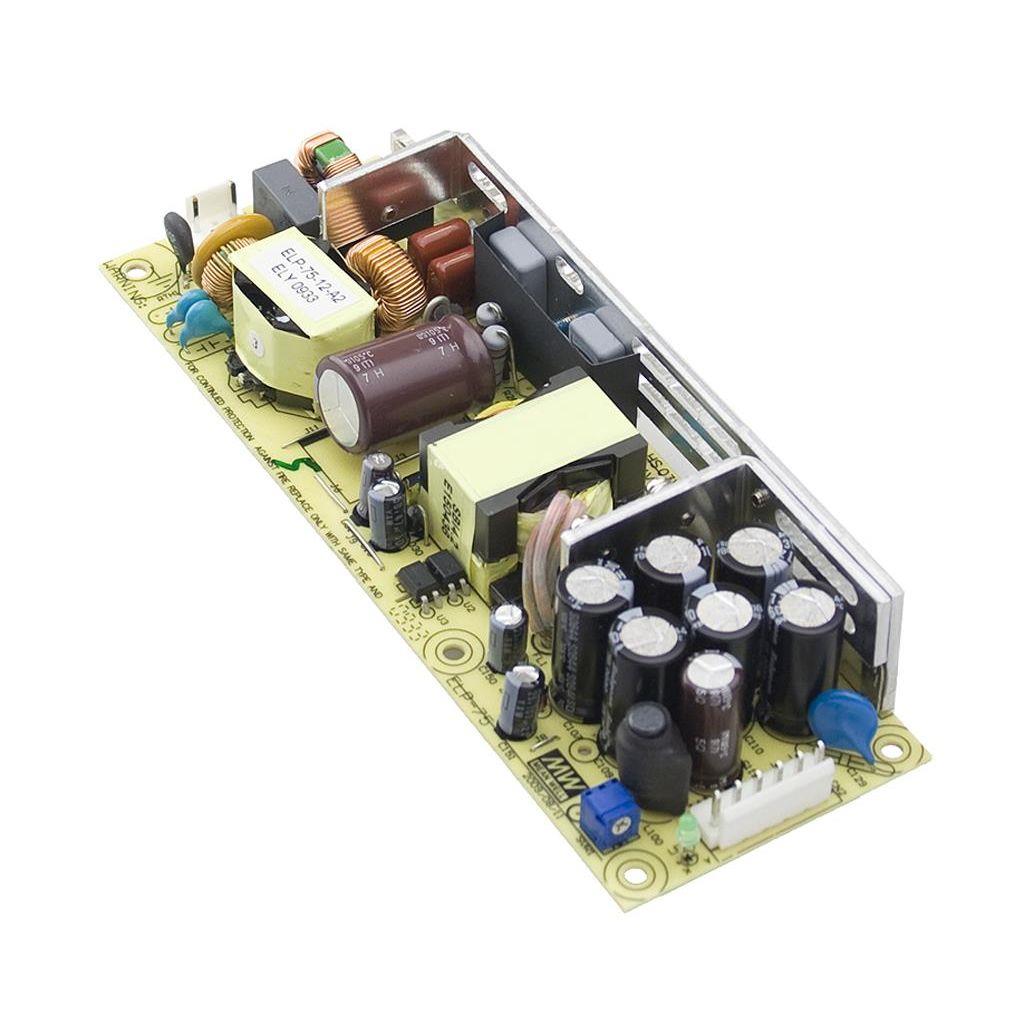

ELP-75-5

AC-DC Single output Open frame power supply; Output 5Vdc at 15A

MEAN WELL

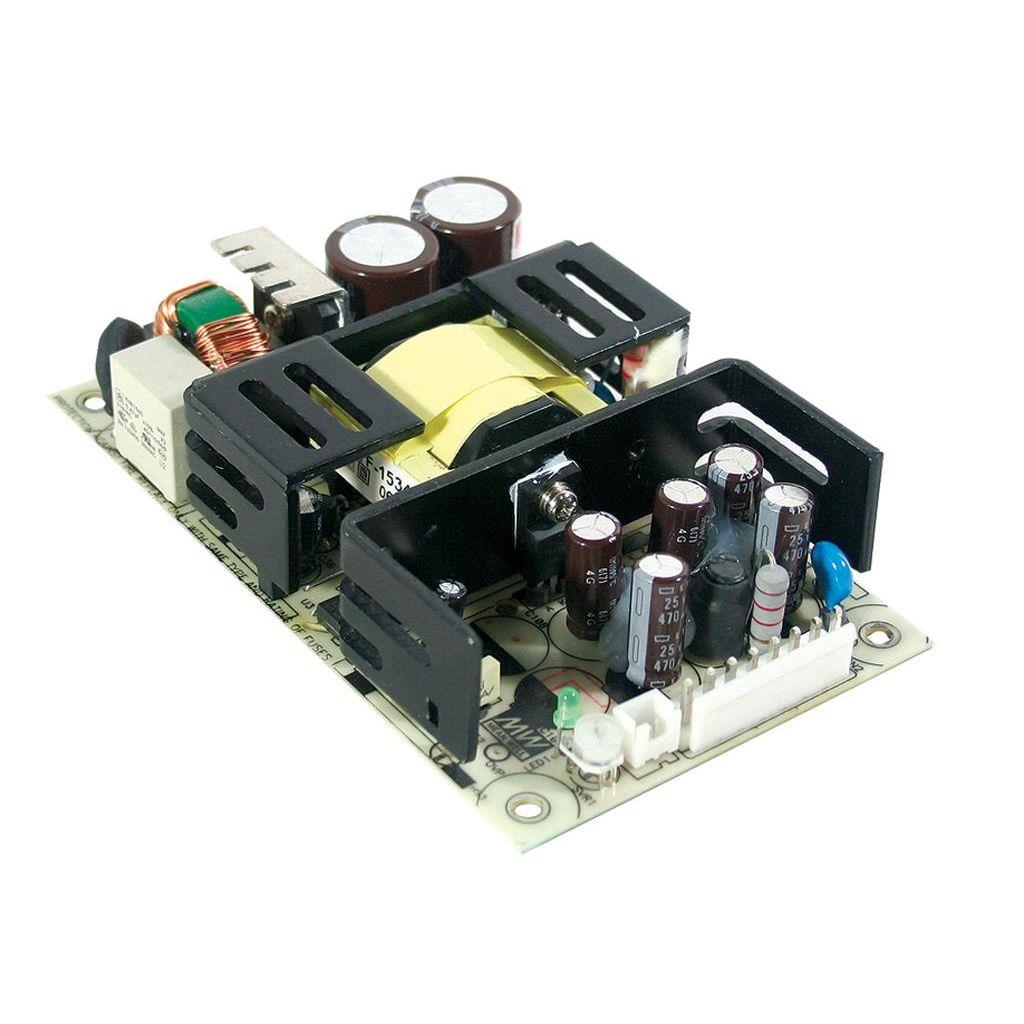

RPS-75-36

AC-DC Open frame Medical power supply; Output 36Vdc at 2.1A; EN60601 2xMOPP; compact size 4 x 2 inch

MEAN WELL

RPS-30-7.5

AC-DC Single output medical Open frame power supply; Output 7.5VDC at 4A; 2xMOPP

MEAN WELL

EDR-75-48

AC-DC Industrial DIN rail power supply; Output 48V at 1.6A; metal case

MEAN WELL

DRP-480-24

AC-DC Industrial DIN rail power supply; Output 24Vdc at 20A; metal case; DRP-480-24 is succeeded by NDR-480-24.

MEAN WELL

PB-120N-54C

AC-DC Desktop power supply or battery charger; Input 3 pin IEC320-C14 input socket; Output 55.2VDC at 2.2A with 3 pin XLR plug; With case

MEAN WELL

QS20.244

PULS QS20.244 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion with a 50% power reserve. It operates within an ambient air temperature range of -25 to +70°C and offers a design that includes a DC-OK relay contact output. The unit provides a rated current of 20A at 24Vdc and 17A at 28Vdc, with spring-clamp connections for secure and efficient connectivity. It supports a supply voltage range of 180Vac to 264Vac, with specific nominal values including 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac at a frequency of 47-63Hz. The QS20.244, part of the Q-series, measures 70mm in width, 124mm in height, and 127mm in depth, housed in an aluminium casing. It is designed for single-phase networks and offers a rated power of 480W, with a short-term capacity of 720W for up to 4 seconds. The output voltage is adjustable between 24Vdc and 28Vdc, featuring protection functions against overvoltage, overload, and short-circuit conditions. It allows for series or parallel operation to increase output power, with a notable efficiency of 0.945 at 230Vac input. The unit's current consumption peaks at 52A max during inrush at 230Vac, with a start-up delay of 140ms, and offers a hold time of 46ms at 230Vac input. Power dissipation is calculated at 28.3W under full output load at 230Vac input. Its electrical durability spans up to 307,000 hours at 40°C with a 10A output. The QS20.244 also features a ripple of 100mVpp across a 20Hz to 20MHz range and an output stage capacitance of 8500µF.

Puls

SCP30T515BDN

SCP30T515BDN SolaHD - SolaHD™ SCP Series 30 Watt Switched Power Supplies - PN SCP30T515BDN

SolaHD

MFM-15-24

AC-DC Single output Medical Open frame power supply; Output 24Vdc at 0.63A; PCB mount; 2xMOPP

MEAN WELL

87116

87116 Murrelektronik - PICCO 12V/4,5A (54W) - POWER SUPPLY / 1-PHASE, In: 110-230VAC / OUT: 12 - 15VDC/4,5A, Spring-cage connection

Murr Elektronik

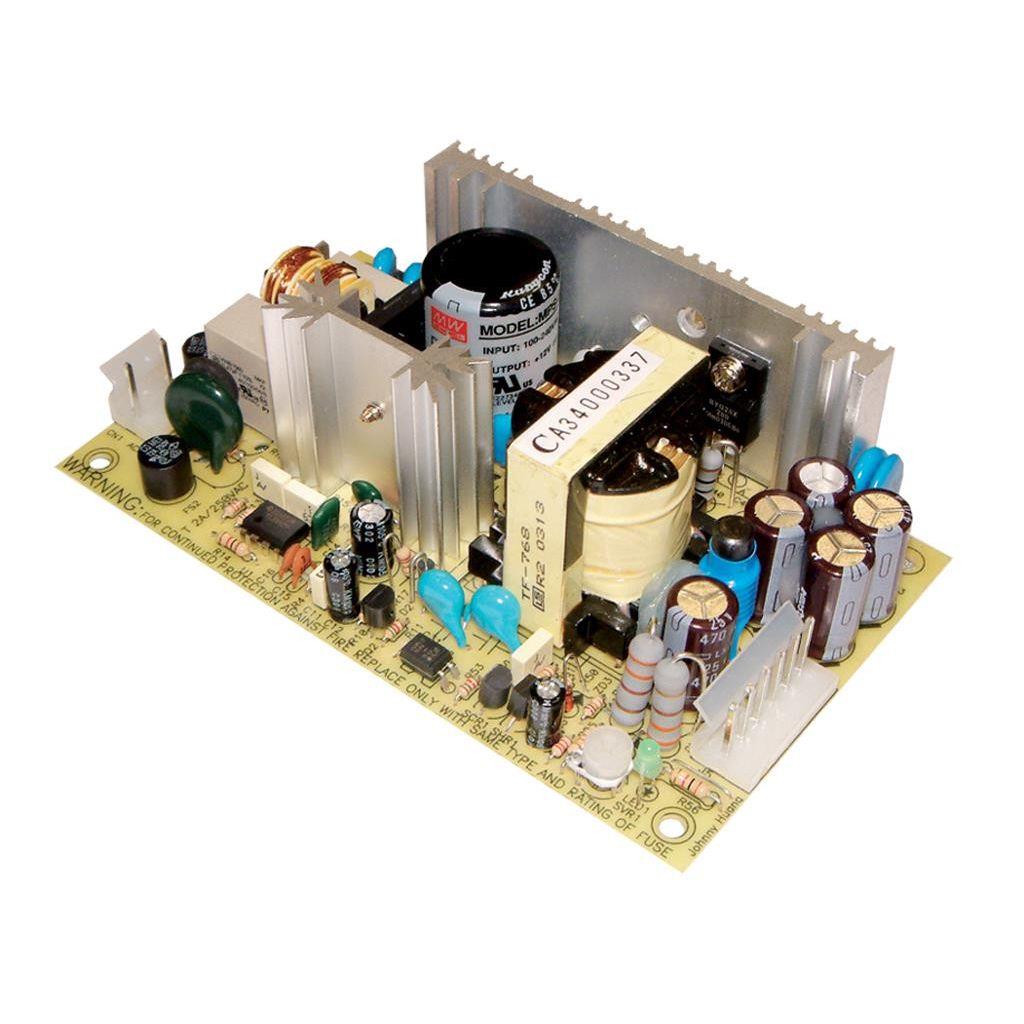

MPD-65B

AC-DC Dual output Medical Open frame power supply; Output 5Vdc at 3.5A +24Vdc at 2A; 2xMOPP; MPD-65B is succeeded by RPD-75B.

MEAN WELL

CPS20.121

PULS CPS20.121 is a DIN rail mounting power supply unit with an aluminium housing designed for a wide range of industrial applications. It operates within an ambient air temperature range of -25 to +70°C and supports a net width of 65 mm. The unit consumes 1.8A, 3.3A, and 4A under 230Vac, 120Vac, and 100Vac input conditions respectively, with a peak inrush current of 13A at both 230Vac and 120Vac inputs. It boasts an efficiency of up to 0.926, 0.914, and 0.909 under 230Vac, 120Vac, and 100Vac inputs respectively. The dimensions are W65mm x H124mm x D127mm. It features a start-up delay of 700-900ms and rise times of 72ms and 120ms under nominal input conditions. The CPS20.121 includes protection functions such as output overvoltage protection and overload/short-circuit protection, with the capability for series or parallel operation to increase output power. It is designed to handle back-feeding loads up to 16V without malfunctioning. Power dissipation/losses are calculated at 28.8 W, with an output stage capacitance of 5600 µF. Its electrical durability ranges from 50,000 to 492,000 hours, depending on operating conditions. The ripple is maintained at 100mVpp. This AC/DC power supply unit offers a 20% power reserve, is part of the C-series, and includes ATEX approval, DC-OK relay contact output, and screw-clamp connections. It accepts a supply voltage range of 85Vac-264Vac, with specific shutdown voltages under varying loads. The rated current is 30A at 12Vdc, with a rated power of 405W at 15Vdc and 360W at 12Vdc. The output voltage is adjustable between 12Vdc and 15Vdc, featuring a 200mV turn-ON overshoot and a hold time of 35ms.

Puls
