AC/DC Power Supplies

CP10.241-S2

PULS CP10.241-S2 is a DIN rail mounting power supply unit with an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 39 mm. The current consumption varies with input voltage, being 1.13A at 230Vac input, 2.15A at 120Vac input, 2.6A at 100Vac input, and 2.35A at 110Vdc input, with a peak inrush current of 11A at 230Vac input and 7A at 120Vac input. It offers an IP20 degree of protection and achieves an efficiency of 0.952 at 230Vac input and 0.936 at 120Vac input. The dimensions are W39mm x H124mm x D117mm. The start-up delay ranges from 240-300ms for 100-230Vac input, with a rise time of 30ms under nominal input and full constant current load without load capacitance, and 160ms with 10mF load capacitance. It features protection against output overvoltage, overload/short-circuit, and over-temperature, with automatic restart in case of over-temperature conditions. The unit supports series/parallel operation for increased output voltages or power, and 1+1 redundancy with a redundancy module. It is resistant to back-feeding loads up to 35V. Power dissipation/losses are 12.1W at 230Vac input and 16.4W at 120Vac input, with an output stage capacitance of 4400µF. Electrical durability varies with conditions, reaching up to 499,000 hours at 40°C and 12A output with 1AC 230Vac input. The ripple is 50mVpp (20Hz...20MHz; 50Ω). This AC/DC power supply unit offers a 20% power reserve and includes ATEX approval, DC-OK relay contact output, and push-in spring connections. The supply voltage ranges from 88Vdc-180Vdc for DC and 85Vac-264Vac for AC, with specific tolerances for overvoltage and shutdown voltages. The rated current is 12A at 48Vdc from -25 to +45°C, 10A at 24Vdc from +45 to +60°C, and 7.5A at 24Vdc at +70°C. It is suitable for single-phase (1AC) or DC networks, with a rated power of 288W at -25 to +45°C, 240W at -25 to +60°C, and 180W at +70°C, with linear derating between +60°C and +70°C. The output voltage is adjustable from 24Vdc to 28Vdc, with a 200mV turn-ON overshoot, and a hold time of 37ms at 120/230Vac input.

Puls

MPT-65C

AC-DC Triple output Medical Open frame power supply; Output 5Vdc at 7A +15Vdc at 2.6A -15Vdc at 0.7A; 2xMOPP; MPT-65C is succeeded by RPT-75C.

MEAN WELL

723521

723521 LUTZE - Switch Mode Power Supply CPS2B1-120-48, Single-phase

Lutze

HDR-60-15

AC-DC Ultra slim DIN rail power supply; Input range 85-264VAC; Output 15VDC at 4A; Pass LPS

MEAN WELL

RPD-75A

AC-DC Dual output Medical Open frame power supply; Output 5Vdc at 9.5A +12Vdc at 4A; 2xMOPP

MEAN WELL

DR-4512

AC-DC Industrial DIN rail power supply; Output 12Vdc at 3.5A; plastic case; DR-4512 is succeeded by HDR-60-12.

MEAN WELL

PB-120P-13C

AC-DC Desktop power supply or battery charger with PFC; Input 3 pin IEC320-C14 input socket; Output 13.8VDC at 7.2A with 3 pin XLR plug; With case

MEAN WELL

QP-375-5D

AC-DC Quad output enclosed power supply; Output 5Vdc at 40A +12Vdc at 16A +-12Vdc at 6A +-24Vdc at 3A; QP-375-5D is succeeded by MP450.

MEAN WELL

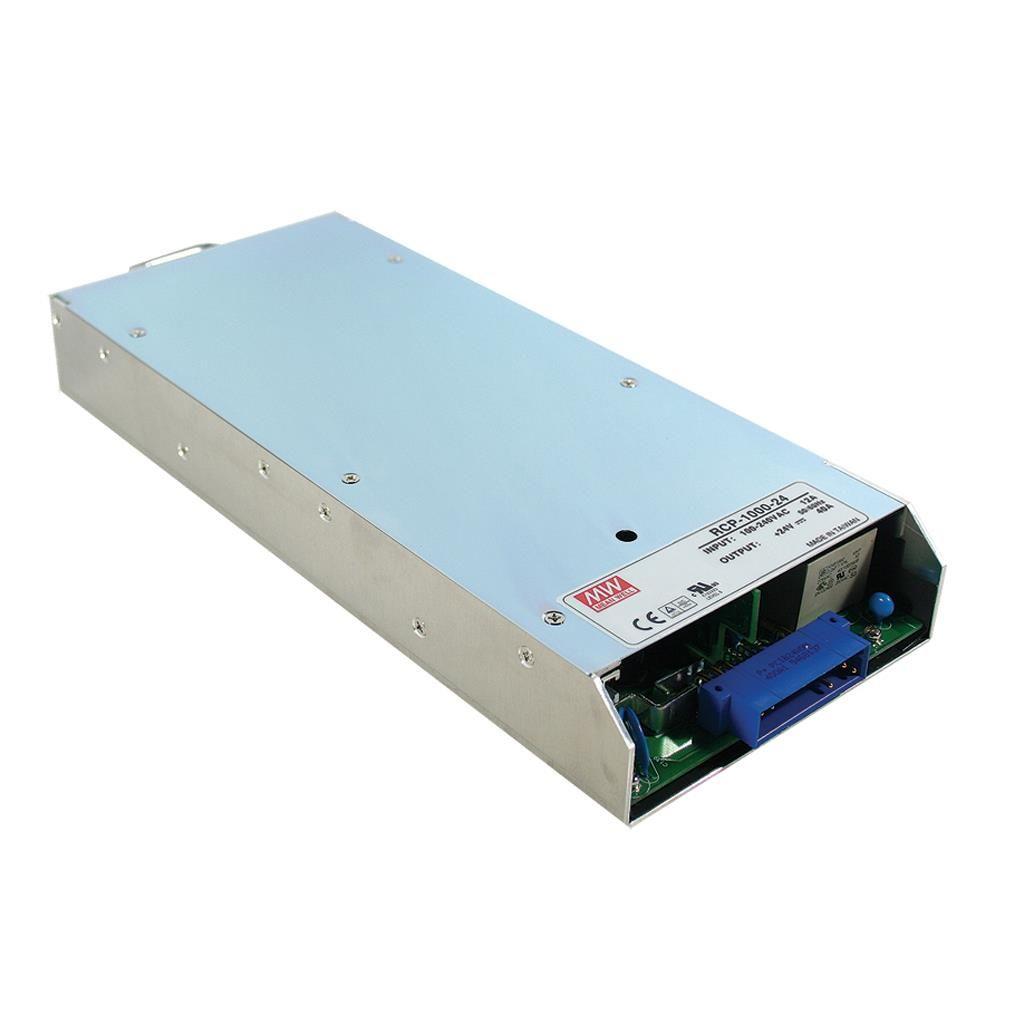

RCP-1000-24-C

AC-DC 19 inch rack power supply with PFC; Output 24VDC at 40A; 1U profile; Current sharing up to 3KW; Hot-swap; Built-in OR-ing diode; 5VDC Vsb

MEAN WELL

XT40.241

PULS XT40.241 is a power supply unit part of the X-series, designed to function as an AC/DC PSU/converter with a semi-regulated 25% power reserve and a DC-OK relay contact output. It operates on a supply voltage of 3x360-440Vac (380Vac / 400Vac / 415Vac nominal; 47-63Hz), with a turn-ON voltage of 3 x 325Vac and a shutdown voltage of 3 x 295Vac. The unit's dimensions are W96mm x H124mm x D159mm, and it is encased in an aluminium housing with screw-clamp connections for installation. It has a rated current of 40A at 24Vdc and is designed for DIN rail mounting in a 3-phase (3AC) network. The ambient air temperature for operation ranges from -25 to +70°C. The XT40.241 has a net width of 96 mm and a peak current consumption of 4A max. inrush at 3x400Vac input. Its rated power is 24W/+60°C...+70°C (derating) 960W at 24Vdc and 1200W for a typical 15s. Protection functions include output overvoltage protection (29.9Vdc max.), active input inrush current limiter, and overload/short-circuit current protection. It supports 1+1 redundancy for higher system availability and is resistant to back-feeding loads up to 28.9V. The efficiency is rated at 0.955 with a 3x400Vac input, and it features a 400ms start-up delay, 40ms rise time with nominal input at constant full current load without load capacitance, and 70ms with 40mF load capacitance. The output voltage is fixed at 24Vdc with a 480mV turn-ON overshoot, and it has a 2ms buffer time at 3x400Vdc input. Power dissipation/losses are 45.2 W at full output load with 3x400Vdc input. Electrical durability is rated at 51000 hours at 40°C and 142000 hours at 25°C, with a 40A output and 3AC 400Vdc input. The output stage capacitance is 20000 µF, and the ripple is 1500mVpp (20Hz...2KHz; 50Ω).

Puls

PIC120.242C

Power Supply, 120W, AC 200-240V input, 1 phase, 24-28Vdc output, 5A, DC-OK relay contact

Puls

PPQ-1003B

AC-DC Quad output open frame power supply; Output 3.3Vdc at 15A +5Vdc at 15A +12Vdc at 3A -12Vdc at 1A; PPQ-1003B is succeeded by QP-150-3B.

MEAN WELL

DRT-240-48

AC-DC Industrial DIN rail power supply; Output 48Vdc at 5A; metal case; 3-phase input; DRT-240-48 is succeeded by TDR-240-48.

MEAN WELL

IQ-60D

AC-DC Isolated Quad output enclosed power supply; Output 5Vdc at 3A +12Vdc at 0.5A +-12Vdc at 0.5A; IQ-60D is succeeded by RQ-65D.

MEAN WELL

PS-45-12

AC-DC Single output Open frame power supply; Output 12Vdc at 3.7A; PS-45-12 is succeeded by EPS-45-12.

MEAN WELL

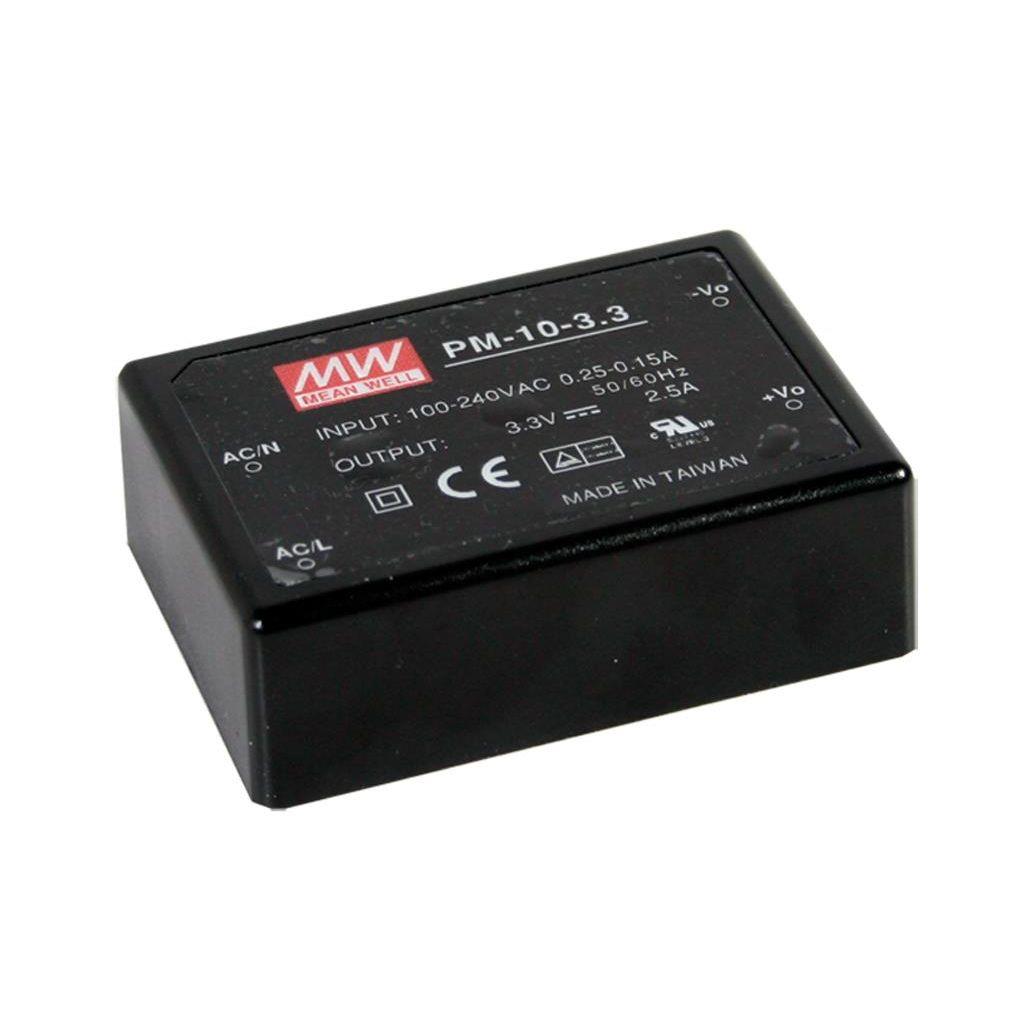

PM-10-3.3

AC-DC Single output Medical Encapsulated power supply; Output 3.3Vdc at 2.5A; PCB mount; 2xMOPP; PM-10-3.3 is succeeded by MPM-10-3.3.

MEAN WELL

HEP-600-30

AC-DC Single output industrial power supply with PFC; Output 30Vdc at 20.0A; Input-output by terminal block; Withstand up to 10G Vibration

MEAN WELL

UAP-24V96W

UAP-24V96W Unitronics - Power Supply,120-370VDC->24V/4A,DIN rail

Unitronics

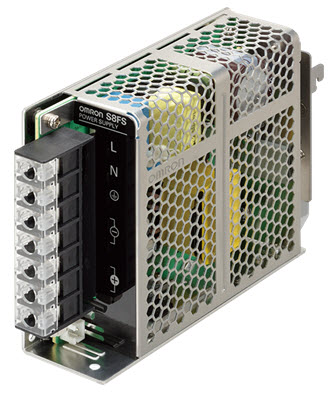

S8FS-G10024CD-R

S8FS-G Switch Mode Power Supply

Omron

RS-25-24

AC-DC Single Output Enclosed power supply; Output 24VDC Single Output at 1.1A; free air convection

MEAN WELL
