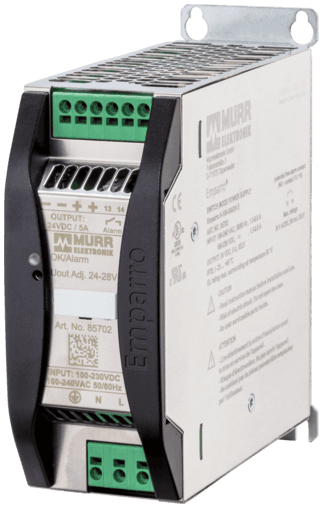

85702 Murr Elektronik AC/DC Power Supplies
Part#:85702
Manufacturer:Murr Elektronik
Alt. Part#:85440
Product Lifecycle:Active
Get a quick Quote!
85702 Murrelektronik - Emparro 5-100-240/24 S, Screw mounting
About the manufacturer: Murr Elektronik is one of the manufacturers that offers AC/DC Power Supplies that you can order at marketplace.quotebeam.com. Murrelektronik is a worldwide frontrunner in creating, producing, and distributing automation solutions. Our product offerings are categorized into four main lines: Power Supplies and Control, Interfaces, Cables/Connectors, and IO Systems.
Check out the 85702 Murr Elektronik price in the box on the right side or send a quick quote.
Product Details
- Weight790 g
- SeriesTransformators/Power Supplies
- Protection IP20
- Input voltage 85...265 V AC/90...250 V DC
- Efficiency 92.7% (110 V AC); 94.5% (230 V AC)
- LED display LED (green): OK; LED (red): overload, overheating or short-circuit
- Product article number of manufacturer 85702
- Temperature range -40...+60 °C, ...+70 °C derating (storage temperature -40...+80 °C)
- Power Boost Iout N × 150% (min. 4 s)
- Frequency 50...60 Hz
- Relative humidity 5...95%, no condensation
- Parallel usage/serial usage max. 5 units/max. 2 units
- Dimensions H×W×D 123×50×138 mm
- Input current 1.3 A (100 V AC); 0.61 A (240 V AC)
- Mains failure bridging time min. 30 ms (100 V AC); 5 A (24 V DC)
- Ripple max. 50 mV eff/rms
- Input fuse (internal) 6.3 A (T)
- Mounting method 4 hole screw mounting
- Output current 5 A
- Power factor 0.87 (230 V AC)
- Output voltage 24 V DC (SELV), ±1%; 24...28 V adjustable
- Inrush current after 1 ms max. 5.5 A (230 V AC)
- Standards IEC 61010-2-201, EN 61204-3, EN 55011 B, EN 61000-3-2, SEMI F47
- Unit protection short-circuit and overload protected
- Connection Push-In spring clamp terminals
- Spikes max. 200 mV ss/pp
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
85702 Description
85702 Murrelektronik - Emparro 5-100-240/24 S, Screw mounting
Related documents 85702 Specs
1-year warranty
