85704 Murr Elektronik AC/DC Power Supplies
Part#:85704
Manufacturer:Murr Elektronik
Alt. Part#:85442
Product Lifecycle:Active
Get a quick Quote!

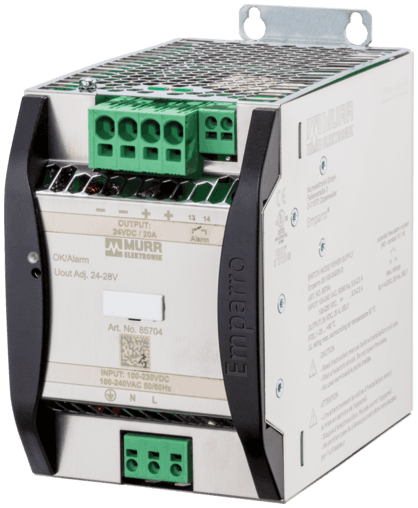

85704 Murrelektronik - Emparro 20-100-240/24 S, Screw mounting
About the manufacturer: Murr Elektronik is one of the manufacturers that offers AC/DC Power Supplies that you can order at marketplace.quotebeam.com. Murrelektronik is a worldwide frontrunner in creating, producing, and distributing automation solutions. Our product offerings are categorized into four main lines: Power Supplies and Control, Interfaces, Cables/Connectors, and IO Systems.
Check out the 85704 Murr Elektronik price in the box on the right side or send a quick quote.
Product Details
- Weight1340 g
- SeriesTransformators/Power Supplies
- Output voltage 24 V DC (SELV), ±1%; 24...28 V adjustable
- Efficiency 91.7% (110 V AC); 94.1% (230 V AC)
- Product article number of manufacturer 85704
- Dimensions H×W×D 123×85×138 mm
- Ripple max. 50 mV eff/rms
- Relative humidity 5...95%, no condensation
- Input fuse (internal) 10 A (T)
- LED display LED (green): OK; LED (red): overload, overheating or short-circuit
- Power factor 0.96 (230 V AC)
- Mains failure bridging time min. 30 ms (100 V AC); 20 A (24 V DC)
- Frequency 50...60 Hz
- Connection Push-In spring clamp terminals
- Unit protection short-circuit and overload protected
- Parallel usage/serial usage max. 5 units/max. 2 units
- Mounting method 4 hole screw mounting
- Input voltage 90...265 V AC/90...250 V DC
- Power Boost Iout N × 150% (min. 4 s)
- Input current 5.2 A (100 V AC); 2.2 A (240 V AC)
- Protection IP20
- Temperature range -40...+60 °C, ...+70 °C derating (storage temperature -40...+80 °C)
- Inrush current after 1 ms max. 23 A (230 V AC)
- Standards IEC 61010-2-201, EN 61204-3, EN 55011 B, EN 61000-3-2, SEMI F47
- Output current 20 A
- Spikes max. 200 mV ss/pp
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
85704 Description
85704 Murrelektronik - Emparro 20-100-240/24 S, Screw mounting
Related documents 85704 Specs
1-year warranty
