AC/DC Power Supplies

LSP-160-4.2W

AC-DC Slim Single output enclosed power supply with PFC; Output 4.2Vdc at 32A with Wafer connector; DC OK signal

MEAN WELL

QS10.481-D1

PULS QS10.481-D1 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion with a 50% power reserve. It operates within an ambient air temperature range of -25 to +70°C and includes an extended DC input for enhanced versatility. The unit provides a rated current of 5A at 48Vdc and 4.3A at 56Vdc, with a derating of 6W from +60°C to +70°C. Connection is facilitated through spring-clamp connections. It supports a supply voltage range of 85Vac-264Vac for AC and 88Vdc-188Vdc for DC, with specific nominal values across a broad spectrum. The QS10.481-D1, part of the Q-series, measures 60mm in width, 124mm in height, and 117mm in depth, and is housed in aluminium for durability. It is compatible with single-phase AC or DC networks and offers a rated power of 240W, with a short-term capacity of 360W for up to 4 seconds. The output voltage is adjustable between 48Vdc and 56Vdc. Protection features include output overvoltage protection and overload/short-circuit protection, with capabilities for series or parallel operation for increased output power. Efficiency rates vary by input voltage, achieving up to 0.92 at 230Vac. The unit exhibits a peak inrush current consumption of 10A, with a start-up delay between 340-800ms and a hold time of 28ms at 230Vac input. Power dissipation is noted at 20.9W for 230Vac input under full load. Electrical durability spans up to 228000 hours under specific conditions, with a ripple of 100mVpp and an output stage capacitance of 3000µF.

Puls

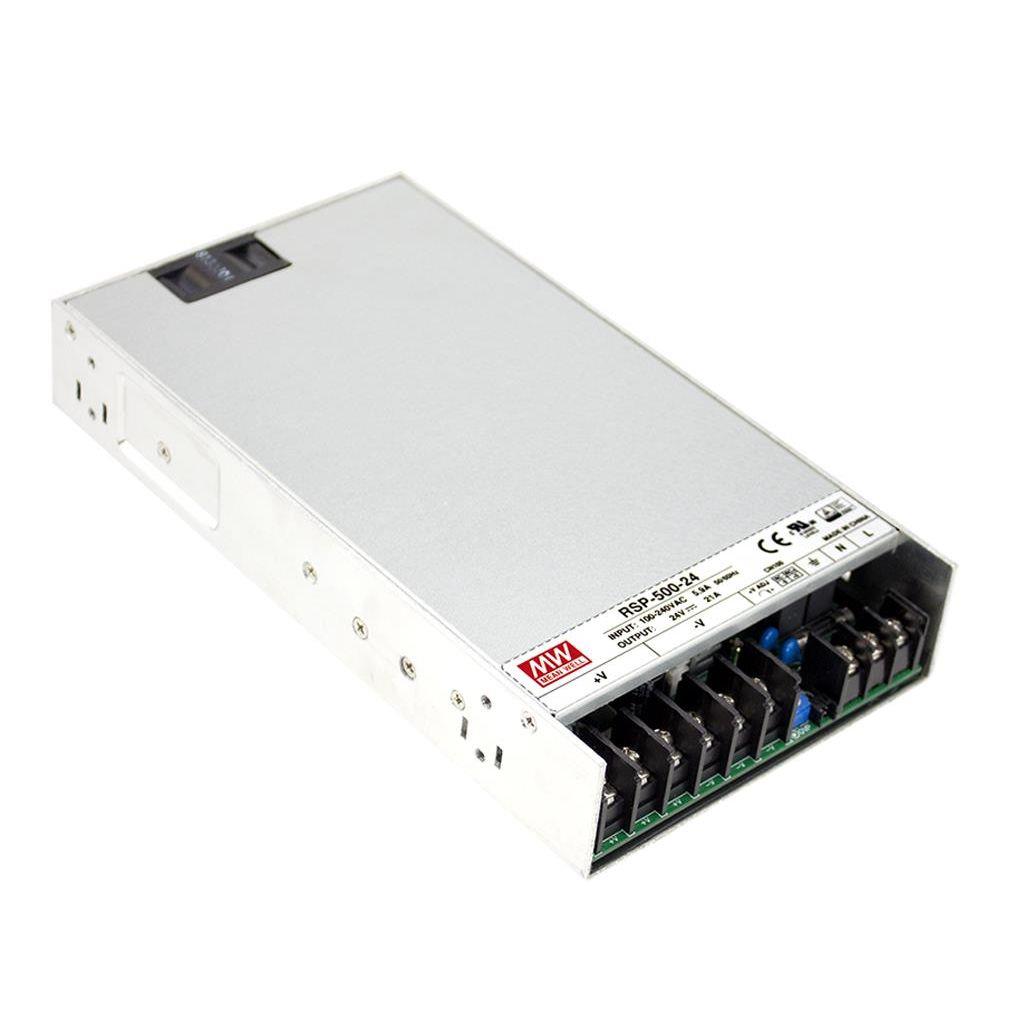

RSP-500-12

AC-DC Single Output Enclosed power supply; Output 12VDC Single Output at 41.7A; PFC; forced air cooling; 1U low profile

MEAN WELL

HEP-1000-24WCPM

AC-DC Single output industrial power supply with PFC; Output 24Vdc at 42A; Input-output by waterproof wires; IP67; DC OK signal; Charger with PMBus

MEAN WELL

HDR-30-12

AC-DC Ultra slim DIN rail power supply; Input range 85-264VAC; Output 12DC at 2A; Pass LPS

MEAN WELL

GSC25B-350

AC-DC Single output desktop LED power supply (CC) with PFC; Output 72Vdc at 0.35A; 2 pole AC IEC320-C8 input connector; GSC25B-350 is succeeded by PLM-25-350.

MEAN WELL

MDR-20-24

AC-DC Industrial DIN rail power supply; Output 24Vdc at 1A; plastic case

MEAN WELL

RPT-160B-C

AC-DC Triple output Medical Enclosed power supply; Output 5Vdc at 14A +12Vdc at 5A -12Vdc at 1A; 2xMOPP; compact size 5 x 3 inch

MEAN WELL

SP-100-7.5

AC-DC Enclosed power supply; Output 7.5Vdc at 13.5A; PFC; free air convection; SP-100-7.5 is succeeded by RSP-100-7.5.

MEAN WELL

87761

87761 Murrelektronik - MPS POWER SUPPLY 1-PHASE, IN:95-265 VAC OUT:24 V/5ADC

Murr Elektronik

CS10.241-S1

PULS CS10.241-S1 is a DIN rail mounting power supply unit with an aluminium housing designed for a wide range of industrial applications. It operates within an ambient air temperature range of -25 to +70°C and supports various current consumptions based on input voltage: 2.23A at 230Vac, 3.73A at 120Vac, and 4.34A at 100Vac, all for full 24Vdc output, with a peak inrush current of 10A across all input voltages. The unit boasts an efficiency of up to 0.916 at 230Vac input. Its dimensions are 60mm in width, 124mm in height, and 117mm in depth. The CS10.241-S1 features a start-up delay of 850ms and rise times of 35ms to 75ms depending on load capacitance. It includes protection functions such as output overvoltage protection and an active input inrush current limiter, alongside capabilities for series or parallel operation for redundancy. The power dissipation at full output load is 22W for 230Vac input and 23.7W for 120Vac input. The output stage capacitance is 7000µF, and electrical durability ranges from 34,000 to 334,000 hours depending on operating conditions. The ripple is maintained at 50mVpp. This AC/DC power supply unit, part of the C-Line series, is designed with a 20% power reserve and features a DC-OK relay contact output and spring-clamp connections. It accepts a supply voltage of 85Vac-132Vac / 184Vac-264Vac with auto-selection and has a rated current of up to 12A at 24Vdc in environments below 45°C. The output voltage is adjustable between 24Vdc and 28Vdc, with minimal turn-on overshoot, and the hold time is 47ms at 230Vac input.

Puls

LSP-160-5T

AC-DC Slim Single output enclosed power supply with PFC; Output 5Vdc at 32A with terminal block; DC OK signal

MEAN WELL

IRM-01-3.3

AC-DC Single Output Encapsulated power supply; Input 85-305Vac; Input 85-305Vac; Output 3.3Vdc at 0.3A; PCB mount; miniature size

MEAN WELL

SDR-120-12

AC-DC Industrial DIN rail power supply; Output 12Vdc at 10A; Metal casing; Ultra slim width 40mm

MEAN WELL

HRPG-600-3.3

AC-DC Single output enclosed power supply; Output 3.3Vdc at 120A; fan cooling; remote on/off + 5Vdc at 0.3A standby

MEAN WELL

LPP-150-12

AC-DC Single output Open frame power supply with PFC; Output 12Vdc at 12.5A

MEAN WELL

S8VS-24024BP

S8VS Switch Mode Power Supply

Omron

RCP-1600-48

AC-DC 19 inch rack power supply with PFC; Output 48VDC at 33.5A; 1U profile; Current sharing up to 8KW; Hot-swap; PMBus protocol

MEAN WELL

CP20.481

PULS CP20.481 is a power supply unit designed for DIN rail mounting with an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 48mm. The unit features a current consumption of 5.5A peak max. inrush at 230Vac input and 12A peak max. inrush at 120Vac input. Its efficiency rates are 0.963 at 230Vac input, 0.95 at 120Vac input, and 0.944 at 100Vac input. The dimensions of the CP20.481 are W48mm x H124mm x D127mm. It has a 450ms start-up delay and a rise time of 120ms under nominal input with a constant full current load and 0mF load capacitance, and 170ms with 10mF load capacitance. The unit includes protection functions such as output overvoltage protection and overload/short-circuit protection, with the capability for series or parallel operation for increased output voltages or power. It is resistant to back-feeding loads up to 63V. Power dissipation/losses are 18.4W at 230Vac input and 25.1W at 120Vac input with full output load. The output stage capacitance is 2500µF. Electrical durability varies with conditions, reaching up to 509000 hours at 25°C and 5A output with 1AC 230Vac input. The ripple is 50mVpp (20Hz...20MHz; 50Ω). This AC/DC power supply unit offers a 20% power reserve and includes a DC-OK relay contact output. It features screw-clamp connections and supports a supply voltage range of 88Vdc-180Vdc and 85Vac-264Vac, with a rated current of 10A at 48Vdc, and a rated power of 480W. The output voltage is adjustable between 48Vdc and 56Vdc, with a 500mV turn-ON overshoot and a hold time of 32ms at 120/230Vac input. It is suitable for single-phase (1AC) or DC networks.

Puls

S8VK-G24048-400

S8VK-G Switch Mode Power Supply

Omron
