AC/DC Power Supplies

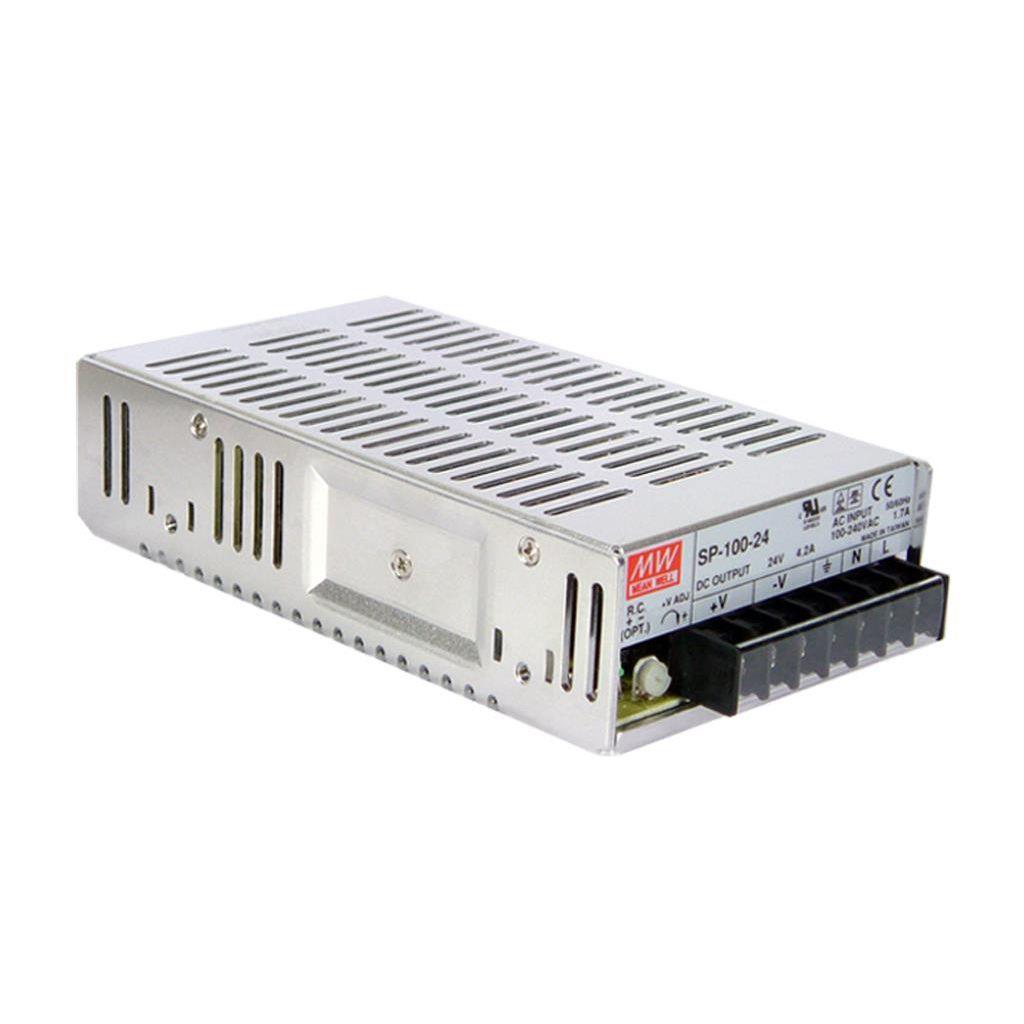

SP-100-7.5

AC-DC Enclosed power supply; Output 7.5Vdc at 13.5A; PFC; free air convection; SP-100-7.5 is succeeded by RSP-100-7.5.

MEAN WELL

87761

87761 Murrelektronik - MPS POWER SUPPLY 1-PHASE, IN:95-265 VAC OUT:24 V/5ADC

Murr Elektronik

CS10.241-S1

PULS CS10.241-S1 is a DIN rail mounting power supply unit with an aluminium housing designed for a wide range of industrial applications. It operates within an ambient air temperature range of -25 to +70°C and supports various current consumptions based on input voltage: 2.23A at 230Vac, 3.73A at 120Vac, and 4.34A at 100Vac, all for full 24Vdc output, with a peak inrush current of 10A across all input voltages. The unit boasts an efficiency of up to 0.916 at 230Vac input. Its dimensions are 60mm in width, 124mm in height, and 117mm in depth. The CS10.241-S1 features a start-up delay of 850ms and rise times of 35ms to 75ms depending on load capacitance. It includes protection functions such as output overvoltage protection and an active input inrush current limiter, alongside capabilities for series or parallel operation for redundancy. The power dissipation at full output load is 22W for 230Vac input and 23.7W for 120Vac input. The output stage capacitance is 7000µF, and electrical durability ranges from 34,000 to 334,000 hours depending on operating conditions. The ripple is maintained at 50mVpp. This AC/DC power supply unit, part of the C-Line series, is designed with a 20% power reserve and features a DC-OK relay contact output and spring-clamp connections. It accepts a supply voltage of 85Vac-132Vac / 184Vac-264Vac with auto-selection and has a rated current of up to 12A at 24Vdc in environments below 45°C. The output voltage is adjustable between 24Vdc and 28Vdc, with minimal turn-on overshoot, and the hold time is 47ms at 230Vac input.

Puls

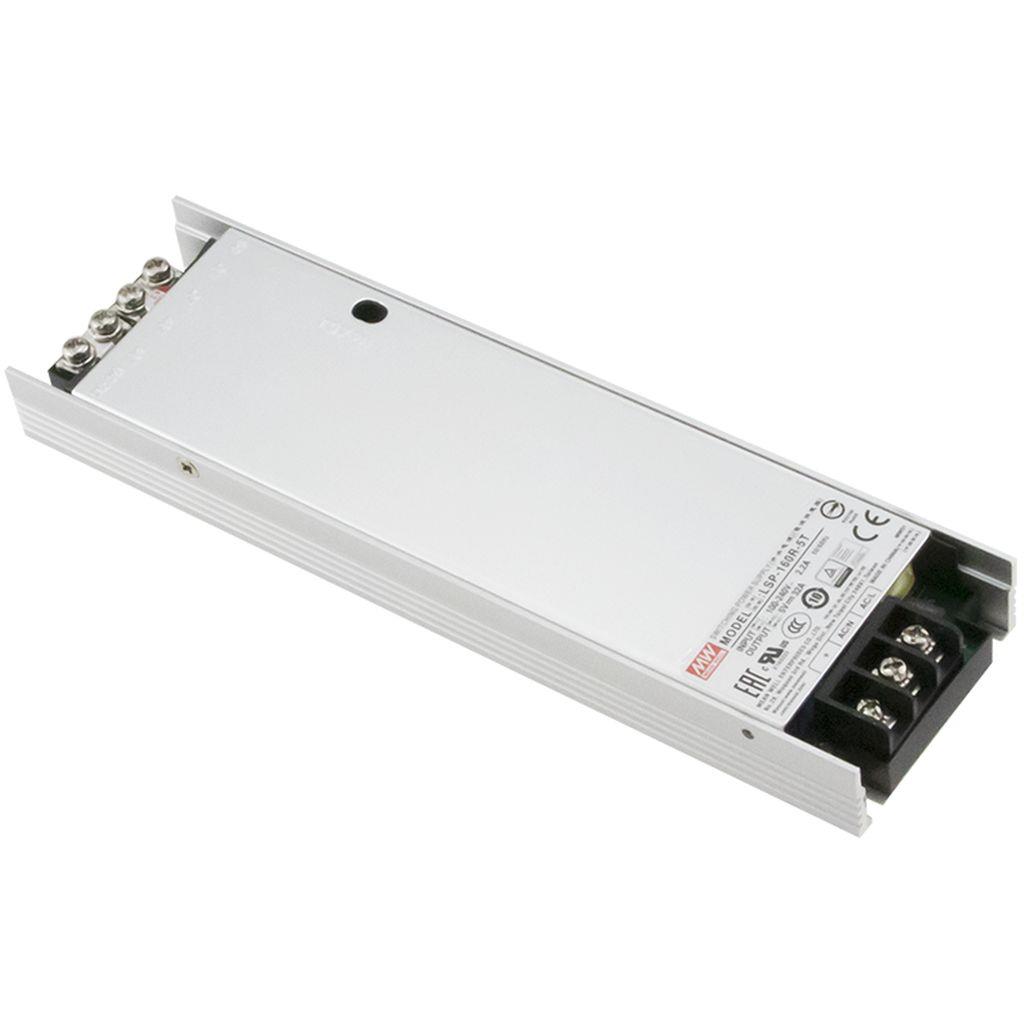

LSP-160-5T

AC-DC Slim Single output enclosed power supply with PFC; Output 5Vdc at 32A with terminal block; DC OK signal

MEAN WELL

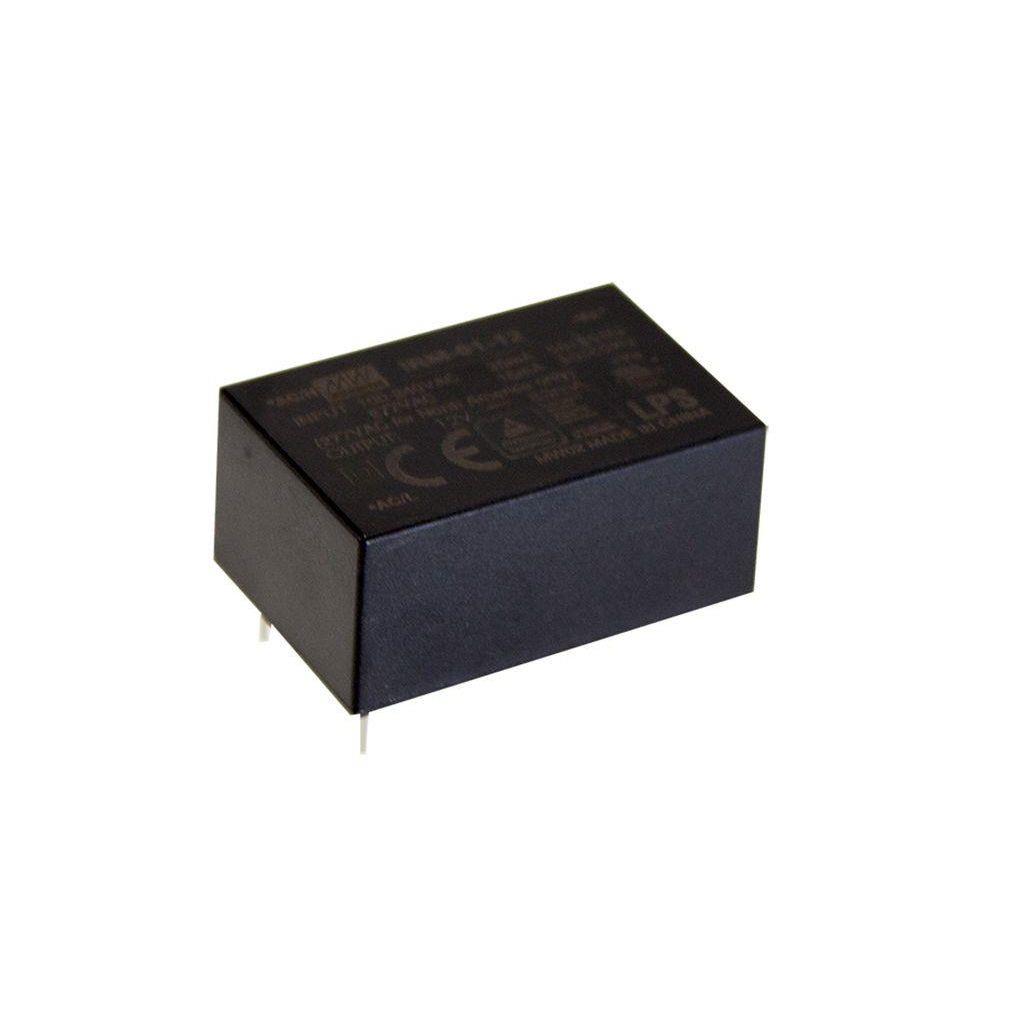

IRM-01-3.3

AC-DC Single Output Encapsulated power supply; Input 85-305Vac; Input 85-305Vac; Output 3.3Vdc at 0.3A; PCB mount; miniature size

MEAN WELL

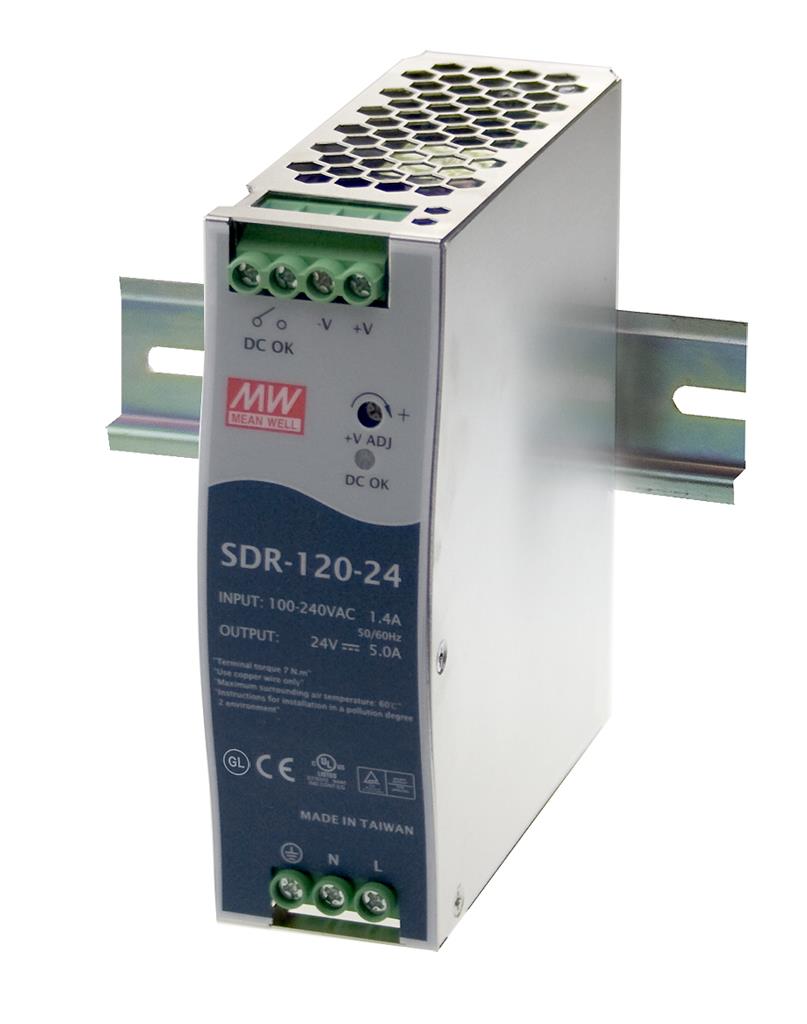

SDR-120-12

AC-DC Industrial DIN rail power supply; Output 12Vdc at 10A; Metal casing; Ultra slim width 40mm

MEAN WELL

HRPG-600-3.3

AC-DC Single output enclosed power supply; Output 3.3Vdc at 120A; fan cooling; remote on/off + 5Vdc at 0.3A standby

MEAN WELL

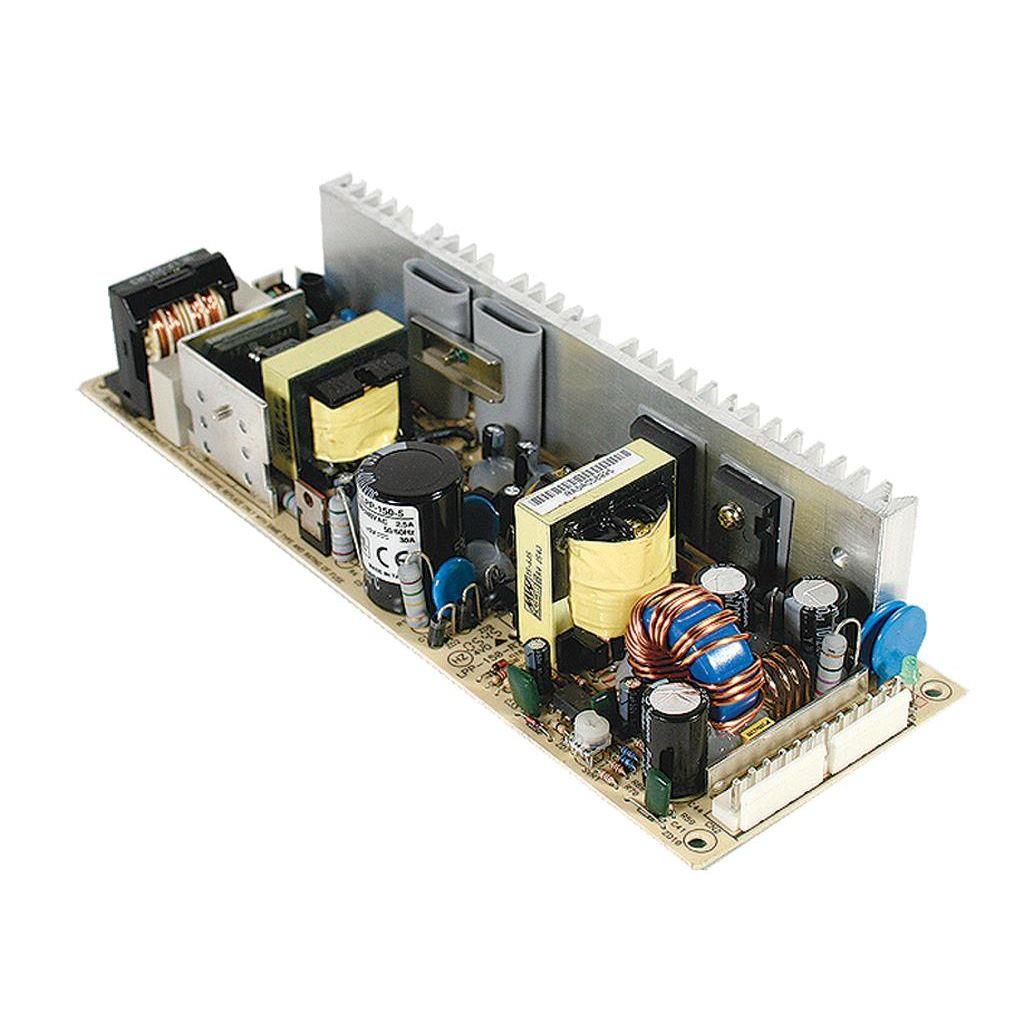

LPP-150-12

AC-DC Single output Open frame power supply with PFC; Output 12Vdc at 12.5A

MEAN WELL

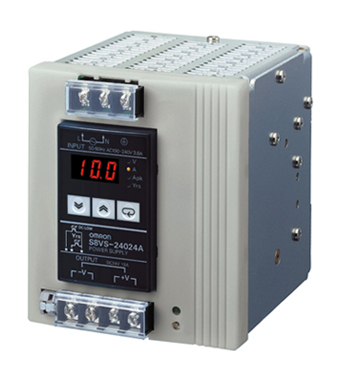

S8VS-24024BP

S8VS Switch Mode Power Supply

Omron

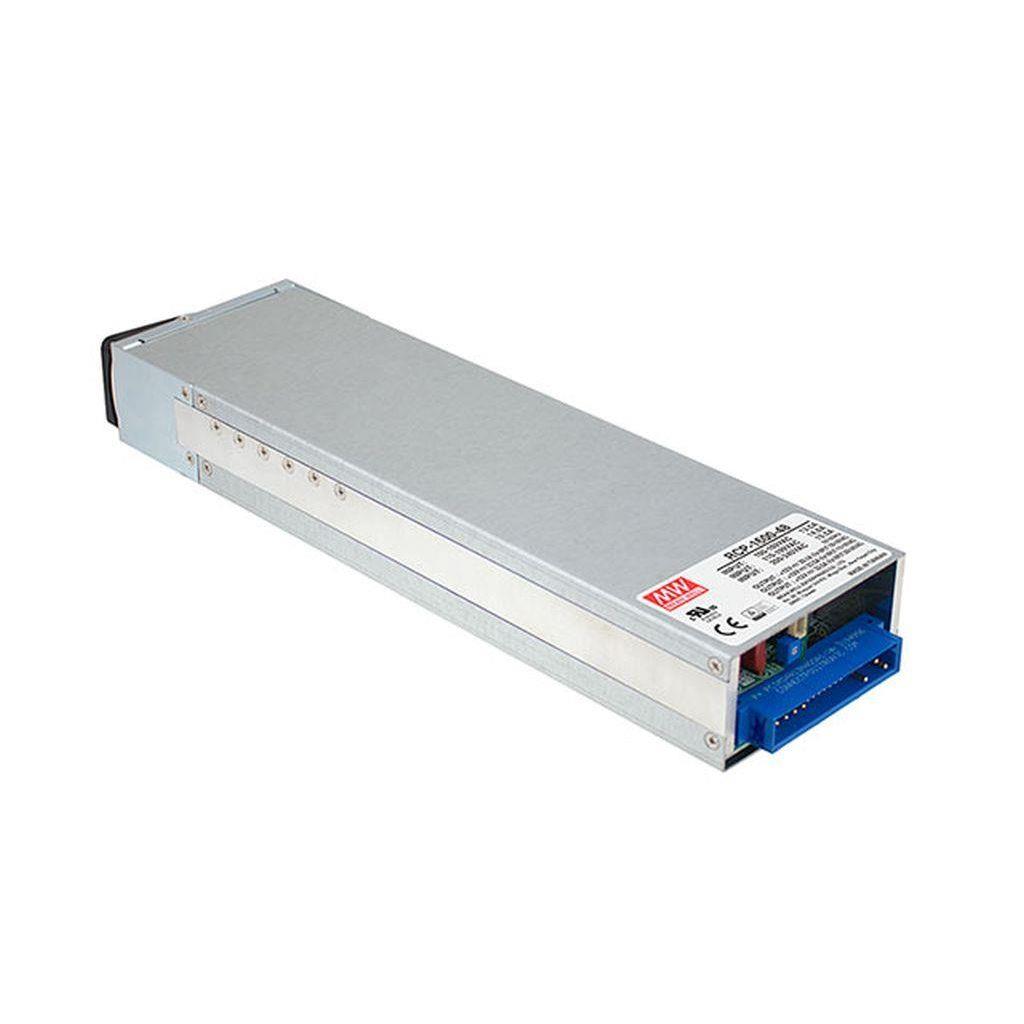

RCP-1600-48

AC-DC 19 inch rack power supply with PFC; Output 48VDC at 33.5A; 1U profile; Current sharing up to 8KW; Hot-swap; PMBus protocol

MEAN WELL

CP20.481

PULS CP20.481 is a power supply unit designed for DIN rail mounting with an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 48mm. The unit features a current consumption of 5.5A peak max. inrush at 230Vac input and 12A peak max. inrush at 120Vac input. Its efficiency rates are 0.963 at 230Vac input, 0.95 at 120Vac input, and 0.944 at 100Vac input. The dimensions of the CP20.481 are W48mm x H124mm x D127mm. It has a 450ms start-up delay and a rise time of 120ms under nominal input with a constant full current load and 0mF load capacitance, and 170ms with 10mF load capacitance. The unit includes protection functions such as output overvoltage protection and overload/short-circuit protection, with the capability for series or parallel operation for increased output voltages or power. It is resistant to back-feeding loads up to 63V. Power dissipation/losses are 18.4W at 230Vac input and 25.1W at 120Vac input with full output load. The output stage capacitance is 2500µF. Electrical durability varies with conditions, reaching up to 509000 hours at 25°C and 5A output with 1AC 230Vac input. The ripple is 50mVpp (20Hz...20MHz; 50Ω). This AC/DC power supply unit offers a 20% power reserve and includes a DC-OK relay contact output. It features screw-clamp connections and supports a supply voltage range of 88Vdc-180Vdc and 85Vac-264Vac, with a rated current of 10A at 48Vdc, and a rated power of 480W. The output voltage is adjustable between 48Vdc and 56Vdc, with a 500mV turn-ON overshoot and a hold time of 32ms at 120/230Vac input. It is suitable for single-phase (1AC) or DC networks.

Puls

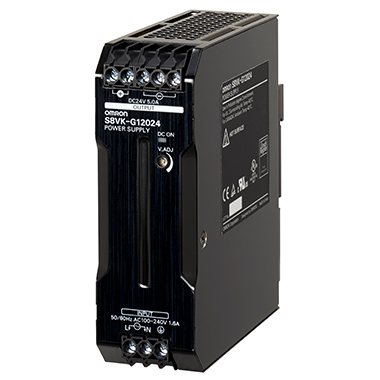

S8VK-G24048-400

S8VK-G Switch Mode Power Supply

Omron

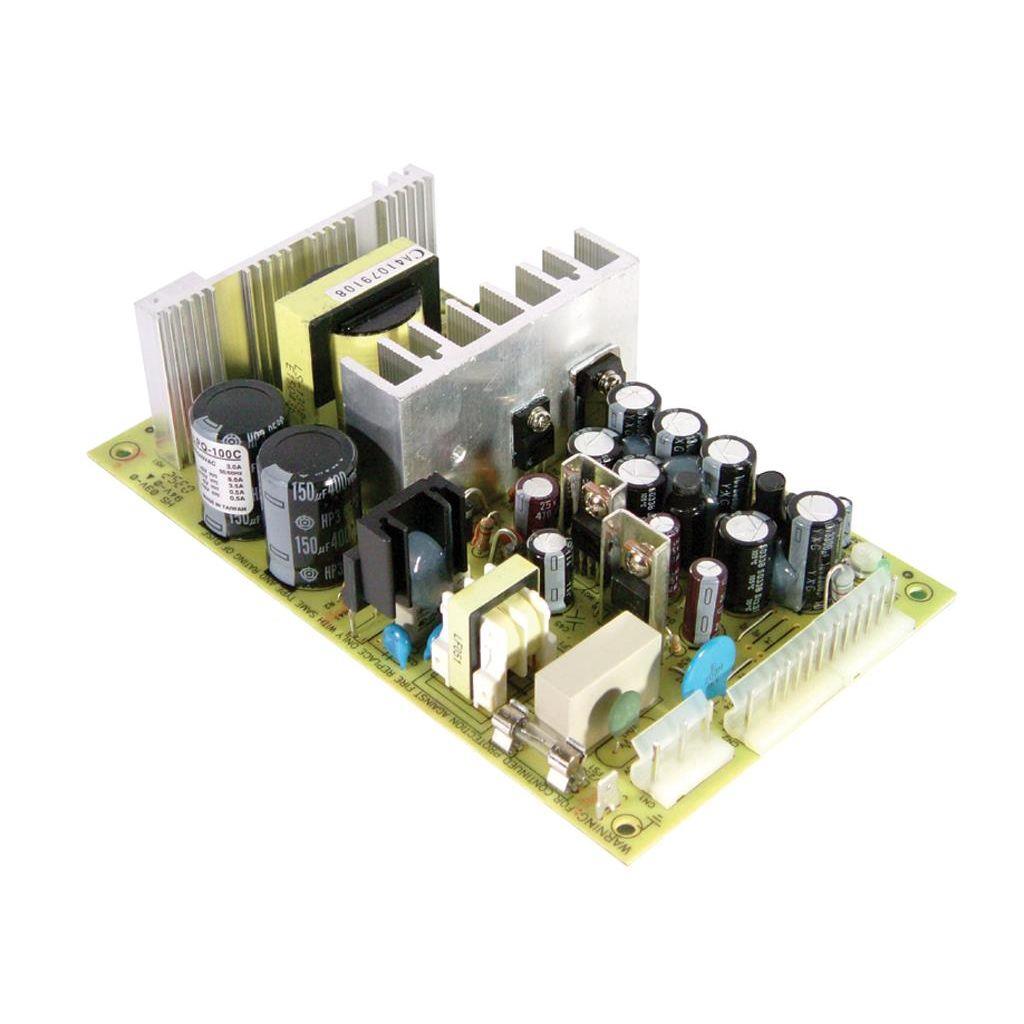

PQ-100B

AC-DC Quad output open frame power supply; Output 5Vdc at 10A +12Vdc at 4.5A -5Vdc at 1A -12Vdc at 1A; PQ-100B is succeeded by QP-150-3B.

MEAN WELL

S8FS-G03005CD

S8FS-G Switch Mode Power Supply

Omron

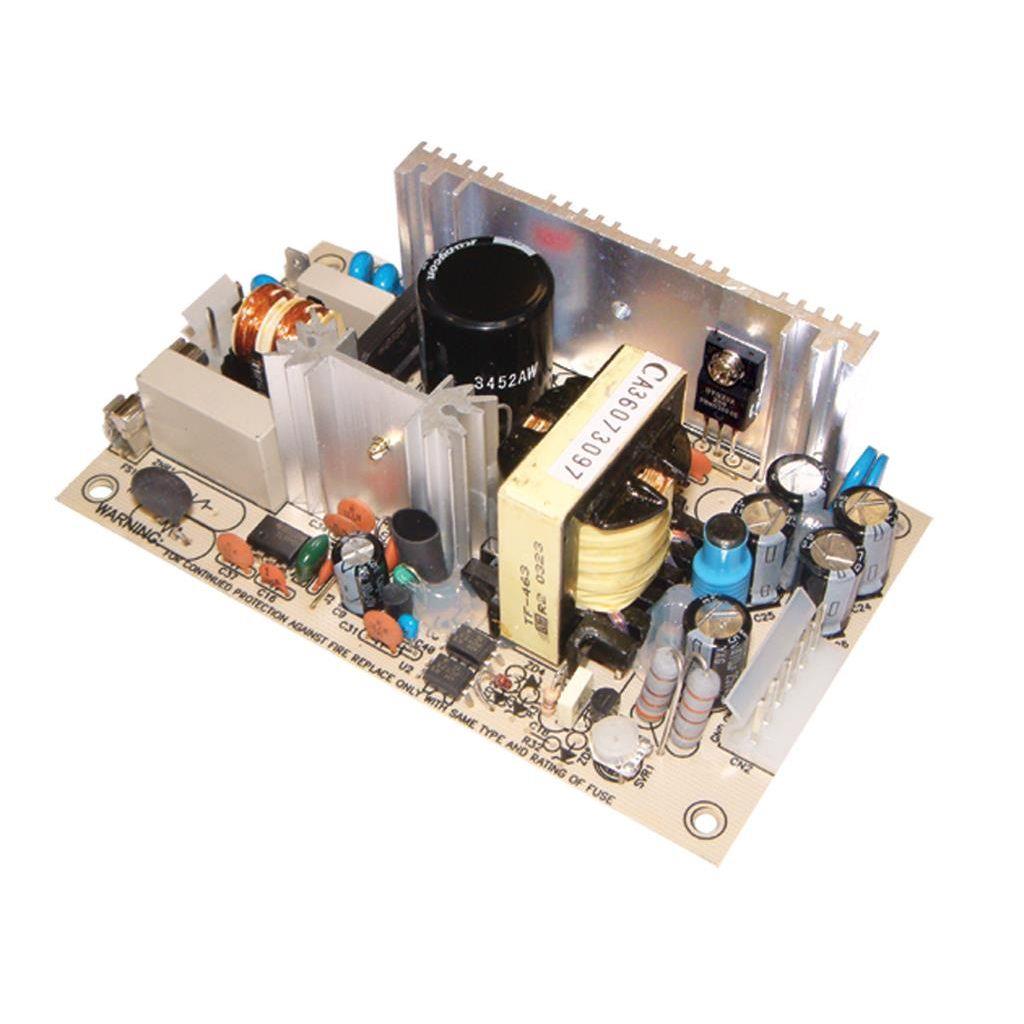

PS-65-48

AC-DC Single output Open frame power supply; Output 48Vdc at 10.35A; PS-65-48 is succeeded by EPS-65-48.

MEAN WELL

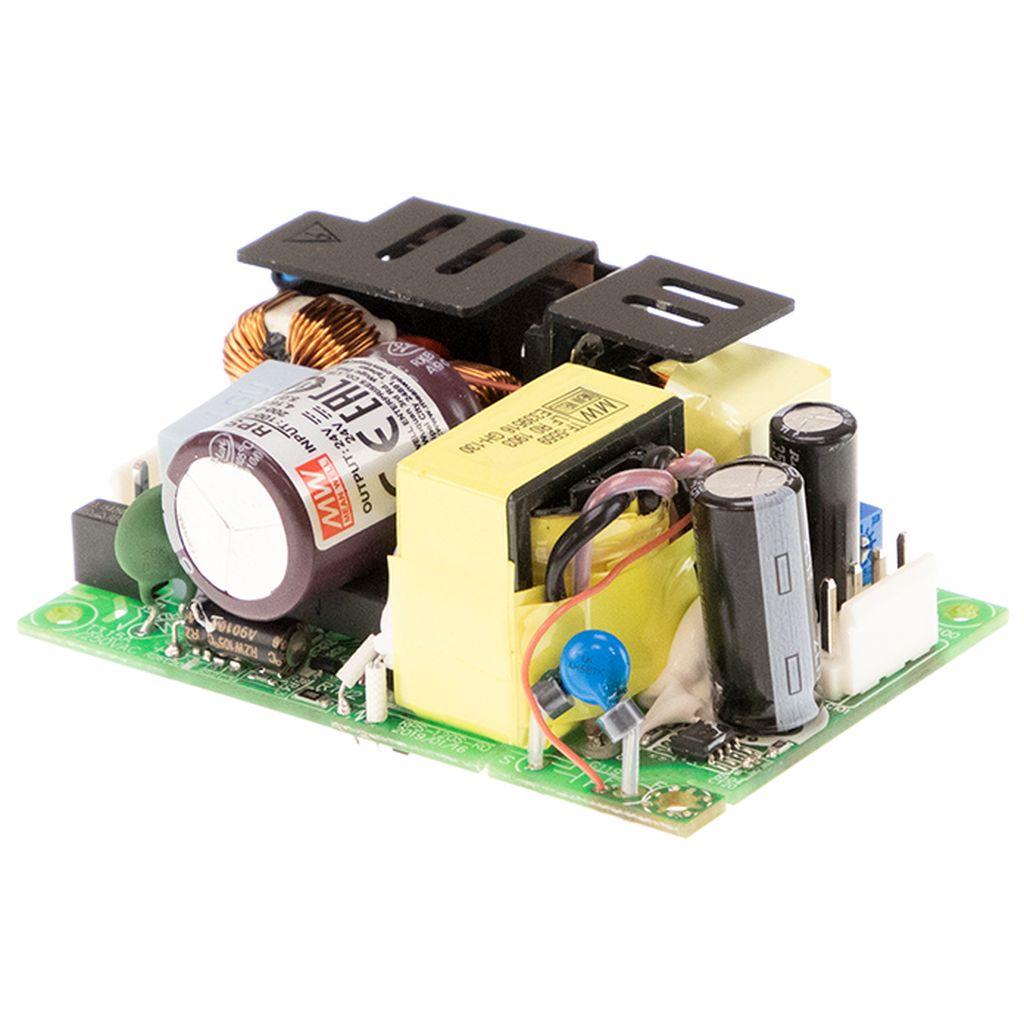

RPS-120S-12

AC-DC Open frame Medical power supply; Output 12VDC at 9.5A; EN60601 2xMOPP; compact size 3x2 inch

MEAN WELL

S8VS-09024AP

S8VS Switch Mode Power Supply

Omron

GSC18E-500

AC-DC Single output wall mount LED power supply (CC) with PFC; Output 36Vdc at 0.5A; 2 pole AC Euro plug; GSC18E-500 is succeeded by IDLC-25-500.

MEAN WELL

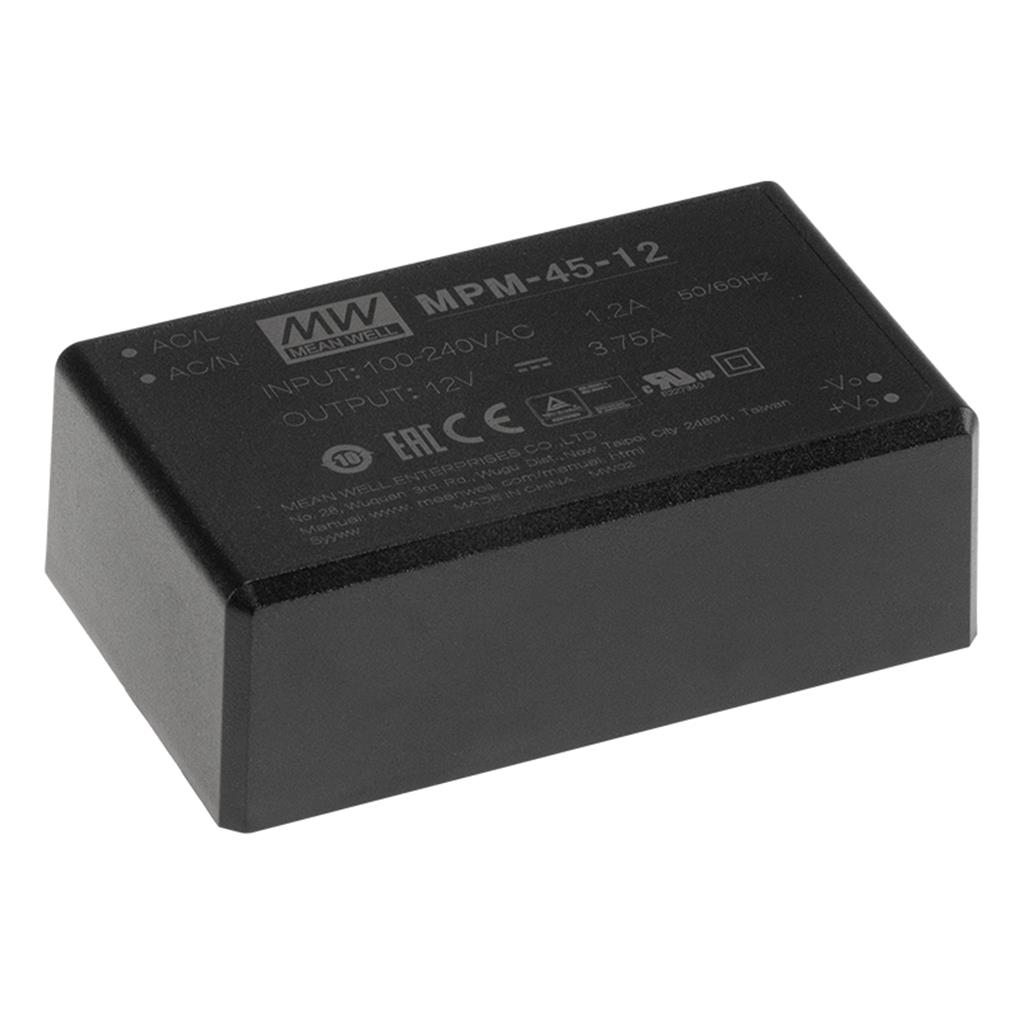

MPM-45-12

AC-DC Single output Medical Encapsulated power supply; Output 12Vdc at 3.75A; PCB through hole; 2xMOPP

MEAN WELL

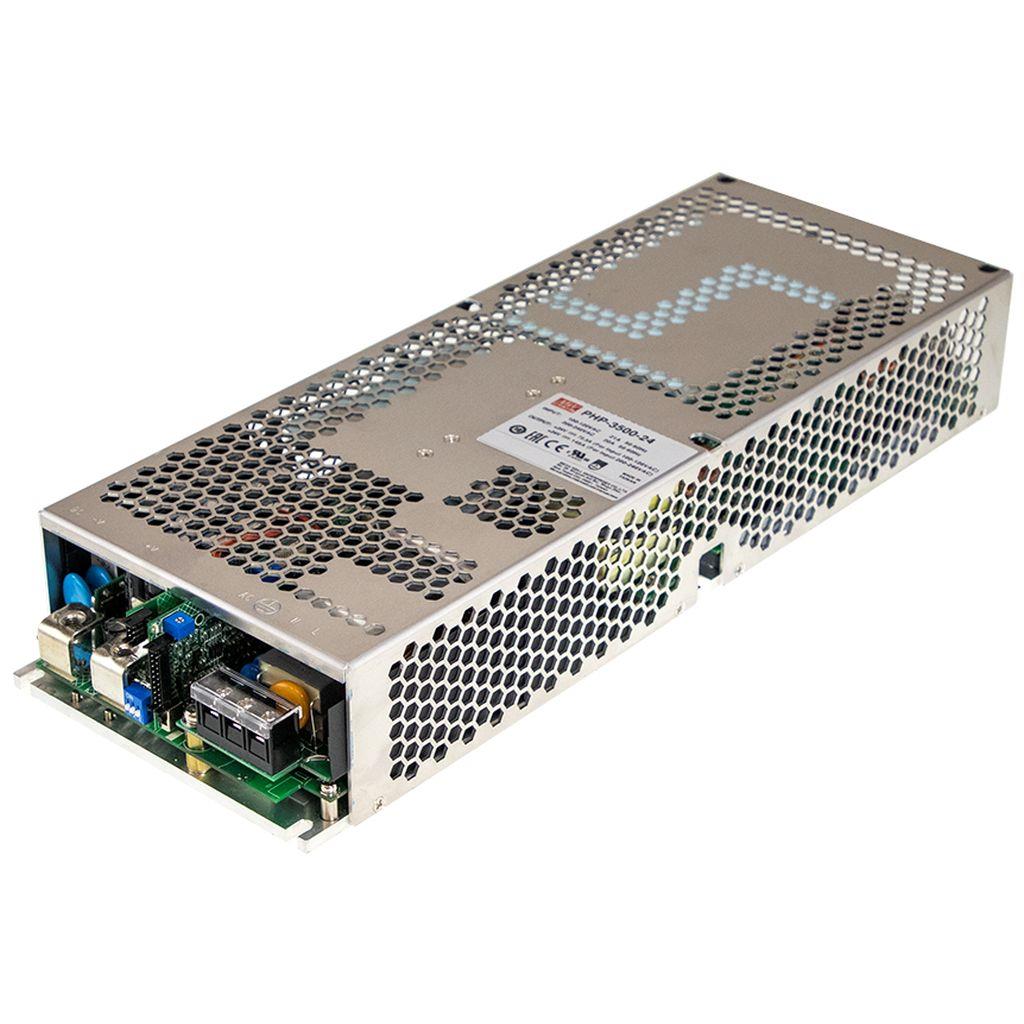

PHP-3500-48CAN

AC-DC Single output enclosed power supply with PFC; Output 48VDC at 73A; remote ON/OFF; Water-cooled heat dissipation; DC OK signal; CANBus protocol

MEAN WELL
