40018ST3QIERB449T-W2 WEG AC Motors
Part#:40018ST3QIERB449T-W2
Manufacturer:WEG
Alt. Part#:7899058010924
Product Lifecycle:Active
Get a quick Quote!

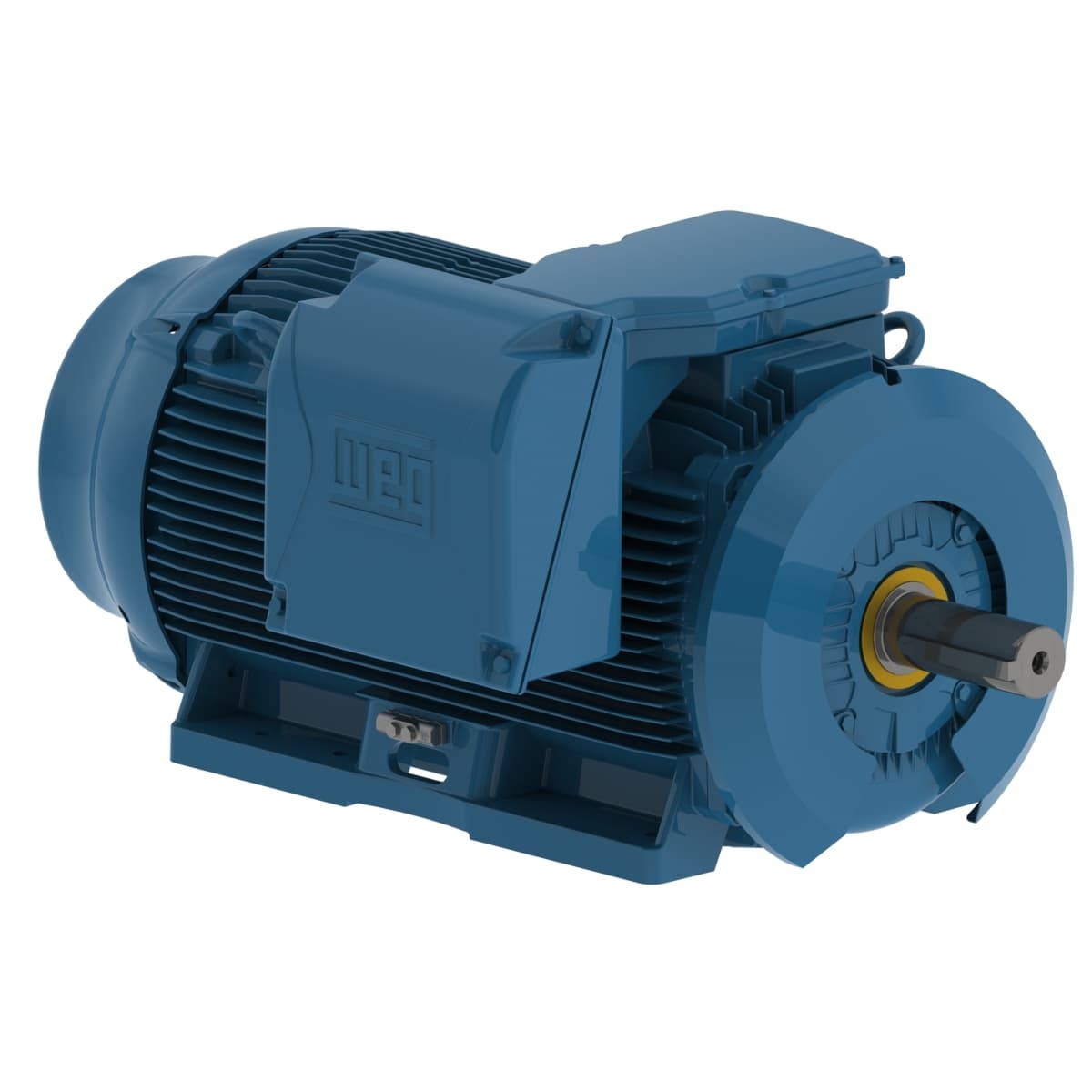

W22 IEEE 841 NEMA Premium Efficiency 400 HP 4P L447/9T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 40018ST3QIERB449T-W2 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating400 HP
- Rated Speed1785 rpm
- Number of Poles4 Pole
- Voltage460 V
- Flange TypeWithout
- Slip 0.83 %
- Locked rotor torque 250 %
- Insulation Class F
- Number of poles 4
- Frequency 60 Hz
- Breakdown torque 260 %
- Starting Method Direct On Line
- Flange Without
- Frame L447/9T
- Temperature rise 80 K
- Mounting F-1
- Rated speed 1785 rpm
- Rated current 445 A
- Rated torque 1180 ft.lb
- Service factor 1.15
- Enclosure IC411 - TEFC
- Rotation¹ Both (CW and CCW)
- Synchronous speed 1800 rpm
- L. R. Amperes 2893 A
- Number of Poles 4
- Locked rotor time 37s (cold) 21s (hot)
- Design B
- Voltage 460 V
- LRC 6.5x(Code G)
- Output 400 HP (300 kW)
- Altitude 1000 m.a.s.l.
- Moment of inertia (J) 136 sq.ft.lb
- Ambient temperature -20°C to +40°C
- Approx. weight³ 3286 lb
- Terminal box¹ Left position
- Rated voltage 460 V
- No load current 125 A
- Duty Cycle Cont.(S1)
- Degree of Protection IP55
- Noise level² 79.0 dB(A)
- Standard NEMA MG-1
- Output rating 400 HP
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 40018ST3QIERB449T-W2 Specs
