40012ET3H449T-W22 WEG AC Motors
Part#:40012ET3H449T-W22
Manufacturer:WEG
Alt. Part#:7909158561254
Product Lifecycle:Active
Get a quick Quote!

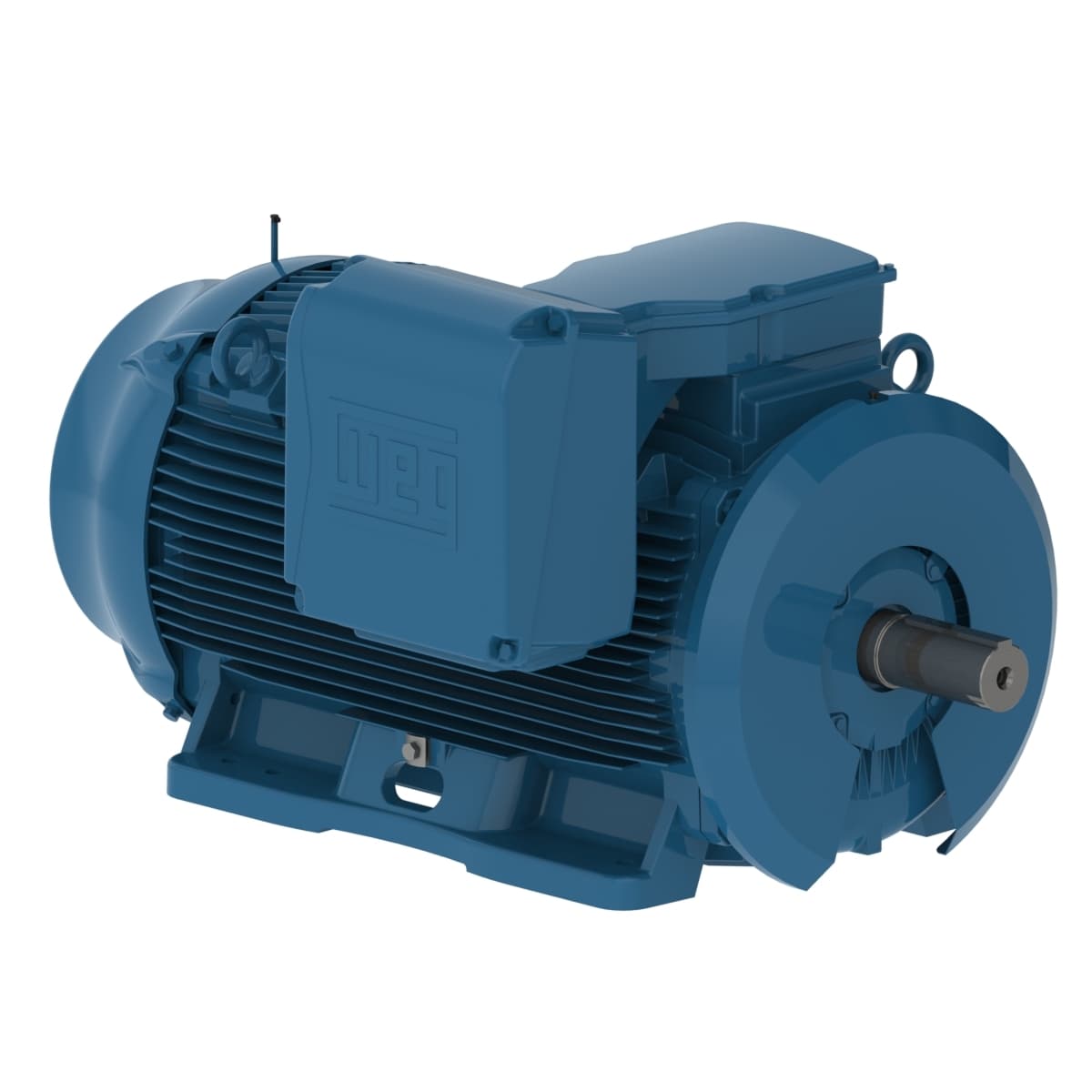

W22 NEMA Premium Efficiency 400 HP 6P L447/9T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 40012ET3H449T-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating400 HP
- Rated Speed1190 rpm
- Number of Poles6 Pole
- Voltage575 V
- Flange TypeWithout
- Rated voltage 575 V
- Moment of inertia (J) 278 sq.ft.lb
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
- Slip 0.83 %
- Insulation Class F
- Voltage 575 V
- LRC 6.9x(Code H)
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Rated speed 1190 rpm
- Temperature rise 105 K
- Mounting F-1
- Number of poles 6
- Number of Poles 6
- Service factor 1.00
- No load current 160 A
- Degree of Protection IP55
- Synchronous speed 1200 rpm
- Rated current 382 A
- Breakdown torque 250 %
- Ambient temperature -20°C to +40°C
- Output rating 400 HP
- Frame L447/9T
- Rated torque 1770 ft.lb
- Approx. weight³ 3604 lb
- L. R. Amperes 2633 A
- Starting Method Direct On Line
- Altitude 1000 m.a.s.l.
- Frequency 60 Hz
- Locked rotor torque 240 %
- Enclosure IC411 - TEFC
- Noise level² 71.0 dB(A)
- Flange Without
- Output 400 HP (300 kW)
- Locked rotor time 23s (cold) 13s (hot)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 40012ET3H449T-W22 Specs
