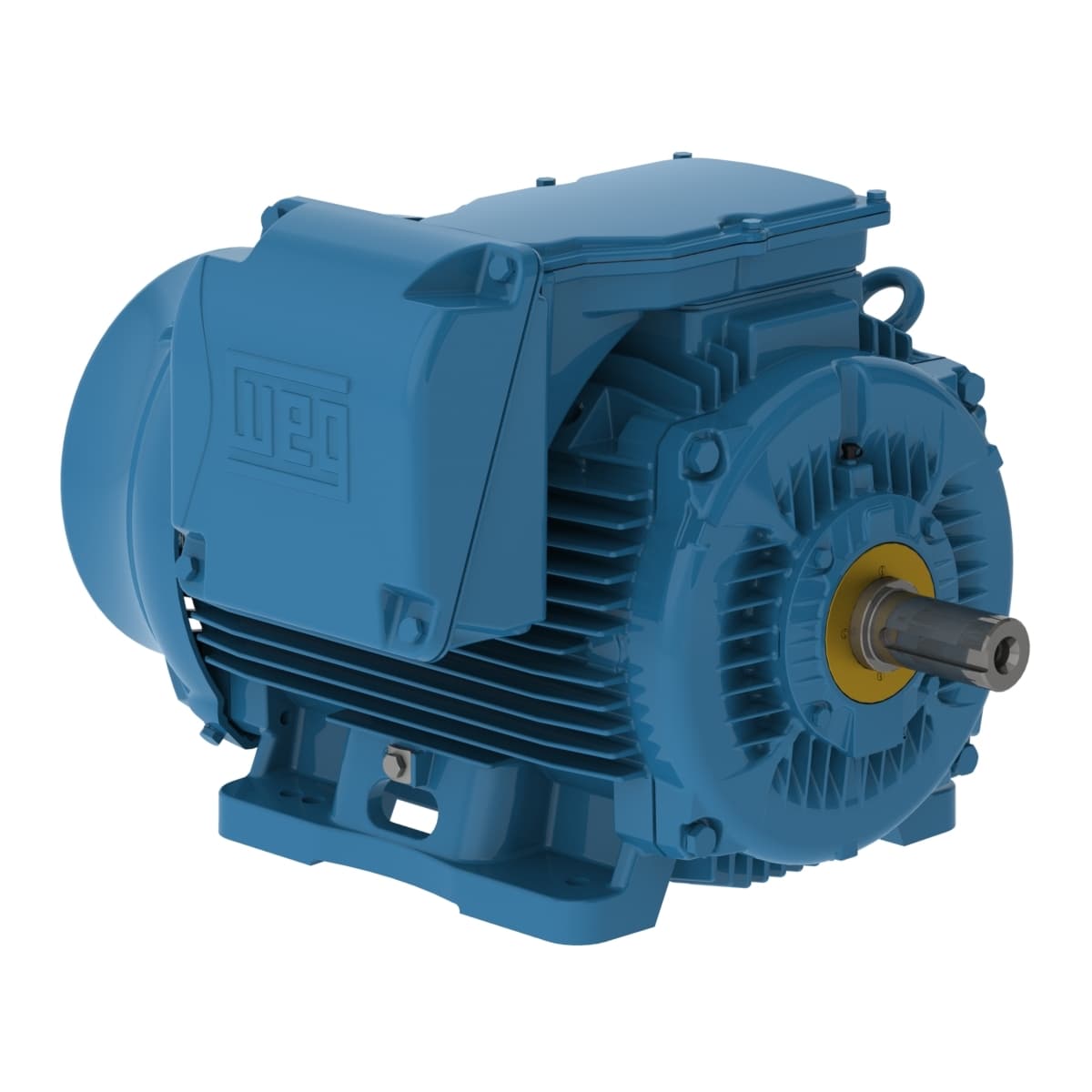

40012ET3HKD580Z-W22 WEG AC Motors
Part#:40012ET3HKD580Z-W22
Manufacturer:WEG
Alt. Part#:7909322290126
Product Lifecycle:Active
Get a quick Quote!
W22 NEMA Premium Efficiency 400 HP 6P 586/7TZ 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 40012ET3HKD580Z-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating400 HP
- Rated Speed1193 rpm
- Number of Poles6 Pole
- Voltage575 V
- Flange TypeWithout
- Number of Poles 6
- Locked rotor time 52s (cold) 29s (hot)
- Mounting F-1
- Terminal box¹ Left position
- Rated current 391 A
- Locked rotor torque 220 %
- Starting Method Direct On Line
- Rotation¹ Both (CW and CCW)
- Frequency 60 Hz
- Insulation Class F
- Approx. weight³ 4115 lb
- L. R. Amperes 2542 A
- Output 400 HP (300 kW)
- Breakdown torque 250 %
- Service factor 1.15
- Altitude 1000 m.a.s.l.
- Enclosure IC411 - TEFC
- Noise level² 77.0 dB(A)
- Output rating 400 HP
- No load current 185 A
- Duty Cycle Cont.(S1)
- Synchronous speed 1200 rpm
- Frame 586/7TZ
- Rated torque 1760 ft.lb
- Ambient temperature -20°C to +40°C
- Number of poles 6
- Rated voltage 575 V
- Slip 0.58 %
- Rated speed 1193 rpm
- Moment of inertia (J) 368 sq.ft.lb
- LRC 6.5x(Code H)
- Temperature rise 80 K
- Degree of Protection IP55
- Voltage 575 V
- Standard NEMA MG-1
- Flange Without
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
