40018OT3G447/9T-W40 WEG AC Motors
Part#:40018OT3G447/9T-W40
Manufacturer:WEG
Alt. Part#:7909322549729
Product Lifecycle:Active
Get a quick Quote!

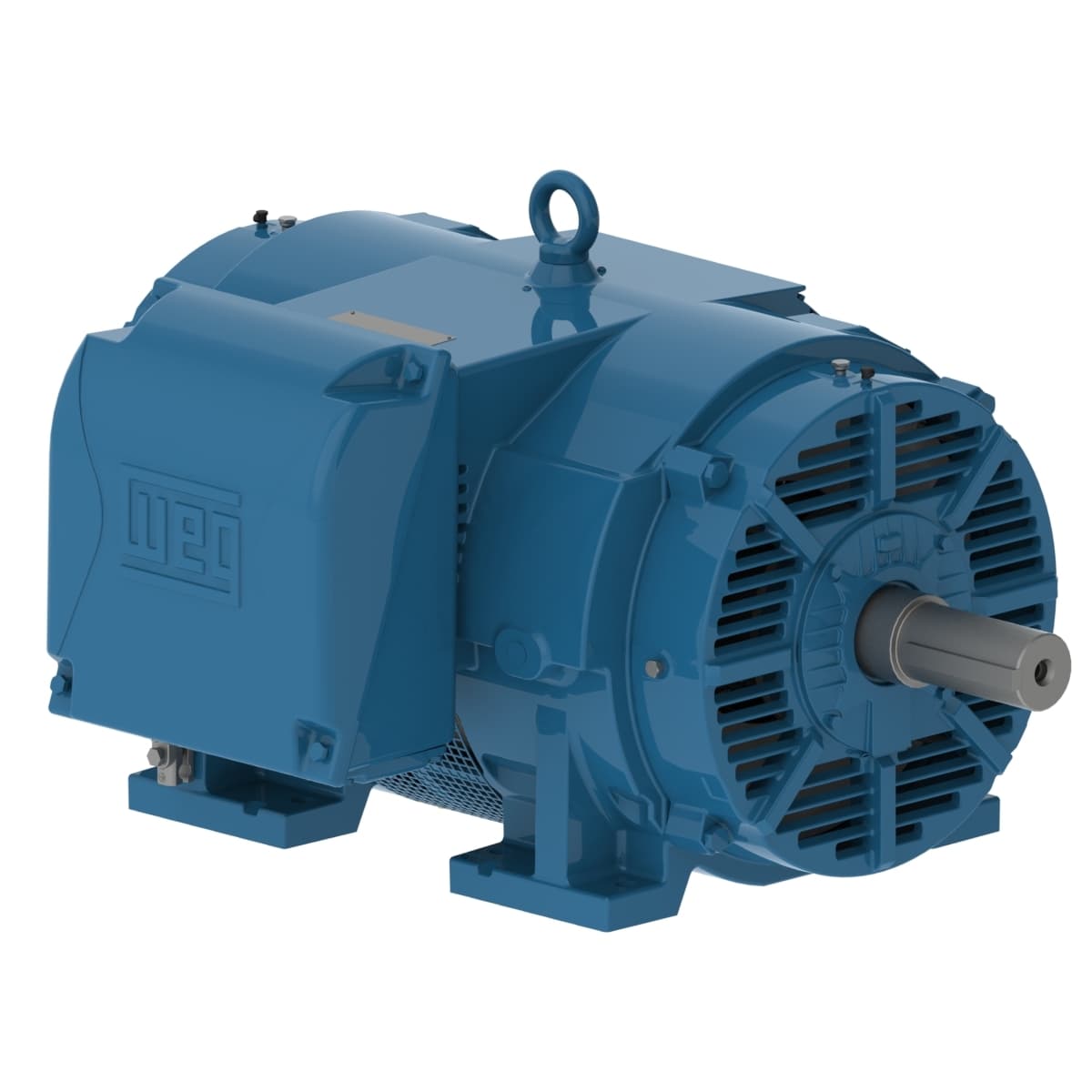

W40 NEMA Premium Efficiency 400 HP 4P 447/9T 3Ph 460 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 40018OT3G447/9T-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating400 HP
- Rated Speed1780 rpm
- Number of Poles4 Pole
- Voltage460 V
- Flange TypeWithout
- Rated current 452 A
- Frame 447/9T
- Service factor 1.15
- Temperature rise 80 K
- Enclosure IC01 - ODP
- Number of poles 4
- Output rating 400 HP
- Number of Poles 4
- Rated voltage 460 V
- L. R. Amperes 3074 A
- Rated torque 1180 ft.lb
- Locked rotor time 16s (cold) 9s (hot)
- Insulation Class F
- Altitude 1000 m.a.s.l.
- Output 400 HP (300 kW)
- LRC 6.8x(Code G)
- Moment of inertia (J) 77.6 sq.ft.lb
- Duty Cycle Cont.(S1)
- Mounting F-1
- Synchronous speed 1800 rpm
- Flange Without
- Frequency 60 Hz
- No load current 140 A
- Ambient temperature -20°C to +40°C
- Degree of Protection IP23
- Terminal box¹ Left position
- Standard NEMA MG-1
- Rated speed 1780 rpm
- Design B
- Starting Method Direct On Line
- Rotation¹ Both (CW and CCW)
- Voltage 460 V
- Slip 1.11 %
- Locked rotor torque 229 %
- Breakdown torque 229 %
- Noise level² 77.0 dB(A)
- Approx. weight³ 2360 lb
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 40018OT3G447/9T-W40 Specs
