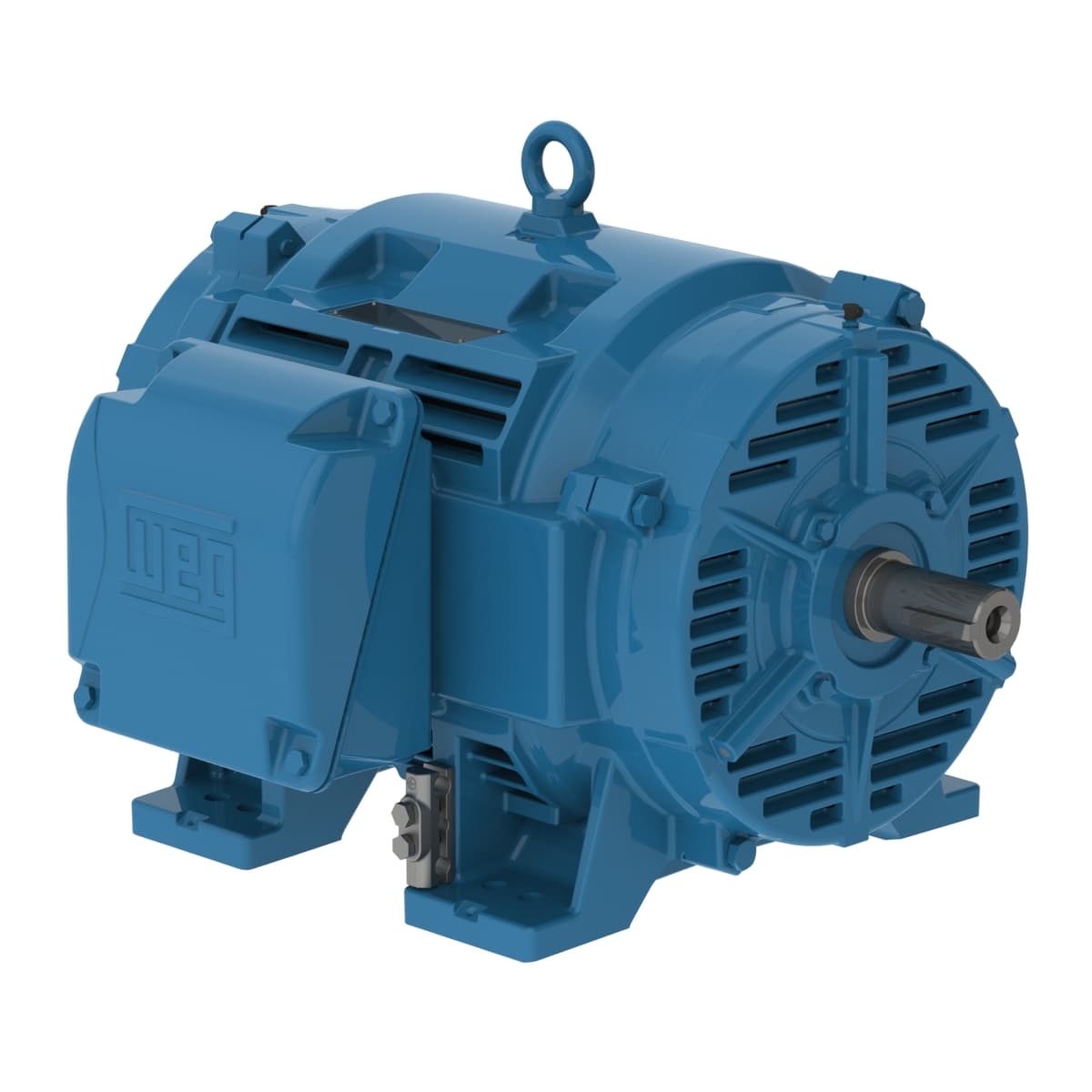

30036OT3G449TS-RFVFD WEG AC Motors
Part#:30036OT3G449TS-RFVFD
Manufacturer:WEG
Alt. Part#:7909836063896
Product Lifecycle:Active
Get a quick Quote!
W40 NEMA Premium Efficiency 300 HP 2P 447/9TS 3Ph 460 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 30036OT3G449TS-RFVFD WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating300 HP
- Rated Speed3575 rpm
- Number of Poles2 Pole
- Voltage460 V
- Flange TypeWithout
- Slip 0.69 %
- Locked rotor torque 229 %
- Starting Method VFD
- Number of poles 2
- Design A
- Altitude 1000 m.a.s.l.
- Frame 447/9TS
- Rotation¹ Both (CW and CCW)
- Locked rotor time 25s (cold) 14s (hot)
- Frequency 60 Hz
- Degree of Protection IP23
- Voltage 460 V
- Output 300 HP (220 kW)
- Service factor 1.15
- LRC 8.4x(Code J)
- Mounting F-1
- Rated current 329 A
- Insulation Class F
- Approx. weight³ 1943 lb
- Rated torque 441 ft.lb
- L. R. Amperes 2764 A
- Duty Cycle Cont.(S1)
- Flange Without
- Rated speed 3575 rpm
- Temperature rise 105 K
- Noise level² 87.0 dB(A)
- Rated voltage 460 V
- Breakdown torque 340 %
- Terminal box¹ Left position
- Number of Poles 2
- Ambient temperature -20°C to +40°C
- Enclosure IC01 - ODP
- No load current 102 A
- Moment of inertia (J) 33.7 sq.ft.lb
- Standard NEMA MG-1
- Output rating 300 HP
- Synchronous speed 3600 rpm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 30036OT3G449TS-RFVFD Specs
1-year warranty
