30036OP3HFP445TS-W40 WEG AC Motors
Part#:30036OP3HFP445TS-W40
Manufacturer:WEG
Alt. Part#:7909323929780
Product Lifecycle:Active
Get a quick Quote!

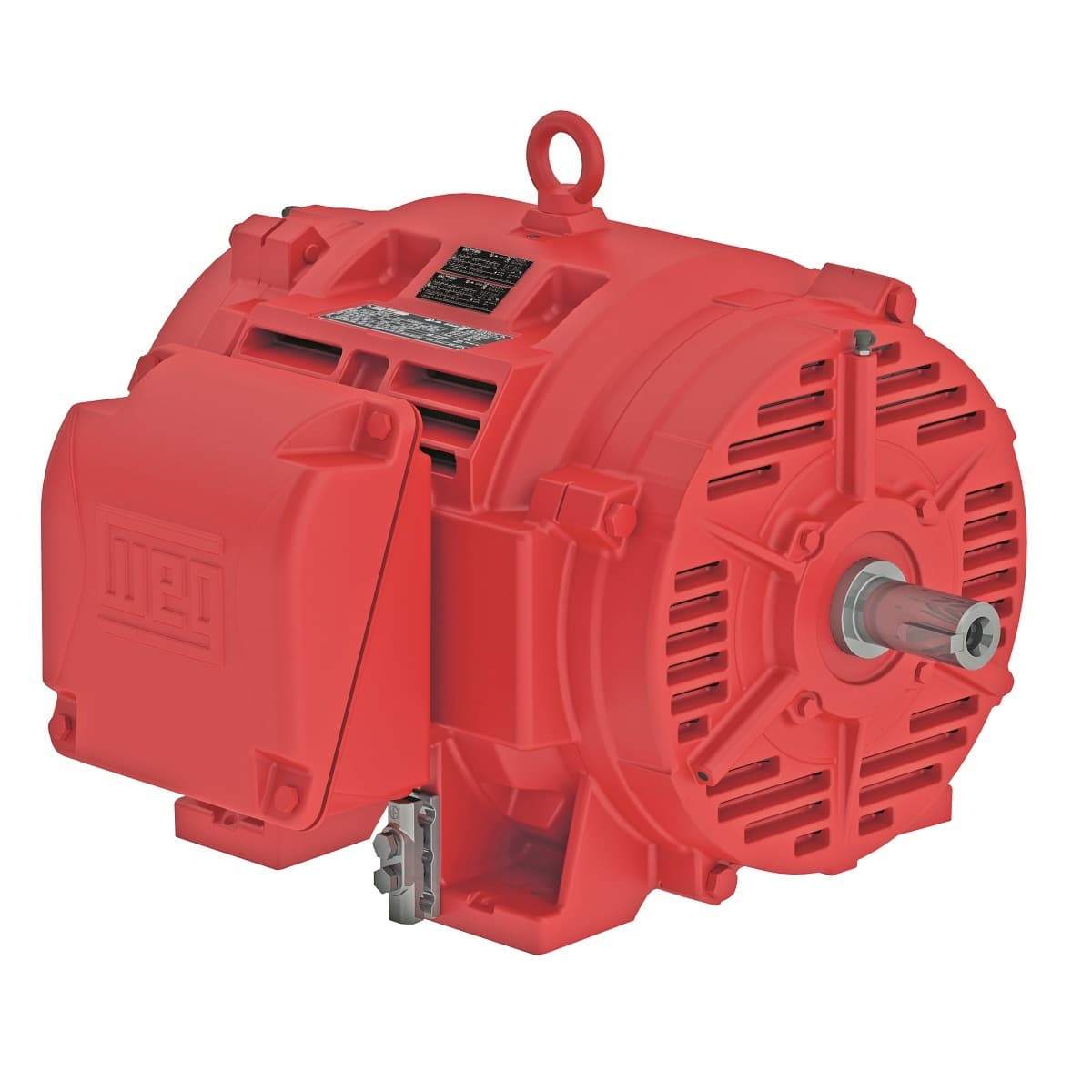

W40 High Efficiency 300 HP 2P 444/5TS 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 30036OP3HFP445TS-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating300 HP
- Rated Speed3560 rpm
- Number of Poles2 Pole
- Voltage575 V
- Flange TypeWithout
- Output 300 HP (220 kW)
- Locked rotor torque 130 %
- Approx. weight³ 1449 lb
- Standard NEMA MG-1
- Frequency 60 Hz
- LRC 6.5x(Code G)
- Duty Cycle Cont.(S1)
- Voltage 575 V
- L. R. Amperes 1700 A
- Design B
- Starting Method Direct On Line
- Output rating 300 HP
- Number of Poles 2
- Rated torque 443 ft.lb
- Altitude 1000 m.a.s.l.
- Enclosure IC01 - ODP
- Flange Without
- Slip 1.11 %
- Moment of inertia (J) 28.1 sq.ft.lb
- Rotation¹ Both (CW and CCW)
- Rated speed 3560 rpm
- Service factor 1.15
- Ambient temperature -20°C to +40°C
- Synchronous speed 3600 rpm
- Rated voltage 575 V
- Locked rotor time 32s (cold) 18s (hot)
- Temperature rise 80 K
- Rated current 262 A
- Insulation Class F
- Number of poles 2
- No load current 60.2 A
- Degree of Protection IP23
- Terminal box¹ Left position
- Frame 444/5TS
- Breakdown torque 200 %
- Mounting F-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
